ahn myLab VT-01 Instruction Manual

Mini vortex mixer 4500 rpm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Mini Vortex Mixer 4500 rpm
AHN myLab VT-01
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the myLab VT-01 and is the answer not in the manual?

Questions and answers

Related Manuals for ahn myLab VT-01

Summary of Contents for ahn myLab VT-01

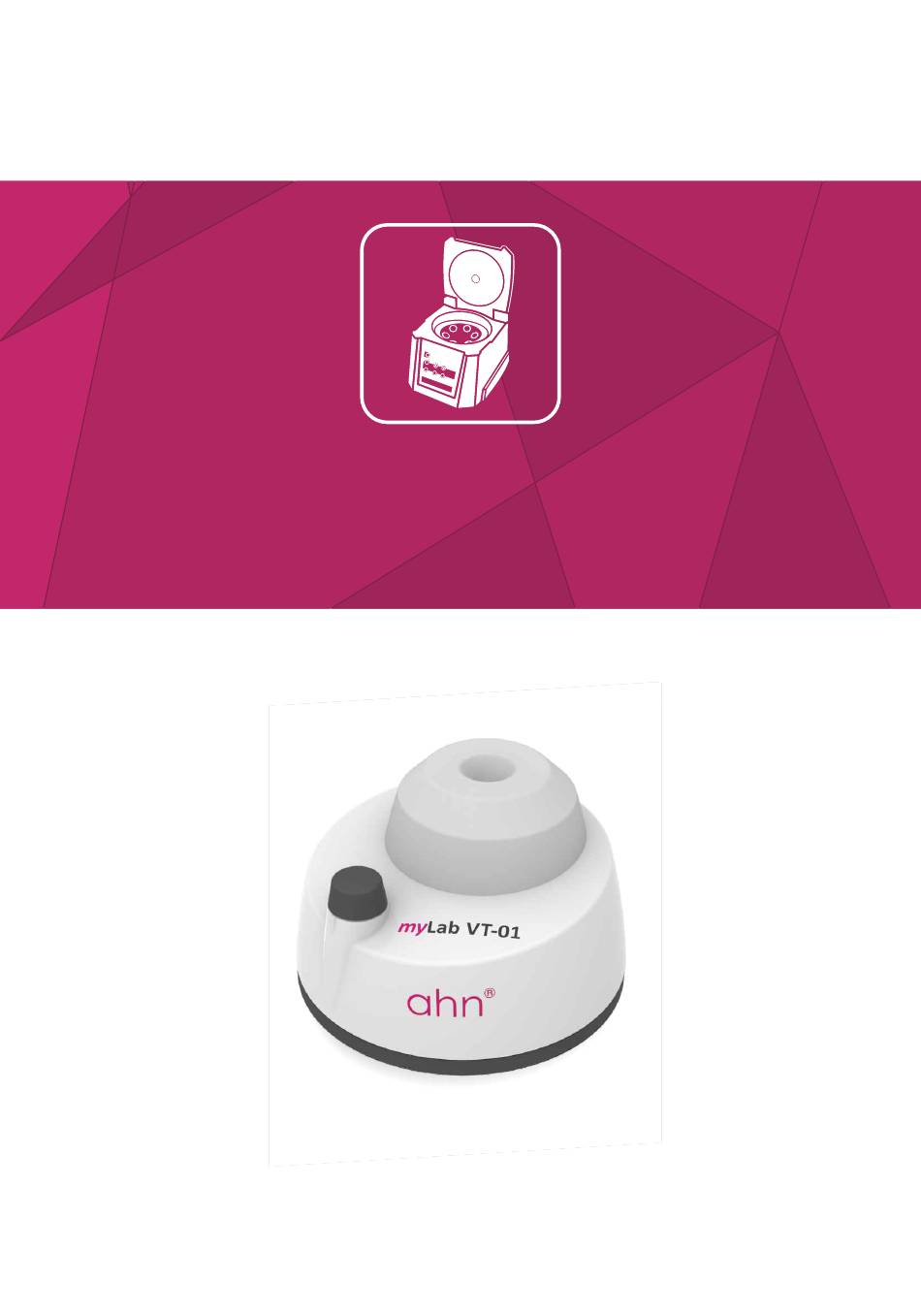

  • Page 1 Mini Vortex Mixer 4500 rpm AHN myLab VT-01 Instruction Manual...

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction................ 1 2. Intended Use................. 1 3. Features.................. 1 4. Standard Part Listing............ 2 5. Safety Precautions.............. 2 6. Operation................ 3 7. Technical Specifications............. 3 8. Maintenance & Cleaning.......... 5 9. Troubleshooting.............. 6 10. Warranty Statement............ 6 11. Product Disposal.............. 7...

  • Page 4: Introduction

    1. INTRODUCTION This Mini Vortex Mixer is available in two variants: Fixed Speed and Variable speed. It comes with a powerful brushless DC motor and delivers speed up to 4500 RPM. With an orbital motion of 4.5 mm it provides thorough mixing and it can accommodate plastic tubes & vials up to a 30 mm diameter.

  • Page 5: Standard Part Listing

    4. STANDARD PART LISTING Silicone Speed Knob Die Cast Base Variable Fixed 5. SAFETY PRECAUTIONS Read the following safety instructions before using the mini vortex mixer for your safety & the safety of the equipment. 1. Gently take the mini vortex mixer out of the packaging box and place it on a flat, stable, clean, non ‐...

  • Page 6: Operation

    7. Always use tubes up to 30 mm in diameter for best result and product safety. 6. OPERATION Operation starts automatically when the soft rubber cup is pressed down using the test tube (as shown in Press Down image) and stops once the test tube is removed.

  • Page 7: Maintenance & Cleaning

    Specification Variable Protection class according IP 43 to DIN EN 60529 Permissible relative moisture <80% 80 to 106 kPa Air Pressure Input Voltage 100 ‐ 240 V, 50 / 60 Hz Output Voltage 9 V , 1.5A Power Consumption 14 W Rated input of adaptor 0.3A 8.

  • Page 8: Troubleshooting

    9. TROUBLESHOOTING Vortex Problem Solu on Ac on Par ally Small bo om Tighten the small screw might Working bo om screw (stops in have loosened. (1/2 or 1 between) Need to adjust turns max) Not working Small bo om Tighten the small Small bo om at all.
  • Page 9 • The warranty is invalidated by any non‐factory modification, which will immediately terminate all liabilities on us for the products or damages caused by its use. The customer shall be responsible for the product or use of products as well as any supervision required for safety. If requested the products must be returned to the distributor in well packed and insured manner and all shipping charges must be paid.

  • Page 10: Product Disposal

    11. PRODUCT DISPOSAL In case the product is to be disposed of, the relevant legal regulations are to be observed. Information on the disposal of electrical and electronic devices in the European Community The disposal of electrical devices is regulated within the European Community by national regulations based on EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).
  • Page 12 ® Uthleber Weg 14 Tel.: +49(0)3631/46594-04 D-99734 Nordhausen Fax: +49(0)3631/46594-10 Germany E-Mail: info@ahn-bio.de Web: www.ahn-bio.de © 2017 AHN Biotechnologie GmbH...
