Hematocrit Centrifuge 12000 rpm
AHN myLab HC-01
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the myLab HC-01 and is the answer not in the manual?

Questions and answers

Related Manuals for ahn myLab HC-01

Summary of Contents for ahn myLab HC-01

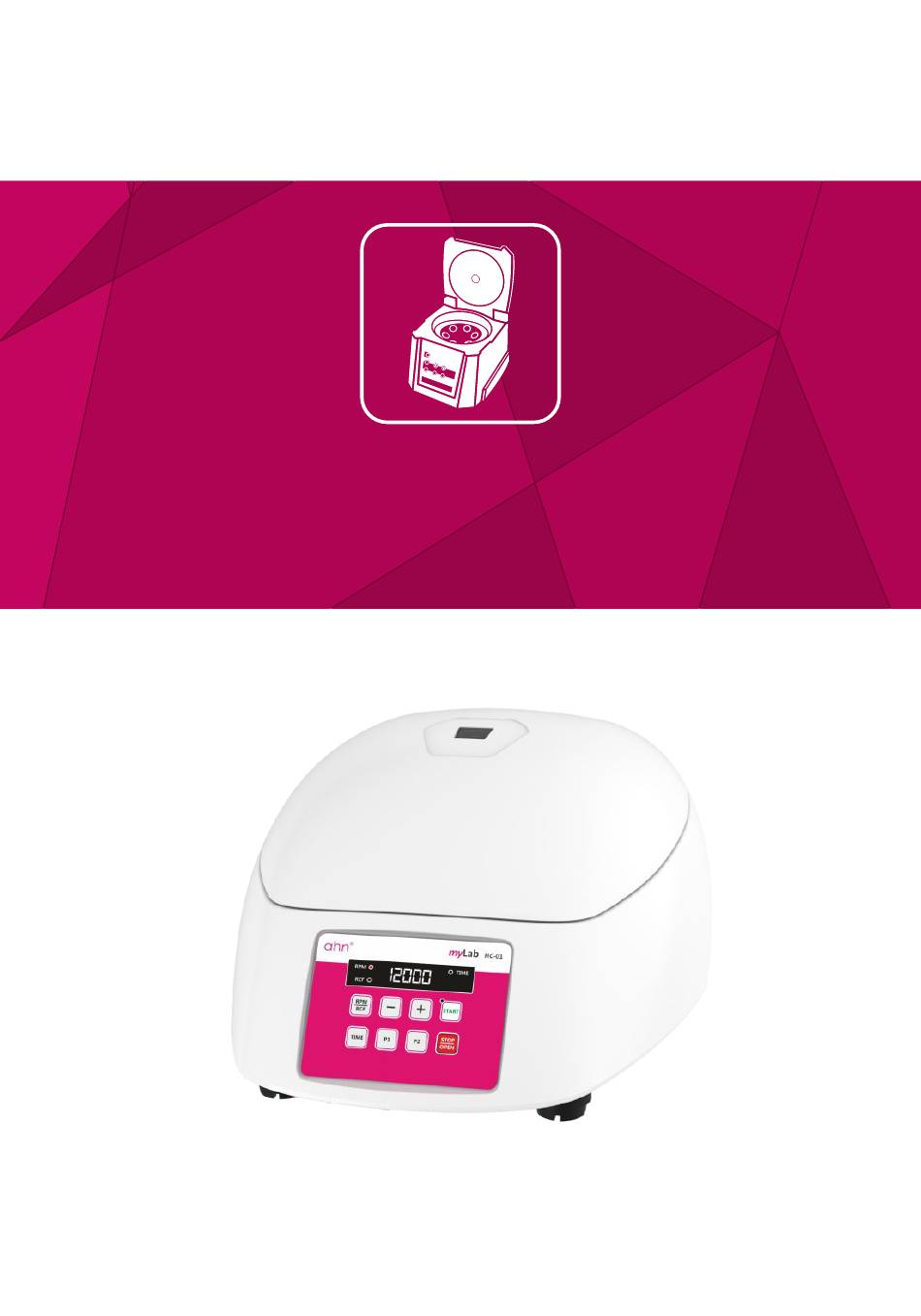

  • Page 1 Hematocrit Centrifuge 12000 rpm AHN myLab HC-01 Instruction Manual...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION INTENDED USE PRODUCT FEATURES STANDARD ACCESSORIES TECHNICAL SPECIFICATIONS SAFETY PRECAUTIONS INSTALLATION STANDARD PARTS LISTING USER INTERFACE AND DISPLAY 10. ROTOR INSTALLATION 11. OPERATING THE CENTRIFUGE 12. MAINTENANCE AND CLEANING 13. TROUBLESHOOTING 14. WARRANTY STATEMENT 15. PRODUCT DISPOSAL...

  • Page 4: Introduction

    1. INTRODUCTION This manual provides important safety information for this centrifuge. It should be kept near the centrifuge for quick & easy reference. This Centrifuge is equipped with a maintenance free drive, a large display & a simple interface for silent & efficient operation in the lab.

  • Page 5: Safety Precautions

    5. TECHNICAL SPECIFICATIONS Braking Time 70 ± 5 seconds Ambient Temperature 5 - 40 °C Permissible Relative Moisture <80% Weight 4.3 kg Approx (with rotor) Size (W x D x H) 330 X 265 X 161 mm Input Power 24 V 5.6 A Power Consumption 132 W...

  • Page 6: Installation

    6. SAFETY PRECAUTIONS Be sure to close the tubes lid tightly prior to centrifugation. Open tubes lid can be Ÿ torn off during centrifugation and can damage the rotor lid or centrifuge. Rotors and rotor lids are high-graded components which are subject to extreme Ÿ...

  • Page 7: Standard Parts Listing

    7. INSTALLATION shown in the figure below. 2. Rotate clockwise the adaptor nut to ghten the adaptor with the centrifuge. Ensure the power switch is OFF while connec ng the power adaptor. 3. The s cker on the body & jack are indica ng the posi on of the rib on the jack. While fi...

  • Page 8: User Interface And Display

    9. USER INTERFACE & DISPLAY TIME START STOP TIME OPEN Item Name Function Displays the RPM value during the operation Displays the RCF value during operation Press button to START the centrifugation. START BUTTON Press button to STOP the ongoing operation. Lid STOP/OPEN BUTTON opens automatically, after rotor comes to a stop.
  • Page 9 10. ROTOR INSTALLATION REPLACING THE ROTOR 1. To replace or install the rotor, take the rotor and load vertically onto the motor shaft. 2. Place the rotor nut in the center hole of the T - Allen Key rotor onto the motor shaft. 3.

  • Page 10: Operating The Centrifuge

    11. OPERATING THE CENTRIFUGE After properly installing the centrifuge, switch ON the centrifuge from the rear side by pressing the power switch. The lid status will be seen in the display. If the lid is open, the display will show “Lid” and if it is closed, the set RPM will be displayed. Please ensure that the Tube Holders are inside the rotor.

  • Page 11: Maintenance And Cleaning

    11. OPERATING THE CENTRIFUGE 10.3 START & STOP OPERATION Press “START” button to start operation and press “STOP” button to stop the ongoing operation. When the centrifuge is running LED light will be ON. Pressing the “STOP/OPEN” button will stop the operation.

  • Page 12: Troubleshooting

    12. MAINTENANCE & CLEANING ROTOR 1. To prevent corrosion, take out the rotor from the rotor chamber. 2. If any sample is spilt inside the rotor, wash and dry the rotor well. 3. If it is a metal rotor you can autoclave it (121 °C for 15 min). 4.

  • Page 13: Warranty Statement

    13. TROUBLESHOOTING Latch motor damaged, latch jammed or any Contact service representative Err 1 limit switch of latch got damaged Turn OFF the centrifuge, Check the rotor for propare Err 52 Rotor is stuck fit & turn ON centrifuge again. IMPORTANT NOTE: 1.

  • Page 14: Product Disposal

    14. WARRANTY STATEMENT applicable to the original purchaser. Products received without proper authorization will not be processed for warranty or service. All items returned for service should be sent with postage prepaid in the original packaging or other suitable packaging, padded to avoid damage. We will not be responsible for damage incurred by improper packaging.
  • Page 16 ® AHN Biotechnologie GmbH Uthleber Weg 14 D-99734 Nordhausen Germany Phone: +49(0)3631/65242-0 Fax: +49(0)3631/65242-90 E-Mail: info@cappahn.com www.ahn-bio.de © 2020 AHN Biotechnologie GmbH...
