- Page 1 BT-D03 HC RF Wireless Heat & Cool digital room thermostat WATTS Vision System ® User guide User guide Benutzerhandbuch Manuel d’utilisation Gebruikershandleiding Manuale d’uso Guía de Usuario Brugervejledning Bruksanvisning Bruksanvisning Käyttöopas Руководство по эксплуатации Instrukcja obsługi wattswater.eu...
-
Page 2: Table Of Contents
Table of content General information ..................................................................1. Presentation ......................................................................2. Box contents ......................................................................3. First Installation ....................................................................4. Product description ................................................................4.1 LCD logo description ..................................................................5. Mode selection ....................................................................5.1 Change temperature setting ............................................................5.1.1 Boost/Timer mode 5.1.2 AUTO mode 5.1.3 Comfort mode 5.1.4 Reduced / ECO mode 5.1.5 Anti-freeze mode... -
Page 3: General Information
General information Safety warnings and operating instructions • This product should be installed preferably by a • 2012/19/EU (WEEE directive): Products marked with this qualified professional. Subject to observation of the symbol cannot be disposed of as unsorted municipal waste above terms, the manufacturer shall assume the liability in the European Union. -
Page 4: Presentation

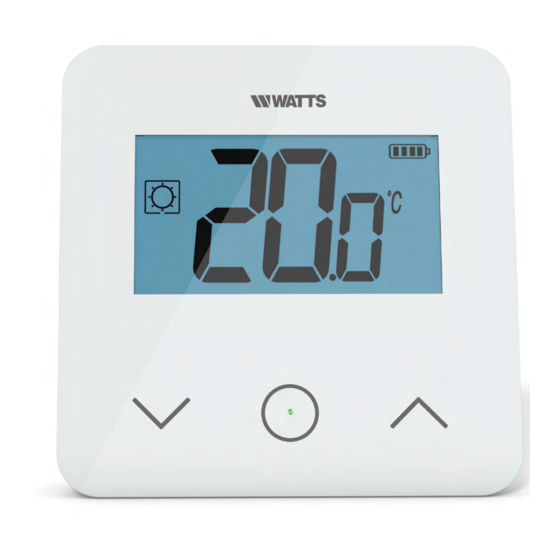

1. Presentation • Connected thermostat WATTS Vision • Connected thermostat system compatibility. ® • 3 sensitive touch buttons. • 3 sensitive touch buttons. • Wireless bidirectional communication 868 MHz. • Wireless bidirectional communication 868 MHz. • Different temperature modes setting. -
Page 5: First Installation
• Open the cover and insert the 2 AAA supplied batteries. • Close the cover. Thermostat pairing, RF wireless communication initialization. You must put your receiver or WATTS Vision touch screen in ® radio pairing mode (refer to the device leaflet). -
Page 6: Product Description
4. Product description Validation of temperature set point setting or accessing to parameter menu or displaying measured temperature/ temperature set point. Minus button or down/left button for menu navigation. Plus button or up/right button for menu navigation. 4.1 LCD logo description Icon showing current operating mode of thermostat Locked keyboard. -
Page 7: Mode Selection
5. Mode selection Menu for mode selection No user action 5 seconds after 10 s 2 seconds Automatic selection Parameter menu Selection of mode of current mode Press any key to wake-up the thermostat and activates the back- light. Hold key for 2 second to access to menu for selection of mode. -
Page 8: Change Temperature Setting
Use this mode if you need to switch off your installation. 5.1.2 AUTO mode Be Careful: In this mode your installation can freeze. This mode is activated only when thermostat is paired with a WATTS Vision touch screen BT-CT02. ® In Auto mode, the heating system will follow program according to the current time and the Comfort and Reduced setting temperatures. -
Page 9: Functions Highlights
6. Functions highlights 6.1 Access user parameter menu Automatic return (10 seconds of keyboard inactivity) Comfort, reduced, auto, stand-by, Mode selection menu Parameter menu boost or antifreeze menus 2 seconds 5 seconds 10 seconds without user 2 seconds action Screensaver Navigation menu Press any key to wake-up the thermostat and activates the Pressing again key... -
Page 10: Reversible Mode
6.2 Reversible mode 6.3 Opened windows detection Reversible menu access is only possible on two Enter user parameter 07. conditions: - thermostat isn’t associated to a touch screen or 6Z master - « reversible menu » is activated in the user parameter menu. -
Page 11: Pin Code
6.6 PIN code To activate this function enter user parameter 10. The PIN code protect the thermostat from any change of the setting as temperature or mode. When user pushes a key, “PIN” will be displayed. If user press another time a touch, he has to enter PIN number. 6.7 Other informations 6.7.1 Heating and cooling indications Logos used to indicate than system requires:... -
Page 12: User Parameter Description
7. User parameter description RF pairing activation: Pressing the key starts communication initialization: Another press of key will exit this mode. Degree unity for displaying: °C : Celsius °F : Fahrenheit Default value: °C Values: °C / °F Buzzer activation: “Yes”... - Page 13 Calibration of external room sensor (remote): This menu is only displayed if parameter rEG (#20) is set with “Amb”. Calibration must be done after a given order has been operating for a day. Place the thermometer in the middle of the room at about 1.5 m above the floor. Record the temperature shown after 1 hour.
- Page 14 Setting value for PIN code: User has to configure values of the three digits with and validate its choice with validation key. Factory setting value: 000 Value range: 000 to 999 Reset user settings: Press and hold for 5 seconds to reset, all segments light up, showing that the thermostat has been reset with the factory default setting: Set point temperatures in modes,...
-
Page 15: Installer Parameter Description
8. Installer parameter description To access to these installer parameters, installer has to go to user parameter number 15. After, he presses and holds validation key during 5 seconds: Accessing to installer parameters Installer parameters holding holding releasing button button button Selecting temperature sensor used for the regulation: - AIR : regulation with internal sensor... - Page 16 Regulation type: - HYs: regulation of hysteresis - bP: regulation of proportional type Factory setting value: bP Other values: HYs Hysteresis value: This menu is displayed only if parameter “typ” is equal to “HYs”. keys to set hysteresis value. The setting is validated with key Default value: 0.3°C Value range: 0.2°C to 3°C Choice of concrete type:...
- Page 17 Anti-condensation function of the installation: When condensation is detected, air conditioning is stopped or/and dehumidifier is activated. Factory setting value: yes Other values: no Master Heat and Cool of the zone : (parameter available for Version 2.6 and more). This menu is available only: if the thermostat is paired to a M6Z and is allowed to be capable being a Master. If the thermostat is master (“MAS”), the thermostat can manage the heat and cool additional feature ...
-
Page 18: Troubleshooting & Solution
9. Troubleshooting & solution Description of thermostat errors displaying Remote errors are: Error of temperature measurement o Internal sensor; o External sensor. Low batteries Loss of RF communication (only when remote is associated to Touch E3 or to master product). Internal sensor error Displaying of “Err”... -
Page 19: Maintenance
My Thermostat seems work correctly but the heating or the cooling doesn’t work correctly Output On the receiver: - Check the good reception of RF signal. - Check the connections. - Check the power supply of the heating element. - Contact your installer. RF communication Check the following points: - The receiver must be put at a minimum distance of 50 cm of all others electrical or wireless... -
Page 20: Dimensions & Weight
Showed in parameter menu. Vers 14 Software version BT-M6Z02 RF - BT-FR02RF BT-WR02RF / BT-WR02HC BT-PR02RF - BT-CT02 Compatible receivers Other receivers can be compatible, check on the instruction manual of your receiver. UE 811/2013 and 2010/30/UE Product conformed to Classifi... - Page 21 F: +49 (0) 6341 9656 560 http://wattswater.it Email: wide@wattswater.com Email: wide@wattswater.com Email: wide@wattswater.com http://wattswater.de http://wattswater.de http://wattswater.de Watts Ind. Ibérica, S.A. Watts Industries Polska sp.z o.o. Watts Industries Nordic AB Контакты Pol. Ind. La Llana Puławska 40A Godthåbsvej 83 http://wattsindustries.ru/contacts/ Av. La Llana, 85 05-500 Piaseczno DK-8660 Skanderborg http://wattsindustries.ru...
