Casambi Vlinca VBU-DS-IDP-W Manual

Dali controller
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

VBU-DS-IDP-W
connect by
VBU-DS-IDP-W
Version V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vlinca VBU-DS-IDP-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Casambi Vlinca VBU-DS-IDP-W

Summary of Contents for Casambi Vlinca VBU-DS-IDP-W

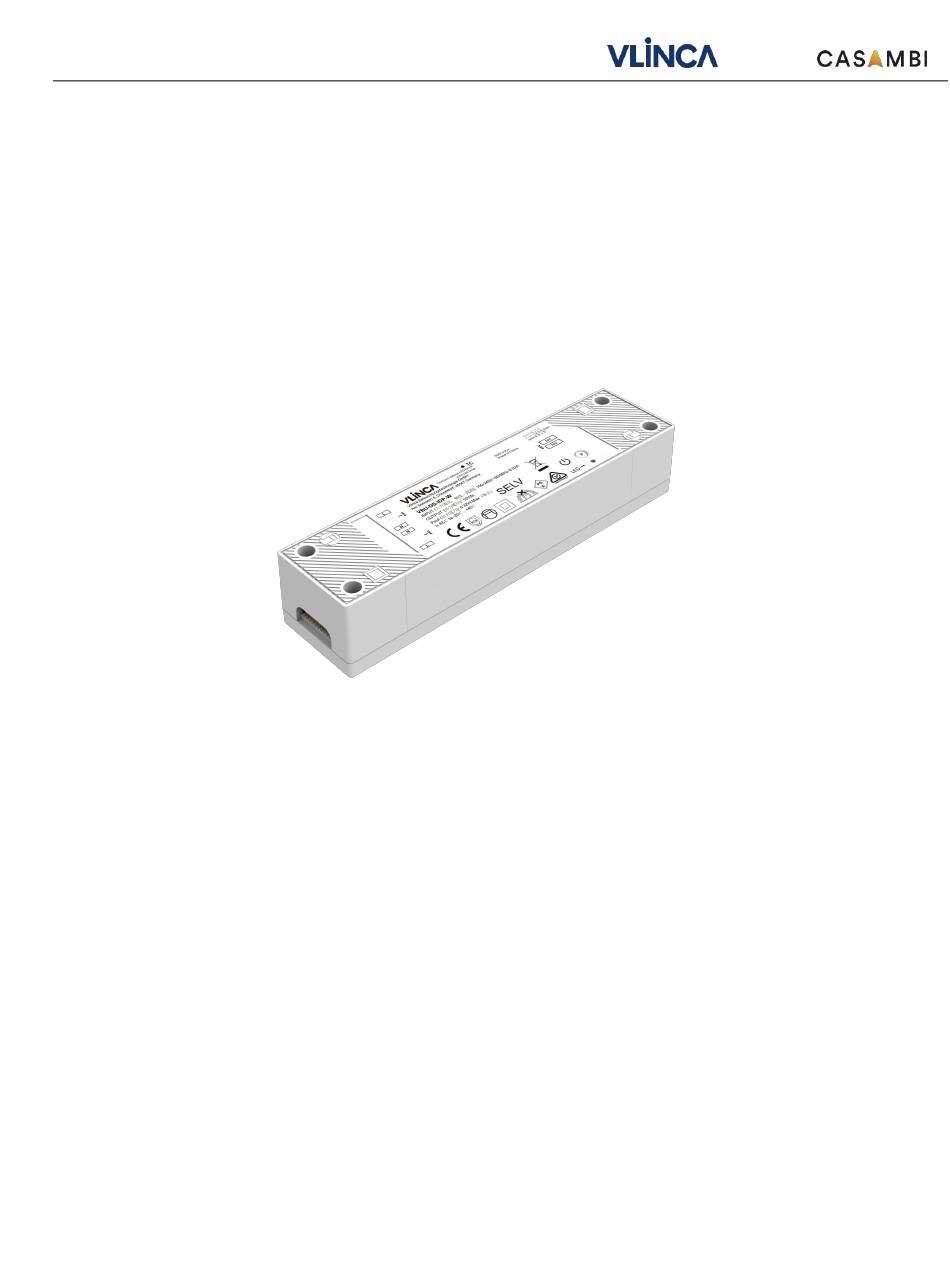

  • Page 1 VBU-DS-IDP-W connect by VBU-DS-IDP-W Version V1.0...

  • Page 2: Product Introduction

    VBU-DS-IDP-W connect by Product introduction “VBU-DS-IDP-W” is a DALI controller for CASAMBI wireless, long-range network, with different fixture profile configuration, it can control up to 8 DALI devices individually or by group. It integrates a DALI bus power supply. Fixture profiles...

  • Page 3: Technical Data

    VBU-DS-IDP-W connect by Technical data Nominal input voltage 100 … 240 Vac Input voltage range 90 … 264 Vac Input frequency 50/60 Hz Input current ≤ 20 mA No load Power consumption < 0,5W Output control interface DALI Max. number of drivers connected Firmware update OTA (Over The Air) Protections...

  • Page 4: Wiring Diagram

    VBU-DS-IDP-W connect by Wiring diagram Wired it according to the following wiring diagram. Change fixture profiles _ After wired the DALI controller, it can be seen in “Nearby devices”. _ The default profile built in device is “VBU-DS-IDP (8 ID-DT6)”. _ If need to change the fixture profile, make sure it is in unpaired status.

  • Page 5: Reset Button

    VBU-DS-IDP-W connect by Button and LED indication Reset button: To unpair the device from other network, follow the steps in Figure 3. Then, using a needle to reach the inside reset button (as Figure 4), and it will implement “Switch OFF and back ON again”. LED indication: The light flashes once indicate the device is successfully restarted.
  • Page 6 VBU-DS-IDP-W connect by Scan DALI devices _ After paired the controller into network, it is visible in “Luminaires” tab. _ Double tap “VBU-DS-IDP” icon, tap “Details”. _ Scan DALI devices to update connected devices’ short address, group address, device type, make sure they are coincident with the fixture profile features.

  • Page 7: Compliance Statement

    VBU-DS-IDP-W connect by DISPOSAL INSTRUCTIONS In line with EU Directive 2012/19/EU for waste electrical and electronic equipment (WEEE), this electrical product must not be disposed of as unsorted municipal waste. Please dispose of this product by returning it to the point of sale or to your local municipal collection point for recycling.
