Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty. Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions. Note: Post Mounting Hardware is NOT included in this kit. Please confirm with your local building permit office to determine the correct hardware in your area.
Page 3

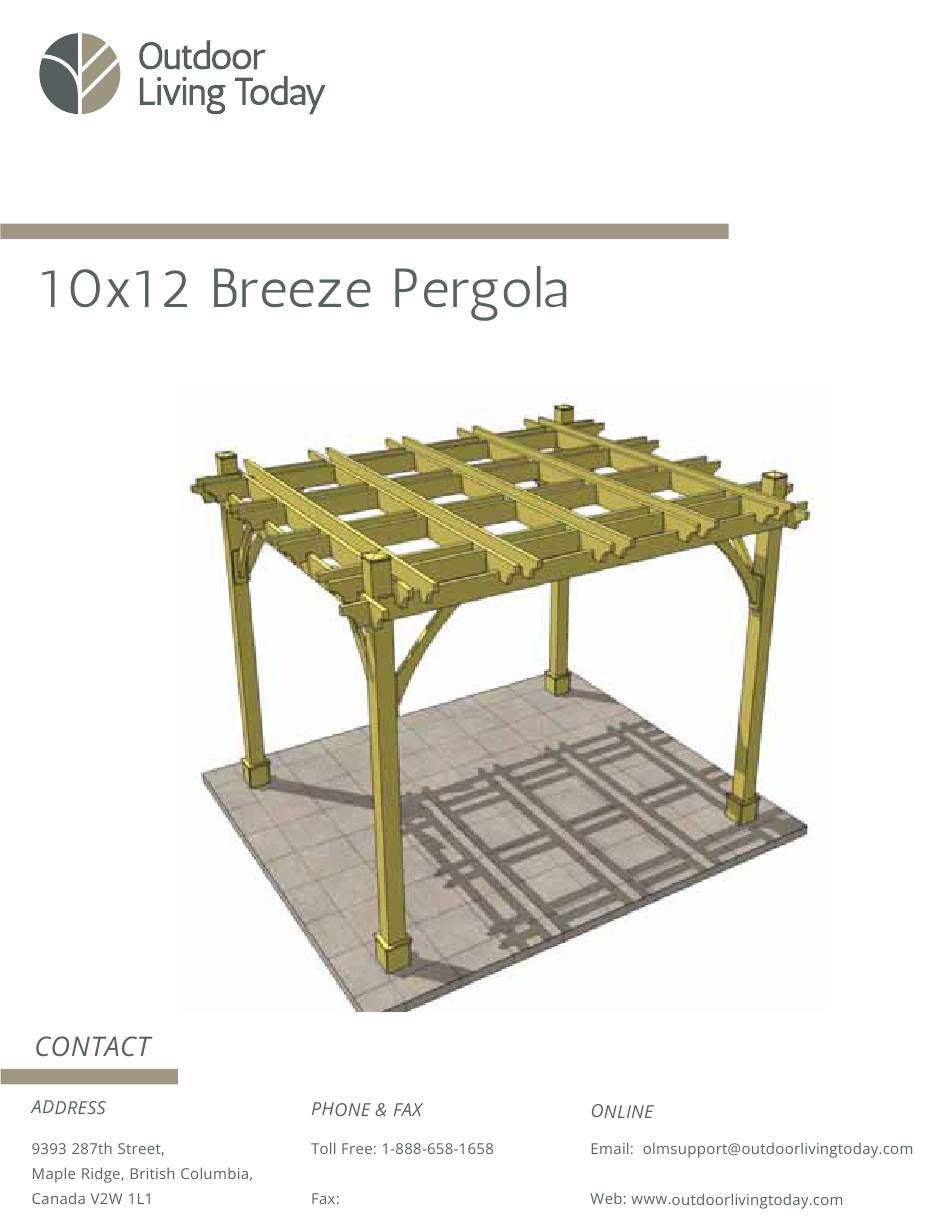

10X12 BREEZE PERGOLA Thank you for purchasing one of our Breeze Pergola's. Please take the time to identify all the parts prior to assembly. 4 LADDER SECTIONS Parts Lists: Specifications: Thickness Width Length Qty. Wood Species - Western Red Cedar A - Posts 5 1/2”...
10x12 BREEZE PERGOLA HARDWARE PACKAGE Hardware Kit (Provided) Post Mount Bracket 4” 4 Pc. 2 1/2” 2 1/2” SS Finishing Nail 2” Square Drive Bit 2” Stainless Wooden Lag Screw Dowel (8) and Washer (20 each) Tools Required (Not Provided) Hammer Wood Clamp Tape Measure...
Page 5
Important - Western Red Cedar Lumber and Timbers will Laying out your Footprint have surface splitting that occurs as lumber seasons To determine the proper placement of your and drys to the moisture content in your area. Splitting 5 1/2” x 5 1/2” Posts, see the exploded view or “checking”, as it is referred to, can be 1/8”...
Page 6
Important- You will require the assistance of 2 helpers to support the posts up to Step 7. Girder facing out. Lift up a completed Post/Girder Assembly slowly and carefully. Make sure Girder is facing outward. If Post Mount Hardware is installed, position bottom of Posts in Hardware.
Page 7
Carefully lower (C) Girder down into notch of (B) Girders. Be careful not to twist the Girder when dropping down into place. Lag Screw Girder to Post. Pilot hole first. Note: Pilot hole Post first with 1/4” drill bit. Use 2 Washers and Lag Screws.
Page 8
With Stub Joists positioned correctly on Joist, attach each Stub Joist with 2 - 2 1/2” screws. Stub Joists should be flush with top and bottom of Joist with all notches facing down. There are two Joist / Stub Joist Assembly’s, complete both now.
Page 9
On a flat surface, position Ladder Blocking (F) where marked on top edge of Joist (D) and screw with 2 - 2 1/2” screws per end. Ladder Blocking should be flush with top and bottom of Joist with all notches facing down. 2 - 2 1/2”...
Page 10
Notch slides onto Girder Carefully slide Joist notches of Ladder Section onto Girder. Try to align notches so they fall into place all at once. With notches of Ladder Section all sitting correctly on Girder, slide Section approximately 7” from Post. Check alignment of opposite end of Ladder Section.
Page 11
(H) Right Side There are 4 Left (G) and 4 Right Sided Corner Bracket Corner Brackets (H). Corner Bracket Post Mounts (I) must be attached to the bottom end of each Corner Bracket before attaching to Posts. Wooden Dowel (I) Corner Bracket Post Mounts...
Page 12
4” screws countersunk 1/2” below surface. Bracket Left Sided Spacer flush Corner Bracket with bottom of Girder. Important- Posts may need to be aligned so they are true and square to mount Corner Brackets correctly. Use a Level to determine correct Post position. Lift completed Left Sided Corner Bracket up and align bottom of Bracket Spacer flush with bottom of Girder.
Page 13
Post Post Skirtings with dado cuts - (K) Dado cut skirting(K) Skirting Caps (L) Skirting with Cleat (J) Post Skirtings with Cleat (J) Post mount bolts Locate all Post Skirting pieces. Position 2 post skirtings around the base of post as shown above.
Page 14
No Please call, write or email us at: material may be modified, edited or Outdoor Living Today taken out of context such that its use creates a false or misleading statement Canadian Address...
