Top Shelf End Bracket (J)
Upper Shelf (D)
Upper Side Shelf Skirting (A)
Upper Front Shelf
Skirting (C)
Bottom Shelf Support (F)
A. Upper Side Shelf Skirting - 2 pcs (5 1/2" x 20 3/4")
B- Upper Rear Shelf Skirting - 1 pcs (5 1/2" x 42")
C- Upper Front Shelf Skirting - 1 pcs (3 1/2" x 42")
D - Upper Shelf - 1 pc (21 1/4" x 42 1/2")
E - Legs - 4 pcs (3 1/2" x 34")
F - Bottom Shelf Support - 2 pcs (3 1/2" x 17 3/4")
G - Bottom 3/4" x 3 1/2" x 40 1/2" Shelf Pieces - 5 pcs
H - Top Shelf Ledge - 1 pc (4 3/4" x 40 1/2")
I - Top Shelf Back Plate - 1pc (5 1/2" x 40 1/2")
In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support
Line @ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our commitment to you
to courier replacement parts, free of charge, within 10 business days of this notification.
Replacement parts will not be provided free of charge after the 30 day grace period.
Toll Free 1-888-658-1658
Potting Bench Assembly Manual
Top Shelf Ledge (H)
Bottom Shelf Pieces (G)

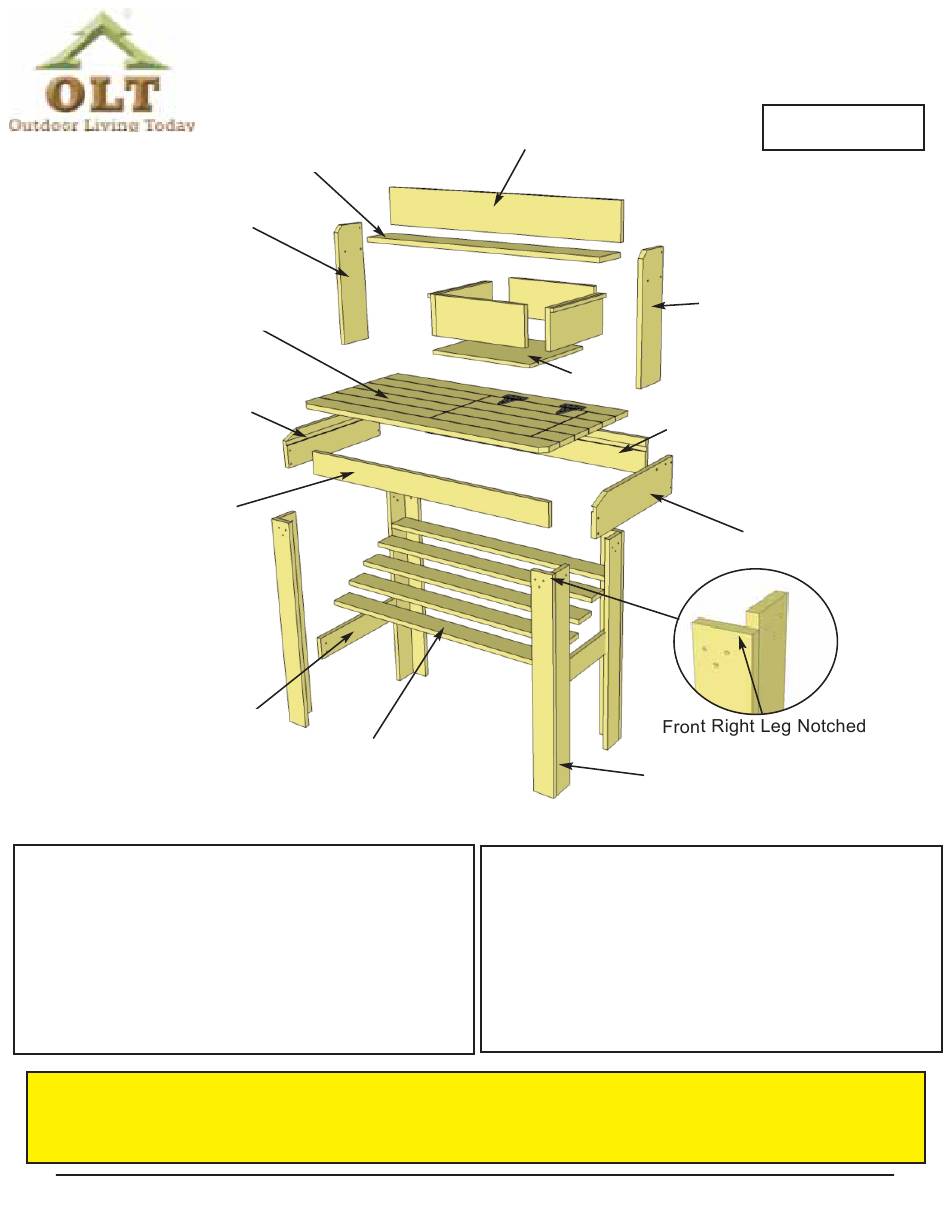

Potting Bench Parts and Hardware List
1 Front Leg Notched
www.outdoorlivingtoday.com
Outdoor Living Today
Top Shelf Back Plate (I)
L
K
M
J - Top Shelf End Bracket - 2 pcs (5 1/2" x 18")
K - Side Sink Framing with ledge 2 pcs (5 1/2" x 13")
L - Front & Rear Sink Framing 2 pcs (5 1/2" x 14 1/2")
M - Plywood Sink Bottom 1 pc (13" x 16")
Hardware
1 1/4" Finishing Nails, 1 1/4" Screws, Square Bit
Tools Required
Screw Gun, Level, Hammer, 1/16" Drill Bit
Page 1
Revision #8
March 17th, 2015
Top Shelf End Bracket (J)
Upper Rear Shelf Skirting (B)
Upper Side Shelf Skirting (A)
Legs (E)
