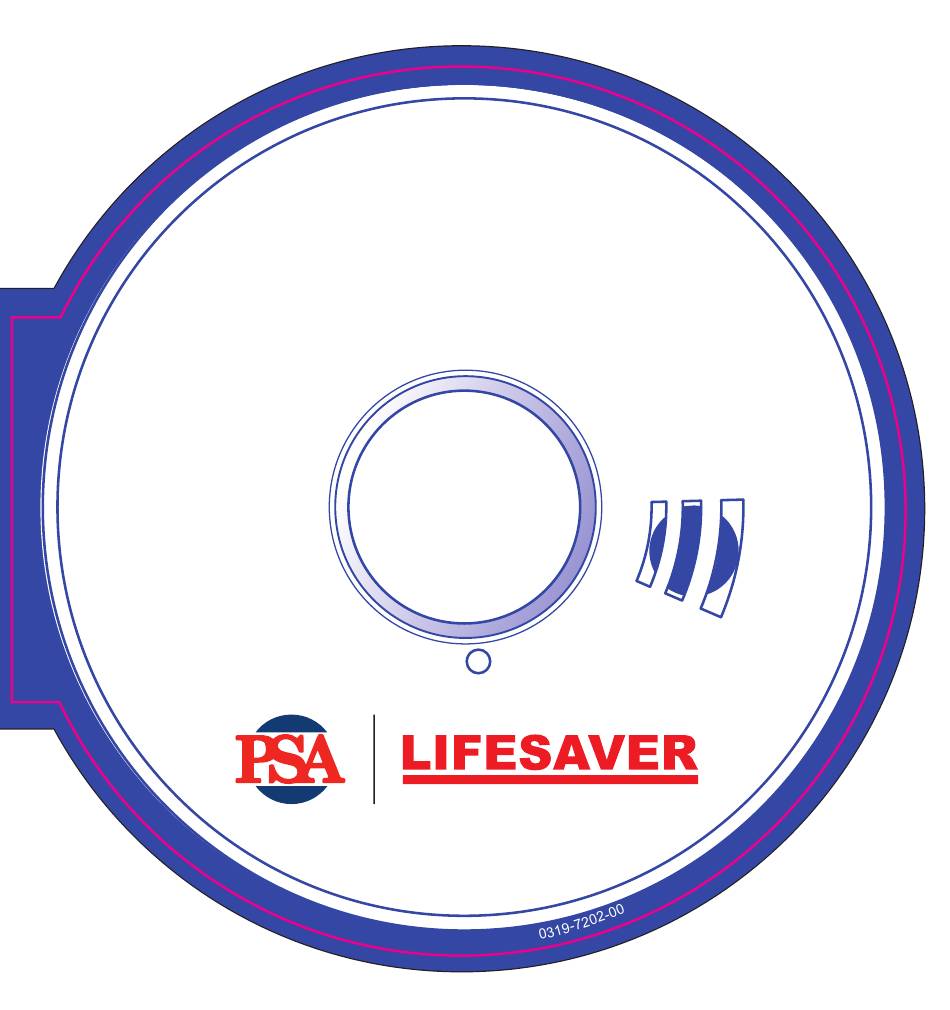

- Page 1 All manuals and user guides at all-guides.com Quick Start Guide LIF10YPEW Interlink Network Setup Please Read All Instructions First!
- Page 2 all-gui des.co...
- Page 3 All manuals and user guides at all-guides.com Section 1 Quick Start RF Interlink Network Setup Section 2 Adding a Device to an Existing RF Interlink Network Section 3 Resetting a Device...
- Page 4 All manuals and user guides at all-guides.com Install Remove Power Up ONE Device Rotate one unit completely onto the mounting bracket to activate power. One chirp when powered, and the Red LED will glow on/o every second.
- Page 5 All manuals and user guides at all-guides.com Push button twice On the First Powered Device Push the button two times on the rst powered device. 2 soft beeps and 2 Red LED ashes every 2 seconds with a "sonar" ping sound. This is the network coordinator.
- Page 6 All manuals and user guides at all-guides.com Install Remove Power up Remaining Devices Power up all of the remaining devices by rotating them completely onto their mounting brackets. One chirp at power on. Each unit gives a tweedle sound and Red LED ashes 3 times every 2 seconds after joining the network.
- Page 7 All manuals and user guides at all-guides.com Push button twice Pick Any Device Push the button twice on any unit that was powered and joined the network. Red LED stops ashing on each unit as network is closed.
- Page 8 all-gui des.co...
-
Page 9: Setup Complete
All manuals and user guides at all-guides.com Setup Complete! If all devices are no longer ashing the Red LED, and the "sonar" ping has stopped, the devices are now connected. Congratulations! Please mount alarms in your home. Refer to user guide for detailed installation instructions. - Page 10 All manuals and user guides at all-guides.com Section 2 Adding a Device to an Existing RF Interlink Network...
- Page 11 Push Button Twice on any Installed unit. To open the RF Interlink Network, push the button twice on any previously connected LIF10YPEW unit Soft beeps and Red LED ashes every 2 seconds with a "sonar" ping sound. Join Mode is open.
- Page 12 All manuals and user guides at all-guides.com Install Remove Power On the New Device(s) Rotate the new device(s) completely onto the mounting bracket(s). One chirp at power on. Each new unit gives a tweedle sound and Red LED ashes 3 times every 2 seconds after joining the network.
- Page 13 All manuals and user guides at all-guides.com Choose ANY Connected Device Push button twice on any connected device to close the network. Red LED stops ashing on each unit as network is closed.
- Page 14 all-gui des.co...
- Page 15 All manuals and user guides at all-guides.com Setup Complete! If all devices are no longer ashing the Red LED, and the "sonar" ping has stopped, the devices are now connected. Congratulations! Please mount alarms in your home. Refer to user guide for detailed installation instructions.
-
Page 16: Resetting Your Device
All manuals and user guides at all-guides.com Section 3 Resetting Your Device If you encounter an issue at any point during the RF Interlink network setup process, or if you need to remove a device from a network, you may reset the device by following the subsequent directions. -
Page 17: Resetting The Device
All manuals and user guides at all-guides.com Resetting the Device Push button twice to open Join Mode. Unit will respond with 2 or 3 ashes, indicating Coordinator or RFD respectively. Sonar Ping will sound. - Page 18 All manuals and user guides at all-guides.com Push and hold button Resetting the Device Press and Hold button for 4 to 5 seconds. Unit will respond with 2 soft beeps and 4 quick ashes indicating that the wireless settings have been reset and the unit is now a standalone alarm.
- Page 19 All manuals and user guides at all-guides.com Need more help getting started? Visit www.psaproducts.com.au to view video tutorials. Consult the User Guide for more detailed instructions on product installation and use.
