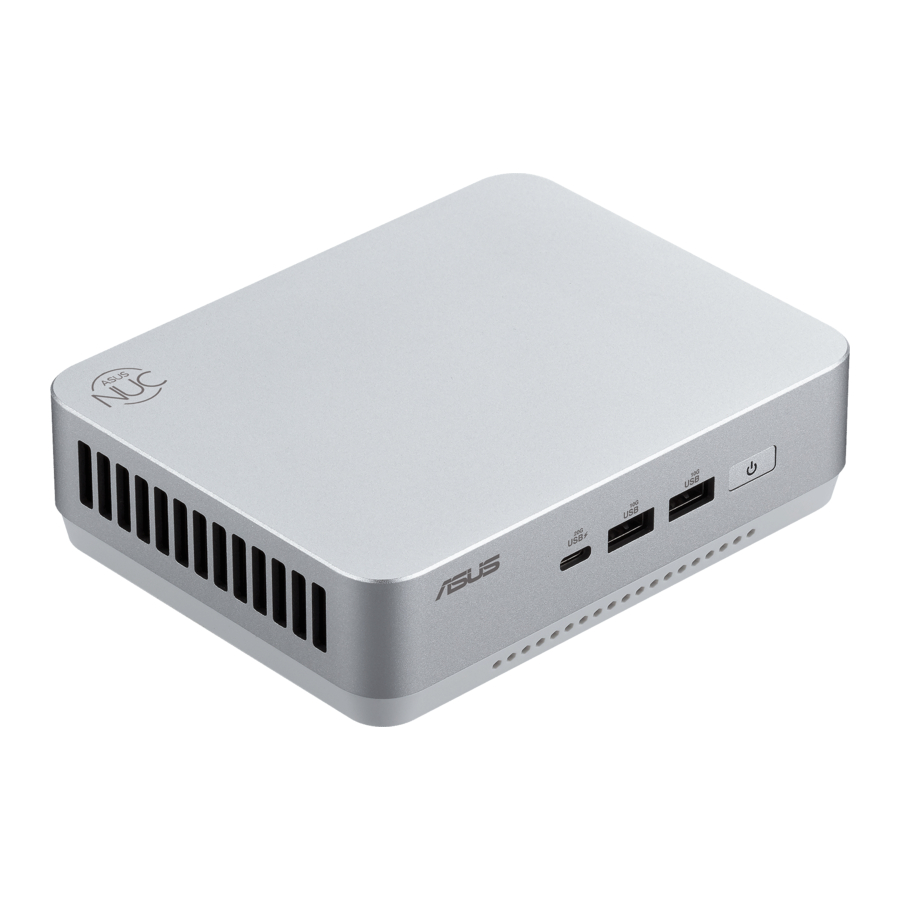

Asus NUC 14 Pro+, NUC14RVS, NUC14RV Manual

Introduction

This User Guide provides basic step-by-step installation instructions for these products:

• ASUS NUC 14 Pro+ Mini PC/ASUS NUC 14 Pro+ Kit

Before You Begin

The steps in this guide assume you're familiar with computer terminology and with the safety practices and regulatory compliance required for using and modifying computer equipment.
Disconnect the computer from its power source and from any network before performing any of the steps described in this guide.
Failure to disconnect power, telecommunications links, or networks before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.
Follow these guidelines before you begin:

• Always follow the steps in each procedure in the correct order.
• Create a log to record information about your computer, such as model, serial numbers, installed options, and configuration information.
• Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station isn't available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the ASUS NUC, observe all warnings and cautions in the installation instructions.
To avoid injury, be careful of:

• Sharp pins on connectors
• Sharp pins on circuit boards
• Rough edges and sharp corners on the chassis
• Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
• Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.

Tools Needed

Open the Chassis

Using a flat head screwdriver twist the chassis lock a quarter turn to unlock the chassis. Then slide the latches toward the middle, and lift lid up.

Open Fan Assembly

Push tabs to the sides of the chassis. Then lift the fan assembly up.

Upgrade System Memory

The ASUS NUC 14 Pro+ Mini PC NUC14RVS has two 262-pin DDR5 SO-DIMM sockets.
To upgrade memory, be sure to select memory modules that meet these requirements:

• 1.1V low voltage memory
• 4800/5200/5600 MHz SO-DIMMs
• Non-ECC
• Up to 96GB of system memory supported with 2 SO-DIMMs using 48GB memory modules

Find compatible and validated memory modules in the ASUS Qualified Vendor List:

• ASUS NUC 14 Pro Qualified Vendor List

NOTE
If you plan to install only one memory module, install it in the lower memory socket. Be aware that system performance may be degraded when running a single memory module.

Upgrade to Different Memory

1. Observe the precautions in "Before You Begin".
2. Turn off all peripheral devices connected to the computer.
3. Turn off the computer and disconnect the power cord.
4. Remove the computer's bottom chassis cover.
5. Remove the pre-installed memory module
   1. Gently spread the retaining clips at each end of the memory socket, which causes the module to pop out of the socket (C).
   2. Holding the module by the edges, lift it away from the socket, and store it in an anti-static package.
6. Install the new memory module
   1. Align the small space at the bottom edge of the memory module with the key in the socket.
   2. Insert the bottom edge of the module at a 45-degree angle into the socket (A).
   3. When the module is inserted, push down on the outer edges of the module until the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

Install Additional Memory

1. Observe the precautions in "Before You Begin".
2. Turn off all peripheral devices connected to the computer.
3. Turn off the computer and disconnect the power cord.
4. Remove the computer's bottom chassis cover.
5. Install the additional module:
   1. Align the small space at the bottom edge of the memory module with the key on the socket.
   2. Insert the bottom edge of the module at a 45-degree angle into the socket (A).
   3. When the module is inserted, push down on the outer edges of the module until the retaining clips snap into place (B). Make sure both retention clips are firmly secure.
6. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.
7. Replace the computer's cover and reconnect the power cord.

Changing the system storage

The ASUS NUC 14 Pro+ Mini PC NUC14RVS contains

• one 80mm connector supporting NVMe SSD
• one 42mm connector supporting NVMe SSD

Find known compatible and validated storage devices in the ASUS Product Qualified Vendor List:

• ASUS NUC 14 Pro Qualified Vendor List

Install M.2

To install an M.2 SSD:

1. Remove the tool less plunger from the socket.
2. Remove the pre-installed SSD from the connector.
3. Align the space at the bottom of the new M.2 SSD to the key on the connector.
4. Insert the bottom edge of the M.2 SSD into the connector (A).
5. Secure the card to the tool less standoff with the plastic plunger (B).

Close the Chassis

After all components have been installed, close the ASUS NUC chassis. ASUS recommends this be done by hand by aligning the chassis bottom cover and then slowly sliding the cover to the closed position.

Locking the chassis

To lock the chassis for security, push the tabs to the outside of the chassis. Use the flat head screwdriver again to turn the chassis lock a quarter turn into the locked position.

Use the VESA Bracket

(Optional)
Follow these instructions to attach and use the VESA mount bracket:

1. Using the four small black screws that were included in the box, attach the VESA bracket to the back of the monitor or TV.

2. Attach the two slightly larger black screws to the bottom chassis cover of the ASUS NUC.

3. Slide the ASUS NUC onto the VESA mount bracket.


Connect Power

Each ASUS NUC model includes a region-specific AC power cord. Please check the box to make sure the power cord included is compatible with your intended usage.

Set Up Microsoft® Windows 11

Microsoft Windows 11 is already installed on the ASUS NUC. The first time you start the computer, you are guided through the Windows 11 setup steps, including:

• Selecting your region and language.
• Accepting the Microsoft Windows license terms.
• Personalizing Windows and assign a PC Name.
• "Get Online" dialog to pick a wireless network (this step is optional).
• Choosing Express Settings or Customize.
• Assigning a Username and Password.

Reinstalling the Operating System
If you upgrade or replace the computer's drive, you may need to install a new version of the operating system. See these resources:

• SupportedOperatingSystems
• WindowsSetupGuide

Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

• Allow the MyASUS Application to detect out-of- date drivers.
• Manually download drivers, BIOS, and software from ASUS Download Center:
  • ASUS NUC 14 Pro Download Center
    • Select your model from the drop-down menu.

Operating System Recovery

There's a Windows recovery partition on the ASUS NUC. You can use this partition to Refresh, Reset, or Restore Windows. Here is what each of these actions do:

Before performing a Refresh or Reset:

• Make sure to back up all personal data to external storage.

To access the recovery media:
