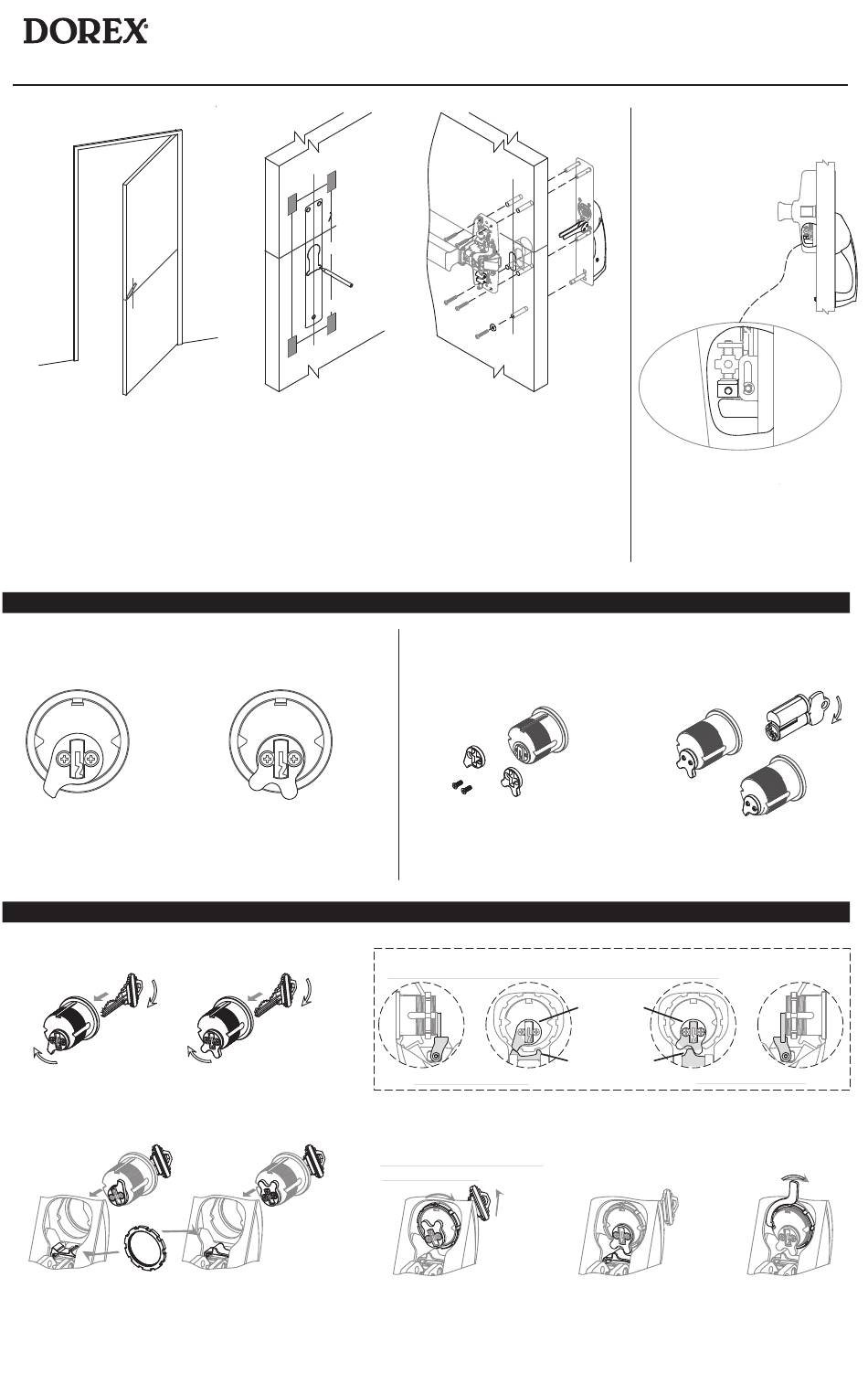

DX1 TP
Pull Handle Trim For Exit Device
L C
X
X
RHR shown
(LHR opposite)
1. Prepare door for exit device. See exit
device instructions for holes, backset
(line X-X), and center lines.
2. Transfer line X-X from inside (exit device)
side of door to outside (trim side) of door.
Use extra care if edge of door is beveled.
Be sure line X-X is parallel to edge of door.
CYLINDER INSTALLATION
Cylinder Cam's Functions
For Lock or unlock Function
1. Switch between Locked
and unlocked state using
key, handle retracts
latchbolt.
LOCK OR UNLOCK / NIGHT LATCH FUNCTION INSTALLATION
1. Use key to rotate cam upwards before installing Cylinder .
Lock/Unlock Function
2. Insert Cylinder and screw in Cylinder Lock Nut
until Cam is free to rotate.
Lock/Unlock Function
X
Hinge
Side
C L C L
X
Outside
3. Locate X-X line and prepare required holes
with template.
4. Determine trim function and assemble trim.
(see "CYLINDER INSTALALATION")
NOTE: See "APPLICATION CHART" on back
For Night Latch Function
2. Always locked.
* Key can unlock the lock,
but once removed, the lock
will return to its locked position.
Night Latch Function
Night Latch Function
page for different trim functions.
Cylinder Cam Placement for Lock or Unlock
/ Night Latch Installation
STD Cylinder
1. Remove screws, switch cam's direction
and fasten screws back in place.
* Standard Applications Length : 1-1/8"
Cam's position after installation
*Cam's notch must be aligned with the Transmitting Switch
Lock/Unlock Function
3. Use key to rotate Cam to the
position where it can drive the
transmitting switch.
(Refer to illustration according to
respective function)
NOTE:The illustrations for steps 3,4,5 correspond to Night Latch Function;
Lock or Unlock Function follows the same installation procedure
1
Installation Instructions
The following step is
only applicable for
Rim and Vertical Rod
C L C L
Devices.
NOTE: Check that the Trim's
Actuating arm engages
the Exit Device correctly.
I/C Core
2. Adjust cam into position
and insert I/C Core.
I/C Core Applications Legth : 1-3/8"
Cylinder Cam
Transmitting Switch
Night Latch Function
4. Fasten Cylinder Lock
nut completely
5.After checking that
the function is
operating properly,
tighten with wrench.
