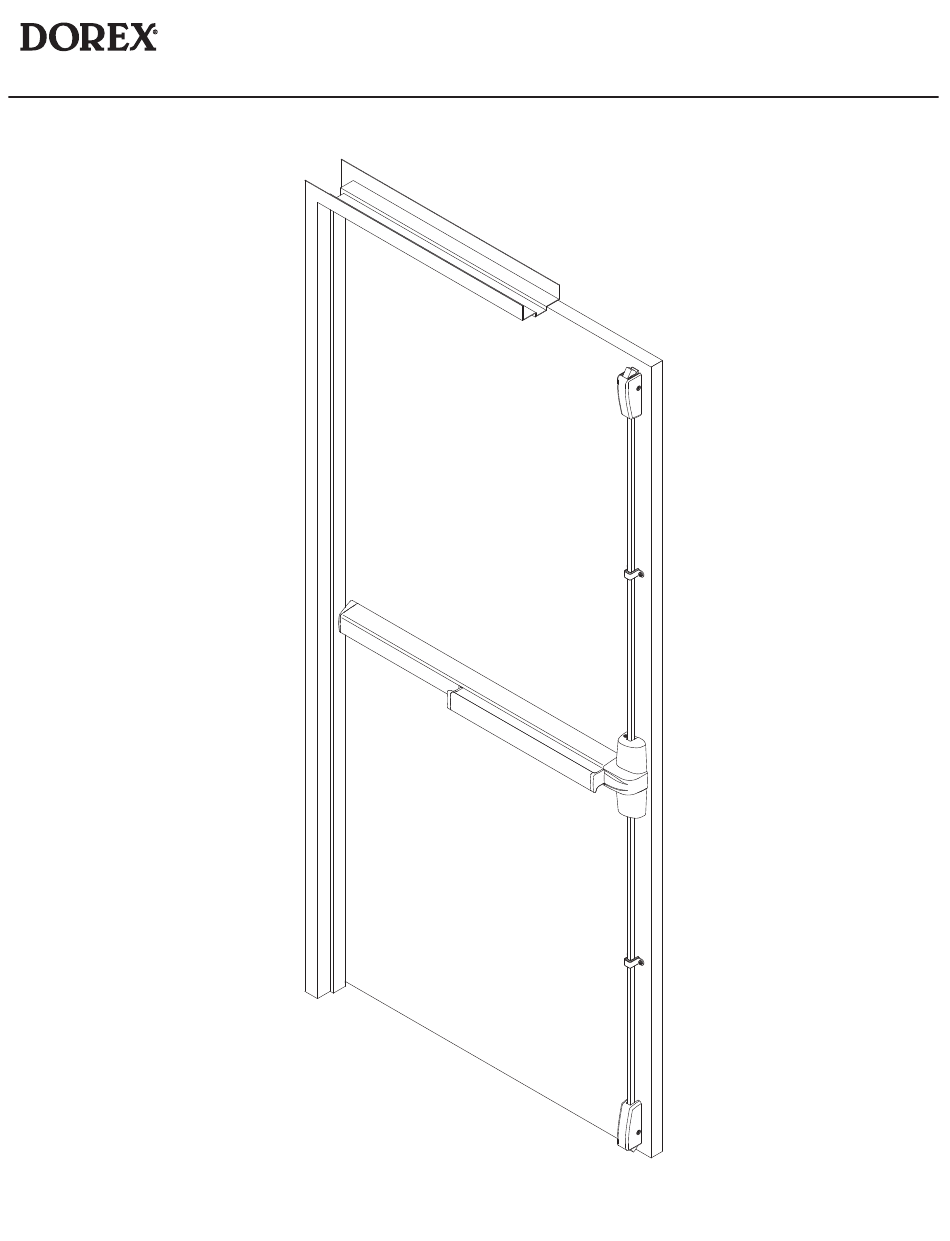

- Page 1 DX1 PV/FV Installation Instructions Grade 1, Surface vertical rod device (Panic or Fire Exit Hardware) WD-OD002(663) DX1PV-FV-INST 2020-04...
-
Page 2: Components Overview
COMPONENTS OVERVIEW Top Strike Strike Screws Top Latch Sex Bolts Latch Cover Screws Latch Cover Latch Screws End Cap Screws End Cap Bracket Top Rod End Cap Sleeve Rod Guide Rod Guide Screws End Cap Bracket Screws Mechanism Case Cover Plate Side Screws Side Screws Center Case... -
Page 3: Screw Chart
SCREW CHART APPLICATION METAL SEX BOLTS WOOD No.10-24 x 1-11/32" 4 PCS No.10-24 x 1-11/32" No.10-12 x 1-11/32" No.10-24 x 1-3/32" 4 PCS 4 x PCS Center Case Screws 4 x PCS No.10-24 x 1-11/32" 2 PCS No.10-24 x 1-11/32" No.10-12 x 1-11/32"... - Page 4 DOOR PREPARATION CHART TOP STRIKE LATCHES Fire Exit Hardware is to be METAL installed on Fire Doors METAL #25 DRILL bearing the marking “Fire #10-24 TAP 5/16" DRILL Door to be equipped with WOOD (DEVICE SIDE) Fire Exit Hardware” 13/32" DRILL Any retrofit or other field 1/8"...
- Page 5 01. DRAW HORIZONTAL CENTERLINE ( 02. POSITION TEMPLATE AS SHOWN AND MARK VERTICAL CENTERLINE RHR shown (LHR opposite) Hinge 39-5/8" Side to Finished Floor or Threshold Mark vertical center line X-X above and below horizontal center line. (Mark vertical center line at lock side using same backset dimension on outside face of door if trim is using).
- Page 6 05. INSTALL BOTTOM STRIKE 06. DETERMINE USE OF NIGHT LATCH (NL) DRIVE SCREW Removal Tool (5/64" Hex Wrench) Pullman Latch Round Bottom Latch NL Drive Screw DXAS224 DXAS227 DXAS225 DXAS226 Strike Strike Strike Strike NL driver screw is factory assembled in cam on back of device center case, when the NL drive screw is left in back of center 1.
- Page 7 08. INSTALL MOUNTING BRACKET AND END CAP 09. INSTALL TOP LATCH AND ROD Level Device Top Latch Sex Bolts End Cap End Cap Bracket Bracket Screws Latch 1. Remove cover plate, insert end cap bracket into Screws push bar assembly against mechanism case. Level device, mark and drill two(2) holes for Bracket Figure 1 Screws.
- Page 8 10. CHECK TOP LATCH FOR HOLDBACK AND DEADLOCK. Close Open Adjustment Screw 1. Pushing on push bar will retract the latchbolt and open 2. Fully extended latchbolt should be in deadlock. the door. Latchbolt will stay retracted and device is in DEADLOCKED latchbolt cannot be pushed down into HOLDBACK.
- Page 9 12. INSTALL BOTTOM LATCH AND ROD Retractor First Holes Side 1. Install bottom latch with two(2) screws(Sex bolts). Screws Side Connecting Bar 2. Put connecting screw through round hole of Screws connecting bar and thread into bottom rod and tighten. Second 3.
- Page 10 INSTALL AUXILIARY FIRE LATCH #8-32 TAP DXAPL Fire latch Install fire latch on edge of door 4"-6"from finished floor as shown Drill 4 Holes and TAP(#8-32). 4"-6" NOTE: Fire rated device with less bottom rod (LBR) applications must use an auxilary FIRE LATCH. Please refer to DXAFL installation instructions for more detail.
- Page 11 OPTIONAL DOGGING DOGGING CHECK CYLINDER DOGGING Cylinder Flat / Hex Key Dogging Hinge Side Cover Plate BOTTOM VIEW Cylinder Locating Washer With cam toward hinge side install Cylinder Dogging Cylinder the cylinder to the cover plate. Lock Nut Depress push bar and turn flat / hex wrench or key one Slide cover plate in position in the mechanism case.
- Page 12 WD-OD002(663) DX1PV-FV-INST 2020-04...
