Prorack K398 Instructions

K398 FITTING KIT INSTRUCTIONS
These fitting instructions contain information specific for your vehicle. They
should be read in conjunction with your crossbar instructions.
Kit Contains
1 x Instructions
4 x Red Plastic Knobs with nuts
4 x Plastic Internal Blocks
4 x Grub Screws
1 x Allen Key 3mm
Items you will require that are not included:
1 x Tape measure
1 x Medium sized flat screwdriver
Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar Whispbar Through Bar pictured in these instructions, also applicable for Whispbar Flush Bar

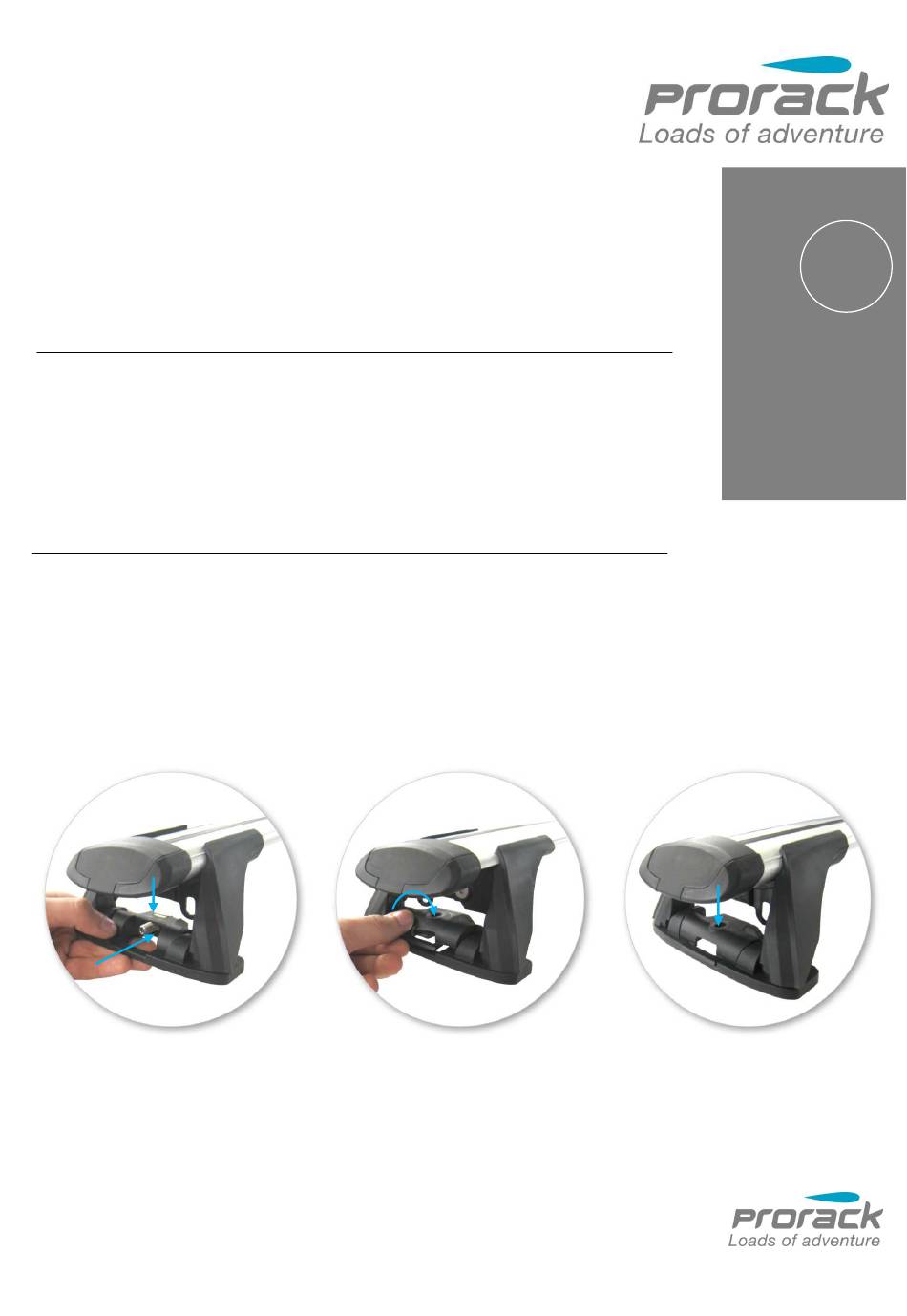

Clamp Block
Press this way
1
•
Remove crossbars and fitting kit parts
from the packaging
•
Follow step 1-3 of crossbar assembly
instructions
•
Remove clamp block by pressing
backwards
1 x Pad Pear Right Part № 11-04-230
1 x Pad Rear Left Part № 11-04-229
1 x Pad Front Right Part № 11-04-233
1 x Pad Front Left Part № 11-04-234
Remove parts from box & check
Contact your Prorack dealer if any parts are missing or damaged
•
Important Note:
2
Select plastic internal block
(from fitting kit) and insert it
into foot
Page 1 of 4
Maximum
Whispbar
Load
Rating
When Fitted and loaded
correctly
Press Down
3
•
Repeat for all four legs
75 75 75 75
kg kg kg kg
