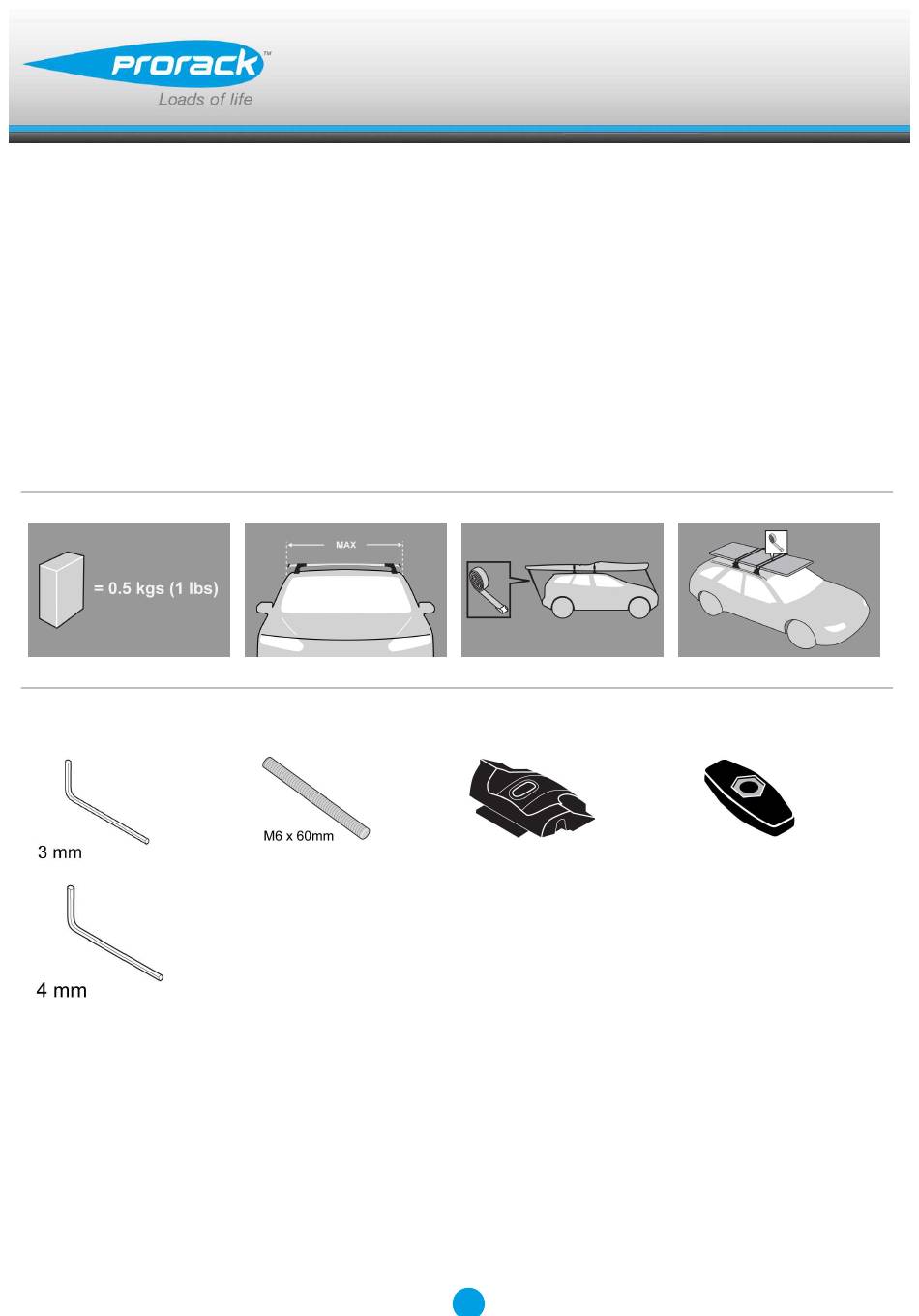

- Page 1 K337 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 8D...
- Page 2 Fitting Kit K337 MAX kgs (lbs) Peugeot 307 , 3dr Hatch 01-08 75 kgs (165 lbs) 75 kgs (165 lbs) 307 , 3dr Hatch 01-08 75 kgs (165 lbs) 75 kgs (165 lbs) 307 , 3dr Hatch 01-08 75 kgs (165 lbs)
-
Page 3: First Time Installation

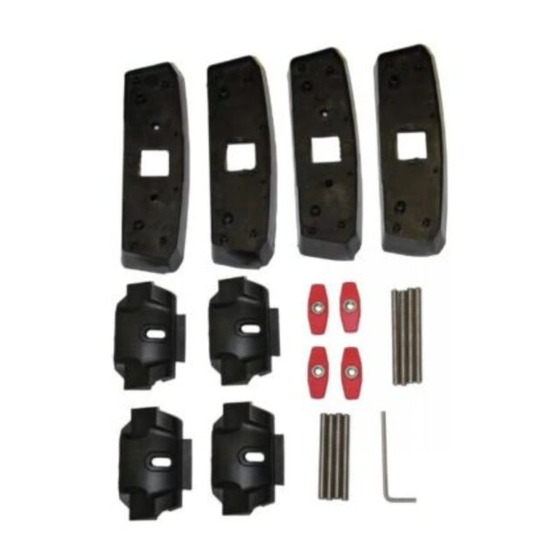

Fitting Kit K337 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K337 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 5 Fitting Kit K337 Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit)
- Page 6 Fitting Kit K337 Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes underneath the foot. Repeat for all legs. Fitment Open or remove fixed-point covers. FITMENT TO FORD TERRITORY ONLY Carefully select desired position for crossbars on vehicle roof.
- Page 7 Fitting Kit K337 FITMENT TO PEUGEOT AND FIAT ONLY Select grubscrews and screw into the vehicle's fixed points. Do not over tighten. Repeat for all four positions. FITMENT TO ALL VEHICLES Place crossbar foot over grubscrews. Tighten the plastic knob. The side with the...
- Page 8 Fitting Kit K337 Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 9: Maintenance
Fitting Kit K337 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 10 Fitting Kit K337 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 11 Fitting Kit K337 307, 3dr Hatch 01-08 (ZA) -190mm 520mm 866mm 800mm -7 -1/2ths" 20 1/2ths" 34 1/8ths" 31 1/2ths" 307, 3dr Hatch 01-08 (EU) -190mm 520mm 866mm 800mm -7 -1/2ths" 20 1/2ths" 34 1/8ths" 31 1/2ths" 307, 3dr Hatch 01-08 (CN)
- Page 12 Fitting Kit K337 Territory, 5dr SUV Apr 04-11 (AU) 110mm 860mm 775mm 775mm 4 5/16ths" 33 7/8ths" 30 1/2ths" 30 1/2ths"...
-
