Prorack K395 Fitting Instructions For Basic Carrier

Fitting kit

Advertisement

Quick Links

GB Fitting Instructions for Basic Carrier
x 4
x 4
x 2
Revision No:
1.2
x 4
x 4
1
Fitting Kit
x 8
x 2
K395
x 4
x 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the K395 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Prorack K395

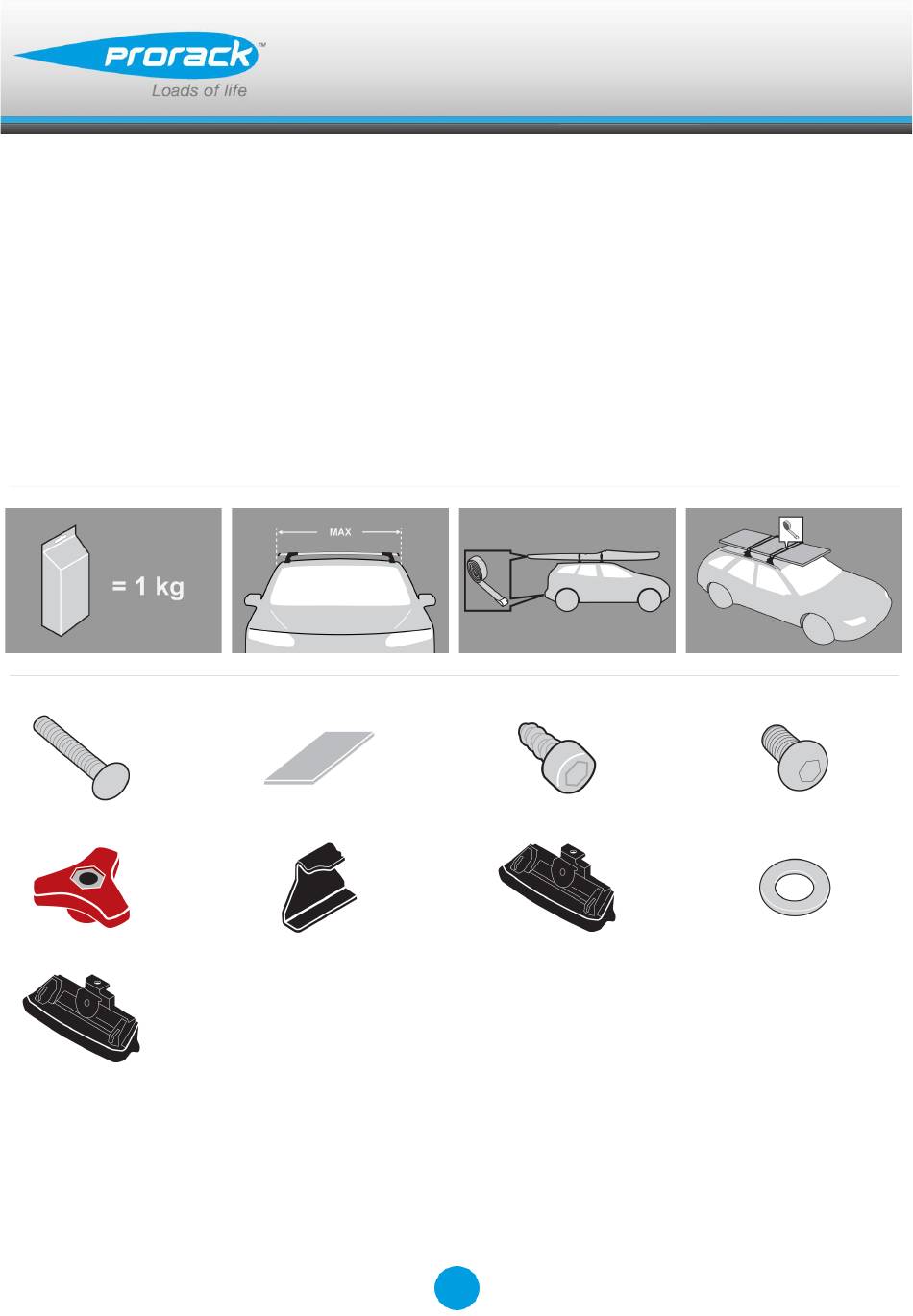

  • Page 1 K395 Fitting Kit GB Fitting Instructions for Basic Carrier Revision No:...
  • Page 2 Fitting Kit K395 MAX kg MAX kg W/P WHD W/P WHD Chevrolet Equinox , 5dr SUV 04- 09 Ford Expedition , 5dr SUV 07-+ Explorer , 5dr SUV 06- 10 Explorer , 5dr SUV 06-+ Hyundai Santa Fe , 5dr SUV 06- 09...
  • Page 3: First Time Installation

    Fitting Kit K395 First Time Installation Remove parts from packaging and check contents. Contact your Prorack dealer if parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type B crossbar fitted. They also apply to type A, C and D.
  • Page 4 Fitting Kit K395 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted equally. Set bars to length (refer to the crossbar instructions for crossbar adjustment).
  • Page 5 Fitting Kit K395 Tighten adjusting screw to 5 Nm. Remove clamp block by pressing backwards. Remove both pins from each leg (use spanner located inside left hand cover to assist).
  • Page 6 Fitting Kit K395 Detach foot from leg. Store loose parts in a safe place. Select four feet assemblies and match the left and right assemblies to the left and right roof rack legs. Assemble foot from kit into leg by pressing it down.
  • Page 7 Fitting Kit K395 Apply protective strip as shown.  Trim if required. Use two M5 x 12 mm self tapping screws to secure the assembly onto the leg. Do not over tighten. Repeat for all legs. Fitment Locate and remove rubber seal from inside...
  • Page 8 Fitting Kit K395 Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (unless otherwise stated). Make sure there is no interference between what you intend to carry with aerials, sunroof or tailgate. Slide clamp through opening in leg.
  • Page 9 Fitting Kit K395 Thread the coach bolt through the clamp and the leg. Tighten the red plastic knob. Ensure the red plastic knob is in the position shown when fully tightened. Repeat for all legs.
  • Page 10 Fitting Kit K395 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
  • Page 11: Maintenance

    Fitting Kit K395 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
  • Page 12 Fitting Kit K395 A loaded roof rack system can alter the performance of your vehicle. Be especially aware of the effects of side winds, changing of direction, and braking performance. Avoid rapid acceleration and deceleration. Drive carefully. Note that the total height of the vehicle increases when upright loads are carried.
  • Page 13 Fitting Kit K395 19cm 103cm 850mm 850mm Chevrolet Equinox , 5dr SUV 04- 09 (US) 7 1/2" 40 9/16ths" 33 7/16ths" 33 7/16ths" Ford Expedition , 5dr SUV 07-+ (US) 23cm 155cm 784mm 784mm 9 1/16ths" 61 " 30 7/8"...
