Zonet ZSR4154WE User Manual

Wireless broadband router 802.11n
Hide thumbs Also See for ZSR4154WE:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZSR4154WE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zonet ZSR4154WE

Summary of Contents for Zonet ZSR4154WE

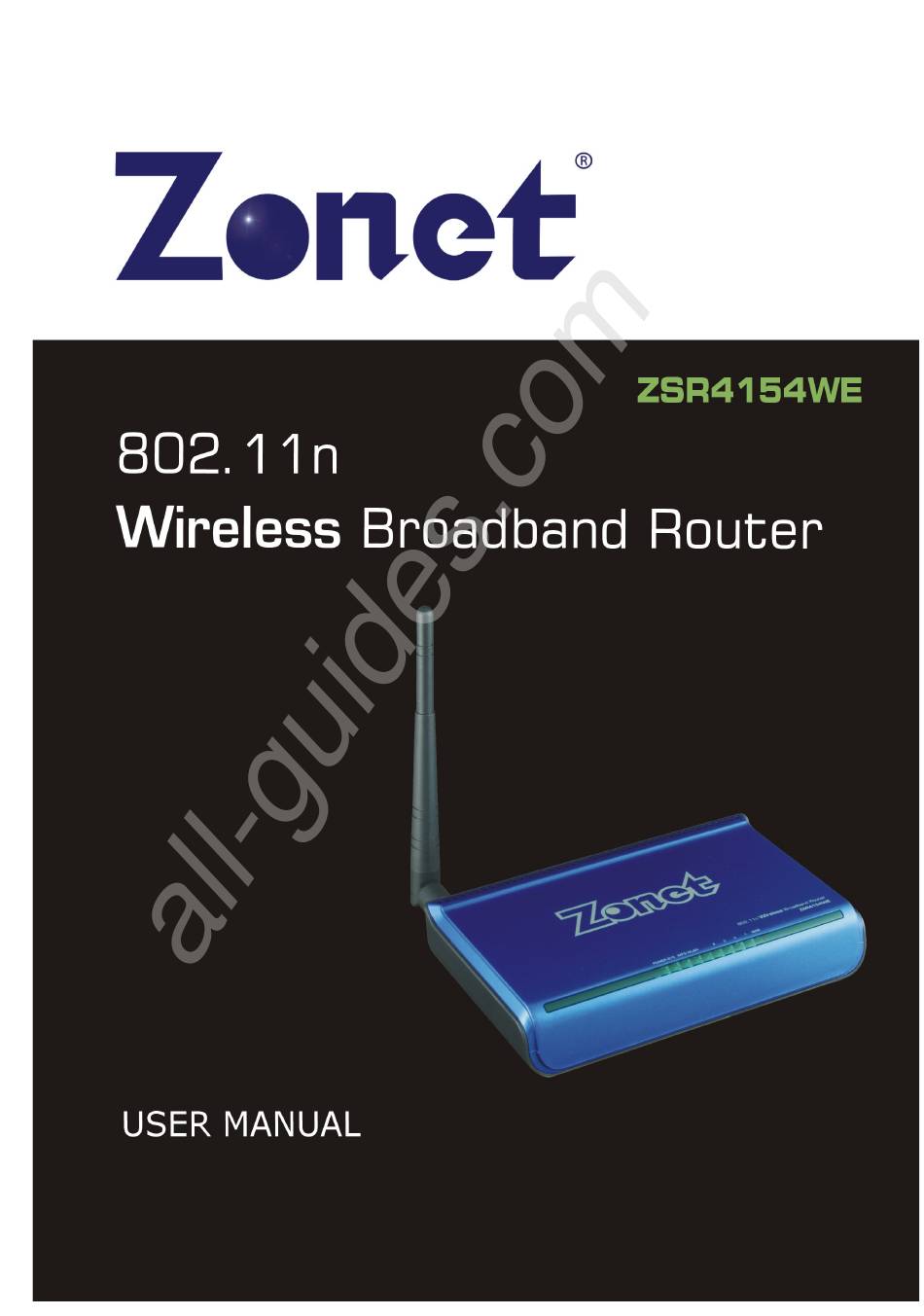

  • Page 1 All manuals and user guides at all-guides.com...

  • Page 2: Copyright Statement

    Copyright of the whole product as integration, including its accessories and software, belongs to Zonet Technology Inc. Without the permission of Zonet Technology Inc., any individual or party is not allowed to copy, plagiarize, imitate or translate it into other languages.

  • Page 3: Table Of Contents

    Chapter 1 Introduction................. 1 Welcome ....................1 Contents of Package ................1 System Requirement ................1 Getting to Know Your ZSR4154WE ............2 Chapter 2 Hardware Installation............4 Chapter 3 Connect Your ZSR4154WE ........... 6 How to Check the Network Connection............. 9 Chapter 4 Basic Configurations ............10...
  • Page 4 All manuals and user guides at all-guides.com Chapter 11 Security Settings...............37 Client Filter ..................37 URL Filter ....................38 MAC Filter ...................39 Prevent Network Attack ................39 Remote Web Management..............40 Wan Ping ....................40 Chapter 12 Routing Settings ...............42 Routing Table ..................41 Chapter 13 System Tools..............42 Time Settings ..................42 DDNS ....................42 Backup/Restore ...................43...

  • Page 5: Chapter 1 Introduction

    All computers and IEEE 802.11b/g/n(Draft 4.0) wireless-enabled network devices (including PDA, cellular phone, game console, and more!) can connect to ZSR4154WE without additional cabling. The MIMO technology also gives you the highest speed of wireless experience ever! With a compatible wireless card installed in your PC, you can transfer file for up to 150Mbps! The radio coverage is also doubled, so don’t worry if your office or house is really big!

  • Page 6: Getting To Know Your Zsr4154We

    All manuals and user guides at all-guides.com Getting to Know Your ZSR4154WE Top Panel LED Indicator Status Description POWER ZSR4154WE is switched on and correctly powered Flashing Indicates the system works normally. Indicates WAN port is connected Indicates WAN activity (transferring or receiving Flashing...
  • Page 7 Wide Area Network (WAN / Internet) port. 1-4 (LAN Ports) Local Area Network (LAN) ports 1 to 4 Reset ZSR4154WE to factory default settings (clear all RESET settings). Press this button and hold for 7 seconds to restore all settings to factory defaults.

  • Page 8: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Please follow the following instruction to build the network connection between your ZSR4154WE and your computers, network devices: 1. Connect the A/C power adapter to the wall socket, and then connect it to the Power socket of ZSR4154WE.
  • Page 9 All manuals and user guides at all-guides.com 3. Connect your xDSL / cable modem to the WAN port of ZSR4154WE by Ethernet cable. 4. Please check all LEDs on the top panel. POWER LED should be steadily on, WAN and LAN LEDs should be on if the computer / network device connected to the respective port of ZSR4154WE is powered on and correctly connected.

  • Page 10: Chapter 3 Connect Your Zsr4154We

    All manuals and user guides at all-guides.com Chapter 3 Connect Your ZSR4154WE How to Set the Network Configurations for My Computer 1. Right click My Network Places and select Properties 2. Right click Local Area Network Connection and select Properties.
  • Page 11 All manuals and user guides at all-guides.com 3. Select Internet Protocol (TCP/IP) and click Properties. 4. Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK to save the configurations.
  • Page 12 5. Or select Use the following IP address and enter the IP address, Subnet mask, Default gateway. Of course, you need to input the DNS server address provided by your ISP. Otherwise, you can use the ZSR4154WE’s default gateway as the DNS proxy server. Click OK to save the configurations.

  • Page 13: How To Check The Network Connection

    All manuals and user guides at all-guides.com How to Check the Network Connection 1. Select Start → → → → Programs → → → → Accessories → → → → Command Prompt. 2. Input ping 192.168.0.1 and press Enter. If the screen displays as below, it means your PC is connected to your router successfully.

  • Page 14: Chapter 4 Basic Configurations

    All manuals and user guides at all-guides.com Chapter 4 Basic Configurations This section is to show you how to configure your new ZSR4154WE through the Web-based Configuration Utility. How to Access the Web-based Configuration Utility 1. After your computer obtained an IP address from ZSR4154WE, please start your web browser, and input the default IP address of ZSR4154WE http://192.168.0.1...

  • Page 15: Setup Wizard

    All manuals and user guides at all-guides.com Setup Wizard 1. When Welcome to Setup Wizard pop out, Click Next to continue. 2. Select one Internet connection type you’re using. If you’re not sure, click Detect or contact your Internet Service Provider. Click Next.
  • Page 16 All manuals and user guides at all-guides.com a. ADSL Virtual Dial-up (Via PPPoE) Enter the Account and Password provided by your ISP, and click Next. b. Dynamic IP (Via DHCP) If your connection type is Dynamic IP, it means your IP address keeps changing every time you connect.
  • Page 17 All manuals and user guides at all-guides.com d. L2TP Enter the Account and Password provided by your ISP. L2TP(Layer 2 Tunneling Protocol) provides two address modes. Dynamic IP: If the L2TP offered by your ISP is Dynamic IP, please select Dynamic IP.
  • Page 18 All manuals and user guides at all-guides.com 3. Click Apply and reboot ZSR4154WE, or select Reboot in System Tools of the left menu and click Reboot the router button. 4. While rebooting, please wait for few minutes and DO NOT power off.

  • Page 19: Chapter 5 Advanced Settings

    MAC Address: ZSR4154WE’s physical MAC address on your local network is unchangeable. IP Address: ZSR4154WE’s LAN IP address (not your PC’s IP address). Once you modify the IP address, you need to remember it for the Web-based Utility login next time. Default value is 192.168.0.1 Subnet Mask: ZSR4154WE’s subnet mask for measurement of the...

  • Page 20: Wan Settings

    All manuals and user guides at all-guides.com WAN Settings a. PPPoE Connection Mode: Show your current connection mode. Account: Provided by your ISP. Password: Provided by your ISP. MTU: Maximum Transmission Unit. It is the size of largest datagram that can be sent over a network.
  • Page 21 All manuals and user guides at all-guides.com b. Dynamic IP MTU: Maximum Transmission Unit. It is the size of largest datagram that can be sent over a network. The default value is 1500. Do NOT modify it unless necessary. c. Static IP IP Address: Enter the WAN IP address provided by your ISP.
  • Page 22 All manuals and user guides at all-guides.com d. L2TP L2TP Server IP: Enter the Server IP provided by your ISP. User Name: Enter L2TP username. Password: Enter L2TP password. MTU: Maximum Transmission Unit, you may need to change it for optimal performance with your specific ISP.
  • Page 23 All manuals and user guides at all-guides.com e. PPTP PPTP Server IP: Enter the Server IP provided by your ISP. User Name: Enter PPTP username provided by your ISP. Password: Enter PPTP password provided by your ISP. Address Mode: Select Static if your ISP supplies you with the IP address, subnet mask, and gateway.

  • Page 24: Mac Address Clone

    All manuals and user guides at all-guides.com MAC Address Clone MAC Address: The MAC address registered with your Internet service provider. Clone MAC address: Register your PC's MAC address. Restore default MAC address: Restore the default hardware MAC address. DNS Settings DNS: Choose the checkbox to enable the DNS server.

  • Page 25: Chapter 6 Wireless Settings

    Main SSID: Main Service Set Identifier. It’s the name of your wireless network. Minor SSID: Minor Service Set Identifier. It is optional. Broadcast (SSID): Decide if ZSR4154WE will broadcast its own ESSID or not. BSSID: It is a 48bit identity used to identify a particular BSS (Basic Service Set) within an area.

  • Page 26: Security Settings

    All manuals and user guides at all-guides.com Security Settings a. Mixed WEP WEP (Wired Equivalent Privacy) is an encryption method used to protect your wireless data communications. WEP uses a combination of 64-bit or 128-bit keys to provide access control to your network and encryption security for every data transmission.
  • Page 27 All manuals and user guides at all-guides.com WPA Algorithms: Select one encryption type, AES, TKIP or TKIP&AES. Pass Phrase: Enter the key which must have 8-63 ASCII characters. Key Renewal Interval: Specifies the timer the WPA key must changes. The change is done automatically between the server and the client. c.
  • Page 28 All manuals and user guides at all-guides.com d. Mixed WPA/WPA2-Personal WPA Algorithms: Select one encryption type, AES, TKIP or TKIP&AES. Pass Phrase: Enter the key which must have 8-63 ASCII characters. Key Renewal Interval: Specifies the timer the WPA key must changes. The change is done automatically between the server and the client.

  • Page 29: Advanced Settings

    All manuals and user guides at all-guides.com Advanced Settings ZSR4154WE provides some advanced control of wireless parameters, if you want to configure these settings, please click “Wireless” menu on the left of web management interface, then click “Advanced Settings”, and the following message will be displayed on your web browser: BG Protection Mode: Default mode is Auto.

  • Page 30: Wps Settings

    ZSR4154WE, or click PBC button in the web configuration interface to enable WPS Note: Press WPS button of ZSR4154WE for one second and WPS indicator will blinking for 2 minutes. During the blinking time, you can enable another Router to implement the WPS/PBC negotiation between them.

  • Page 31: Wds Settings

    Reset OOB： ： ： ： When the button is pressed, the WPS client will be idle state, and WPS indicator will be turned off. ZSR4154WE will not respond the WPS client’s requests and the set the security mode as WPA mode.

  • Page 32: Access Control

    Repeater Mode: You can select the mode to extend the distance between the two WLAN devices. Functioning as a WDS repeater, ZSR4154WE connects to both a client card as an AP and to another AP. In typical repeater applications, APs connecting to other APs equipped with WDS functionality must also support WDS.

  • Page 33: Connection Status

    All manuals and user guides at all-guides.com MAC Address Filter: If you want to access ZSR4154WE from any external IP Address, please select Disable. MAC Address: To specify an external IP address, please add the MAC address manually and click Add.

  • Page 34: Chapter 7 Dhcp Server

    IP Address Start/End: Enter the range of IP address for DHCP server distribution. Lease Time: choose a lease time (the duration that every computer can keep a specific IP address) of every IP address assigned by ZSR4154WE from dropdown menu.

  • Page 35: Server List & Binding

    All manuals and user guides at all-guides.com Server List & Binding IP Address: Input the IP address for the computer on the LAN network. MAC Address: Enter the MAC address of the computer you want to assign. And then click Add to add to the list. Hostname: The name of the computer.

  • Page 36: Chapter 8 Virtual Server

    All manuals and user guides at all-guides.com Chapter 8 Virtual Server Port Range Forwarding This section deals with the port range forwarding mainly. The Port Range Forwarding allows you to set up a range of public services such as web servers, ftp, e-mail and other specialized Internet applications to an assigned IP address on your LAN.

  • Page 37: Dmz Settings

    All manuals and user guides at all-guides.com DMZ Settings The DMZ(Demilitarized Zone) function is to allow one computer in LAN to be exposed to the Internet for a special-purpose service as Internet gaming or videoconferencing. DMZ Host IP Address: The IP address of the computer you want to expose.

  • Page 38: Chapter 9 Traffic Control

    All manuals and user guides at all-guides.com Chapter 9 Traffic Control Traffic control is used to limit communication speed in the LAN and WAN. Up to 20 entries can be supported with the capability for at most 254 PCs' speed control, including for IP address range configuration. Traffic Control: Select the checkbox to enable the internal IP bandwidth control.

  • Page 39: Chapter 10 Url Monitor

    All manuals and user guides at all-guides.com Chapter 10 URL Monitor This feature is used to record user’s Internet activity, so in terms of this feature, the administrator can check out and control what they can do and have done. Enable URL Monitor: After checking this feature, the Router will record LAN computer’s URL information, including the visiting Website, your LAN IP address and the time.
  • Page 40 All manuals and user guides at all-guides.com Entry Triggering Interval: To set sending e-mail’s entry interval. The entry ranges from 100 to 500. For example: if you input 100 here, it means the Router will send a email from “Send Email Address” to “Receive Email Address”...

  • Page 41: Chapter 11 Security Settings

    All manuals and user guides at all-guides.com Chapter 11 Security Settings Client Filter To benefit your further management to the computers in the LAN, you can control some ports access to Internet by data packet filter function. Client Filtering Settings: Select the checkbox to enable client filter. Access Policy: Select one number from the drop-down menu.

  • Page 42: Url Filter

    All manuals and user guides at all-guides.com URL Filter If you want to prevent computers in local network from accessing certain website (like pornography, violence, or anything you want to block), you can use this function to stop computers in local network from accessing the site you defined here.

  • Page 43: Mac Filter

    This function is to protect the internal network from exotic attack such as SYN Flooding attack, Smurf attack, LAND attack, etc. Once detecting the unknown attack, ZSR4154WE will restrict its bandwidth automatically. Prevent Network Attack: Select the checkbox to enable it.

  • Page 44: Remote Web Management

    All manuals and user guides at all-guides.com Remote Web Management This function is to allow the network administrator to manage ZSR4154WE remotely. If you want to access ZSR4154WE from outside the local network, please select the Enable. Enable: Select the checkbox to enable remote web management.

  • Page 45: Chapter 12 Routing Settings

    Chapter 12 Routing Settings Routing Table The main duty for ZSR4154WE is to look for a best path for every data frame, and transfer this data frame to destination. So, it’s essential for ZSR4154WE to choose the best path. In order to finish this function, many transferring paths...

  • Page 46: Chapter 13 System Tools

    DDNS (Dynamic Domain Name System) is to assign a fixed host and domain name to a dynamic Internet IP address, which is used to monitor hosting website, FTP server and so on behind ZSR4154WE. If you want to activate this function, please select Enable and a DDNS service provider to sign up.

  • Page 47: Backup/Restore

    Password: Enter the password you set. Domain Name: Enter the domain name which is optional. Backup/Restore Backup: Click to back up ZSR4154WE’s configurations. Browse: Click to browse the path where you want to save files. Restore: Click to restore ZSR4154WE’s configurations.

  • Page 48: Restore To Factory Default Settings

    Restore to Factory Default Settings: Click to restore to default settings. Factory Default Settings: User Name: admin Password: admin IP Address: 192.168.0.1 Subnet Mask: 255.255.255.0 NOTE: After restoring to default settings, please reboot ZSR4154WE so the settings will take effect. Reboot Reboot the router: Click to reboot ZSR4154WE.

  • Page 49: Change Password

    New Password: Enter a new password. Re-enter to Confirm: Re-enter to confirm the new password. NOTE: It is highly recommended to change the password to secure your network and ZSR4154WE. System Log If the log is over 150 records, it will clear them automatically.

  • Page 50: Appendix 1: Product Features & Specifications

    All manuals and user guides at all-guides.com Appendix 1: Product Features & Specifications Features: Integrates router, wireless access point, four-port switch and firewall in one Complies with IEEE802.11n, IEEE802.11b and IEEE802.11g standards MIMO technology utilizes reflection signal to increase eight times transmission distance of original 802.11g standard and reduces the "dead spots"...
  • Page 51 All manuals and user guides at all-guides.com Specifications: IEEE 802.11n (Draft 4.0), IEEE 802.11g, IEEE 802.11b Standards standards Windows 2000, XP, Vista; Linux User interface Easy to use user configuration software Indoor up to 100m ; Outdoor up to 400m Transmit distance (limited to environment) Support multipoint auto roaming and configuration;...

  • Page 52: Appendix 2: Troubleshooting

    IP address in the address field？ ？ ？ ？ Step 1: check ZSR4154WE if it works well. Once the device is powered on for a few seconds, the SYS indicator on the panel will be turned on. If it is not, please contact us.
  • Page 53 MAC address and click “Apply” to activate it. Q6. How to share my computer’s source with other users in Internet? If you want Internet users to access the internal server via ZSR4154WE such as e-mail server, Web, FTP, you can configure the “Virtual Server” to come true.
  • Page 54 All manuals and user guides at all-guides.com The following table has listed the well-known application and service port: Server Protocol Service Port WEB Server FTP Server Telnet NetMeeting 1503、1720 File Send:6891-6900(TCP) Voice:1863 MSN Messenger TCP/UDP 、 6901(TCP) Voice:1863 、 5190(UDP) PPTP VPN 1723 Iphone5.0...
