ABB RGLPM Series Manual

4
Current sensors
Recommendations:
- Use only RJ12 ABB Current
Sensors cables (type RJ12 straight,
twisted pairs, unshielded, 600V cat.III.
rated, -10 / +70 °C).
- It is recommended to mount all
the current sensors with the same
orientation.
- Always start with current sensor
input I01.
5
Mounting
DIN rail
0.29 or 0.59
7,5 or 15
Back plate
0.1 9
5
M5 Hexagon Key
31 lb.in/3.5 Nm
M4 - 0.5Nm
Ring Ø 0.47in
Ø 12mm max.
6
Dimensions (in/mm)
RGLPM U-10, I-31R, I-61R RGLPM BCM-2125R
U-10
I-61R
I-31R
1.73 0.59
44 15
0.70 1.42 2.56
18 36
65
RGLPM
I-61R
RGLPM
I-31R
Max. (6) current
sensor inputs
Max. (3) current
sensor inputs
1
1
M4 Hexagon Key
25.4 lb.in/1 Nm
20.98
533,5
0.98 0.54
25 13,6
CORPORATE CONTACT: ABB, 305 Gregson Drive, Cary, NC 27511, US.
Print: 70 g/m 2 - A3 > 70 x 100 mm - R/V - B&W. The bar code must be visible once the document is folded.
Non contractual document. © 2025, ABB. All rights reserved.
RGLPM
BCM-2125R
Max. (3) current
sensor inputs
WARNING!
M4 Hexagon Key - The RGLPM system must be enclosed in an NRTL certified electrical/fire enclosure, listed Industrial Control Panel Equipment, or similar equipment.
2
25.4 lb.in/1 Nm - Leads of the current transformers shall be maintained within the same end-product enclosure.
- The current transformers are intended for installation within the same enclosure as the equipment. These may not be installed within switchgears and panel boards.
- Secure current transformer and route conductors so that the conductors do not directly contact live terminals or bus.
1

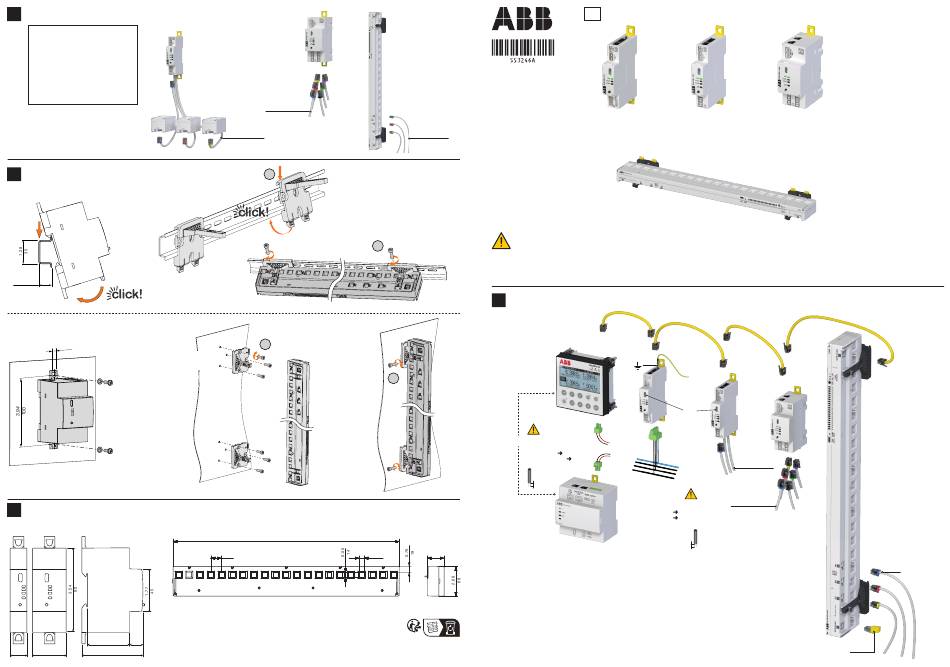

System wiring – exploded view
RGLPM
D-50
2 Display
Supply
24VDC SELV**
or
2 positions - screw 0.25 Nm max.
Copper or Aluminum
solid 0.2 mm 2
stranded 0.2 mm²
Use Copper conductors only
7 mm
RGLPM
M-50
Gateway
SELV : Safety Extra Low Voltage.
1.26 (*) Do not forget to connect earth to the RGLPM U-10 module.
32
EN

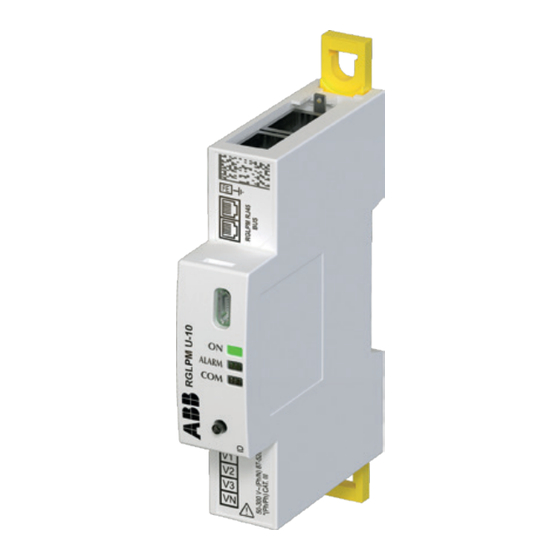

Voltage module Current module
RGLPM U-10 RGLPM I-31R
Ref. RLPBCMU10X105 Ref. RLPBCMI31RX115
RGLPM RJ45 Bus
*
RGLPM
I-31R
RGLPM
U-10
Micro
USB
type B
2.5 mm²
Max. (3) current
2.5 mm²
sensor inputs
N
L3
L2
L1
Voltage inputs
Max. (6) current
50-300VAC PH/N
sensor inputs
4 positions screw 0.25 Nm max.
solid 0.2 mm 2 2.5 mm 2
stranded 0.2 mm² 2.5 mm
2
Use Copper conductors only
7 mm
Power monitoring system
RGLPM
Repeater
RGLPM I-61R
Ref. RLPBCMI61RX117
Current module
RGLPM BCM-2125R
Ref. RLPBCM2125RX171
RGLPM
I-61R
RGLPM
BCM-2125R
Max. (3) current
sensor inputs
Bus
termination
