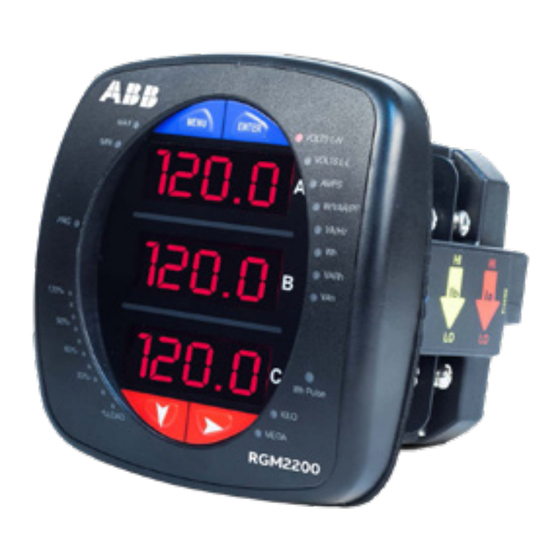

- Page 1 — I N S T R U C T I O N M A N UA L RGM2200/RGM2210 meter Quickstart guide...
- Page 3 — Table of contents Introduction 05– 08 Program settings 09– 10 RS485 port...
- Page 4 R G M 2 2 0 0/ R G M 2 2 1 0 M E T E R Q U I C K S TA R T G U I D E — Introduction Installation of the ABB RGM2200/RGM2210 meter User manual: https://www.electroind.com/...
- Page 5 P r o g r a m s e t t i n g s — Program settings 2. Press the DOWN ARROW once. CFG (Configuration) moves to the top of the display. 3. Press the ENTER button. You will see the Configuration menu, shown below.
- Page 6 R G M 2 2 0 0/ R G M 2 2 1 0 M E T E R Q U I C K S TA R T G U I D E 5. Press the ENTER button to go to the CT 9.
- Page 7 • If you have the RGM2200 meter and you want third lines. Press the DOWN ARROW to choose to change the address, press the DOWN another communication protocol.
- Page 8 R G M 2 2 0 0/ R G M 2 2 1 0 M E T E R Q U I C K S TA R T G U I D E 15. Press the MENU button twice. You will see the Store Settings screen (Stor ALL?) The default setting is YES.
- Page 9 4 8 5 P o r t — RS485 port The RGM2200 meter has an optional RS485 port, Program meter time: and the RGM2210 meter has a standard RS485 port. The meter is preset to Eastern time. To change...
- Page 10 Save Profile to save your changes without sending them to the meter. NOTE: For additional wiring options and programming information, including using the RGM2200 meter’s BACnet* MS/TP functionality, refer to your meter’s installation and operation manual.
- Page 12 Any reproduction, to purchase orders, the agreed particulars disclosure to third parties or utilization shall prevail. ABB Inc. does not accept any of its contents – in whole or in parts – is responsibility whatsoever for potential forbidden without prior written consent errors or possible lack of information in of ABB Inc.
