Bontrager RIDEtime Manual

RIDEtime
Parts list
2
1
5
6 7
9
1. Computer 2. Battery cover 3. 31.8mm handlebar shim
4. Out front mount 5. CR2032 battery 6. Speed sensor
7. Mounting shim 8. Speed magnet (wheel) 9. Zip ties
Tools needed for assembly: 2.5mm Hex wrench, pliers, scissors.
Battery Installation
•
1
Mount computer
•
1
NOTE: Remove rubber cover over the mounting clamp bolt.
31.8mm handlebar mounting
Use 2.5mm hex wrench.
0.8 N-m (7 in-lb) recommended torque.
NOTE: The mount can be reversed to position computer over the stem. Mount not to be used with phones.
For 35mm handlebar mounting remove the shim.
•
3
Mount speed sensor
•
1
•
1
Max.
70cm
Understanding the instructions
Button location Quick press Multi press
Front
Rear
The letters indicate the order in which to push
the buttons.
More than one arrow means you should push
the button until you see the value you want.
Press and hold until next digit flashes to switch
to next digit or field.
3 4
8
•
2
•
2
•
4
•
2
NOTE: Zip ties should be trimmed in the illustration after installation.
3–5mm
Long press
(2 seconds)
About this Manual

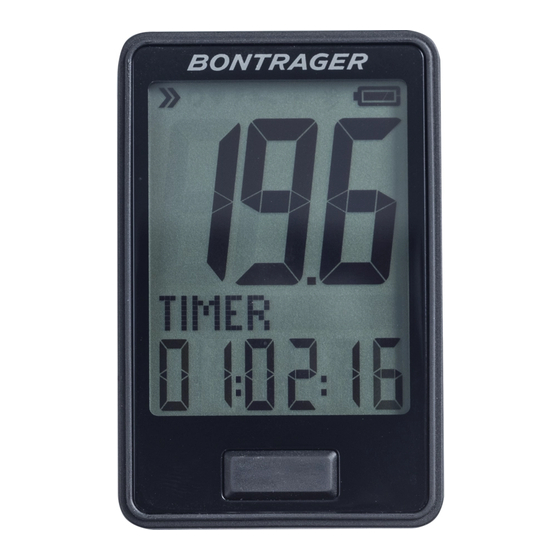

This is the manual for the RIDEtime Computer.
Check for updates at bontrager.com.
Safety
When riding your bicycle, do not stare at the
computer for a long time. If you do not watch
the road, you could hit an obstacle, which might
cause you to lose control and fall.
NOTE: Sensor uses A23 12V battery.
Selection note
Indicates speed sensor is connected.
•
3
•
3
Battery life indicator.
Grey color represents flashing
characters that show selected
value.
PN566367
