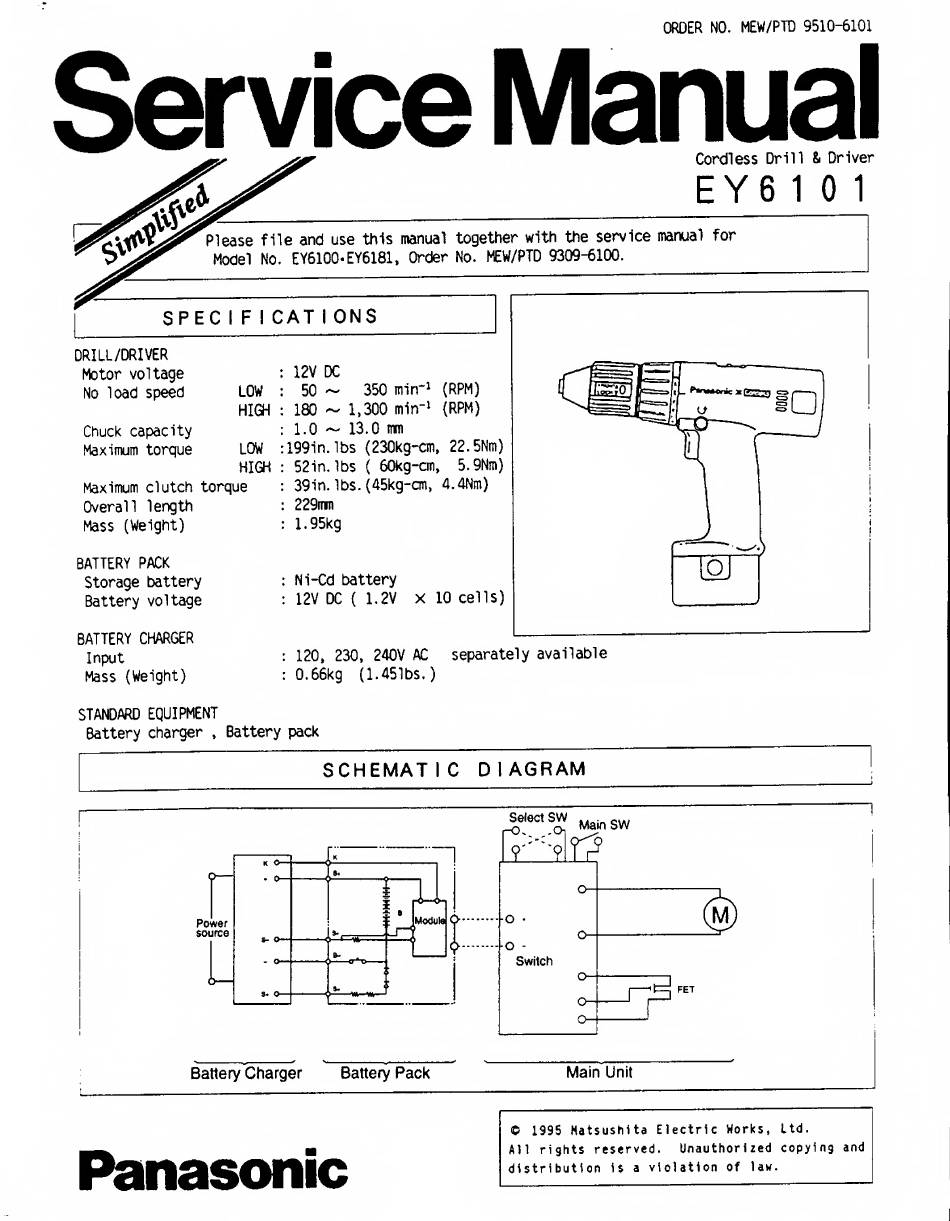

Panasonic EY6101 Service Manual

ORDER NO. MEW/PTD 9510-6101
Service Manual
Cordless Drill & Driver
EY6 1 0 1
Please file and use this manual together with the service manual for
Model No. EY6100-EY6181, Order No. MEW/PTD 9309-6100.
SPEC IFI CAT IONS
DRILL/DRIVER
Motor voltage
No load speed LOW
HIGH
Chuck capacity
Maximum torque LOW
HIGH
Maximum clutch torque
Overall length
Mass (Weight)
BATTERY PACK
Storage battery
Battery voltage
BATTERY CHARGER
Input
Mass (Weight)
12V DC
50 - 350 min*1 (RPM)
180 ~ 1,300 min"1 (RPM)
1.0 — 13.0 mm
199in.lbs (230kg-cm, 22.5Nm)
: 52in.lbs ( 60kg-cm, 5.9Nm)
: 39in.lbs.(45kg-cm, 4.4Nm)
: 229irm
: 1.95kg
Ni-Cd battery
12V DC ( 1.2V x 10 cells)
120, 230, 240V AC separately available
0.66kg (1.451bs,)
STANDARD EQUIPMENT
Battery charger , Battery pack
Battery Charger Battery Pack Main Unit
Panasonic
© 1995 Matsushita Electric Works, Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
