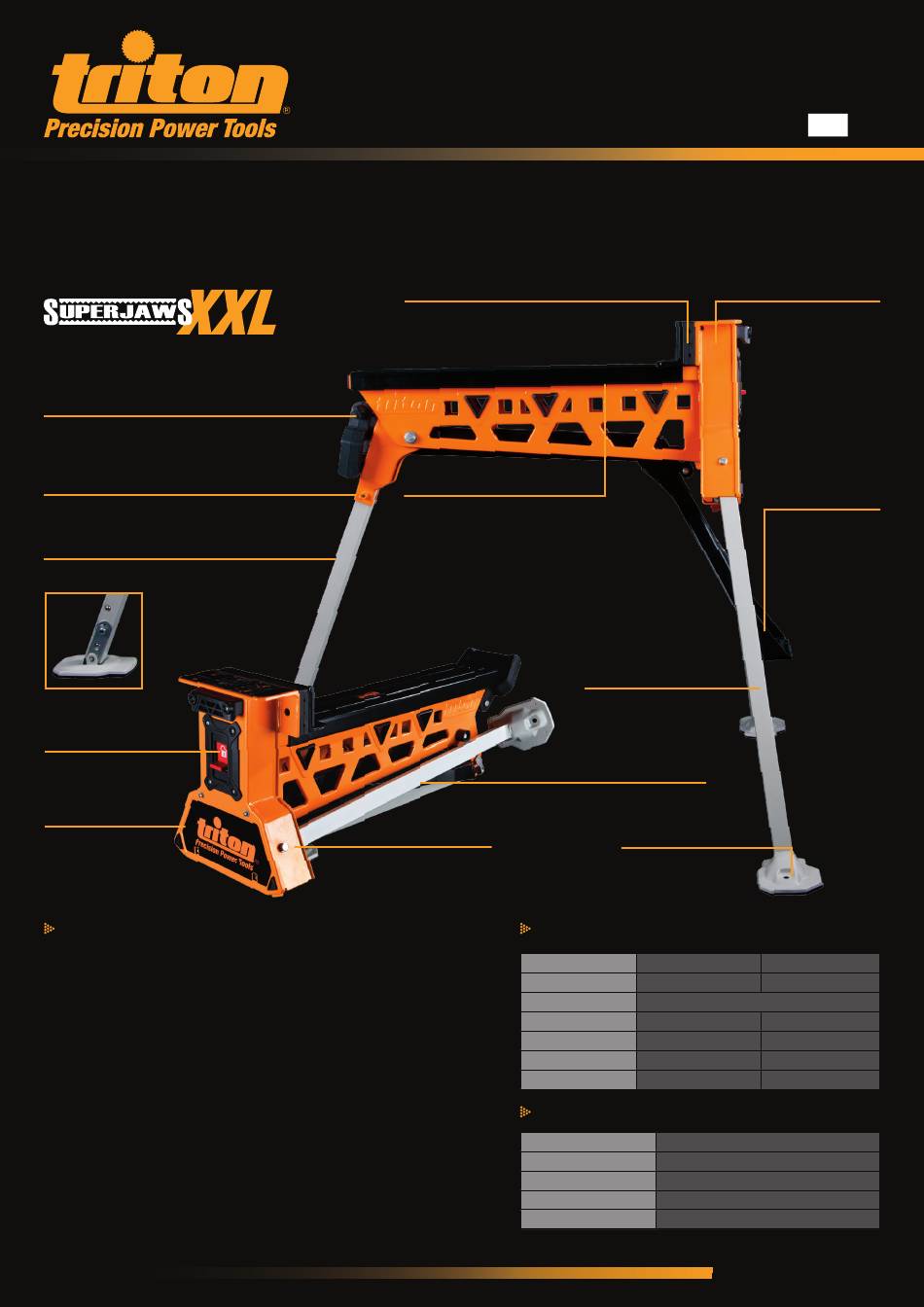

Superjaws XXL is the ultimate portable work station, with its powerful 1 tonne clamping force and controlled clamping pressure. Constructed from tough,
powder-coated steel, SuperJaws XXL boasts a 1000mm / 39" clamping width and will securely clamp almost anything from timber and bikes to extra
wide items like doors and fence panels. Features include a lock/release switch for fast release of the workpiece, reversible jaws for extra-wide capacity,
and foot-operated clamping for hands-free operation. The greater load capacity of 250kg / 550lbs, allows larger workpieces to be clamped.
Rear Handle
for carrying with ease
Tripod Base
for stability & safe operation
on uneven surfaces
Large Rear Foot
enables use on softer ground
and prevents marking
Lock / Release Switch
allows fast, trouble-free
release of the jaws
Quickly Folds Down
for storage & portability
Selling Points
•
Powerful 1 tonne clamping force
•
Rugged construction holds up to 250kg
•
Reversible sliding jaws allow extra-wide 1000mm / 39" clamping width capacity
•
Tripod base with rear foot for stability & safe operation
•
Quick-release legs allow setting up and folding down in seconds
•
Urethane jaw facings provide a protective, slip-resistant grip
•
Lock/release switch allows fast, trouble-free release of the jaws
•
Rear leg acts as a handle for easy transportation
Portable Clamping
System
Reversible Sliding Jaws
allow extra-wide 1000mm / 39"
clamping width capacity
Stand-Alone Design
creates a hands-free
portable workbench
Tough, All-Steel
Construction
holds up to 250kg
Improved Frame &
Leg Design
allows setting up
& folding down in
seconds
Quick Release Legs
for safe & quick assembly
Locating Holes
secure the feet for
increased stability
Key Specifications
Clamping Range
0 - 1000mm
Clamping Force
1000kg
Clamping Method
Max Load
250kg
Folded Size
797 x 302 x 325mm
Standing Size
1010 x 1060 x 875mm
Weight
19kg
Optional Accessories
SJAEB
Extension Bars
SJABC
Bar Clamps
SJASS
Standard Side Support
SJARD
Roller Support
SJA420
Tool Tray
SJA
300
Urethane Jaw
Facings
provide protective,
slip-resistant grip
Foot-Operated
Clamping
frees hands for full
control of the job
0 - 39"
2200lbs
Foot Operated
550lbs
31 x 12 x 13"
40 x 42 x 34"
41lbs
