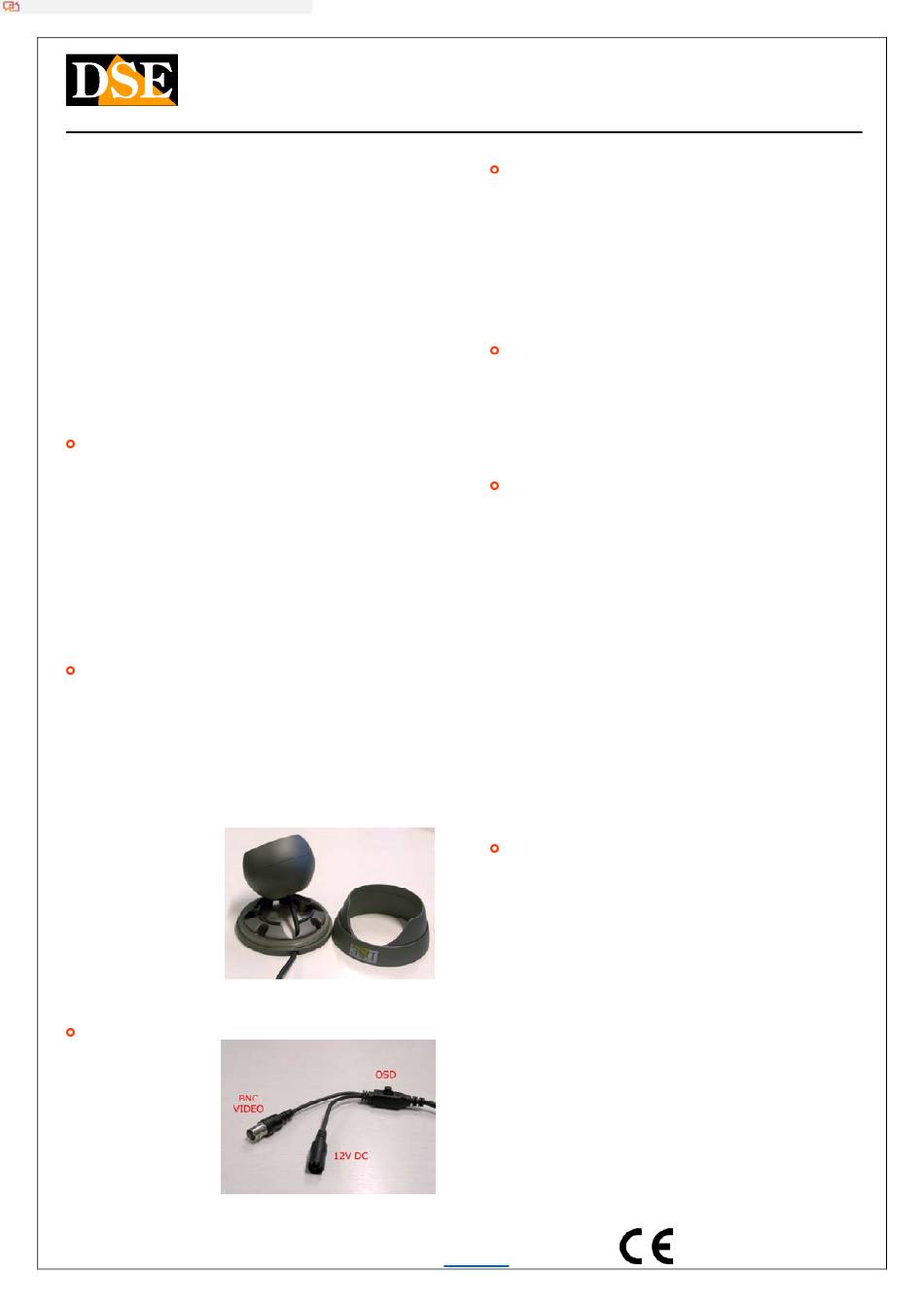

DSE RE-BCC Series User Manual

USER'S MANUAL
RE-BCCxxx (cylindrical models)
RE-DCCxxx (spherical models)
Product description
This range of analog cameras is designed to meet all video
surveillance needs both indoors and outdoors. The cameras are
contained in a watertight aluminum casing that can be installed
outdoors without protection and is not afraid of rain. The cameras
include an infrared illuminator for viewing in the dark for 24-hour
surveillance.
Connections and commands
Fixing cylindrical cameras-The cylindrical cameras are
equipped with an integrated bracket for wall mounting, specially
made to allow the passage of cables inside it and protect them
from tampering attempts. The camera is usually mounted at the
cable exit so that no cables are left bare. However, the fixing base
also has a lateral cable outlet slot if the cables come from the side
in an external conduit.
The bracket must be fixed to the wall or ceiling with the supplied
plugs.
If you do not have a box to contain the connections, the boxes for
optional connections are available.
Spherical camera fixing-Spherical cameras consist of the
camera unit and the fixing base which are screwed together. Before
proceeding with the assembly it is necessary to unscrew the fixing
base separating it from the camera body. In general, no tools are
needed to unscrew the fixing base from the camera body, however
if this is tightened too deeply, it is possible to help by placing a rigid
rod, such as a screwdriver, between the two lateral cable outlet
slots placed in the base.
The fixing base, separated
from the
camera is fixed to the wall
or to the wall with plugs
in
correspondence
of the
cable exit hole and
subsequently screwed
the
onto it
body
camera.
Before tightening fully, orient the viewing angle correctly.
BNC video output
To the female bayonet
BNC connector yes
connect the video cable
that is then taken to the
monitor or DVR generally
via cable
coaxial type RG59 and
connector BNC. Yup
can also
use
twisted cables
with balun converters.
RE-BCCxx RE-DCCxx AHD waterproof analog cameras with IR
DSE srl - Digital Surveillance Equipment
DC12V plugA stabilized 12VDC power supply of at least 1000
mA must be connected (not included). The pin required is the
standard 5.5 mm. Be careful to use STABILIZED power supplies that
supply 12V in any load condition. Using a power supply voltage
other than 12VDC can generate video noise and in the worst cases
damage the camera. Beware of power extension cables that are too
long or have a small section, which could introduce an excessive
voltage drop, especially when the IR illuminator is turned on.
Connection housing-The video and power connections must
be protected from bad weather and housed in special electrical
containers. For this reason, the cameras are equipped with an
integrated cable of about 50 cm in length to reach the box that
must be arranged nearby. Mounting boxes are available as an
optional accessory to hold the connections inside.
Zoom / focus adjustment-Fixed lens cameras do not require
focusing as they are factory set for most applications. Manually
adjustable lens cameras have 2 external screws that allow you to
adjust the lens focal length and focus without having to open the
camera housing. Initially operate the ZOOM screw and adjust the
width of the frame (wide angle / zoom) according to the area to be
framed. Remember that a greater wide angle inevitably
corresponds to less image detail. Once the field of view has been
defined, use the FOCUS screw to perfectly focus the framed area.
Remember that each lens has its own depth of field so that only a
portion of the space in front of the camera can be perfectly
focused. ATTENTION: The focus screws have a limit switch block
that prevents the drive rings from coming out of their seat. It is
necessary not to force beyond the limit switch to avoid damaging
the adjustment mechanism.
Camera adjustment with autofocus zoom-Cameras with an
autofocus zoom lens do not have a local screw adjustment as the
lens is equipped with a motor that is controlled by the button on
the camera cable. You can also remotely control the zoom with one
of our DVRs that support the UTC protocol. No other cables are
needed, in addition to the video cable, just enter the PTZ control
and act on the zoom control. If the command does not respond,
check that you have selected the UTC protocol in the PTZ settings of
the channel.
IR illuminator
The cameras integrate an infrared illuminator that emanates an
illumination that is invisible to the human eye, but visible to the
camera. The illuminator turns on by itself as darkness falls and the
camera switches by itself into night vision mode. The lighting of
the illuminator allows the vision in B / W in absolute darkness up
to its illumination range.
Models with normal IR (850 nm) have LEDs that are visible in the
dark for a slight reddish glow.
OSD screen programming menu
