USER'S MANUAL
DK-RT1-CSC
Camera with WiFi DVR
Product description

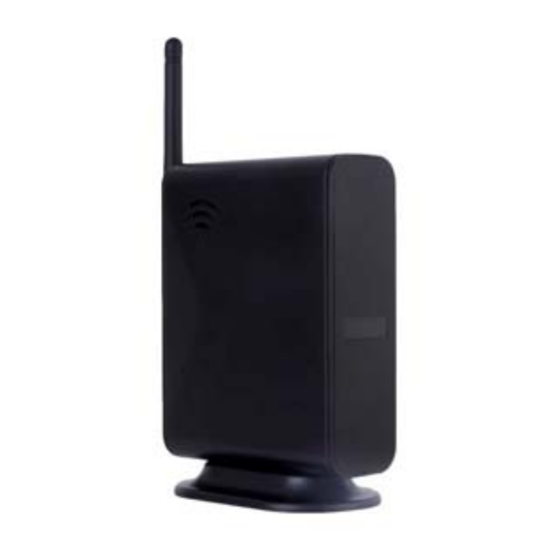

DK-RT1-CSC is a video recorder with an integrated
camera hidden in a fake WiFi router.
1. Target
2. Invisible infrared illuminator
3. Brightness sensor
4. PIR motion detector
5. Antenna
6. USB port for power supply
7. Fake LAN port
8. Speaker
9. Side opening for battery compartment
10. Microphone
11. Removable sliding base
Access the battery compartment
To access the internal battery compartment, slide the
router base back until it is removed. Then remove the left
side of the router.
DK-RT1-CSC Camera with hidden video recorder
DSE srl - Digital Surveillance Equipment - www.dse.eu
Document: DK-RT1-CSC 2F1
11. Base to remove
12. 2 Batteries as standard. You can possibly add 2 more
batteries to be purchased separately.
13. Camera power button
14. Reset button
Pressed 4 sec. First double beep = WiFi configuration
Pressed 6 sec. Second double beep = Factory reset
15. Micro SD card slot
16. Charging indicator (solid red while charging | off when
charging is complete.
17. WiFi status indicator
Flashing blue = WiFi configuration mode,
Solid blue = Waiting for wifi configuration
Off = Wifi connected)
Audio
This camera is equipped with a microphone for ambient
listening and a built-in speaker thanks to which you can
communicate with people close to the camera by pressing
the app buttons.
Infrared illuminator
This camera is equipped with an invisible infrared
illuminator for night vision in absolute darkness. The
illuminator turns on by itself if the ambient light does not
allow for color shooting. Through the control app you can
possibly force the day mode (always shooting in color) or
night (always shooting B / W).
Battery powered with PIR
The camera is able to operate with only the power supply
of its own internal batteries. It is equipped with a PIR
presence detector which allows it a very long autonomy.
Factory supplied with 2 2600 mAh 18650 batteries each
that allow up to 1 year of autonomy in Stand-by, in the
absence of motion detections. If you want, you can buy
two additional batteries separately to be inserted in the
free slots to double the autonomy.
Charging the battery
Before using the device, it is advisable to fully charge the
battery. To do this, connect the USB port of the camera to
