USER MANUAL
DK-CS5-TUY
Tuya WiFi DVR Camera
Product Description
DK-CS5-TUY is a video recorder with a built-in camera
that comes in a small container so it can be hidden in
other objects.

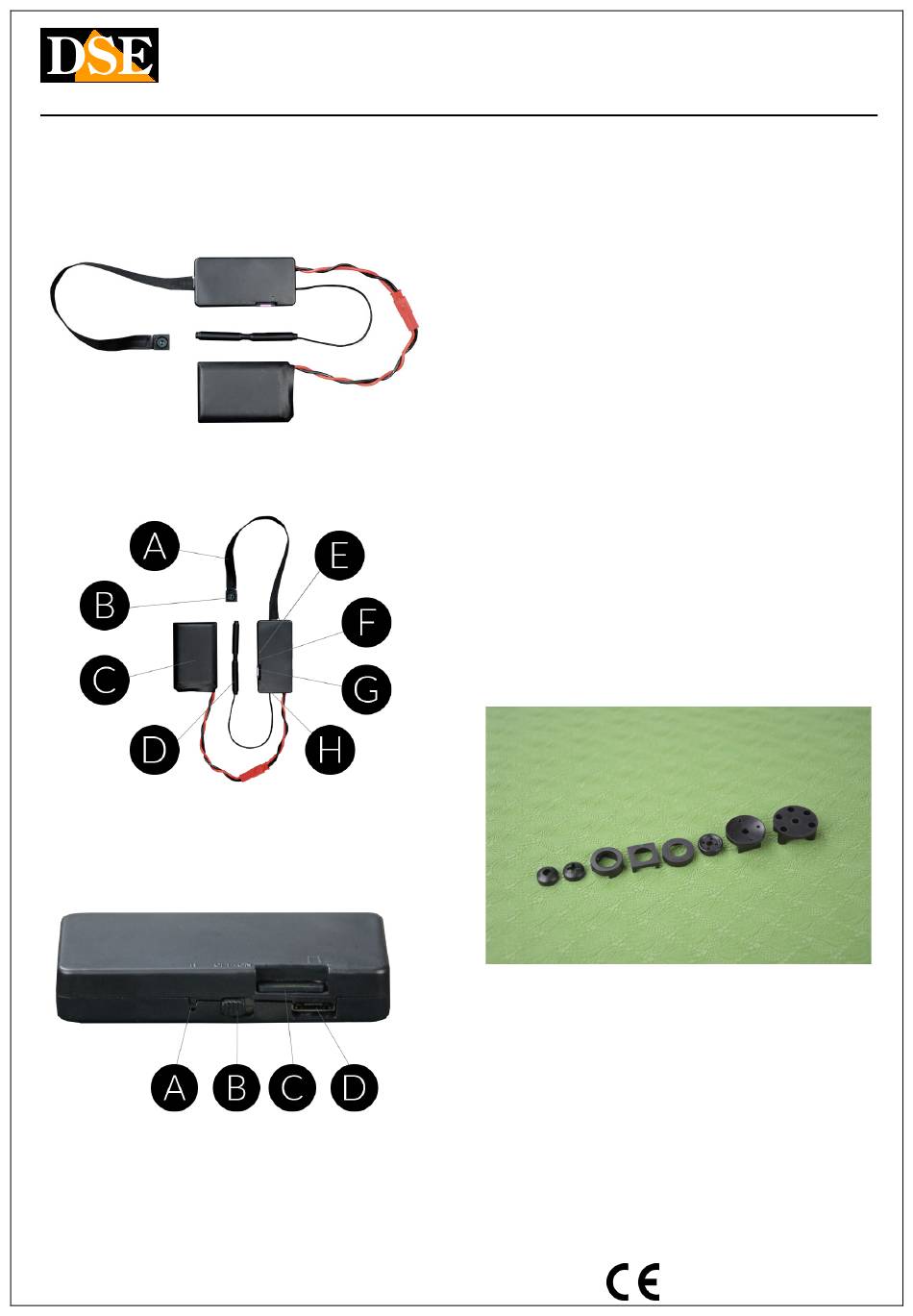

A – Flexible cable
B – Pinhole lens
C – Battery
D – WiFi Antenna
EFGH – Commands (see below)
A – Reset button
B – Ignition switch
C – Micro SD card slot
D – MicroUSB power socket
DK-CS5-TUY Hidden Video Recorder Camera
DSE srl - Digital Surveillance Equipment – www.dse.eu
Document: DK-CS5-TUY 2B5
Inside the product there are 2 status LEDs, visible through
the ventilation holes
RED LED
Fixed = Battery charging with USB power present
Off = USB power not present
BLUE LED
Blinking = Camera waiting for wifi configuration
Fixed = Camera connected to WiFi and running
Off = Camera off
Power supply
The camera can operate with only its own 2.8Ah battery
power supply which allows for approximately 6/7 hours of
autonomy. For greater autonomy you can purchase
batteries with a higher capacity separately.
The battery is charged by connecting a USB power supply
(not included) or a computer with the USB cable provided.
The internal charging LED lights up red during charging
and turns off when charging is complete. Full charging
takes approximately 6/7 hours. It is advisable to set the
camera switch to the OFF position during charging.
The DVR can also operate powered by the mains, with the
220V/USB power supply always connected and the camera
switch set to ON. In this case, the USB cable is kept
connected even during operation and the camera has
unlimited autonomy.
Assembly
DK-CS5-TUY is a camera made to be hidden in an object.
You need to think of an object with enough internal space
and drill a hole of at least 1-2 mm for the lens or use an
existing opening for shooting. Camouflage inserts are
provided that can help you to keep the lens in the right
position or to disguise it.
Storing videos
Video files are stored on a micro SD card (not supplied).
The videos have FullHD 1920x1080 resolution at 25 f/sec.
You can use micro SD cards of any brand up to 128 GB
capacity..
It is recommended to use motion detection recording
where possible, so as to record only significant images
and not use up memory unnecessarily when there is no
action in front of the lens. The type of recording is defined
through the app.
Once the memory space is full, the DVR automatically
overwrites the oldest files.
It should be noted that the Tuya system, to protect
maximum confidentiality, does not allow you to explore
the files stored on the SD card because they are archived
