833356 IBG-IHD-0785^

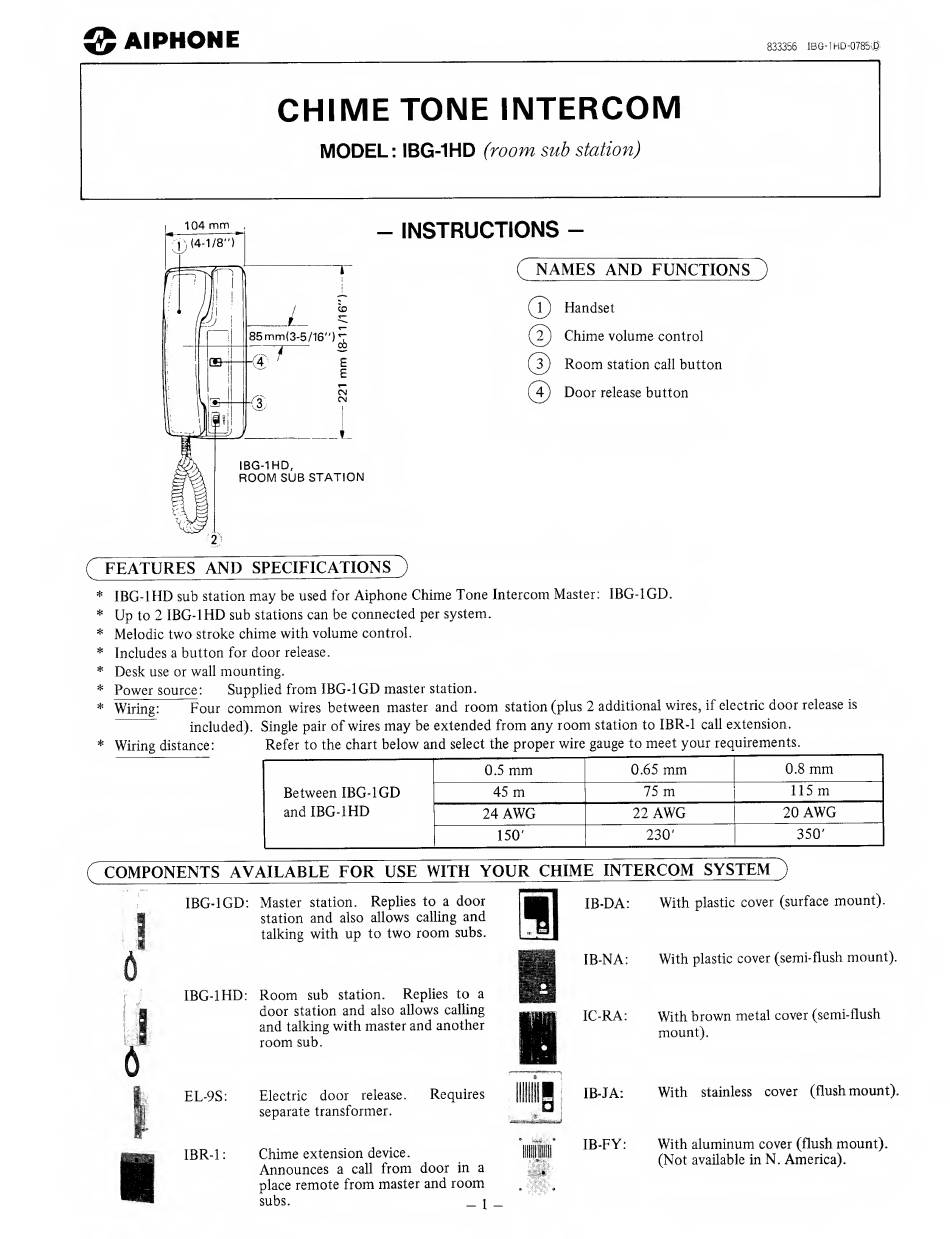

CHIME TONE INTERCOM
MODEL: IBG-1HD (room sub station)
* Up to 2 IBG-1HD sub stations can be connected per system.
* Melodic two stroke chime with volume control.
* Includes a button for door release.
* Desk use or wall mounting.
* Power source: Supplied from IBG-1GD master station.
* Wiring: Four common wires between master and room station (plus 2 additional wires, if electric door release is
included). Single pair of wires may be extended from any room station to IBR-1 call extension.
* Wiring distance: Refer to the chart below and select the proper wire gauge to meet your requirements.
0.5 mm
0.65 mm 0.8 mm
Between IBG-1GD 45 m
75 m
115 m
and IBG-1HD
24 AWG
22 AWG
20 AWG
150'
230' 350'
( COMPONENTS AVAILABLE FOR USE WITH YOUR CHIME INTERCOM SYSTEM )
IBG-1GD: Master station. Replies to a door
station and also allows calling and
talking with up to two room subs.
IBG-1HD: Room sub station. Replies to a
door station and also allows calling
and talking with master and another
room sub.
EL-9S: Electric door release. Requires
separate transformer.
IBR-1: Chime extension device.
Announces a call from door in a
place remote from master and room
subs. _
i
IB-DA:
IB-NA:
■
IC-RA:
_
lllllilg
IB-JA:
iiiiiiiiiiii IB-FY:
With plastic cover (surface mount).
With plastic cover (semi-flush mount).
With brown metal cover (semi-flush
mount).
With stainless cover (flush mount).
With aluminum cover (flush mount).
(Not available in N. America).
