The SD17063-2 option to the standard SD17063 replaces the function of the Disable Input with
the functionality of an Enable Input. That is, the motor will receive power and motion will occur
only if power is applied to the driver's Enable Input terminals.
Please note that even though the functionality of the input has been changed, the input terminals
on the SD17063-2 are still labeled Disable + and Disable -.
IMIT
Enable Input Specifications
Input Type: Opto-isolated 5 Vdc Differential
Input Isolation: 1500 Vdc
Turn ON voltage and Current: 5 Vdc @ 4 mA
Maximum Input Current: 30 mAdc
The SD17063-2 will require 275ms between the time when the Enable Input becomes
active until the driver is ready to accept input pulses.
Enable Input Wiring

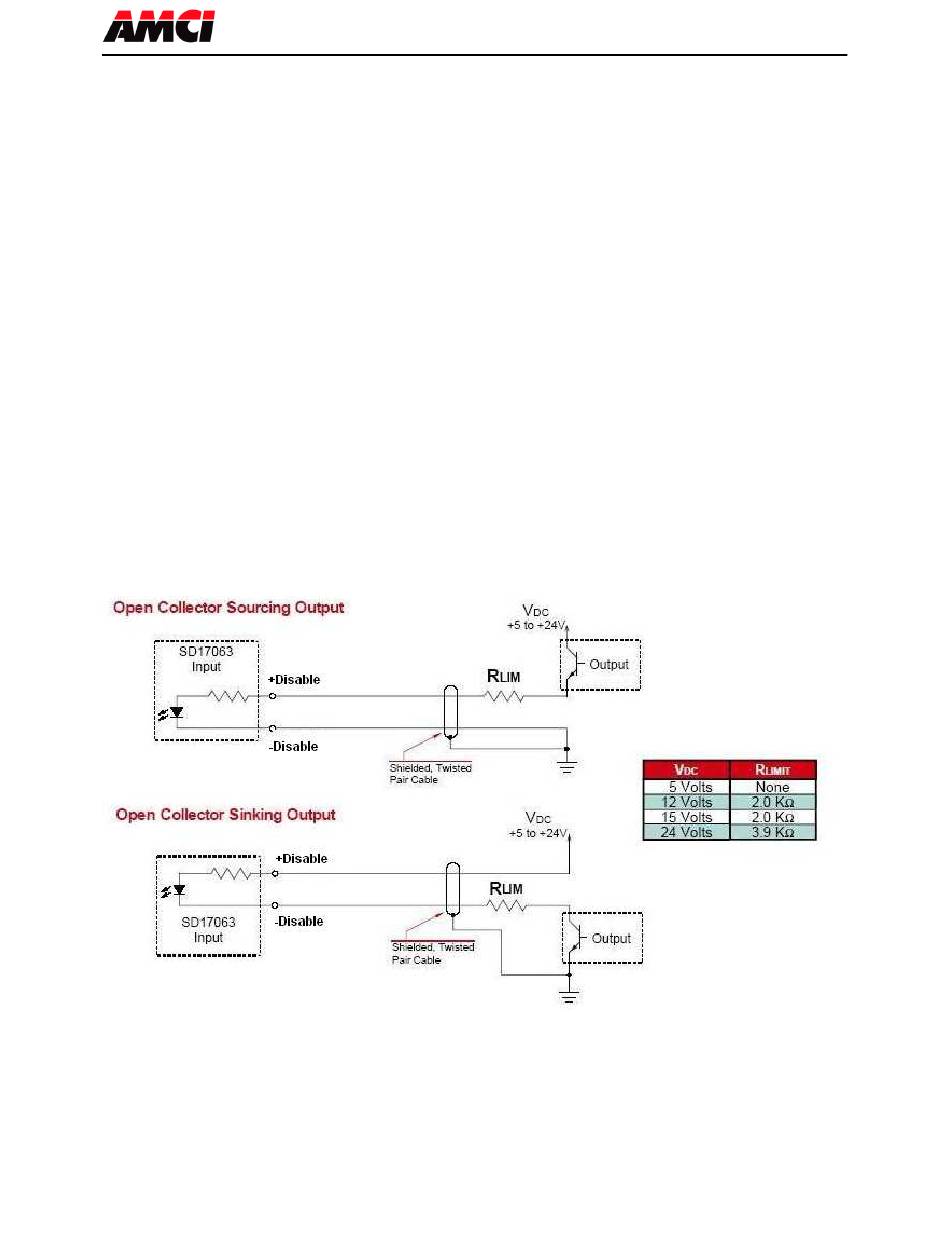

The following two diagrams show how to connect the Enable Input to both Sourcing and Sinking
outputs. Please note that current limiting resistors, Rlim, must be installed if your output device
is operating at a voltage level other than 5Vdc.
SD17063-2 Option

Advertisement

loading
Need help?

Need help?

Do you have a question about the SD17063-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AMCI SD17063-2

  • Page 1 SD17063-2 Option The SD17063-2 option to the standard SD17063 replaces the function of the Disable Input with the functionality of an Enable Input. That is, the motor will receive power and motion will occur only if power is applied to the driver’s Enable Input terminals.
  • Page 2 275 milliseconds. Step Pulses are not accepted until the current ramp up is complete. If you send step pulses to the SD17063-2 before the 275 milliseconds have expired, the drive will indicate a Window Step Violation fault by blinking the Motor Fault LED.
