2TMD042500D0002 │ 29.04.2025

Product manual

ABB-Welcome IP

M2249-2x ABB OneTouch 7

Table of Contents

Need help?

Do you have a question about the OneTouch 7 M2249-2B and is the answer not in the manual?

Questions and answers

Summary of Contents for ABB OneTouch 7 M2249-2B

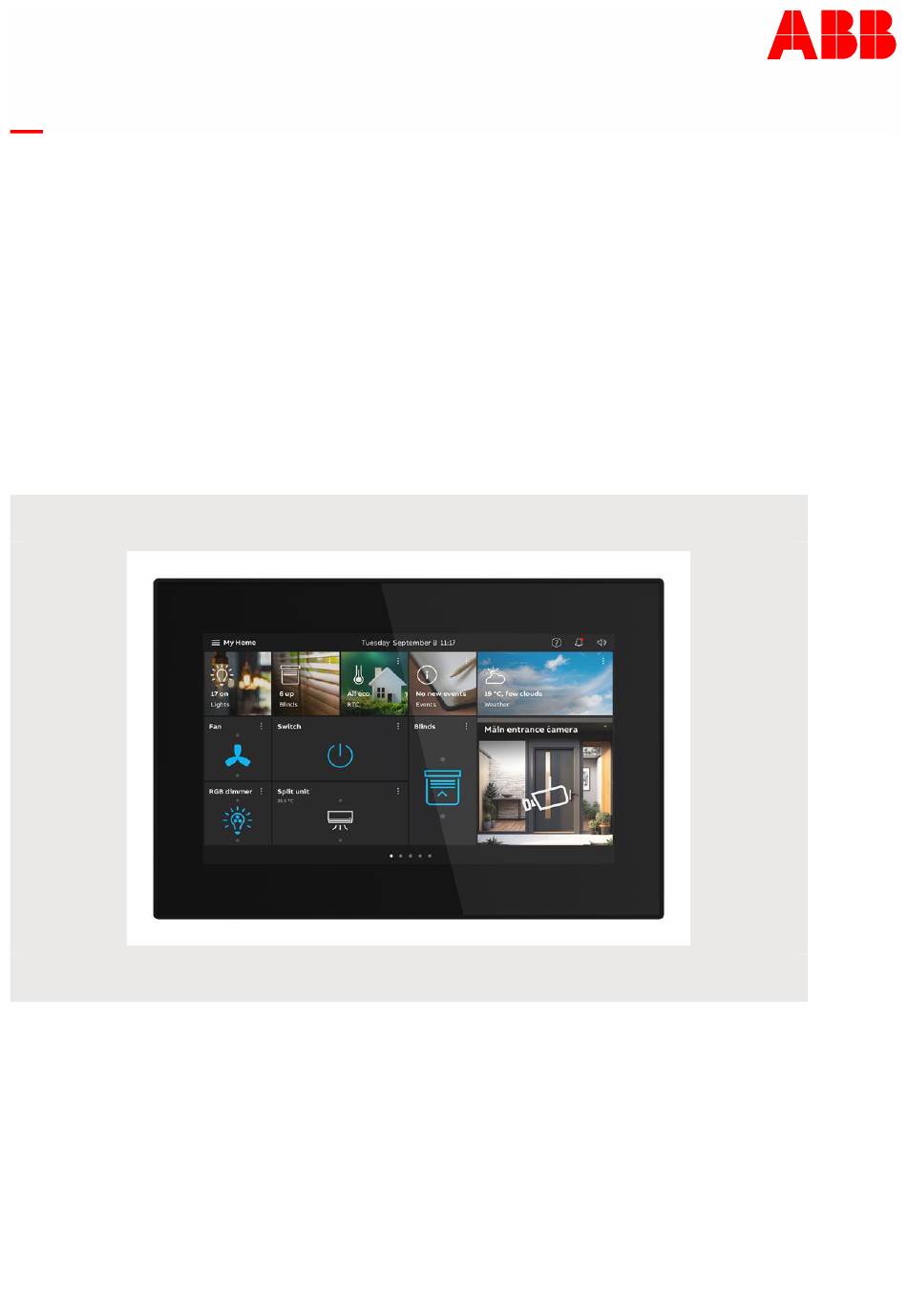

Page 1 2TMD042500D0002 │ 29.04.2025 Product manual ABB-Welcome IP M2249-2x ABB OneTouch 7...
Page 2: Table Of Contents
Table of contents Tabl e of contents Notes on the instruction manual ......................... 6 Safety ................................. 7 Information and symbols used ......................7 Intended use ........................... 8 Improper use ........................... 8 Target group / Qualifications of personnel ..................9 2.4.1 Operation .............................
Page 3 Table of contents 7.1.2 Configuration via SmartAP ........................ 46 7.1.3 Configuration via SmartAP & APP ....................51 7.1.4 Creating a building structure on APP ....................58 7.1.5 Scanning the QR code on the panel ....................62 7.1.6 Importing a building structure via App ....................64 System settings ..........................
Page 4 Table of contents 8.1.5 Creating a control for the light ......................177 8.1.6 Creating a control for the door lock ....................180 8.1.7 Creating a control for the elevator ....................183 8.1.8 Editing the control ..........................186 Incoming call ..........................187 8.2.1 Call from Outdoor Stations ......................
Page 5 Table of contents │5 Product manual 2TMD042500D0002...
Page 6: Notes On The Instruction Manual
If you pass the device on, also include this manual along with it. ABB accepts no liability for any failure to observe the instructions in this manual. If you require additional information or have questions about the device, please contact ABB or visit our Internet site at: www.BUSCH-JAEGER.de...
Page 7: Safety
However, residual hazards remain. Read and adhere to the safety instructions to prevent hazards of this kind. ABB accepts no liability for any failure to observe the safety instructions. Information and symbols used The following Instructions point to particular hazards involved in the use of the device or provide...
Page 8: Intended Use
Each use not listed in Page 8 is deemed improper use and can lead to personal injury and damage to property. ABB is not liable for damages caused by use deemed contrary to the intended use of the device. The associated risk is borne exclusively by the user/operator.
Page 9: Target Group / Qualifications Of Personnel
Safety Target group / Qualifications of personnel 2.4.1 Operation No special qualifications are needed to operate the device. 2.4.2 Installation, commissioning and maintenance Installation, commissioning and maintenance of the device must only be carried out by trained and properly qualified electrical installers. The electrical installer must have read and understood the manual and follow the instructions provided.
Page 10: Cyber Security
Connection to the Internet or the local IP network To prevent improper use, no router ports from the Internet into the building network or home network are to be opened to the ABB OneTouch 7. A VPN tunnel is suitable for safe remote control.
Page 11 The product is not susceptible to malware, because a user-defined code cannot be executed on the system. The only option of updating the software is the update of the firmware. Only a firmware signed by ABB is accepted. Transfer of the installation / decommissioning of the device If you are transferring the installation or decommissioning the device, remove the device from all access options and ensure that your user data are deleted by resetting to the factory settings.
Page 12: Ports And Services For Supporting The Main Functionality
Safety 2.5.1 Ports and services for supporting the main functionality To support the main functionalities of the device, communication via specific ports and services must be possible in your local network. Contact your network administrator to set up, if necessary, the appropriate port sharing. Attention! Enabling the port increases the risk of cyber attacks.
Page 13: Safety Instructions
Safety Safety instructions Danger - Electric voltage! Electric voltage! Risk of death and fire due to electric voltage of 100 … 240 V. Dangerous currents flow through the body when coming into direct or indirect contact with live components. This can result in electric shock, burns or even death.
Page 14: Information On Protection Of The Environment
Information on protection of the environment Information on protection of the environment Environment Consider the protection of the environment! Used electric and electronic devices must not be disposed of with domestic waste. – The device contains valuable raw materials which can be recycled. Therefore, dispose of the device at the appropriate collecting depot.
Page 15: Product Overview
LAN (with the LAN adapter 5249C), the configuration of the external System Access Point is taken over (e.g. the number of the control elements). If the touch panel is connected with the ABB-Welcome bus, the configuration is made via the rotary switch on the rear side of the touch panel ().
Page 16: Scope Of Supply
Product Overview Scope of supply The panel is included in the scope of supply. The connection with the ABB-Welcome bus is established by means of the enclosed bus ® connection terminal. The connection with the ABB-free@home System Access Point is made via WLAN.
Page 17: Functional Overview
Product Overview Functional overview The following table provides an overview of the possible functions and applications of the device: Functions Applications ■ ■ Switching Door communication ■ ■ Dimming Fault and alarm messages ■ ■ Venetian blind control Internal RTC ■...
Page 18: Device Overview
Product Overview Device overview Device overview (front side) Fig. 2: Device overview ABB OneTouch 7 front side Pos. Description Touch screen Device overview (rear side) a1 b DC+ GND Station X100 X 00 P/SRC (PoE) Fig. 3: Device overview ABB OneTouch 7 rear side Pos.
Page 19: Technical Data
Mains supply 20 V - 30 V DC Standby operation 24 V DC, 300 mA Nominal voltage 24 V DC, 400 mA ABB-Welcome bus voltage 21 V - 32 V DC Energy consumption (power input) ■ maximum < 12 W ■...
Page 20 Technical data Designation Value WLAN WLAN standard IEEE 802.11 a/b/g/n/ac 802.11 b/g/n 2412 ... 2462 MHz (for USA) 2412 ... 2472 MHz (for Europe) WLAN frequency range 802.11a/n/ac: 5150…5250 MHz 5250…5350 MHz 5470…5725 MHz 5725…5850 MHz (for United States) Maximum transmission power, WLAN <...
Page 21: Dimensional Drawings
Technical data Dimensional drawings 1 .2 Fig. 4: Dimensions All dimensions are in millimetres. The installation height of the device is 14 mm. The installation depth is 10 mm. Notice The dimensions of the associated flush-mounted installation boxes (not included in the scope of supply) are as follows: ■...
Page 22: Circuit Diagrams
Pos. Function Doorbell connector Temperature sensor connection (E.g. PT100) ABB-Welcome bus connection Connection for local power supply Outdoor station selector switch Setting the address of the default outdoor station Indoor station selector switch Selector switch X10 sets tens digits, selector switch X1 sets ones digits, DIP switches X100 and X200 set hundreds digits.
Page 23: Connection, Installation / Mounting
Connection, installation / mounting Planning instructions Notice Planning and application instructions for the system are available in the system ® manuals for ABB-Welcome and ABB-free@home . These can be downloaded via www.BUSCH-JAEGER.de or https://abb.com/freeathome. Safety instructions Danger - Electric voltage! Risk of death due to electrical voltage of 100 …...
Page 24: Preparatory Steps
Connection, installation / mounting Preparatory steps ■ Terminate all branches of the wiring system with a connected bus device (e.g., indoor station, outdoor station, system device). Do not install the central control system directly next to bell transformers and of other ■...
Page 25: Mounting / Dismantling
Connection, installation / mounting Mounting / dismantling 6.5.1 Installation sites Fig. 6: Installation sites ■ When selecting the installation location, ensure that there is a distance to sources of heat or cold. ■ Heat or cold sources influence the function of the internal temperature sensor. ■...
Page 26: Mounting
Connection, installation / mounting 6.5.2 Mounting The device is suited for flush-mounted and surface-mounted installation. The following mounting versions are possible: ■ in Flush-mounted box for Busch-OneTouch 7" and IP Touch Lite 7" (42491F) – Mounting in solid wall, see chapter 6.5.3 “Mounting in flush-mounted installation box in solid wall“...
Page 27: Mounting In Flush-Mounted Installation Box In Solid Wall
Connection, installation / mounting 6.5.3 Mounting in flush-mounted installation box in solid wall Installation on the basis of the instructions on the enclosed plastering template: Notice See mounting instructions on the enclosed plaster and drilling template. First the bottom part of the flush-mounted installation box must be pulled off and installed flush-mounted.
Page 28: Mounting In Flush-Mounted Installation Box In Hollow Wall
Connection, installation / mounting 6.5.4 Mounting in flush-mounted installation box in hollow wall Installation on the basis of the instructions on the enclosed drilling template: Notice See mounting instructions on the enclosed plaster and drilling template. The bottom part of the flush-mounted installation box is not required here. Fig.
Page 29: Mounting With Surface-Mounted Installation Box
Connection, installation / mounting 6.5.5 Mounting with surface-mounted installation box First, the surface-mounted installation box must be installed according to the following specification. Fig. 10: Installation of surface-mounted installation box Notice For additional information see the enclosed mounting instructions for surface- mounted installation box.
Page 30 Connection, installation / mounting │30 Product manual 2TMD042500D0002...
Page 31: Electrical Connection
Connection, installation / mounting Electrical connection 6.6.1 Connection, installation and addressing a1 b DC+ GND (PoE) Station a1 b DC+ GND Station X 100 X 00 P / S R C (PoE) X100 X 00 P/S RC Fig. 12: Overview of connections / switches │31 Product manual 2TMD042500D0002...
Page 32 Connection, installation / mounting The connections, the switches and the terminal resistor are located on the rear of the ABB OneTouch 7. a1 b DC+ GND (PoE) Fig. 13: Overview of connections 1. Connect the device according to the graphics (see chapter 5.1 “Dimensional drawings“ on page 21).
Page 33: External Power Supply
Connection, installation / mounting 6.6.2 External power supply If the panel is not operated via ABB-Welcome, an external power supply is required. The device can be operated with the power supply named in the following: ■ CP-D 24/2.5 (Power supply for up to five panels possible) Notice ■...
Page 34: Installation
Connection, installation / mounting 6.6.3 Installation Fig. 15: Attaching the device (example illustration) 1. Attach the device on the installation box. Fig. 16: Latching the device (example illustration) 2. Push the device downward until the bottom clamp latches in. The device is now fully mounted. │34 Product manual 2TMD042500D0002...
Page 35: Dismantling
Connection, installation / mounting Dismantling Fig. 17: Loosening the clamp of the device 1. Push the slider on the bottom side of the device to the right. – The clamp is loosened. 2. Push the device upwards and then pull it off toward the front. │35 Product manual 2TMD042500D0002...
Page 36: Commissioning
Commissioning Commissioning Setup wizard - Door Entry System only 7.1.1 Configuration without SmartAP Please follow the steps below: [1] On the "Setup wizard" screen, select the language from the drop-down list. [2] Select the region from the drop-down list. [3] Tick the check box to accept the licences. Or tap "Click to read" to view the details of the licence.
Page 37 Commissioning [5] On the "Setup wizard" screen, select "Door Entry System"-"Welcome IP". [6] Tap "Continue". │37 Product manual 2TMD042500D0002...
Page 38 Commissioning [7] On the "Configuration Mode" screen, select "Panel set-up for single family house", tap " " to see the system topology, system recommended capacity, and you can download the product manual by scanning the QR code on the right. [8] Tap "Continue".
Page 39 Commissioning [9] On the "Panel Addressing" screen, select "Master mode". Only one Indoor Station can be set to "Master mode" in the same apartment. [10] Enter the block number, the floor number and the apartment number. The "Panel number" is preset as "01"...
Page 40 ■ Select the connection type, it can be set to "LAN" or "WiFi". ■ Select the address type, it can set to "DHCP", "Customizable address" or "ABB Legacy". If "ABB Legacy" is selected, IP address will be "10.0.x.x". ■ Please tap "Save" If the settings have been changed.
Page 41 Commissioning [14] On the "Trusted Devices" screen, check the system recommended capacity again. [15] Tap "Continue". [16] Check the system topology. [17] Tap "Continue" to start searching the devices in the single-family house. ■ On the "Trusted Devices" screen, you can also tap "Do it later" to skip this setting if your devices are not ready.
Page 42 Commissioning [18] All the related devices are displayed on the list. [19] Tap "Continue". [20] Tap "Continue". │42 Product manual 2TMD042500D0002...
Page 43 Commissioning [21] Tap "Trust all". [22] All the related devices will be displayed on the screen. [23] Tap "Continue". │43 Product manual 2TMD042500D0002...
Page 44 Commissioning [24] On the "Time & date" screen, you can carry out this setting at this time or tap "Continue" to skip this setting for the moment. For more details, see chapter 7.2.7 “Time and date settings“ on page 91. ■...
Page 45 Commissioning [26] There are 5 screens to guide you how to use the panel. [27] Tap "Skip" if you are already familiar with the panel. Note After configuring the Master IS, the 2nd OS and the IPA will both complete their configuration.
Page 46: Configuration Via Smartap
Commissioning 7.1.2 Configuration via SmartAP Please follow the steps below: [1] On the "Setup wizard" screen, select the language from the drop-down list. [2] Select the region from the drop-down list. [3] Tick the check box to accept the licences. Or tap "Click to read" to view the details of the licence.
Page 47 Commissioning [5] On the "Setup wizard" screen, select "Door Entry System"-"Welcome IP". [6] Tap "Continue". │47 Product manual 2TMD042500D0002...
Page 48 Commissioning [7] Select "Via Smart Access Point", tap " " to see more details. [8] Tap "Continue". [9] On the "Panel Addressing" screen, select the mode for the panel. It can be set to "Master mode" or "Subsidiary mode". Only one panel can be set to "Master mode" in the same apartment.
Page 49 ■ Select the connection type, it can be set to "LAN" or "WiFi". ■ Select the address type, it can set to "DHCP", "Customizable address" or "ABB Legacy". If "ABB Legacy" is selected, IP address will be "10.0.x.x". ■ Please tap "Save" If the settings have been changed.
Page 50 Commissioning [15] On the "Time & date" screen, you can carry out this setting at this time or tap "Continue" to skip this setting for the moment. For more details, see chapter 7.2.7 “Time and date settings“ on page 91. ■...
Page 51: Configuration Via Smartap & App
Commissioning 7.1.3 Configuration via SmartAP & APP Please follow the steps below: [1] On the "Setup wizard" screen, select the language from the drop-down list. [2] Select the region from the drop-down list. [3] Tick the check box to accept the licences. Or tap "Click to read" to view the details of the licence.
Page 52 Commissioning [5] On the "Setup wizard" screen, select "Door Entry System"-"Welcome IP". [6] Tap "Continue". │52 Product manual 2TMD042500D0002...
Page 53 Commissioning [7] Select "Via Smart Access Point with Welcome APP’s scanning", tap " " to see more details. [8] Tap "Continue". [9] On the "Panel Addressing" screen, select the mode for the panel. It can be set to "Master mode" or "Subsidiary mode". Only one panel can be set to "Master mode" in the same apartment.
Page 54 ■ Select the connection type, it can be set to "LAN" or "WiFi". ■ Select the address type, it can set to "DHCP", "Customizable address" or "ABB Legacy". If "ABB Legacy" is selected, IP address will be "10.0.x.x". ■ Please tap "Save" if the settings have been changed.
Page 55 Commissioning [14] On the "Configuration via Welcome APP’s Scanning Process" screen, tap "APP download" if you have not yet downloaded the APP. [15] Scan the designated QR code by using your mobile to download the APP, then tap "Continue". │55 Product manual 2TMD042500D0002...
Page 56 Commissioning [16] Create a building structure on the APP. For more details, see chapter 7.1.4 “Creating a building structure on APP“ on page 58. ■ [17] Use the APP to scan the QR code on the designated panels. For more details, see chapter 7.1.5 “Scanning the QR code on the panel“ on page 62. ■...
Page 57 Commissioning [19] On the "Time & date" screen, you can carry out this setting at this time or tap "Continue" to skip this setting for the moment. For more details, see chapter 7.2.7 “Time and date settings“ on page 91. ■...
Page 58: Creating A Building Structure On App
Commissioning 7.1.4 Creating a building structure on APP Please follow the steps below: [1] On the home screen of the APP, tap “ ”. [2] Tap “Configuration mode”. [3] Tap “OK” to access configuration mode. [4] On the “Projects” screen, tap “ ”.
Page 59 Commissioning [9] On the designated project screen, tap “ ”. [10] On the “Add building” screen, enter the building name. [11] Enter the building number. [12] Tap “Add” to create a new building. Repeat step 9~12 to create multiple buildings. [13] Tap the designated building.
Page 60 Commissioning [18] On the designated floor screen, tap “ ” to add a room. [19] Enter the alias name for the designated room. [20] Tap “Add” to create a new room. [21] On the designated floor screen, swipe a room name to the right. [22] Tap “...
Page 61 Commissioning [23] Enter the duplicate number. [24] Tap “Duplicate”. [25] Enter the alias name for each room now or do it later. [26] Tap “Duplicate”. [27] On the designated floor screen, swipe the designated room name to the right. [28] Tap “ ”...
Page 62: Scanning The Qr Code On The Panel
Commissioning 7.1.5 Scanning the QR code on the panel Please follow the steps below: [1] On the designated floor screen, tap the designated room. [2] On the designated room screen, tap “ ”. [3] On the “Add device” screen, scan the QR code displayed on the panel. │62 Product manual 2TMD042500D0002...
Page 63 Commissioning [4] On the “Device” screen, serial number of the device will be displayed. [5] Check the location. [6] Check the device type. [7] Tap “Add” to add a new device. [8] The result is displayed on the screen if success. Repeat step 1~7 to add multiple devices.
Page 64: Importing A Building Structure Via App
Commissioning 7.1.6 Importing a building structure via App ■ SmartAP can import the building created in the App. ■ You can import one building once or several buildings as a batch. Preconditions ■ The APP must be on the same network as SmartAP. ■...
Page 65 Commissioning Importing process Please follow the steps below: [1] On the home screen of the SmartAP, click " ". [2] A pop-up window will appear, please keep the window open and do not click " √ ". [3] On the "Projects" screen of the APP, swipe the designated project name to the right. [4] Tap "...
Page 66 Commissioning [9] On the configuration screen of SmartAP, the project name will be displayed on the screen. [10] Click " √ ". [11] Click "Confirm". │66 Product manual 2TMD042500D0002...
Page 67 Commissioning [12] The import result will be displayed. [13] Click " √ " to complete the import process. │67 Product manual 2TMD042500D0002...
Page 68: System Settings
Commissioning System settings 7.2.1 Accessing the "Settings" screen On the dashboard, tap " " to access the "Settings" screen. │68 Product manual 2TMD042500D0002...
Page 69: Display Settings
Commissioning 7.2.2 Display settings Accessing the "Display" screen On the "Settings" screen, tap "Display" to access the corresponding screen. Adjusting the brightness Please follow the steps below: [1] On the "Display" screen, tap "Settings". [2] Go to the "Brightness" section, drag the scroll bar to adjust the brightness. │69 Product manual 2TMD042500D0002...
Page 70 Commissioning Configuring the "Display mode" Please follow the steps below: [1] On the "Display" screen, tap "Settings". [2] In the "Display mode" section, select the display mode from the drop-down list. It can be set to "Dark theme" (default) or "Light theme". If the display mode is set to "Light theme", the UI will be displayed as follows: │70 Product manual 2TMD042500D0002...
Page 71 Commissioning Configuring the unit of temperature Please follow the steps below: [1] On the "Display" screen, tap "Settings". [2] Go to the "Temperature" section, select the unit from the drop-down list. It can be set to "Celsius" (default) or "Fahrenheit". ■...
Page 72 Commissioning Configuring the unit of wind Please follow the steps below: [1] On the "Display" screen, tap "Settings". [2] Go to the "Wind" section, select the unit from the drop-down list. It can be set to "Bft" (default) , "m/s", "km/h", "mph" or "kn". ■...
Page 73 Commissioning Adjusting the control element Please follow the steps below: [1] On the "Display" screen, tap "Settings". [2] Go to the "Appearance Control Element" section, tick/untick to enable/disable the function. ■ If the function is enabled, the control will be displayed on the dashboard as follow: │73 Product manual 2TMD042500D0002...
Page 74 Commissioning ■ If the function is disabled, the control will be displayed on the dashboard as follow: │74 Product manual 2TMD042500D0002...
Page 75 Commissioning Configuring the screensaver Please follow the steps below: [1] On the "Display" screen, tap "Screensaver". [2] Go to the "Screen saver mode" section, select the screen saver mode from the drop-down list. It can be set to "Clock" (default), "Slide show" or "Weather online". [3] Go to the "Start screen saver after"...
Page 76 Commissioning ■ If "Clock" is selected, there will be a clock displaying the current time at a random location on the screen. If "Slide show" is selected, there will be 3 built-in images playing in a loop according to the ■...
Page 77: Sound Settings
Commissioning 7.2.3 Sound settings Accessing the "Sound" screen On the "Settings" screen, tap "Sound" to access the corresponding screen. Adjusting the ringtone volume Please follow the steps below: [1] On the "Sound" screen, go to the "Ringtone volume" section, drag the scroll bar to adjust the ringtone volume.
Page 78 Commissioning Configuring the repeat ringtone Please follow the steps below: [1] On the "Sound" screen, tick/untick the check box to enable/disable the function. ■ Enable (default) = rings repeated ringtone within 30 seconds ■ Disable = rings only once Identifying the incoming call devices through the ringtones Please follow the steps below: [1] On the "Sound"...
Page 79 Commissioning Configuring the "Click sound" Please follow the steps below: [1] On the "Sound" screen, go to the "Click sound" section, tick/untick the check box to enable/disable the function. ■ Enable (default) = plays a sound when the screen is touched. ■...
Page 80: Network Settings
Commissioning 7.2.4 Network settings This chapter applies to "Private network" only. Accessing the "Network settings" screen Please follow the steps below: On the "Settings" screen, tap "Network Connections" to access the corresponding screen. │80 Product manual 2TMD042500D0002...
Page 81 Commissioning WiFi settings If "Private network" is set to "WiFi" during "Setup Wizard" or during "Advanced settings", you can configure WiFi settings here. Please follow the steps below: [1] On the "Network connections" screen, tap "Private Network". [2] Tick the check box to enable WiFi function. [3] Select the designated WiFi from the available list or tap "Connect manually"...
Page 82 Commissioning [4] Enter the WiFi password. [5] "DHCP" is enabled by default. You can untick the check box and enter the IP address manually. [6] Tap "Connect". [7] "√" will be displayed if successful. │82 Product manual 2TMD042500D0002...
Page 83 Commissioning [8] If you want to remove the WiFi name, swipe to the left then tap " ". │83 Product manual 2TMD042500D0002...
Page 84 Commissioning LAN settings If "Private network" is set to "LAN" during "Setup Wizard" or during "Advanced settings", you can configure LAN settings here. Please follow the steps below: [1] On the "Network connections" screen, tap "Private Network". [2] "DHCP" is the default value. You can disable it and enter the static address manually. │84 Product manual 2TMD042500D0002...
Page 85 Commissioning Cloud connections If "Private network" is disabled, then there is no private network menu here and the "Network Connections menu will be changed to "Cloud connections". │85 Product manual 2TMD042500D0002...
Page 86: Mybuildings Settings
Commissioning 7.2.5 MyBuildings settings Please follow the steps below: [1] On the "Network connections" screen, tap "MyBuildings portal". [2] Tap "Log in". [3] Enter the account, the password and the alias name. [4] Tap "Log in". │86 Product manual 2TMD042500D0002...
Page 87 Commissioning [5] The account name will be displayed if successful. [6] Tap "Log out" to disconnect from the myBuildings portal. The weather data will be displayed on the dashboard after the panel is logged into the myBuildings portal. Note The latitude and the longitude also need to be set to obtain the correct weather data.
Page 88: Paring The Panel With App
Commissioning 7.2.6 Paring the panel with APP Preconditions ■ You have logged in to the APP with the designated myBuildings account. ■ The APP and the panel are on the same network. Please follow the steps below: [1] On the "Network connections" or "Cloud connections" screen, tap "Mobile APP". [2] Tap "+".
Page 89 Commissioning [4] On the APP home screen, tap " ". [5] Tap "Pair Devices". [6] Tap "IP Gateway/Touch Panel". Tap " ". [7] Tap "IP Touch 7 & 10". [8] Tap "Start Scanning". │89 Product manual 2TMD042500D0002...
Page 90 Commissioning [9] Tap "OK" to give the APP permission to use the camera. [10] Tap "Add panel to MyBuildings portal" to sync the APP’s MyBuildings account to the panel. [11] At the same time as adding the myBuildings portal, the APP will pair the panel. [12] On the panel screen, tick the designated check boxes to grant the rights for the APP.
Page 91: Time And Date Settings
Commissioning 7.2.7 Time and date settings On the "Settings" screen, tap "Time & Date" to access the corresponding screen. Description Time server setting Select the time server from the drop-down list. – Default server = obtain the time data from the preset NTP servers. –...
Page 92: Changing Advanced Setting Password
Commissioning 7.2.8 Changing advanced setting password Please follow the steps below: [1] On the "Settings" screen, tap "Access Management". [2] Tap "Secured Areas". [3] Tap "Advanced settings". [4] Tap "Change pincode". [5] Enter the existing password (original password is "345678"). [6] Tap "Save".
Page 93 Commissioning [7] Enter the new password. [8] Tap "Save". [9] Enter the new password again. [10] Tap "Save". │93 Product manual 2TMD042500D0002...
Page 94: Resetting Advanced Setting Password
Commissioning 7.2.9 Resetting advanced setting password Please follow the steps below: [1] Within 3 minutes when the panel is powered on, on the "Settings" screen, tap "Access Management". [2] Tap "Secured Areas". [3] Tap "Advanced settings". [4] Tap "Reset Advanced Settings Pincode". [5] Tap "Yes".
Page 95: Configuring Unlock Password
Commissioning 7.2.10 Configuring unlock password 1. Enabling the unlock password This unlock password will be used as a private password to release the lock on the designated Outdoor Station. Please follow the steps below: [1] On the "Settings" screen, tap "Access Management". [2] Tap "Outdoor Station".
Page 96 Commissioning 2. Changing the unlock password Please follow the steps below: [1] On the "Settings" screen, tap "Access Management". [2] Tap "Outdoor Station". [3] Tap "Change pincode". [4] Enter the existing unlock password. [5] Tap "OK". │96 Product manual 2TMD042500D0002...
Page 97 Commissioning [6] Enter the new unlock password. [7] Tap "OK". [8] Repeat the unlock password. [9] Tap "OK". 3. Resetting the unlock password The unlock password will be cleared when the "Resetting user settings" function is carried out. │97 Product manual 2TMD042500D0002...
Page 98: Language Setting
Commissioning 7.2.11 Language setting Please follow the steps below: [1] On the "Settings" screen, tap "User Settings". [2] Tap "Language". [3] Select the language from the drop-down list. │98 Product manual 2TMD042500D0002...
Page 99: Automatic Snapshot Setting
Commissioning 7.2.12 Automatic snapshot setting Please follow the steps below: [1] On the "Settings" screen, tap "User settings". [2] Tap "Door Communication". [3] Tick the check box to enable the function. The panel will take 3 snapshots automatically in the 3rd, 5th, 7th second during an incoming call when this function is enabled.
Page 100: Missed Call Setting
Commissioning 7.2.13 Missed call setting Please follow the steps below: [1] On the "Settings" screen, tap "User settings". [2] Tap "Door Communication". [3] Tick the check box to enable the function. When the function is enabled, will be displayed on the status bar to indicate the missed calls.
Page 101: Call Forwarding Settings
Commissioning 7.2.14 Call forwarding settings The Forwarding call feature allows the call destinated to one Indoor Station to be redirected to a determined alternative Indoor Station, directly, in specific time slots, or in case of missing answer within a selected time. Creating a call forwarding Please follow the steps below: [1] On the "Settings"...
Page 102 Commissioning [5] Select the forwarding type. It can be set to "Direct Forwarding" or "No Answer". ■ If "No Answer" is selected, you need to set "Duration", it can be set to "15","20" or "25". The call will be forwarded after the duration time specified. ■...
Page 103 Commissioning Removing a call forwarding Please follow the steps below: [1] On the "Settings" screen, tap "User Settings". [2] Tap "Door Communication". [3] Find the designated call forwarding item. [4] Swipe the item to the left. [5] Tap " " to remove it. │103 Product manual 2TMD042500D0002...
Page 104 Commissioning Disabling the "Call Forwarding" function Please follow the steps below: [1] On the "Settings" screen, tap "User Settings". [2] Tap "Door Communication". [3] Untick the check box to disable the function. │104 Product manual 2TMD042500D0002...
Page 105: Linking Call Setting
Commissioning 7.2.15 Linking call setting People with hearing impairments cannot hear the ringing tone of an incoming call. It is recommended to link the call with a light connected to an IP Actuator. The designated light will turn on during an incoming call when this setting is enabled. Preconditions ■...
Page 106 Commissioning Please follow the steps below: [1] On the "Settings" screen, tap "User Settings". [2] Tap "Door Communication". [3] Tick the check box to enable the function. [4] Select "Private IP Actuator -xx - Subsidiary" in this case. │106 Product manual 2TMD042500D0002...
Page 107: Call Forwarding Settings
Commissioning 7.2.16 Call forwarding settings The Forwarding call feature allows the call destinated to one Indoor Station to be redirected to a determined alternative Indoor Station, directly, in specific time slots, or in case of missing answer within a selected time. Creating a call forwarding Please follow the steps below: [1] On the "Settings"...
Page 108 Commissioning [5] Select the forwarding type. It can be set to "Direct Forwarding" or "No Answer". ■ If "No Answer" is selected, you need to set "Duration", it can be set to "15","20" or "25". The call will be forwarded after the duration time specified. ■...
Page 109 Commissioning Removing a call forwarding Please follow the steps below: [1] On the "Settings" screen, tap "User Settings". [2] Tap "Door Communication". [3] Find the designated call forwarding item. [4] Swipe the item to the left. [5] Tap " " to remove it. │109 Product manual 2TMD042500D0002...
Page 110 Commissioning Disabling the "Call Forwarding" function Please follow the steps below: [1] On the "Settings" screen, tap "User Settings". [2] Tap "Door Communication". [3] Untick the check box to disable the function. │110 Product manual 2TMD042500D0002...
Page 111: Resetting User Settings
Commissioning 7.2.17 Resetting user settings Please follow the steps below: [1] On the "Settings" screen, tap "User Settings". [2] Tap "Reset User Settings". [3] Tap "Reset user settings". [4] On the pop-up warning window, tap "Yes". │111 Product manual 2TMD042500D0002...
Page 112 Commissioning The following settings will be restored to the default settings: ■ Display settings ■ Sound settings ■ Unlock password ■ History records The following settings will remain unchanged: ■ WiFi settings ■ APP settings ■ MyBuildings settings ■ Longitude and Latitude settings ■...
Page 113: Configuring Outdoor Station Cameras
Commissioning 7.2.18 Configuring Outdoor Station cameras Preconditions ■ This panel and the designated Outdoor Station should be in the same building. ■ The designated Outdoor Station and this panel should have the same authentication. 1. Add Outdoor Station cameras Please follow the steps below: [1] On the "Settings"...
Page 114 Commissioning [4] Tap the designated Outdoor Station on the list. [5] Tap "Add selected" or tap "Add all" to add the cameras. [6] Tap the relevant camera. [7] Surveillance will be initiated in a small window for 120 seconds. [8] Tap " "...
Page 115 Commissioning 2. Removing an Outdoor Station camera Please follow the steps below: [1] On the "Settings" screen, tap " Video Surveillance". [2] Tap "Outdoor Station Cameras". [3] Swipe the designate Outdoor Station to the left. [4] Tap " " to remove it. │115 Product manual 2TMD042500D0002...
Page 116: Configuring Private Cameras
Commissioning 7.2.19 Configuring private cameras Preconditions ■ The designated private cameras and the panel should be on the same network. ■ The panel only supports IP cameras with the Onvif protocol (Profile S, resolution format H264 only). Topology Master Subsidiary Subsidiary Private camera Router...
Page 117 Commissioning 1. Adding private cameras Please follow the steps below: [1] On the "Settings" screen, tap "Video Surveillance". [2] Tap "IP private cameras". [3] Tap " ". [4] Tap "Automatic search". │117 Product manual 2TMD042500D0002...
Page 118 Commissioning [5] Tap the designated camera. [6] Tap "Add selected". [7] Enter the account and password for the camera. [8] Tap "Connect Camera". │118 Product manual 2TMD042500D0002...
Page 119 Commissioning [9] Tap "Continue". [10] Tap the relevant camera. [11] Surveillance will be initiated in a small window for 120 seconds. [12] Tap " " to take a snapshot. [13] The snapshot will be displayed on the screen. This snapshot will be the cover when the camera is added to the dashboard.
Page 120 Commissioning [15] Tick the check box to enable the function. You need to set "Outdoor Station cameras" before implementing this setting. For more details, see chapter 7.2.18 “Configuring Outdoor Station cameras“ on page 113. ■ If this function is enabled, the Outdoor Station will display the image of private camera during in incoming call or during surveillance.
Page 121 Commissioning 2. Removing private cameras Please follow the steps below: [1] On the "Settings" screen, tap "Video Surveillance". [2] Tap "IP private cameras". [3] Swipe the designate camera to the left. [4] Tap " " to remove it. │121 Product manual 2TMD042500D0002...
Page 122: Configuring Public Cameras
Commissioning 7.2.20 Configuring public cameras Preconditions ■ The designated public cameras and the panel have been signed on the SmartAP. ■ The designated panel and SmartAP should be on the same network. ■ The panel only supports IP cameras with the Onvif protocol (Profile S, resolution format H264 only).
Page 123 Commissioning 1. Adding public cameras Please follow the steps below: [1] On the "Settings" screen, tap "Video Surveillance". [2] Tap "IP Public Cameras". [3] Tap " ". │123 Product manual 2TMD042500D0002...
Page 124 Commissioning [4] Tap the designated camera on the list. [5] Tap "Add selected" or tap "Add all" to add the cameras. [6] Tap the designated camera. [7] Surveillance will be initiated in a small window and last for 120 seconds. [8] Tap "...
Page 125 Commissioning [11] Tick the check box to enable the function. "Outdoor Station Cameras" needs to be set before this setting. For more details, see chapter 7.2.18 “Configuring Outdoor Station cameras“ on page 113. ■ If this function is enabled, the Outdoor Station will display the image of public camera during in incoming call or during surveillance.
Page 126 Commissioning 2. Removing public cameras Please follow the steps below: [1] On the "Settings" screen, tap "Video Surveillance". [2] Tap "IP Public Cameras". [3] Swipe the relevant camera to the left. [4] Tap " " to remove it. │126 Product manual 2TMD042500D0002...
Page 127: Configuring Intercom List
Commissioning 7.2.21 Configuring intercom list Adding an intercom Please follow the steps below: [1] On the "Settings" screen, tap "Intercom List". [2] Tap "Intercom List". [3] Tap " ". [4] Select the device type. It can be set to "Intercom (external) ", "Intercom (Internal) " or "Guard Unit".
Page 128 Commissioning [8] Tap the relevant intercom. [9] Tap "Edit details" to edit the settings. [10] The intercom will be added to the dashboard automatically. Tap " " to remove it from the dashboard. │128 Product manual 2TMD042500D0002...
Page 129 Commissioning Removing an intercom Please follow the steps below: [1] On the "Settings" screen, tap "Intercom List". [2] Tap "Intercom List". [3] Swipe the relevant intercom to the left. [4] Tap " " to remove it. │129 Product manual 2TMD042500D0002...
Page 130: Configuring Program Buttons
Commissioning 7.2.22 Configuring program buttons Adding a program button Please follow the steps below: [1] On the "Settings" screen, tap "Program Button". [2] Tap "Program Button". [3] Tap " ". [4] Select the type from the drop-down list. It can be set to "Lock" or "Light". [5] Select the associated device from the devices list.
Page 131 Commissioning [8] Tap the designated program button. [9] Tap "Edit details" to edit the settings. [10] The program button will be added to the dashboard automatically. Tap " " to remove it from the dashboard. [11] If "Actuator in APP" is enabled, this IP Actuator will be displayed on the APP screen. Only one IP Actuator can have this function enabled.
Page 132 Commissioning Removing a program button Please follow the steps below: [1] On the "Settings" screen, tap "Program Button". [2] Tap "Program Button". [3] Swipe the relevant program button to the left. [4] Tap " " to remove it. │132 Product manual 2TMD042500D0002...
Page 133 Commissioning Adding program buttons to the door communication screen Please follow the steps below: [1] On the "Settings" screen, tap "Program button". [2] Tap "Door Communication Screen". [3] Select the designated program button. [4] Edit the control list displayed on door communication screen: ■...
Page 134 Commissioning [5] Select the designated program button. [6] Adjust the order of the program buttons on the control list: ■ Tap "↑" to move up the program button. Tap " ↓" to move down the program button. ■ ■ The designated program buttons will be display according to the control list on the door communication screen.
Page 135: Software Update
Commissioning 7.2.23 Software update Update the firmware via the website Please ensure that the panel can connect to the internet. Please follow the steps below: [1] On the "Settings" screen, tap "Software Update". [2] The current software version will be displayed on the screen. [3] Tick the check box to enable the download function.
Page 136 Commissioning │136 Product manual 2TMD042500D0002...
Page 137 Commissioning [8] It will take a little while to download the new software. [9] Tick the check box to accept the licence. [10] Tap "OK". ■ If you don’t want to update the firmware, tap "x" to exit. │137 Product manual 2TMD042500D0002...
Page 138 Commissioning [11] "Installation successful!" will be displayed on the screen if successful. [12] Tap "Close window". │138 Product manual 2TMD042500D0002...
Page 139: Rebooting The Panel
Commissioning 7.2.24 Rebooting the panel Please follow the steps below: [1] On the "Settings" screen, tap "Software Update". [2] Go to the "Reboot this panel" section, tap "Reboot panel". [3] Tap "Reboot". │139 Product manual 2TMD042500D0002...
Page 140: About
Commissioning 7.2.25 About Viewing the status of the network Please follow the steps below: [1] On the "Settings" screen, tap "About". [2] Tap "Network". [3] "Building Network" data and "Private Network" data will be displayed on the screen. │140 Product manual 2TMD042500D0002...
Page 141 Commissioning Viewing the status of MyBuildings portal Please follow the steps below: [1] On the "Settings" screen, tap "About". [2] Tap "Network". [3] "MyBuildings Portal" data will be displayed on the screen. │141 Product manual 2TMD042500D0002...
Page 142 Commissioning Viewing the basic information Please follow the steps below: [1] On the "Settings" screen, tap "About". [2] Tap "Common". [3] The following basic information will be displayed on the screen. ■ Physical address ■ Master mode ■ Operating mode ■...
Page 143 Commissioning Obtaining the product manual Please follow the steps below: [1] On the "Settings" screen, tap "About". [2] Tap "QR Codes". [3] Scan the QR code on the left to access the website of this panel. [4] Click "Downloads". │143 Product manual 2TMD042500D0002...
Page 144 Commissioning [5] Click "Manual". [6] Find the designated product manual. [7] Click " " to download the PDF file. │144 Product manual 2TMD042500D0002...
Page 145 Commissioning Accessing the help centre Please follow the steps below: [1] On the "Settings" screen, tap "About". [2] Tap "QR Codes". [3] Scan the QR code on the right to access the website for the help centre. │145 Product manual 2TMD042500D0002...
Page 146: Advanced Settings
Commissioning Advanced settings 7.3.1 Accessing the "Advanced settings" screen Please follow the steps below: [1] On the "Settings" screen, tap "Advanced Settings". [2] Enter the advanced password (The system default advanced password is 345678). The user must change this when accessing the advanced settings for the first time. │146 Product manual 2TMD042500D0002...
Page 147: Configuring The Physical Address
Commissioning 7.3.2 Configuring the physical address Please follow the steps below: [1] On the "Advanced Settings" screen, tap "Panel". [2] Select the device mode from the drop-down list. It can be set to "Master mode" or "Subsidiary mode". ■ Only one panel can be set to "Master mode" in the same apartment. [3] Go to "Physical Address"...
Page 148: Configuring The Ip Address
" .to configure the IP Address. ■ Select the connection type, it can be set to "LAN" or "WiFi". Select the network type, it can set to "DHCP", "Customizable address" or "ABB Legacy". ■ ■ If "ABB Legacy" is selected, IP address will be "10.0.x.x".
Page 149: Configuring The Trusted Devices
Commissioning 7.3.4 Configuring the trusted devices This function applies to single family house application. The master panel will create a certification and assign the certificates to other devices on the same home networks (e.g. 2nd outdoor station, private IP actuator and subsidiary indoor station).
Page 150 Commissioning Enabling the trusted function Please follow the steps below: [1] On the "Advanced Settings" screen, ensure "Enable trusted devices function" is enabled. The function will be enabled if you select "Configuration without SmartAP" in the wizard setup. [2] "Trusted devices" will be displayed. │150 Product manual 2TMD042500D0002...
Page 151 Commissioning Adding devices via automatic search Please follow the steps below: [1] On the "Trusted Devices" screen, tap " ". [2] Select "Automatic search". [3] The devices on the same home network will be displayed on the list. [4] Tap "Continue". │151 Product manual 2TMD042500D0002...
Page 152 Commissioning [5] All the devices will be displayed on the screen. [6] If the new devices found in the automatic searching contain the 2nd OS or the Private IP Actuator, you need to tap "Trust all devices" to trust these devices. [7] In the pop-up window, tap "Trust All".
Page 153 Commissioning [8] The trusted devices will be displayed in the pop-up window. [9] Tap "x" to close the window. [10] will be displayed on the right to indicate the 2nd Outdoor Station or IP Actuator. │153 Product manual 2TMD042500D0002...
Page 154 Commissioning Adding the device manually Please follow the steps below: [1] On the "Trusted Devices" screen, tap " ". [2] Select "Entry manually". [3] Select the device type from the drop-down list. It can be set to "2nd OS", "Private IP actuator"...
Page 155 Commissioning [7] The designated device has been added to the list. [8] If the new device belongs to the 2nd OS or the Private IP Actuator, you need to tap "Trust all devices" to trust this device. [9] In the pop-up window, tap "Trust All". │155 Product manual 2TMD042500D0002...
Page 156 Commissioning [10] The trusted devices will be displayed in the pop-up window. [11] Tap "x" to close the window. [12] will be displayed on the right to indicate the 2nd Outdoor Station or IP Actuator. │156 Product manual 2TMD042500D0002...
Page 157 Commissioning Removing the trusted device Please follow the steps below: [1] On the "Trusted Devices" screen, swipe the relevant device to the left. [2] Tap " " to remove the device. │157 Product manual 2TMD042500D0002...
Page 158: Configuring The "Manual Snapshot" Function
Commissioning 7.3.5 Configuring the "Manual snapshot" function If this function is enabled, you can take snapshots during door communication. Please follow the steps below: [1] On the "Advanced Settings" screen, tap "Panel". [2] Go to the "Options" section, tick the check box to enable the function. [3] Tap "Save".
Page 159: Configuring The "Manual Video Recording" Function
Commissioning 7.3.6 Configuring the "Manual video recording" function If this function is enabled, you can record a video during door communication. Please follow the steps below: [1] On the "Advanced Settings" screen, tap "Panel". [2] Go to the "Options" section, tick the check box to enable the function. [3] Tap "Save".
Page 160: Configuring The "Auto Unlock" Function
Commissioning 7.3.7 Configuring the "Auto unlock" function If this function is enabled, the panel will release the lock on the Outdoor Station automatically after 5 seconds during an incoming call. This function can only be set on the "Master mode" panel. Please follow the steps below: [1] On the "Advanced Settings"...
Page 161 Commissioning [4] On the "Settings" screen, tap "User Settings". [5] Tap "Door Communication". [6] Tick the check box to enable the function. [7] Select the unlock mode. ■ Automatically unlock = automatically unlock at any time, skip the subsequent steps. ■...
Page 162 Commissioning [9] Set "Start Time" and "End Time". [10] Select the designated days. ■ Tap the designated day to select it or invert the selection. ■ Tap "Weekdays" to select 5 working days together. ■ Tap "Weekend" to select "Saturday" and "Sunday" together. [11] Tap "...
Page 163: Configuring The "Delete Call History" Function
Commissioning 7.3.8 Configuring the "Delete call history" function Call history records cannot be removed by default. Please follow the steps below: [1] On the "Advanced Settings" screen, tap "Panel". [2] Go to the "Options" section, tick the check box to enable the function. [3] Tap "Save".
Page 164 Commissioning [4] On the dashboard, tap the "Events" module. [5] On the "Notification Center" screen, swipe the relevant record to the left. [6] Tap " " to remove the record. [7] Tap "Delete all" to remove all the history records. │164 Product manual 2TMD042500D0002...
Page 165: Configuring The Address Of Default Guard Unit
Commissioning 7.3.9 Configuring the address of default Guard Unit Please follow the steps below: [1] On the "Advanced Settings" screen, tap "Panel". [2] Go to the "Default Guard Unit" section, enter the address (1...32). An SoS message will be sent to the default Guard Unit, SmartAP or APP if possible when it is triggered.
Page 166: Restoring To Factory Default
Commissioning 7.3.10 Restoring to factory default Please follow the steps below: [1] On the "Advanced Settings" screen, tap "Panel". [2] Go to the "Reset Panel Option" section, tap "Reset to factory setting". [3] Tap "Yes". │166 Product manual 2TMD042500D0002...
Page 167: Configuring The Outdoor Station
Commissioning Configuring the Outdoor Station The IP pushbutton Outdoor Station and mini Outdoor Station can be configured via this panel. Please see the product manual of the related Outdoor Station for more details. │167 Product manual 2TMD042500D0002...
Page 168: Configuring The Ip Actuator
Commissioning Configuring the IP Actuator IP Actuator can be configured via this panel. Please see the product manual of IP Actuator for more details. │168 Product manual 2TMD042500D0002...
Page 169: Operation
Operation Operation Dashboard 8.1.1 Dashboard overview Description There are 2 screens available for use, the second screen is empty by default. Some main functional modules are fixed at the top of the first screen. Events; this indicates if there is a new event, for instance, you are receiving a call, or you ■...
Page 170: Accessing The Editing Status
Operation 8.1.2 Accessing the editing status On the dashboard, tap “ ” to access the editing mode. │170 Product manual 2TMD042500D0002...
Page 171: Creating A Control For The Camera
Operation 8.1.3 Creating a control for the camera Precondition Please configure a camera before this operation. [1] Configuring Outdoor Station cameras. For more details, see chapter 7.2.18 “Configuring Outdoor Station cameras“ on page 113. ■ [2] Configuring private cameras. For more details, see chapter 7.2.19 “Configuring private cameras“ on page 116. ■...
Page 172 Operation [2] Select "Camera" from the drop-down list. [3] Select the device type from the drop-down list. It can be set to "Outdoor Station Camera", "Public Camera" or "Private Camera". [4] Tap "Next". [5] Select the designated device from the drop-down list. [6] Enter the alias name of the device.
Page 173 Operation [9] Tap "x". [10] The control will be displayed on the dashboard. │173 Product manual 2TMD042500D0002...
Page 174: Creating A Control For The Intercom
Operation 8.1.4 Creating a control for the intercom Precondition Please configure an intercom before this operation. For more details, see chapter 7.2.21 “Configuring intercom list“ on page 127. ■ Please follow the steps below: [1] Ensure the dashboard is in editing mode, tap a blank area of dashboard, then tap " + " to add a control.
Page 175 Operation [2] Select "Intercom" from the drop-down list. [3] Select the intercom type from the drop-down list. It can be set to "Intercom (external)", "Intercom (internal)" or "Guard Unit". [4] Tap "Next". [5] Select the designated device from the drop-down list. [6] Enter the alias name of the device.
Page 176 Operation [9] Tap "x". [10] The control will be displayed on the dashboard. │176 Product manual 2TMD042500D0002...
Page 177: Creating A Control For The Light
Operation 8.1.5 Creating a control for the light Precondition Please configure a program button to turn on a light before this operation. For more details, see chapter 7.2.22 “Configuring program buttons“ on page 130. ■ Please follow the steps below: [1] Ensure the dashboard is in editing mode, tap a blank area of dashboard, then tap "...
Page 178 Operation [2] Select "Light" from the drop-down list. [3] Tap "Next". [4] Select the designated device from the drop-down list. [5] Enter the alias name of the device. [6] Select the size of the frame. It can be set to "1 slot", "2 slots" or "4 slots". [7] Tap "Save &...
Page 179 Operation [8] Tap "x". [9] The control will be displayed on the dashboard. │179 Product manual 2TMD042500D0002...
Page 180: Creating A Control For The Door Lock
Operation 8.1.6 Creating a control for the door lock Precondition Please configure a program button to unlock before this operation. For more details, see chapter 7.2.22 “Configuring program buttons“ on page 130. ■ Please follow the steps below: [1] Ensure the dashboard is in editing mode, tap a blank area of dashboard, then tap " + " to add a control.
Page 181 Operation [2] Select "Door Unlock" from the drop-down list. [3] Tap "Next". [4] Select the designated Outdoor Station from the drop-down list. [5] Enter the alias name of the device. [6] Select the size of the frame. It can be set to "1 slot", "2 slots" or "4 slots". [7] Tap "Save &...
Page 182 Operation [8] Tap "x". [9] The control will be displayed on the dashboard. │182 Product manual 2TMD042500D0002...
Page 183: Creating A Control For The Elevator
Operation 8.1.7 Creating a control for the elevator Please follow the steps below: [1] Ensure the dashboard is in editing mode, tap a blank area of dashboard, then tap " + " to add a control. [2] Select "Elevator" from the drop-down list. [3] Tap "Next".
Page 184 Operation [4] Enter the alias name of the device. [5] Select the size of the frame. It can be set to "1 slot", "2 slots" or "4 slots". [6] Tap "Save & close". [7] Tap "x". │184 Product manual 2TMD042500D0002...
Page 185 Operation [8] The control will be displayed on the dashboard. │185 Product manual 2TMD042500D0002...
Page 186: Editing The Control
Operation 8.1.8 Editing the control Ensure the dashboard is in editing mode. ■ Tap the arrow icon (e.g. " ") to move the control in the specified direction. ■ Tap " " to change the settings of the control. ■ Tap "...
Page 187: Incoming Call
Operation Incoming call 8.2.1 Call from Outdoor Stations 1. During an incoming call Function " Incoming" indicates an incoming call (maximum 30 seconds). Display the device name. Display the image ■ Display the image of the calling Outdoor Station by default. ■...
Page 188 Operation 2. During communication Function " Communication" indicates a communication process (maximum 120 seconds). Display the device name. Display the image ■ Display the image of the calling Outdoor Station by default. ■ If a camera has been assigned to the calling Outdoor Station, the image from the camera will be displayed here.
Page 189: Call From Guard Units Or Indoor Stations
Operation 8.2.2 Call from Guard Units or Indoor Stations 1. During an incoming call Function " Incoming" indicates an incoming call. Display the device name. Display " " to indicate no image can be displayed on the screen. The countdown (9…1) will be displayed in the last 9 s. Tap "...
Page 190 Operation 2. During communication Function " Communication" indicates a communication process. Display the device name. Display " " to indicate no image can be displayed on the screen. The countdown (9…1) will be displayed in the last 9 s. Tap " "...
Page 191: Call From Doorbell
Operation 8.2.3 Call from doorbell When the doorbell is pressed, this device will display " " for 5 seconds on the status bar. If the doorbell is associated with the camera, the panel will display the image from the camera automatically.
Page 192: Intercom
Operation Intercom Please follow the steps below: [1] Adding a control for the intercom to the dashboard. For mode details, see chapter 8.1.4 “Creating a control for the intercom“ on page 174. ■ [2] On the dashboard, tap the designated intercom to initiate a call. │192 Product manual 2TMD042500D0002...
Page 193: Call Guard Unit
Operation Call Guard Unit Please follow the steps below: [1] Configuring the address of the default Guard Unit. For more details,.see chapter 7.3.9 “Configuring the address of default Guard Unit“ on ■ page 165. [2] Adding a control for the Guard Unit to the dashboard. For more details,.see chapter 8.1.4 “Creating a control for the intercom“...
Page 194: Surveillance
Operation Surveillance 8.5.1 Accessing video surveillance Please follow the steps below: [1] Adding a control for the designated Outdoor Station or the IP camera to the dashboard. For more details, see chapter 8.1.3 “Creating a control for the camera“ on page 171. ■...
Page 195: Surveillance From Outdoor Stations
Operation 8.5.2 Surveillance from outdoor stations Description " Video Surveillance" indicates surveillance (120 seconds). Display the device name. Display the image ■ Display the image of the relevant Outdoor Station. ■ If a camera has been assigned to the calling Outdoor Station, the image from the camera will be displayed here.
Page 196: Surveillance From Ip Camera
Operation 8.5.3 Surveillance from IP camera Function " Video Surveillance" indicates a surveillance process (120 seconds). Display the device name. Display the image of the relevant camera. The countdown (9…1) will be displayed in the last 9 s. Tap "<"or ">" to display the images from other Outdoor Station or the cameras. Tap "...
Page 197: Releasing The Lock
Operation Releasing the lock Please follow the steps below: [1] Adding a control for the relevant lock to the dashboard. For more details, see chapter 8.1.6 “Creating a control for the door lock“ on page 180. ■ [2] On the dashboard, tap the designated door lock to release it. [3] "...
Page 198: Turn On A Light
Operation Turn on a light Please follow the steps below: [1] Adding a control for the designated light to the dashboard. For more details, see chapter 8.1.5 “Creating a control for the light“ on page 177. ■ [2] On the dashboard, tap the designated light to turn on it. [3] "...
Page 199: Call The Elevator
Operation Call the elevator Please follow the steps below: [1] Adding a control for the designated elevator to the dashboard. For more details, see chapter 8.1.7 “Creating a control for the elevator“ on page 183. ■ [2] On the dashboard, tap the designated elevator to activate it. [3] Tap the direction icon e.g.
Page 200 Operation [4] " " will be displayed on the dashboard to indicate the process. │200 Product manual 2TMD042500D0002...
Page 201: Configuring The Voice
Operation Configuring the voice 8.9.1 Adjusting the voice volume Please follow the steps below: [1] On the dashboard, tap the voice icon " ". [2] In the pop-up window, drag the scroll bar to adjust the voice volume. │201 Product manual 2TMD042500D0002...
Page 202: Configuring The "Mute" Function
Operation 8.9.2 Configuring the "Mute" function Please follow the steps below: [1] On the dashboard, tap the voice icon " ". [2] On the pop-up window, select the mute type. It can be set to "2 hours", "Today" or "Always". [3] Select the relevant objects.
Page 203: Sending An Alarm Request
Operation 8.10 Sending an alarm request If you are in distress, something has happened at home, or if you live with an old or sick person at home and they need some support, they can send an alarm request. An automatic message will be sent to the accounts that are shared between the family and APP.
Page 204: History
Operation 8.11 History Accessing the "Call History" screen On the dashboard, tap "Events" to access the "Call history" screen. " " indicates there are missed calls. │204 Product manual 2TMD042500D0002...
Page 205 Operation Viewing the call records On the "Call History" screen, Description " " indicates that the record contains a video. " " indicates a missed call. " " indicates the SOS record " " indicates an intercom " " indicates an unlock "...
Page 206: Clean Screen
Operation 8.12 Clean screen Please follow the steps below: [1] On the "Settings", "Display" screen, tap "Settings". [2] Tap "Activate display cleaning mode". [3] The countdown (30…1) is displayed on the screen. Any operations on the screen will be invalid. This panel will exit "Cleaning mode" if an incoming call is received. │206 Product manual 2TMD042500D0002...
Page 207: Home Automation
Home automation Home automation free@home settings 9.1.1 Setup Wizard - free@home only Pos : 182 /CNDEX/01 Heading/1.1.1 Heading/H eadi ng_Pr ec onditi on @ 120\mod_1612755204569_15.doc x @ 1422187 @ 3 @ 1 Please follow the steps below: [1] On the "Setup wizard" screen, select the language from the drop-down list. [2] Select the region from the drop-down list.
Page 208 Home automation [5] On the "Setup wizard" screen, ■ Enable the "free@home" single choice. [6] Tap "Continue". │208 Product manual 2TMD042500D0002...
Page 209 Home automation [7] On the "IP Addressing" screen, tap "Edit" to access the corresponding screen. ■ Select the connection type, it can be set to "LAN" or "WiFi". ■ Select the address type, it can set to "DHCP" or "Customizable address". ■...
Page 210 Home automation [9] The panel will search for the SysAP in the same network. [10] Select the designated SysAP. Tap "Connect". ■ If there is no existing SysAP, you can tap "Continue without connection" to continue from step 14. [11] The validation code will be displayed. Please check this code on the designated SysAP if the two codes match.
Page 211 Home automation [12] The "Successfully connected to SysAP" will be displayed when the designated SysAP click "Confirm" to ensure the correct connection. [13] Tap "x" to close the current window. [14] On the "Time & date" screen, you can carry out this setting at this time or tap "Continue" to skip this setting for the moment.
Page 212 Home automation [15] There are 5 screens to guide you on how to use the panel. [16] Tap "Skip" if you are already familiar with the panel. │212 Product manual 2TMD042500D0002...
Page 213: Setup Wizard - Door Entry System With Free@Home
Home automation 9.1.2 Setup Wizard - Door Entry System with free@home Pos : 182 /CNDEX/01 Heading/1.1.1 Heading/H eadi ng_Pr ec onditi on @ 120\mod_1612755204569_15.doc x @ 1422187 @ 3 @ 1 Please follow the steps below: [1] On the "Setup wizard" screen, select the language from the drop-down list. [2] Select the region from the drop-down list.
Page 214 Home automation [5] On the "Setup wizard" screen, ■ Enable the "Welcome IP" check box. ■ Enable the "free@home" single choice. [6] Tap "Continue". Other settings please refer to the following chapters for more details. For more details about "Door Entry System", see chapter 7.1 “Setup wizard - Door Entry ■...
Page 215: Viewing The Information
Home automation 9.1.3 Viewing the information Pos : 182 /CNDEX/01 Heading/1.1.1 Heading/H eadi ng_Pr ec onditi on @ 120\mod_1612755204569_15.doc x @ 1422187 @ 3 @ 1 Please follow the steps below: [1] On the dashboard, tap "Dashboard". [2] Tap " ".
Page 216 Home automation [6] Tap "Common". [7] Check the operating mode. │216 Product manual 2TMD042500D0002...
Page 217: Configuring Program Buttons
Home automation 9.1.4 Configuring program buttons Pos : 182 /CNDEX/01 Heading/1.1.1 Heading/H eadi ng_Pr ec onditi on @ 120\mod_1612755204569_15.doc x @ 1422187 @ 3 @ 1 Adding program buttons Please follow the steps below: [1] On the "Settings" screen, tap "Program Button". [2] Tap "Program Button".
Page 218 Home automation Removing a program button Please follow the steps below: [1] On the "Settings" screen, tap "Program Button". [2] Tap "Program Button". [3] Swipe the relevant program button to the left. [4] Tap " " to remove it. │218 Product manual 2TMD042500D0002...
Page 219 Home automation Adding program buttons to the door communication screen Please follow the steps below: [1] On the "Settings" screen, tap "Program button". [2] Tap "Door Communication Screen". [3] Select the designated program button. [4] Edit the control list displayed on door communication screen: ■...
Page 220 Home automation [5] Select the designated program button. [6] Adjust the order of the program buttons on the control list: ■ Tap "↑" to move up the program button. Tap " ↓" to move down the program button. ■ ■ The designated program buttons will be display according to the control list on the door communication screen.
Page 221: Configuring The Advanced Settings
Home automation 9.1.5 Configuring the advanced settings Pos : 182 /CNDEX/01 Heading/1.1.1 Heading/H eadi ng_Pr ec onditi on @ 120\mod_1612755204569_15.doc x @ 1422187 @ 3 @ 1 You can also pair the panel with free@home SysAP on the "Advanced settings". Please follow the steps below: [1] On the "Advanced settings"...
Page 222 Home automation [4] The validation code will be displayed. Please check this code on the designated SysAP if the two codes match. [5] The "xxx (connected)" will be displayed when the designated SysAP click "Confirm" to ensure the correct connection. │222 Product manual 2TMD042500D0002...
Page 223: Viewing The Home Automation Devices
Home automation 9.1.6 Viewing the home automation devices Pos : 182 /CNDEX/01 Heading/1.1.1 Heading/H eadi ng_Pr ec onditi on @ 120\mod_1612755204569_15.doc x @ 1422187 @ 3 @ 1 You can swipe the screen to left or right to view the home automation devices. Or click "...
Page 224 Home automation Or click " ", followed by "Room", then select the location to view the home automation devices. │224 Product manual 2TMD042500D0002...
Page 225: Alarm Record
Home automation 9.1.7 Alarm record Please follow the steps below: [1] On the dashboard, tap "Events". [2] On the "Notification Center" screen, tap "Alert Message". [3] The alarm records will be displayed, click the alarm record to view the details. [4] Swipe the alarm record to the left.
Page 226 Home automation [7] On the "Notification Center" screen, tap "Others". [8] The notifications about the connection will be displayed, click the notification to view the details. [9] Swipe the notification to the left. [10] Tap " " to remove the notification. [11] Tap "...
Page 227: Commissioning The Home Automation Devices Via Sysap
Home automation 9.1.8 Commissioning the home automation devices via SysAP For commissioning the free@home devices, please see the product manual of SysAP via the following link: https://search.abb.com/library/Download.aspx?DocumentID=2CKA001473B9726&LanguageCo de=en&DocumentPartId=&Action=Launch. │227 Product manual 2TMD042500D0002...
Page 228: Cyber Security
H8236 product, the network, its system and interfaces against any kind of security breaches, unauthorized access, interference, intrusion, leakage and/or theft of data or information. ABB Ltd and its affiliates are not liable for damages and/or losses related to such security breaches, unauthorized access, interference, intrusion, leakage and/or theft of data or information.
Page 229: Performance And Service
Cyber security 10.2 Performance and service Network performance Type Value Ethernet 36 Mbps (53,568 packets/s) 17 Mbps (25,296 packets/s) ICMP 14 Mbps (20,832 packets/s) 22 Mbps (32,736 packets/sec) Port and service Port Service Purpose 5060 To be used by sip client. 5061 To be used by sip server 5070...
Page 230: Deployment Guideline
Malware prevention solution The device H8236 is not susceptible to malware, because custom code cannot be executed on the system. The only way to update the software is via firmware upgrades. Only firmware signed by ABB can be accepted. 10.7 Password rule The user needs to change the engineering password when entering the engineering settings for the first time.
Page 231: Notice
We reserve the right to at all times make technical changes as well as changes to the contents of this document without prior notice. The detailed specifications agreed to at the time of ordering apply to all orders. ABB accepts no responsibility for possible errors or incompleteness in this document.
Page 232 Contact us Notice We reserve the right to at all times ABB Xiamen Smart Technology Co., Ltd. make technical changes as well as No. 881, FangShanXiEr Road, Xiang’An Industrial changes to the contents of this Area, Torch Hi-Tech Industrial Development Zone, document without prior notice.
