68-pin high-density
SCSI Connector
Note: If your DLT-VS80 Internal Drive is attached to a narrow SCSI bus, only IDs 0 through
7 are valid.
Locate the SCSI ID jumpers on the rear panel of the drive as shown in Figure 2-5.
To set the SCSI ID on your DLT-VS80 Internal Drive, use the supplied jumpers to select the
desired SCSI ID as shown in the following table:
SCSI ID 0
Jumper
Block
SCSI ID 8
Jumper
Block
* Factory default SCSI ID
2.4.3.2
If your DLT-VS80 Internal Drive is the only SCSI device – other than the SCSI host adapter
– on the selected server or workstation's SCSI bus, it must be terminated. Likewise, if your
DLT-VS80 Internal Drive is the last SCSI device on the selected server or workstation's
SCSI bus, it must be terminated.
2-10
Power Connector

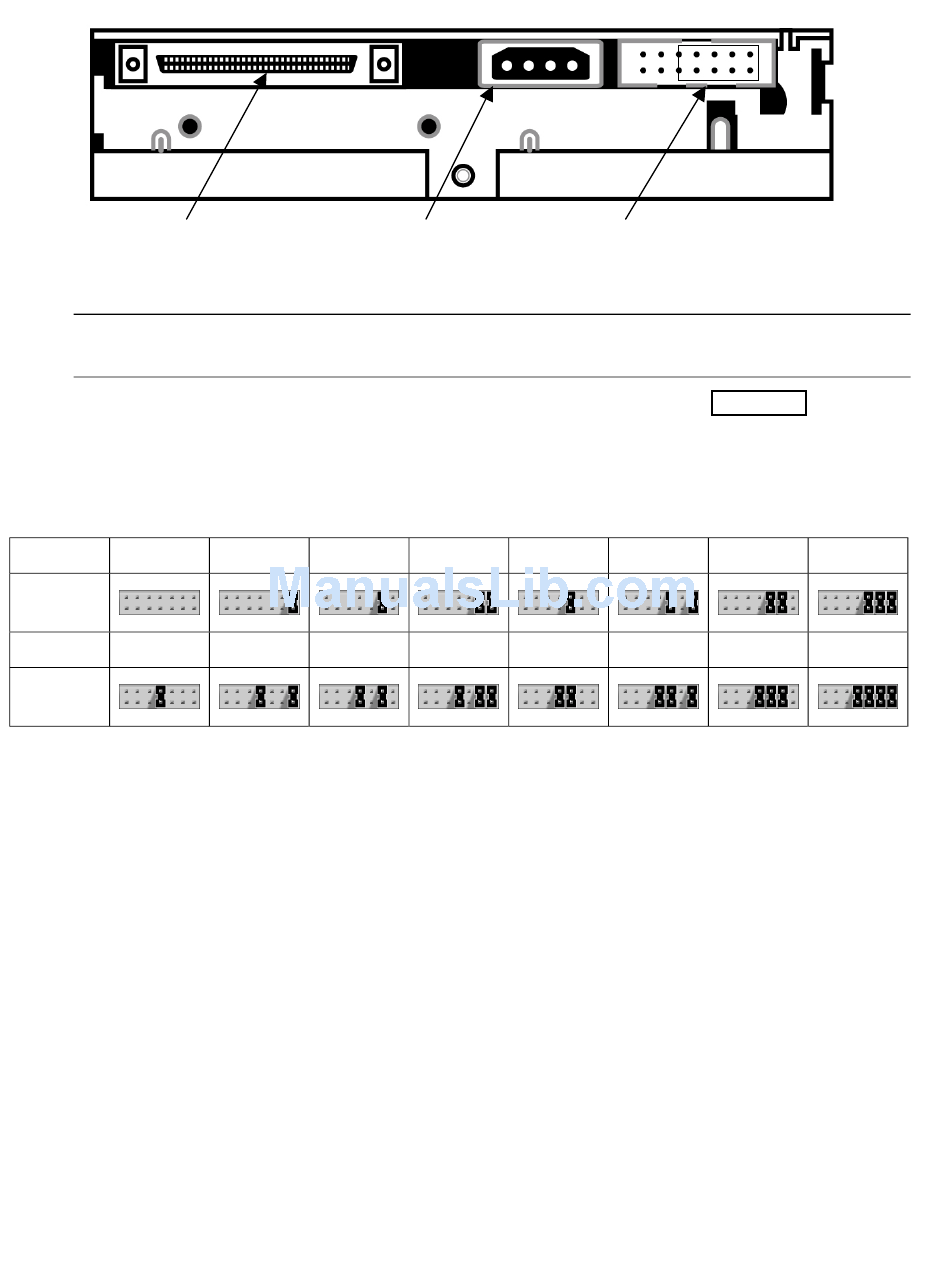

Figure 2-5: SCSI ID Jumper Block Location

1 2
9 10

Table 1: Setting the SCSI ID Jumper Block

When to Use Termination

SCSI ID Jumpers
3 4
11 12
5* 6
13 14
7
15
