Trio Avionics Pro Pilot Operation Manual

For experimental aircraft
Hide thumbs Also See for Pro Pilot:
Table of Contents

Advertisement

Quick Links

Download this manual

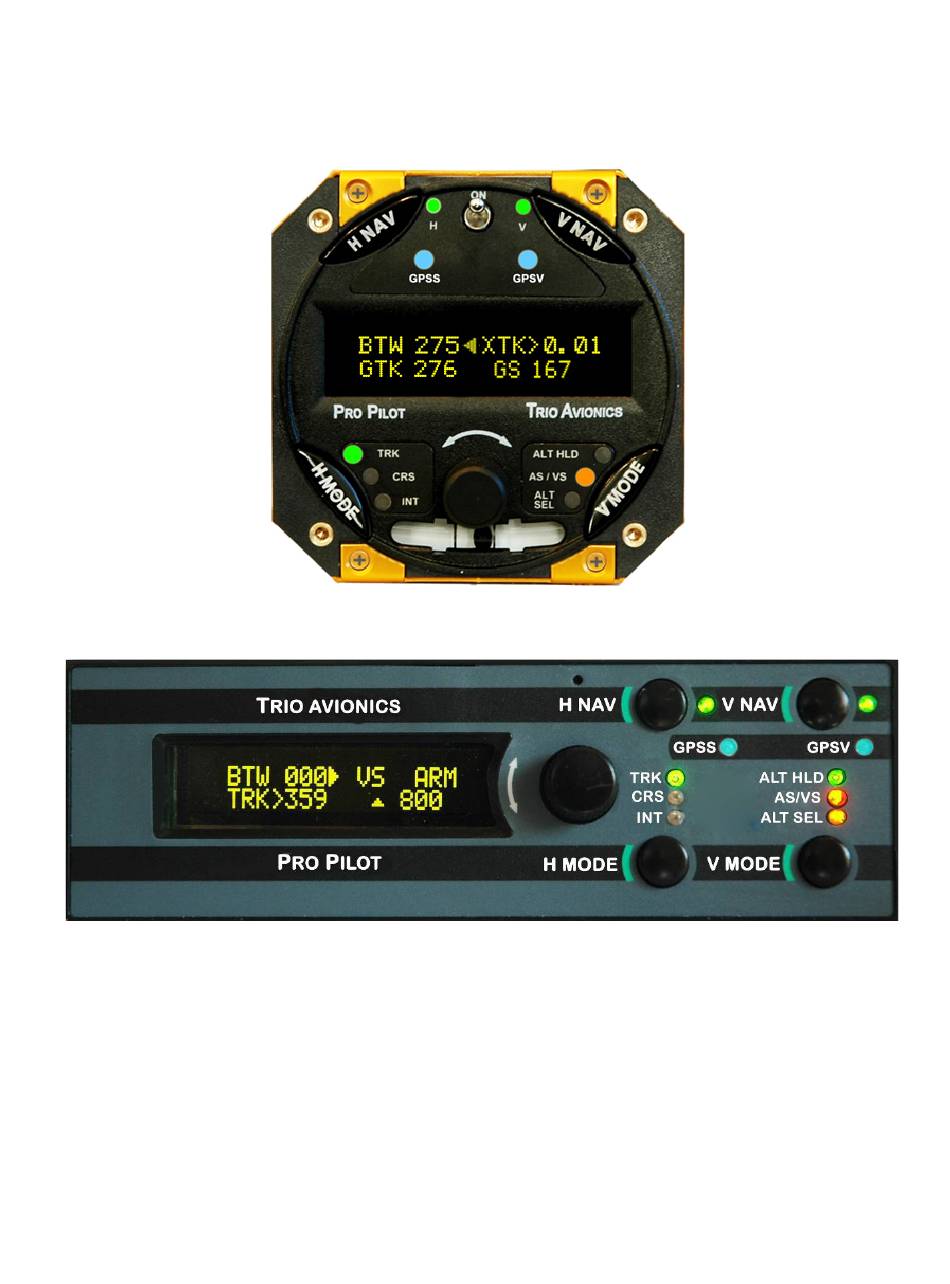

Pro Pilot
Operation Manual for Experimental
Aircraft
Trio Avionics Corporation
Version 5.0
