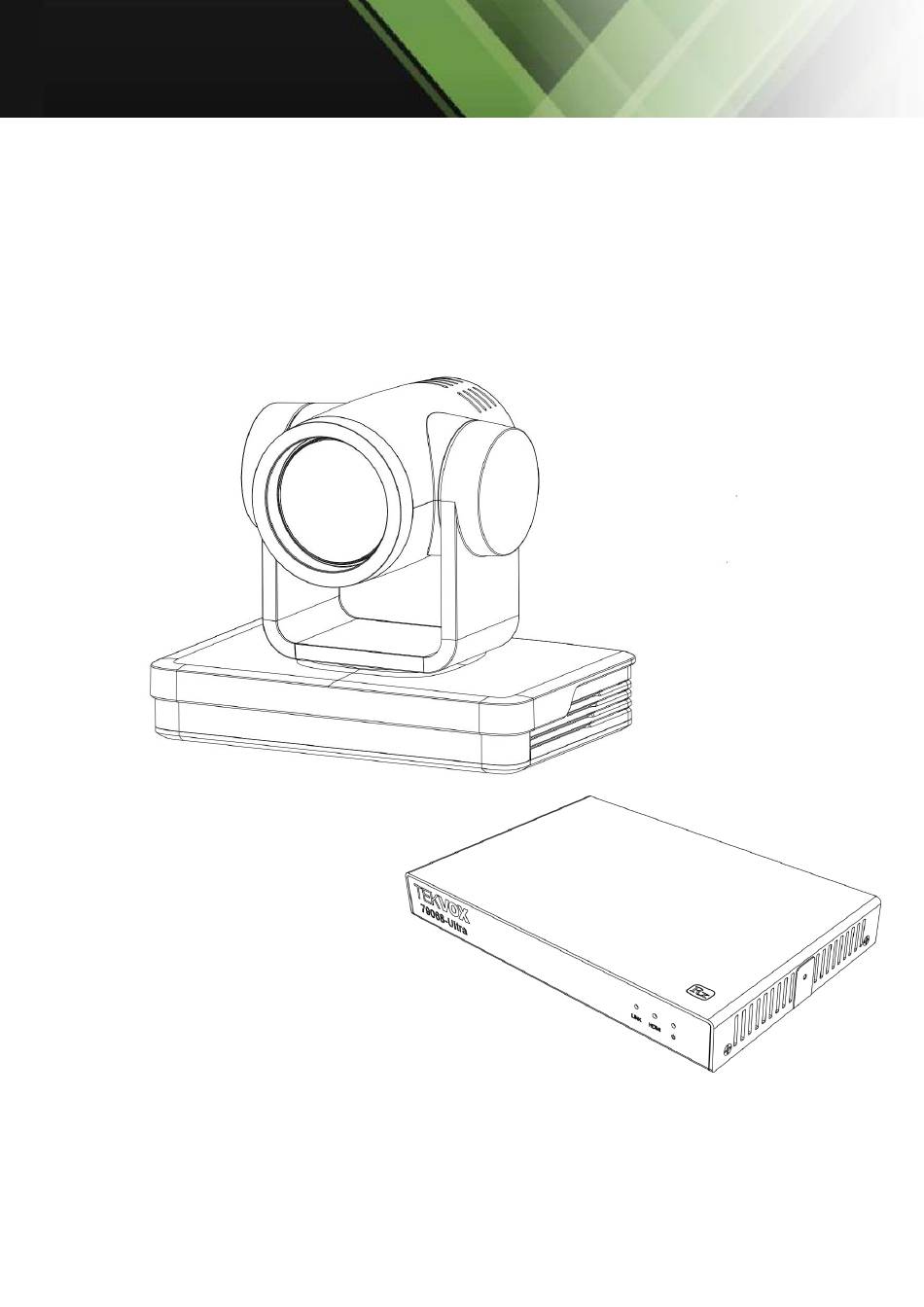

  • Page 1 TEKVOX 79068-Ultra 790 68 - Ul t r a User Manual TEKVOX-79068-Ultra All Rights Reserved Version: 79068-Ultra_2025V1.1...

  • Page 2: Graphic Symbols

    TEKVOX 79068-Ultra 790 68 - Ul t r a User Manual Preface This manual is to ensure that the user can use the product properly and avoid danger while operating. Before using this product, please read the user manual carefully and keep it properly for future reference.
  • Page 3 TEKVOX 79068-Ultra 790 68 - Ul t r a User Manual Attention This manual introduces functions, installations and operations for this product in detail. Please read this manual carefully before installation and use. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: 1) Do not expose the product to rain or moisture.
  • Page 4 TEKVOX 79068-Ultra 790 68 - Ul t r a User Manual 3) Ensure there are no obstacles within rotation range of the holder. 4) Do not power on before completely installation. Improper operations may damage the product structure and result in mechanical failure.

  • Page 5: Table Of Contents

    TEKVOX 79068-Ultra 790 68 - Ul t r a User Manual Content Quick Start ......................... 6 1.1 Camera Hardware and Connections ................. 6 1.2 Receiver Hardware and Connections ................ 7 1.3 Camera Power-on Self-Test ..................7 1.3.1 Power on ....................... 7 1.3.2 Self-Test ......................
  • Page 6 TEKVOX 79068-Ultra 790 68 - Ul t r a User Manual 3.3.1 Main Menu ....................28 3.3.2 Monocular Tracking ..................30 3.3.3 System Setting ..................... 30 3.3.4 Camera Parameter Setting ................31 3.3.5 P/T/Z ......................36 3.3.6 Video Format ....................37 3.3.7 NETWORK ....................

  • Page 7: Quick Start

    Quick Start 1.1 Camera Hardware and Connections Figure1-1 Camera Hardware Hardware 1. Lens 2. Base 3. IR LED 5. Tripod Screw Hole 6. Fixation Hole 4. Hole for Dip Switch 7. HDBT OUT 8. USB 3.0 (Service) 9. LINE IN 12.

  • Page 8: Receiver Hardware And Connections

    1.2 Receiver Hardware and Connections Figure1-2 Receiver Hardware Hardware 1. HDBT LINK LED 2. HDMI LED 3. Power LED 4. AUDIO OUT 5. LINE IN 6. RS232 7. RS232 Mode Switch 8. IR IN 9. USB 3.0 OUT 10. HDMI OUT 11.

  • Page 9: Self-Test

    1.3.2 Self-Test After power on, the receiver light will start flashing and camera will do a brief pan-tilt tour and return to the home position. When the light stops flashing, the self-test is finished. ⚫ The default address of the remote control is 1#. When using the menu restore default setting, the address of IP remote control will restore 1#.

  • Page 10: Bracket

    1.5 Bracket ⚫ The bracket can only be wall or upside down mounted on a structurally supported wall with proper mounting hardware. 1.5.1 Steps of Wall Mount...
  • Page 11 Figure1-3 Steps of Wall Mount...

  • Page 12: Steps Of Ceiling Mount

    1.5.2 Steps of Ceiling Mount Figure1-4 Steps of Ceiling Mount...

  • Page 13: Product Overview

    Product Overview 2.1 Product Overview 2.1.1 Camera Product Dimension Figure2-1 Camera Product Dimension...

  • Page 14: Receiver Product Dimension

    2.1.2 Receiver Product Dimension Figure2-2 Receiver Product Dimension 2.1.3 Accessory When you unpack your package, check that all the supplied accessories are included: Supplied Accessory 1 * 4K HDBaseT PTZ Camera 4 * Plastic pad 1 * HDBaseT Receiver 1 * DC14V2.7A Power adapter 1 * US Power Cable 1 * USB 3.0 Cable Supplied...

  • Page 15: Product Feature

    2.2 Product Feature The 79068-Ultra is an advanced 4K HDBaseT PTZ auto-tracking camera where we bring all the connections to you with only one Cat cable up to 328’. The camera features 12x optical zoom and supports up to 4K@30Hz resolution and includes both audio in and power for an Acoustic Magic Voice Tracker III microphone.

  • Page 16: Technical Specification

    ⚫ AI Human Detection: Built-in high-speed processor and advanced image processing and analysis algorithm, and real-time tracking and zone tracking modes are available, can switch the tracking object by clicking the person object frame on the webpage. ⚫ Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.
  • Page 17 Main stream： 3840×2160/2560×1440/1920×1080/1600×896/1280×720/1024 ×576/960×540/800×600/800×448/720×576/ 720×480/640×360/640×480/480×270/352×288/320× 240@30/25/20/15/10/5fps; Secondary stream: 1920×1080/1280×720/640×360/640×480/320×240/320×180@3 0/25/20/15/10/5fps; Optical Zoom Horizontal：8°（N）～80°（W） Viewing Angle 3.5 ～ 42 mm ±5% Focal Length F1.8 ～ F3.3±5% Iris Value Digital Zoom Minimum 0.5 Lux (F1.8, AGC ON) Illumination 2D&3D DNR White Balance Auto / Manual/ One Push/ Specified Temperature Focus Auto/Manual/One Push Focus...
  • Page 18 >50dB Table 2-2 Interface Parameter Interface Parameter Video Output HDMI, HDBaseT, LAN, USB 3.0 Video Compression MJPG, H264, YUY2, NV12 Format Audio Input Double track 3.5mm linear input; Audio Output HDMI, HDBaseT, LAN, USB 3.0 Audio Compression Format 10M/100M adaptive Ethernet port, support POE power supply, LAN RJ45 support audio and video output RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, RTMPS,...
  • Page 19 Consumption <12W Table 2-3PTZ Parameter PTZ Parameter Pan Move -170°～+170° -30°～+90° Tilt Move 0.1°/s～35°/s Pan Speed 0.1°/s～30°/s Tilt Speed Preset Speed Pan: 35°/s, Tilt: 30°/s Preset Quantity Up to 255 preset (10 via remote control) Table 2-4Other Parameter Other Parameter Storage -10℃～+70℃...
  • Page 20 Table 2-6 AI Function AI Function The longest tracking distance can reach 6-7 meters (22’), Real-time Tracking Mode which can support the speaker to walk at a speed of 3-4 mph 4 tracking zones are available, which can be set within -170°～ Zone Tracking Mode +170°in horizontal and -30°～+90°...
  • Page 21 -80dB Noise Level 1 USB (USB 3.0 Type-B, Female) 1 TCP/IP (RJ45, Female, 1 with PoE) Control Ports 2 IR (In/Out, 3.5mm mini jack) 1 RS232 (3-pin Phoenix) Other Parameter Maximum 4Kx2K @ 60Hz 4:2:0 / 1080p @ 60Hz: 328 ft (100m) Transmission Distance Storage...

  • Page 22: System Connection

    2.4 System Connection...

  • Page 23: How To Use

    How to Use 3.1 Video Output 3.1.1 Power-on Self-test After powering on, the camera will have initial configuration and receiver the light will flash. Camera will do a brief pan-tilt tour and return to the home position, or if preset 0 is set, the camera will return to the preset 0 position).

  • Page 24: Remote Control

    3.2 Remote Control Please read the following content for operating the IR remote including special button sequence entries. 3.2.1 IR Remote Control 1. Standby Key After a 3-second-long press, the camera will step into standby mode. Long press again for 3-seconds, the camera will self- test again and back to HOME position.
  • Page 25 “HOME” Key: Return to the camera home position or enter the next level menu.
  • Page 26 9. BLC Control Key Back Light ON / OFF: Turn on or off the back light 10. Menu Setting Open or close the OSD menu Enter / exit the OSD menu or return to the previous menu. 11. Camera IR Remote Control Address Setting 【*】+【＃】+【F1】:Camera Address No.1 【*】+【＃】+【F2】:Camera Address No.

  • Page 27: Remote Control Usage

    13. AI Function Short Keys 【F1】 ：Turn off AI Human Detection 【F2】 ：Turn on AI Human Detection 【F3】 ：Switch figure tracking mode 【F4】 ：Chang tracking target on real tracking mode 3.2.2 Remote Control Usage Users can control the pan/tilt/zoom, setting and running preset positions via the IR remote controller.

  • Page 28: Zoom Control

    3）Presets Setting, Running, Clearing 1. Preset setting: to set a preset position, the users should press the “【SET PRESET】” key first and then press the number key 0-9 to set a relative preset. Note: 10 preset positions in total are available by remote controller.

  • Page 29: Menu Setting

    Focus (near): Press “【focus+】” key (Valid only in manual focus mode) Focus (far): Press “【focus-】”key (Valid only in manual focus mode) Auto Focus: Support Manual Focus: Support Press and hold the key, the action of focus will keep continue and stops as soon as the key is released.
  • Page 30 MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English Monocular Tracking （Setup） （Camera） （P/T/Z） （Video Format） （Version） （Restore Default） [↑↓]Select[← →]Change Value [Menu]Back [Home]OK : Enter into submenu of Monocular Tracking Language：Chinese/English system setting Camera Parameter: Enter into submenu of Setting ： Enter into submenu of camera parameter system setting Version: Enter into submenu of version...

  • Page 31: Monocular Tracking

    3.3.2 Monocular Tracking Monocular Tracking ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Monocular Tracking [↑↓]Select[← →]Change Value [Menu]Back [Home]OK : On/Off Monocular Tracking 3.3.3 System Setting Move the pointer to the (Setup) in the Main Menu, click the【HOME】key and enter the (System Setting) as shown below. PELCO is not supported. SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...

  • Page 32: Camera Parameter Setting

    3.3.4 Camera Parameter Setting Move the pointer to the (CAMERA) in the Main Menu, click the【HOME】key and enter the (CAMERA) as follow CAMERA ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ （Exposure） （Color） （Image） （Focus） （Noise Reduction） Style Default [← →]Change Value [↑↓]Select [Menu]Back [Home]OK Exposure: Enter into Exposure setting Color: Enter into color setting Image: Enter into image setting Focus: Enter into focus setting...
  • Page 33 EV : On/Off (only available in auto mode) Compensation Level: -7~7 (only available in auto mode when EV is ON) BLC: ON/OFF for options (only available in auto mode) Anti-Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes) Gain Limit: 0~15(only available in Auto/ Iris priority /Brightness priority mode) Dynamic range: 1~8, off Shutter Priority: 1/25, 1/30, 1/50,1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350,...
  • Page 34 Saturation: 0~127 AWB Sensitivity: high/middle/low (only available in Auto mode) Color temperature: 2400K-7100K (only valid at specified color temperature) Chroma: 0~8...
  • Page 35 3）Image Move the pointer to the (IMAGE) in the Menu, click the【HOME】and enter the (IMAGE) as follow IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness B&W-Mode Color Gamma Default DZoom Low-Light Mode [↑↓]Select[← →]Change Value [Menu]Back Brightness: 0~100 Contrast: 0~100 Sharpness: 0~15 Horizontal Flip: On/Off Vertical Flip: On/Off B&W Mode: Color, black/white Gamma: Default, 0.45, 0.50, 0.55, 0.63...
  • Page 36 4）Focus Move the pointer to the (FOCUS) in the Menu, click the【HOME】and enter the (FOCUS) as follow. FOCUS ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Focus Mode Auto AF-Zone AF-Sensitivity [← →]Change Value [↑↓]Select [Menu]Back Focus Mode: Auto, manual, one push AF-Zone: ALL/Top/Center/Bottom AF-Sensitivity: High, middle, low 5）Noise Reduction Move the pointer to the (NOISE REDUCTION) in the Menu, click the【HOME】and enter the (NOISE REDUCTION) as follow...

  • Page 37: P/T/Z

    3.3.5 P/T/Z Move the pointer to the (P/T/Z) in the Main Menu, click the【HOME】and enter the (P/T/Z) as follow P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Speed by zoom Zoom speed Image Freezing Acc Curve Slow Preset speed [↑↓]Select [← →]Change Value [Menu]Back Speed by zoom: On/OFF – When settings is on and using the IR remote, the speed of the PTZ is determined by the field of view.

  • Page 38: Video Format

    3.3.6 Video Format Move the pointer to the (Video Format) in the Menu, click the【HOME】and enter the (Video Format) as follow VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 4K30 4K25 1080P60 1080P50 1080P30 1080P25 720P60 720P50 1080P59.94 1080P29.97 720P59.94 [↑↓]Select [Menu]Back [Home]OK ⚫ Exit menu after modifying parameter to save it 3.3.7 NETWORK Move the pointer to (Network NETWORK settings...

  • Page 39: Version

    3.3.8 Version Move the pointer to the (VERSION) in the Main Menu, click the【HOME】and enter the (VERSION) as follow VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MCU Version 3.2.0 Camera Version 1.0.0 AF Version 1.0.0 [Menu]Back MCU Version: Display MCU version information Camera Version: Display camera version information AF Version: Display the focus version information 3.3.9 Restore Default Move the pointer to the (VERSION) in the Main Menu, click the【HOME】and enter...

  • Page 40: Network Connection

    Network Connection 4.1 Connection Method Direct Connection：Direct connections via “cross-over” network cable Connection to LAN：Connections to LAN via patch cable to LAN wall jack or LAN switch. The default camera IP is 192.168.5.163. The computer must be on the same network segment as the camera. The camera’s default IP address is 192.168.5.163.

  • Page 41: Camera Web Interface

    Figure 4-2Network Connection Screenshot 4.2 Camera Web Interface 4.2.1 Web Login 1）Web Login After assigning an IP address to the camera, you can reach the Web Interface by typing in the camera’s IP address into a web browser. You can login to the GUI as administrator or user.

  • Page 42: Preview

    1）Login as administrator Username and default password: admin You can control all the features of the camera. 2）Login as user Username and default password: “user1” or “user2” You can control PTZ, zoom, focus, sound, zoom in, full screen and set run, and delete the preset position.

  • Page 43: Monocular Tracking

    4.2.3 Monocular tracking Clicking the Monocular tracking tab allows setting the Mode, turning on or of Tracking, and turning on or off click tracking. ⚫ When tracking is on the PTZ and presets do not work. I. Mode ▪ Presenter – This mode tracks the person while they are moving. ▪...

  • Page 44: Configuration

    III. How to set up Zone auto-tracking • Set preset 0 to the default area where the camera points to when it loses tracking. • Set up the regions. These are the areas on the stage where you want the camera to go to when a person walks into that area. The zones will capture the saved image.

  • Page 45: Audio Configuration

    4.2.5 Audio Configuration Enable: Choose to enable the audio or not. Compressing Format: Set audio compressing format and manually reboot the device after change (default AAC optional) Sampling Frequency: Set sampling frequency and manually reboot the device after change (default 48000 option)Ms Sampling Precision: Set sampling precision (default 16bits) Compressing Code Rate: Set audio compressing code rate (default 64bits, 32, 48, 96,128bits optional)

  • Page 46: Video Configuration

    4.2.6 Video Configuration 1）Video Encoding Video encoding can be used to stream to a touch panel using the Stream Name. Compression Format: Set the video compression format, save to take effect (Main / Sub stream default: H.264,H.265 optional) Profile: Profile Mode Setting (Default HP, BP, MP Optional) Image Size: Set video image resolution, save to take effect Main Stream: default 1920 * 1080, 1280 * 720, 640*480, 640*360 Sub Stream: 320*180, 320 * 240, 640*360, 640*480, 1280*720,1920*1080...
  • Page 47 Key frame interval: Set the key frame interval (Main stream default 90 / Sub stream default 75, primary stream 1-150 optional. secondary stream 1-150 optional). Minimum QP of key frame interval: Set minimum QP of key frame interval (Default 20, 10-51 optional) Stream Name: Main Stream(live/av0), Sub stream(live/av1) Click the "Save"...
  • Page 48 3）RTP Multicast Enable：On/Off Protocol：RTP, TS optional Address：Default 224.1.2.3. It can be edited. Port：The Main stream defaults to 4000, the Sub stream defaults to 4002, and the main/Sub stream is optional from 0 to 65535. Access Method：Address comes up after setting. Eg; rtp://224.1.2.3:4000；...
  • Page 49 4) Video Parameters A）Focus: Focus Mode, AF-Zone, AF-Sensitivity can be set. Focus Mode: Set the focus mode (Default automatic, manual optional, one-push) AF-Zone: Set the focus tactic (Default Up, middle, Down, and all are optional) AF-Sensitivity: Set the focus sensitivity (Default is low, high, medium optional) B）Exposure: Exposure Mode, EV (Exposure compensation), BLC (Backlight compensation), Flicker, G Limit (Gain Limit), shutter, aperture, brightness, gain can be set.
  • Page 50 Flicker: Set anti-flicker compensation, valid in automatic exposure mode, iris priority, and brightness priority. (default 50Hz, off, 60Hz optional). Set to the country’s line rate. G Limit: Set the gain limits, valid in auto focus, iris priority, and brightness priority. (default 4, off, 0~15 optional) Dynamic Range: Set the dynamic range (default: off, 1 to 8 optional).
  • Page 51 E）Noise Reduction: 2D&3D noise reduction and dynamic dead pixel correction available. 2D Noise Reduction: Set 2D noise reduction level (default 2, 1-7 and off optional). 3D Noise Reduction: Set 3D noise reduction level (default 5, 1-7 and off optional). F）Style: Select image (Default, standard, brightness, clarity, and soft can be set) ⚫...

  • Page 52: Network Configuration

    4.2.7 Network Configuration 1) Network Port Port Data: set the data port. (default 3000,0-65535 optional). Port Web: Set Web port. (default is 80, 0-65535 is optional). Port Onvif: Set Onvif port. (default 2000, 0-65535 optional). Port Soap: Set Soap port. (default 1936, 0-65535 optional). Port RTMP: Set RTMP port.
  • Page 53 RTMP Access：Rtmp://equipment IP address: 1935/live/av0 (av0 main stream; av1 second stream) 2）Ethernet Parameter DHCP: Enable or disable to obtain IP automatically. (default off) IP Address: Set the IP address. (default 192.168.5.163). Note: This IP address is the same used to login to Web page. Subnet Mask: Set the subnet mask (default 255.255.255.0).

  • Page 54: System Configuration

    Register ID: 34020000001320000001 Register User Name: IPC Register Password: 12345678 Equipment Ownership: Users can add their own Administrative Regions: Users can add their own Alarm Zone: Users can add their own Equipment Installation Address: Users can add their own Local SIP Port: 5060 Range 0-65535 GB28181 Server Address: IP address of the computer Server SIP Port: 5060 Range 0-65535 Server ID: 34020000002000000001...
  • Page 55 Date Format: Set the date format (YYYY-MM-DD default Year - Month - Day, MM- DD-YYYY namely Month - Day - Year, DD-MM-YYYY namely Date- Month - Year Optional). Date Separator: set the date separator (default ‘/’ ， ‘.’ 、 ‘-’Optional). Time Zone: Set the time zone (default UTC+08:00, other time zones optional).

  • Page 56: Logout

    ⚫ If you log in to the webpage with the username and password of an ordinary user, you have no configuration rights and can only perform preview, playback, and logout operations. 4）Update The version information displayed on the page is read-only version and cannot be modified by the user.

  • Page 57: Serial Port Communication Control

    Serial Port Communication Control Camera control can be through RS232 or the LAN port on the receiver. The parameter of RS232 is as below: Baud rate: 2400/4800/9600/38400/115200/second Start Bit：1 bit； Data Bit：8 bit； Stop Bit：1 bit； Verification Bit：None. LAN: TCP/IP port 1259 After a power on, the camera performs a calibration self-test of the lens.

  • Page 58: Camera Control Command

    z = device address + 8 = 81 Error Messages Remark Command packet Returned when the command format is Syntax Error z0 60 02 FF different or when a command with illegal command parameters is accepted. Indicates that two sockets are already Command being used(executing two commands) and z0 60 03 FF...
  • Page 59 Command Function Command Packet Remark Tele(Standard) 8x 01 04 07 02 FF Wide(Standard 8x 01 04 07 03 FF Tele(Variable) 8x 01 04 07 2p FF p = 0(low) - 7(high) Wide(Variable) 8x 01 04 07 3p FF 8x 01 04 47 0p 0q Direct pqrs: Zoom Position 0r 0s FF...
  • Page 60 Command Function Command Packet Remark Center 8x 01 04 AA 01 FF Bottom 8x 01 04 AA 02 FF 8x 01 04 AA 03 FF Auto 8x 01 04 35 00 FF 2400K 8x 01 04 35 0C FF 2500K 8x 01 04 35 0D FF 2600K 8x 01 04 35 0E FF...
  • Page 61 Command Function Command Packet Remark 4400K 8x 01 04 35 1D FF 4500K 8x 01 04 35 08 FF 4600K 8x 01 04 35 1E FF 4700K 8x 01 04 35 1F FF 4800K 8x 01 04 35 21 FF 4900K 8x 01 04 35 22 FF 5000K...
  • Page 62 Command Function Command Packet Remark 6700K 8x 01 04 35 30 FF 6800K 8x 01 04 35 31 FF 6900K 8x 01 04 35 32 FF 7000K 8x 01 04 35 0B FF 7100K 8x 01 04 35 33 FF One Push 8x 01 04 35 03 FF mode...
  • Page 63 Command Function Command Packet Remark Shutter Priority Shutter priority 8x 01 04 39 0A FF Automatic Exposure mode Iris Priority Automatic Iris priority 8x 01 04 39 0B FF Exposure mode Bright 8x 01 04 39 0D FF Bright mode Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF...
  • Page 64 Command Function Command Packet Remark Reset 8x 01 04 0E 00 FF Exposure Compensation 8x 01 04 0E 02 FF Amount Setting Down 8x 01 04 0E 03 FF 8x 01 04 4E 00 00 Direct pq: ExpComp Position 0p 0q FF 8x 01 04 33 02 FF Back Light CAM_Backlight...
  • Page 65 Command Function Command Packet Remark 60HZ 8x 01 04 23 02 FF 60HZ Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Aperture Control CAM_Aperture Down 8x 01 04 02 03 FF 8x 01 04 42 00 00 Direct pq: Aperture Gain 0p 0q FF...
  • Page 66 Command Function Command Packet Remark CAM_Setting Reset 8x 01 04 A0 10 FF Reset Factory Setting Reset 8x 01 04 A1 00 00 Direct pq: Brightness Position 0p 0q FF Brightness 8x 01 04 A2 00 00 CAM_Contrast Direct pq: Contrast Position 0p 0q FF 8x 01 04 A4 00 FF Flip-H...
  • Page 67 Command Function Command Packet Remark 8x 01 06 01 VV DownRight WW 02 02 FF 8x 01 06 01 VV Stop WW 03 03 FF 8x 01 06 02 VV AbsolutePositio 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF 8x 01 06 03 VV RelativePositio 0Y 0Y 0Y 0Y 0Z 0Z...

  • Page 68: Inquiry Command

    5.1.3 Inquiry Command Command Command Return Packet Remark Packet y0 50 02 FF CAM_Power 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_Zoom y0 50 0p 0q 0r 0s 8x 09 04 47 FF pqrs: Zoom Position Pos Inq y0 50 02 FF Auto Focus CAM_Focus...
  • Page 69 Command Command Return Packet Remark Packet CAM_BGain y0 50 00 00 0p 0q 8x 09 04 44 FF pq: B Gain y0 50 00 FF Full Auto y0 50 03 FF Manual CAM_AE 8x 09 04 39 FF y0 50 0A FF Shutter priority Mode Inq y0 50 0B FF...
  • Page 70 Command Command Return Packet Remark Packet CAM_NR 8x 09 04 54 FF y0 50 0p FF P:3D NRLevel Level(3D) Inq CAM_Flicker p: Flicker Settings(0: 8x 09 04 55 FF y0 50 0p FF OFF, 1: 50Hz, 2:60Hz) Mode Inq CAM_Aperture y0 50 00 00 0p 0q 8x 09 04 42 FF pq: Aperture Gain...
  • Page 71 Command Command Return Packet Remark Packet y0 50 01 FF Flip-H y0 50 02 FF Flip-V y0 50 03 FF Flip-HV CAM_Gamma 8x 09 04 5B FF y0 50 0p FF p: Gamma setting ab cd : vender ID ( 0220 ) CAM_Version y0 50 ab cd mn pq : model ID...

  • Page 72: Maintenance And Troubleshooting

    Command Command Return Packet Remark Packet Speed Inq zz: Tilt Max Speed Pan-tilt Pos y0 50 0w 0w 0w 0w wwww: Pan Position 8x 09 06 12 FF zzzz: Tilt Position 0z 0z 0z 0z FF Note: [x] in the above table represents the address of the device to be operated, [y]=[x + 8]. Maintenance and Troubleshooting 6.1 Camera Maintenance 1）If the camera will not be used for a long time, please remove power.
  • Page 73 2. Check whether the battery is installed in the remote controller, and it is good. 3. Check that the menu whether it is closed, camera control through remote controller is only available after exiting the menu. ⚫ Serial port does not work 1.
