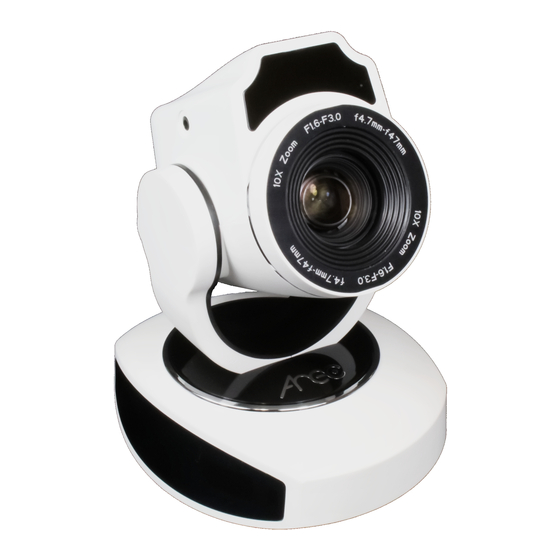

Tekvox 79068-STD-10T User Manual

4k ptz auto-tracking camera for lecture capture & video conferencing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

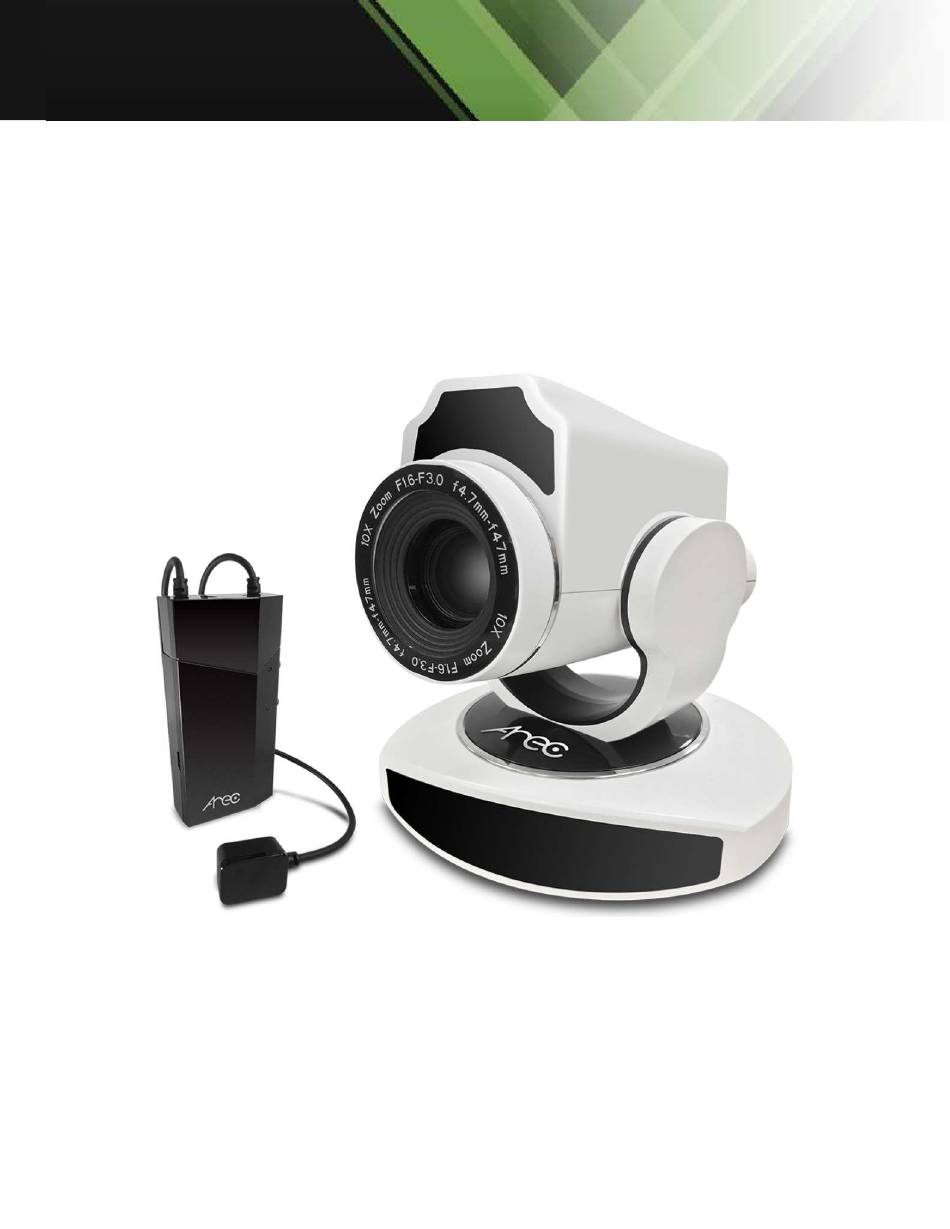

Auto-Tracking Camera
79068-STD-10T User Manual
4K PTZ Camera
Auto-Tracking Camera for Lecture Capture & Video
Conferencing
All Rights Reserved
Version: 79068-STD-10T_2020V1.0
www.tekvox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 79068-STD-10T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tekvox 79068-STD-10T

Summary of Contents for Tekvox 79068-STD-10T

  • Page 1 Auto-Tracking Camera 79068-STD-10T User Manual 4K PTZ Camera Auto-Tracking Camera for Lecture Capture & Video Conferencing All Rights Reserved Version: 79068-STD-10T_2020V1.0 www.tekvox.com...
  • Page 2 Auto-Tracking Camera 79068-STD-10T User Manual Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different product model specifications may vary. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.

  • Page 3: Preface

    Auto-Tracking Camera 79068-STD-10T User Manual Preface This manual describes the installation and operation of the camera. Prior to installation and usage, please read this manual thoroughly. 1. Warning 1. This product can be only used in specified range in order to avoid damage 2.

  • Page 4: Table Of Contents

    Auto-Tracking Camera 79068-STD-10T User Manual Table of Contents Preface ............................3 1. Product Overview ......................... 6 1.1 Dimensions ............................6 1.2 Accessories ............................7 1.3 Camera Performance ......................... 7 1.4 Technical Specifications ........................7 2. Quick Installation Instructions ....................10 2.1 Camera Interface and Indicators Description.................
  • Page 5 Auto-Tracking Camera 79068-STD-10T User Manual 4.3.1 VISCA Protocol List........................21 4.3.2 Pelco-D Protocol Command List .................... 28 4.3.3 Pelco-P Protocol Command List .................... 29 5. Remote Controller ........................31 5.1 Keys Instruction ..........................31 5.2 Menu Settings ........................... 33 5.2.1 Main Menu ..........................33 5.2.2 System Settings ........................

  • Page 6: Product Overview

    Combining a high-performance pan/tilt/zoom camera, compact design, and excellent motion-sensitive tracking technology, the 79068-STD-10T is ideal for mid to large-size conference, huddle rooms, or lecture capture, bridging the feature and price gap between current webcam and professional PTZ cameras in the market.

  • Page 7: Accessories

    Auto-Tracking Camera 79068-STD-10T User Manual 1.2 Accessories Accessory Power Adaptor RS-232 Cable USB 3.0 Cable Remote Controller Auto-Tracking Positioning Pendant 2-in-1 RS-232 & Power Tracking Cable 3.5mm to USB PC Config Tool Setting Cable Quick Installation Guide 1.3 Camera Performance The camera offers intuitive functions, superior performance, and versatile interfaces.
  • Page 8 Auto-Tracking Camera 79068-STD-10T User Manual Digital Zoom Minimum Illumination 0.5Lux (F1.8, AGC ON) Digital Noise Reduction (DNR) 2D & 3D DNR Auto / Manual / One-Push / 3000K / 3500K / 4000K / 4500K / White Balance 5000K / 5500K / 6000K / 6500K / 7000K...
  • Page 9 Auto-Tracking Camera 79068-STD-10T User Manual PTZ Parameters Pan Rotation ± 135° Tilt Rotation ± 30° Pan Control Speed 0.1 ~ 60° / sec Tilt Control Speed 0.1 ~ 30° / sec Pan: 60° / sec Preset Speed Tilt: 30° / sec...

  • Page 10: Quick Installation Instructions

    Auto-Tracking Camera 79068-STD-10T User Manual 2. Quick Installation Instructions 2.1 Camera Interface and Indicators Description Description Camera Lens Remote Controller Receiver Tripod Screw Hole (1/4” UNC 20, 6.5mm depth Locating Hole (Ø5.5mm, 6.5mm depth) Auto-Tracking Receiver RS-232 Control Interface (Output)

  • Page 11: Power-On Initial Configuration

    Auto-Tracking Camera 79068-STD-10T User Manual 2.1.1 Power-On Initial Configuration 1. Power on: Connect the DC 12V power supply adapter to power 2. Initial configuration: When the camera powers on, the power indicator light turns on, the remote control receiver light starts blinking, the camera head moves from the bottom left to the right, and then goes to the HOME position (intermediate position of both horizontal and vertical), while the camera module stretches.

  • Page 12: Auto-Tracking Positioning Pendant Interface And Indicators Description

    Auto-Tracking Camera 79068-STD-10T User Manual 2.2 Auto-Tracking Positioning Pendant Interface and Indicators Description Interface Light Color Glow Rule Operation Positioner Green light turns on Power ON Auto-tracking function suspended Power Red/Green (Note: When the tracking function is Red light is on...

  • Page 13: Connection And Settings

    3. Connection and Settings 3.1 Connection 3.2 Setup X-type 2-in-1 Tracking Cable 3.3 Tracking Camera Settings The 79068-STD-10T uses the RS-232 control interface; the default parameters are below: Note: The remote controller can setup the RS- Item Tracking Parameters 232 parameters...

  • Page 14: Wear The Positioner

    Auto-Tracking Camera 79068-STD-10T User Manual 3.4 Wear the Positioner Fix your tracking pendant to the target person or object properly. For the best tracking performance, wear the positioner with the smooth and transparent side facing out. Turn on the tracking pendant to start auto-tracking.

  • Page 15: Setup 3.5Mm Phone Jack To Usb Cable

    Auto-Tracking Camera 79068-STD-10T User Manual 4.1.2 Setup 3.5mm Phone Jack to USB Cable The cable is designed to setup the tracking configurations through the USB interface from a PC. Use the cable connected to the Tracking Camera  Connect phone jack to F ...
  • Page 16 Auto-Tracking Camera 79068-STD-10T User Manual 4.1.3.2 Camera Settings Page Set up “Auto Tracking” mode Set up “Auto Zoom” On/Off Set up “Target Miss Compensation” for Set up “Zoom Offset” when auto tracking fails www.tekvox.com...
  • Page 17 Auto-Tracking Camera 79068-STD-10T User Manual Set up “Camera Install Direction” Tracking Module firmware version Restore Tracking Module firmware to default Apply changes to Auto Tracking Mode, Auto Zoom On/Off, Target Miss Compensation, Zoom Offset & Camera Install Direction Disconnect Tracking Module Tracking Config Tool Version 4.1.3.3 Firmware Update Page...
  • Page 18 Auto-Tracking Camera 79068-STD-10T User Manual Click the “Upgrade” button. Once the update process is complete, the status window will show “Update is complete. Device auto-rebooting.” Note: Error Code – “Connection fail!” Check that the camera is still connected to power, and that the 3.5mm phone jack is plugged in Note: Error Code –...

  • Page 19: Rs-232 Interface

    Auto-Tracking Camera 79068-STD-10T User Manual 4.2 RS-232 Interface 4.2.1 RS-232C Interface Computer/Keyboard & Camera Connection Method Camera Windows (DB-9) 1. DTR 1. DCD 2. DSR 2. RXD 3. TXD 3. TXD 4. GND 4. DTR 5. RXD 5. GND 6. GND 6.

  • Page 20: Rs-232 (Db-9) Port Definition

    Auto-Tracking Camera 79068-STD-10T User Manual 4.2.3 RS-232 (DB-9) Port Definition Port Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator 4.2.4 VISCA Networking Camera Cascade Connection Method...

  • Page 21: Serial Communication Control

    Auto-Tracking Camera 79068-STD-10T User Manual 4.3 Serial Communication Control Under common working conditions, the camera can be controlled through the RS-232/RS-485 interface (VISCA). RS-232C serial parameters are as follows: Baud rate: 2400/4800/9600/115200 bits / sec Start bit: 1 Data bits: 8...
  • Page 22 Auto-Tracking Camera 79068-STD-10T User Manual Wide (Standard) 8x 01 04 07 03 FF Tele (Variable) 8x 01 04 07 2p FF p = 0 (low) ~ F (high) Wide (Variable) 8x 01 04 07 3p FF Direct 8x 01 04 47 0p 0q 0r 0s FF...
  • Page 23 Auto-Tracking Camera 79068-STD-10T User Manual Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF Shutter Setting CAM_Shutter Down 8x 01 04 0A 03 FF Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position...
  • Page 24 Auto-Tracking Camera 79068-STD-10T User Manual 8x 01 04 02 02 FF Down 8x 01 04 02 03 FF Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain pq: Memory Number (=0 to Reset 8x 01 04 3F 00 pq FF...
  • Page 25 Auto-Tracking Camera 79068-STD-10T User Manual 6: 1080P30 7: 1080P25 8: 720P30 9: 720P25 A: 1080P59.94 B: 1080i59.94 C: 720P59.94 D: 1080P29.97 E: 720P29.97 8x 01 06 01 VV WW 03 01 8x 01 06 01 VV WW 03 01 Down...
  • Page 26 Auto-Tracking Camera 79068-STD-10T User Manual Inquiry Commands Command Function Command Packet Notes y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off (Standby) CAM_Zoom_PosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF...
  • Page 27 Auto-Tracking Camera 79068-STD-10T User Manual CAM_NRLevel(3D) Inq 8x 09 04 54 FF y0 50 0p FF p: 3D NR Level p: Flicker Settings (0: CAM_FlickerModeInq 8x 09 04 55 F y0 50 0p FF OFF, 1: 50Hz, 2:60Hz) CAM_ApertureInq 8x 09 04 42 FF...

  • Page 28: Pelco-D Protocol Command List

    Auto-Tracking Camera 79068-STD-10T User Manual p: 0 ~ E Video format 0: 1080P60 1: 1080P50 2: 1080i60 3: 1080i50 4: 720P60 5: 720P50 6: 1080P30 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 7: 1080P25 8: 720P30 9: 720P25 A: 1080P59.94...

  • Page 29: Pelco-P Protocol Command List

    Auto-Tracking Camera 79068-STD-10T User Manual Query Pan Value High Position 0xFF Address 0x00 0x59 Value Low Byte Byte Response Query Tilt 0xFF Address 0x00 0x53 0x00 0x00 Position Query Tilt Value High Position 0xFF Address 0x00 0x5B Value Low Byte...
  • Page 30 Auto-Tracking Camera 79068-STD-10T User Manual Query Tilt Value High Value Low Position 0xA0 Address 0x00 0x5B 0xAF Byte Byte Response Query Zoom 0xA0 Address 0x00 0x55 0x00 0x00 0xAF Position Query Zoom Value High Value Low 0xA0 Address 0x00 0x5D...

  • Page 31: Remote Controller

    Auto-Tracking Camera 79068-STD-10T User Manual 5. Remote Control 5.1 Keys Instruction After finishing initialization, the camera can receive and execute IR commands. Press the remote control button until the indicator light flashes; release the button, and the indicator light will stop flashing.
  • Page 32 Auto-Tracking Camera 79068-STD-10T User Manual Key Name Brief Instruction 1. Setting Presets: To set a preset position, press the “[SET PRESET]” key first and then press a number key 0-9 to set a relative preset, Note: 10 preset positions in total are available by remote control.

  • Page 33: Menu Settings

    Auto-Tracking Camera 79068-STD-10T User Manual [ # ] + [ # ] + [ 7 ] Switch the video resolution to 1080P25 [ # ] + [ # ] + [ 8 ] Switch the video resolution to 720P30 [ # ] + [ # ] + [ 9 ] Switch the video resolution to 720P25 5.2 Menu Settings...

  • Page 34: Camera Settings

    Auto-Tracking Camera 79068-STD-10T User Manual 5.2.3 Camera Settings Exposure: Enter into the Exposure Settings sub-menu Color: Enter into the Color Settings sub-menu Image: Enter into the Image Settings sub-menu Focus: Enter into the Focus Settings sub-menu Noise Reduction: Enter into the Noise Reduction sub-menu 5.2.3.1 Exposure Settings...
  • Page 35 Auto-Tracking Camera 79068-STD-10T User Manual 5.2.3.2 Color Settings WB Mode: Auto, 3000K, 3500K, 4000K, 4500K, 5000K, 5500K, 6000K, 6500K, 7000K, Manual, One Push RG Tuning: -10 ~ 10 (only available in Manual mode) BG Tuning: -10 ~ 10 (only available in Manual mode)

  • Page 36: P/T/Z Settings

    Auto-Tracking Camera 79068-STD-10T User Manual 5.2.3.5 Noise Reduction Settings 2D Noise Reduction: Auto, Close, 1 ~ 7 3D Noise Reduction: Close, 1 ~ 8 Dynamic Hot Pixel: Close, 1 ~ 5 5.2.4 P/T/Z Settings Speed by Zoom (Only effective for remote controller): On/ Off...

  • Page 37: Restore Defaults

    Auto-Tracking Camera 79068-STD-10T User Manual 5.2.7 Restore Defaults Restore Default: Yes/No After restoring defaults, the video format won’t be restored Note: The corresponding camera address will restore to 1 when all parameters or system parameters are restored. If the address of the remote control is not set to 1 (i.e. 2/3/4), the user should change the remote address to 1 (See §5.1 Keys...

  • Page 38: Network Connection

    Auto-Tracking Camera 79068-STD-10T User Manual 6. Network Connection You can connect your camera to a PC or notebook with a standard network cable then enter the management site via your Internet browser, or connect your camera to a router or DHCP server. See below for details.
  • Page 39 Auto-Tracking Camera 79068-STD-10T User Manual  Click “Change adapter options,” then right-click on the computer’s network connection and select “Properties”  Select “Internet Protocol Version 4 (TCP/IPv4)”, then click “Properties” www.tekvox.com...
  • Page 40 Auto-Tracking Camera 79068-STD-10T User Manual  Select “Use the following IP address”, then type “192.168.11.1XX” (where “XX” can be any two numbers) into the “IP address” field, and “255.255.255.0” into the “Subnet mask” field.  Enter the static IP of your camera (Default: 192.168.11.202) in your browser’s search bar. If this is your first time logging in, the management login page will prompt the user for an account ID/password (Default: admin/admin).

  • Page 41: Internet Connection Mode

    Auto-Tracking Camera 79068-STD-10T User Manual 6.2 Internet Connection Mode IP is assigned by a router or DHCP server. To log in to the administration site, connect the camera and your PC / Notebook to a router or a DHCP server, then follow the below steps: a.

  • Page 42: Overview Of The Web Interface

    Auto-Tracking Camera 79068-STD-10T User Manual 7. Overview of the Web Interface Web Client: Input the IP address of the camera (Default: 192.168.11.202) in the address field of your browser and click Enter to enter into the Web Client login page.

  • Page 43: Preview Page

    Auto-Tracking Camera 79068-STD-10T User Manual Menu Description Control PTZ camera’s pan/tilt, zoom, focus, snapshot, audio, fullscreen, local Preview recording, preset settings, etc. Playback Playback video and picture files that are stored in a local PC Includes local configuration, audio configuration, video configuration, network Configuration configuration, system configuration, etc.

  • Page 44: Playback Page

    Auto-Tracking Camera 79068-STD-10T User Manual 7.2 Playback Page 1. Playback a recorded video file First record and save the file when previewing. Click “Playback” to enter the video/picture file playback page. a. File Type: Select “Video Files” b. Date Start/End: Set date range of the search c.

  • Page 45: Configuration Page

    Auto-Tracking Camera 79068-STD-10T User Manual 7.3 Configuration Page Click “Configuration” to enter into the Device Parameter Settings page. Options: Local configuration, Audio configuration, Video configuration, Network configuration, and System configuration. Menu Description Video stream preview mode, video packaging time, video file packaging Local Configuration type, etc.

  • Page 46: Audio Configuration

    Auto-Tracking Camera 79068-STD-10T User Manual Click the Save button to make settings effective. 7.3.2 Audio Configuration Switch: Choose to enable the audio or not. Encode Type: Set audio compression format (MP3, AA; Default: MP3) Sample Rate: Set sampling frequency (Default: 44100).

  • Page 47: Video Configuration

    Auto-Tracking Camera 79068-STD-10T User Manual 7.3.3 Video Configuration Options: Video Encode, Stream Publish, RTP Multicast, Video Parameters, Video OSD, OSD Font Size and Video Out. Menu Description Video Encode Set the video output format of the Main stream and Sub-stream Turn the Main stream &...
  • Page 48 Auto-Tracking Camera 79068-STD-10T User Manual 7.3.3.1 Video Encode 1. Code stream: It will call different code stream when setting different video output format. (Main stream and Sub stream) 2. Compressed Format: Set video compressing format (H.264, H.26; Default: H264) 3. Profile: Set H.264 / H.265 encode format (H.264 encode format default HP, H.265 encode format default BP, BP, MP, HP optional).
  • Page 49 Auto-Tracking Camera 79068-STD-10T User Manual Click on the "Save" button to save and apply changes to Video Encode settings Note: Camera will reboot automatically after changing Compressed Format, Profile, Image Size, or Rate Control settings 7.3.3.2 Stream Publish 1. Enable: Turn the Main & Sub-streams on or off 2.
  • Page 50 Auto-Tracking Camera 79068-STD-10T User Manual 7.3.3.3 Video Parameters The Video Parameters page provides settings for Focus, Exposure, Color, Image, NR and Style Focus: Focus Mode, Focus Range, and Focus Sensitivity 1. Focus Mode: Set the focus mode (Auto/Manual; Default: Auto) 2.
  • Page 51 Auto-Tracking Camera 79068-STD-10T User Manual 1. Mode: Set the exposure mode (Automatic, Manual, Shutter Priority, Aperture Priority, Brightness Priority; Default: Automatic) 2. Exposure Value (EV): Exposure compensation setting is available when in Automatic exposure mode (Default: Off) 3. EV Level: Set the exposure compensation value (-7 ~ 7; Default: 0) 4.
  • Page 52 Auto-Tracking Camera 79068-STD-10T User Manual 1. White Balance (WB) Mode: Set the white balance mode (Automatic, 3000K, 3500K, 4000K, 4500K, 5000K, 5500K, 6000K, 6500K, 7000K, Manual, One-push; Default: Automatic) 2. Red Gain (RG) Tuning: Set red gain fine-tuning, available in Manual mode (-10 ~ 10; Default: 0) 3.
  • Page 53 Auto-Tracking Camera 79068-STD-10T User Manual 6. Black-and-White (B&W): Set black-and-white mode (Color/B&W; Default: Color) 7. Digital Zoom (DZoom): Enable/disable digital zoom Noise Reduction (NR) 1. 2-D Noise Reduction (NR-2D): Set 2D noise reduction level (Off, Auto, 1 ~ 7; Default: 3) 2.
  • Page 54 Auto-Tracking Camera 79068-STD-10T User Manual 7.3.3.4 Video OSD 1. Show Time: Set whether to display the date & time (Default: On) 2. Show Title: Set whether to display the title (Default: On) 3. Time Font Color: Set the time and date font color (Black, Blue, Red, White, Yellow; Default: White) 4.
  • Page 55 Auto-Tracking Camera 79068-STD-10T User Manual 7. 3.3.5 OSD Font Size 1. Master Stream OSD Font Size: Set the character size of the display (8 ~ 200; Default: 48) 2. Slave Stream OSD Font Size: Set the character size of the display (8 ~ 200; Default: 48) Click the “Save”...

  • Page 56: Network Configuration

    Auto-Tracking Camera 79068-STD-10T User Manual 7.3.4 Network Configuration Menu Description Network Port Set the network port, including data, web, onvif, etc. Set the camera’s IP address to use DHCP (obtain an IP automatically) or a static Ethernet Set the DNS parameters...
  • Page 57 Auto-Tracking Camera 79068-STD-10T User Manual 4. Port Soap: Set the Soap port (0 ~ 65535; Default: 1936) 5. Port RTMP: Set the RTMP port (0 ~ 65535; Default: 1935) 6. Port RTSP: Set the RTSP port (0 ~ 65535; Default: 554) 7.
  • Page 58 Auto-Tracking Camera 79068-STD-10T User Manual 7.3.4.2 Ethernet Parameters 1. DHCP: Set whether to obtain an IP address automatically (Default: Off) 2. IP Address: Set the static IP address (Default: 192.168.11.202) 3. Subnet Mask: Set the subnet mask (Default: 255.255.5.0) 4. Default Gateway: Set the default gateway (Default: 192.168.11.254) 5.
  • Page 59 Auto-Tracking Camera 79068-STD-10T User Manual 7.3.4.3 DNS 1. Preferred DNS Server: Set the preferred DNS server (Default: 0.0.0.0) 2. Alternative DNS Server: Set the alternative DNS server (Default: 0.0.0.0) Click the “Save” button to save and apply changes to the DNS settings...
  • Page 60 Auto-Tracking Camera 79068-STD-10T User Manual 7.3.4.4 GB28181 1. Enable: Set whether camera uses GB28181 (Default: Off) 2. ClockSync: Choose whether the synchronization time is set (Default: Off) 3. Video Type: Choose video stream type (Main/Secondary Stream; Default: Main Stream) 4. Registration Valid Time (s): 5 ~ 65535 (Default: 3600) 5.

  • Page 61: System Configuration

    Auto-Tracking Camera 79068-STD-10T User Manual 11. Alarm Areas: Completed by user, if desired (Default: Blank) 12. Device Address: Completed by user, if desired (Default: Blank) 13. Local SIP port: 0 ~ 65535 (Default: 5060) 14. Server IP: IP address of the computer 15.
  • Page 62 Auto-Tracking Camera 79068-STD-10T User Manual 7.3.5.1 System Attributes 1. Device Name: Set the device name (Default: CI-T21S) 2. Device ID: Displays the device ID (cannot be changed) 3. Language: Set the system language (English/Simplified Chinese; Default: English) Note: Users will need to re-login after modifying the Language setting Click the “Save”...
  • Page 63 Auto-Tracking Camera 79068-STD-10T User Manual 7.3.5.2 System Time 1. Date Format: Set the date format (YYYY-MM-DD, MM-DD-YYYY, DD-MM-YYYY; Default: YYYY- MM-DD) 2. Date Sprtr: Set the date separating character (“/”, “.”, “-“; Default: “/”) 3. Zone: Set the time zone (Default: GMT+08:00) 4.
  • Page 64 Auto-Tracking Camera 79068-STD-10T User Manual Time Settings 1. Time Settings: Set the time mode (Computer time synchronization, NTP server time synchronization, Set manually) 2. Computer Time: Displays the current computer time (cannot be changed) 3. New Time: Set the time manually, valid in Computer time synchronization mode (click the calendar on the right) www.tekvox.com...
  • Page 65 Auto-Tracking Camera 79068-STD-10T User Manual 7.3.5.3 User Set 1. Authority: Select a user type (Administrator, User 1, User 2; Default: Administrator) 2. User Name: Set the username (Administrator default: “admin”; User 1 default: “user1”; User 2 default: “user2”) 3. Password: Set the password (Administrator default: “admin”; User 1 default: “user1”; User 2 default: “user2”)

  • Page 66: Logout

    Auto-Tracking Camera 79068-STD-10T User Manual 7.3.5.4 Release Upgrade This page displays the current MCU, camera firmware, and AF versions. This information is read-only (cannot be modified). Update File: To install a new version, click “Browse” and navigate in the file menu to the upgrade file.

  • Page 67: Camera Maintenance And Troubleshooting

    Auto-Tracking Camera 79068-STD-10T User Manual 8. Camera Maintenance and Troubleshooting 8.1 Camera Maintenance 1. If the camera will not be used for a long time, turn it off and disconnect the power adapter and AC plug 2. Use a soft cloth or tissue to clean the camera cover 3.
  • Page 68 Auto-Tracking Camera 79068-STD-10T User Manual www.tekvox.com...
