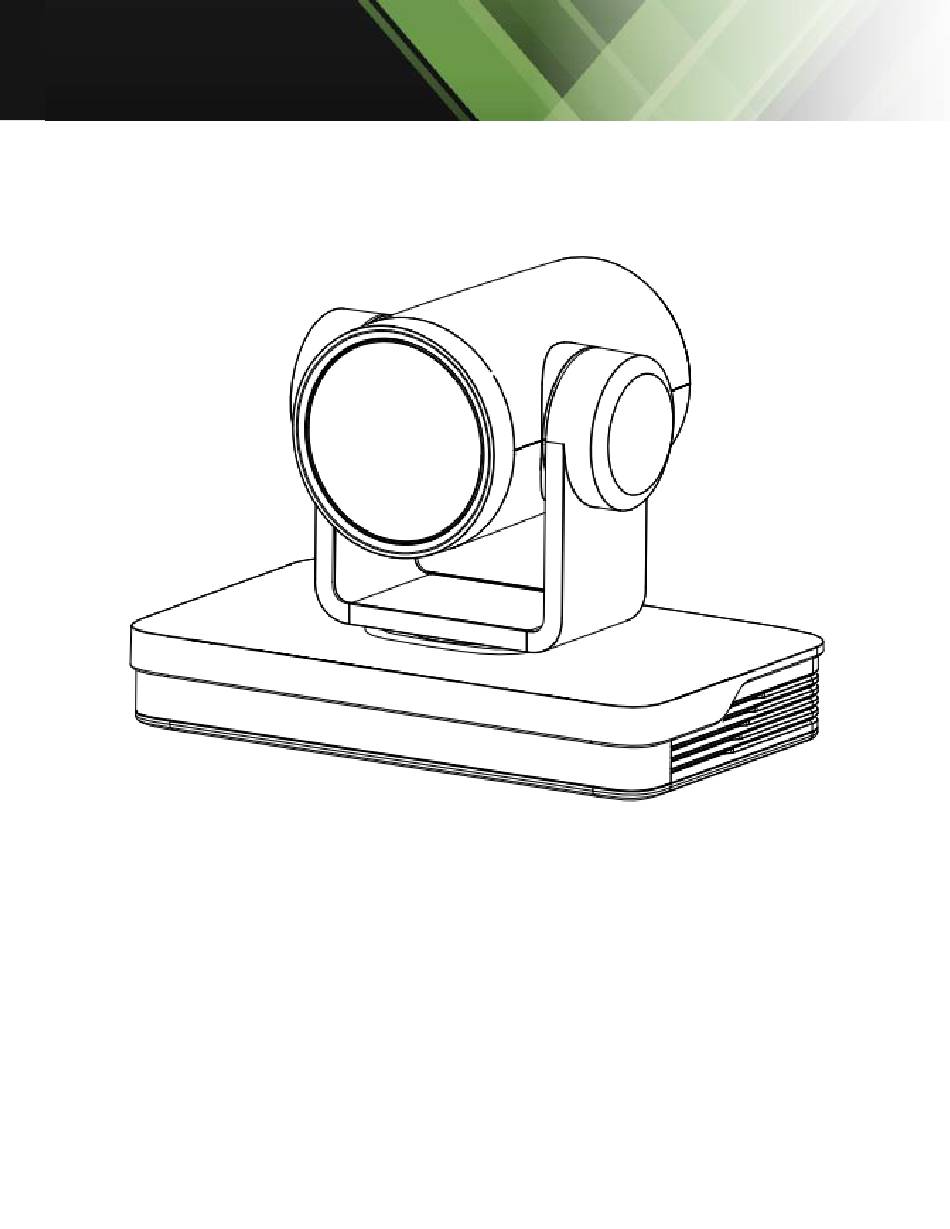

4K PTZ Camera
79068-4K-12 User Manual
4K UHD PTZ Camera
All Rights Reserved
Version: 79068-4K-12_2020V1.0
www.tekvox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 79068-4K-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tekvox 79068-4K-12

Summary of Contents for Tekvox 79068-4K-12

  • Page 1 4K PTZ Camera 79068-4K-12 User Manual 4K UHD PTZ Camera All Rights Reserved Version: 79068-4K-12_2020V1.0 www.tekvox.com...
  • Page 2 4K PTZ Camera 79068-4K-12 User Manual Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different product model specifications may vary. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
  • Page 3 4K PTZ Camera 79068-4K-12 User Manual Cautions  Avoid damage to product caused by heavy pressure or strong vibrations during transportation, storage, and installation.  Housing of this product is made of organic materials. Do not expose this product to any liquid, gas, or solids which may corrode the shell.

  • Page 4: Table Of Contents

    4K PTZ Camera 79068-4K-12 User Manual Table of Contents 1. Camera Installation ........................6 1.1 Camera Interfaces ..........................6 1.2 Power-On Initial Configuration ......................6 1.3 Video Output ............................6 1.3.1 Network Output .......................... 6 1.3.2 HDMI Video Output ........................7 1.3.3 USB 3.0 Video Output ........................
  • Page 5 4K PTZ Camera 79068-4K-12 User Manual 3.3.2 System Setting ......................... 23 3.3.3 Camera Settings ........................23 3.3.4 P/T/Z ............................28 3.3.5 Video Format ..........................28 3.3.6 Version ............................29 3.3.7 Restore Default ......................... 29 4. Network Connection ........................30 4.1 Connecting Mode ..........................30 4.2 IE Login ..............................

  • Page 6: Camera Installation

    4K PTZ Camera 79068-4K-12 User Manual 1. Camera Installation 1.1 Camera Interfaces 1. Remote Control Receiving Indicator 8. Rotary DIP Switch 2. Camera Lens 9. RS-232 Control Interface (input) 3. Tripod Screw Hole 10. RS-232 Control Interface (output) 4. Screw Hole for Tripod 11.

  • Page 7: Hdmi Video Output

    4K PTZ Camera 79068-4K-12 User Manual Webpage Login: Open your browser and enter 192.168.5.163 (factory default) in the address bar; press “Enter” to enter into the login page, click on the “player is not installed, please download and install!" and follow the installation steps for installation. Then enter the user name “admin” and password “admin”...

  • Page 8: Wall Mounting

    4K PTZ Camera 79068-4K-12 User Manual 1.4.1 Wall Mounting www.tekvox.com...

  • Page 9: Ceiling Mounting

    4K PTZ Camera 79068-4K-12 User Manual 1.4.2 Ceiling Mounting www.tekvox.com...

  • Page 10: Product Overview

    4K PTZ Camera 79068-4K-12 User Manual 2. Product Overview 2.1 Product Introduction 2.1.1 Dimensions 2.1.2 Accessories Please check below standard and optional accessories when unpacking the box. Standard Accessories Optional Accessories Power Adapter Wireless Remote Control IR Remote Control Wall-Mounting Bracket...

  • Page 11: Technical Specifications

    4K PTZ Camera 79068-4K-12 User Manual  Dual Stream Output: USB can support the main stream and sub stream output at the same time, and can record video of near or distant objects.  Optical Zoom Lens: 12x optical zoom lens and 80.4° wide angle lens.
  • Page 12 4K PTZ Camera 79068-4K-12 User Manual USB 3.0 interface video format YUY2/NV12: 1920×1080@30/25fps/1280×720@30/25fps/960×540@30/25f ps/640×360@30/25fps/640×480@30/25fps/320×176@30/25f MJPEG/H.264/H.265: 3840×2160@30/25fps/1920×1080@30/25fps/1280×720@30/2 Video Format 5fps/960×540@30/25fps/640×360@30/25fps/640×480@30/2 5fps/320×176@30/25fps USB 3.0 (compatible with USB 2.0) video format YUY2/NV12: 640×360@30/25fps/640×480@30/25fps/320×176@30/25fps MJPEG/H.264/H265: 3840×2160@30/25fps/1920×1080@30/25fps/1280×720@30/2 5fps/960×540@30/25fps/640×360@30/25fps/640×480@30/2 5fps/320×176@30/25fps Minimum Illumination 0.05 Lux (F1.8, AGC ON) Digital Noise Reduction (DNR) 2D &...
  • Page 13 4K PTZ Camera 79068-4K-12 User Manual Input/Output Interfaces HDMI, LAN (PoE), USB3.0 (Type-B, compatible with USB 2.0), A- Video Interfaces IN, RS-232 IN, RS-232 OUT, RS-422 (compatible with RS-485), Rotary DIP switch, DC 12V Power Supply, Power Switch LAN Interface: H.264, H.265 Video Compression Format USB 3.0 Interface: MJPG, H264, YUY2, NV12, H265...

  • Page 14: Interfaces Instruction

    4K PTZ Camera 79068-4K-12 User Manual Working Temperature -12°F ~ 122°F (-10°C~ +50°C) Working Humidity 20% ~ 80% Dimension 8.66” x 5.67” x 6.26” (220mm x 144mm x 159mm) Weight 3.74lbs (1.7kg) Application Indoor Accessory Power Supply, RS-232 Control Cable, USB 3.0 Cable (U3 model), IR...

  • Page 15: Rs-232 Interface

    4K PTZ Camera 79068-4K-12 User Manual 2.4.2 RS-232 Interface RS-232 Interface Definition Connection to PC or Camera Controller Camera Windows (DB-9) 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI RS-232 Mini-DIN 8-pin Port Definition...
  • Page 16 4K PTZ Camera 79068-4K-12 User Manual 3) RS232 (DB9) Port Definition Port Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator 4) VISCA networking as shown below...

  • Page 17: Application Instruction

    4K PTZ Camera 79068-4K-12 User Manual 3. Application Instruction 3.1 Video Output 3.1.1 Power-On Initial Configuration The remote control receiving indicator flashes after powering on, the pan-tilt turns left to the lowest left to the lowest, and then turns to the HOME position (both the horizontal and vertical positions are in the middle), while the movement first shrinks and then stretches.

  • Page 18: Remote Control

    4K PTZ Camera 79068-4K-12 User Manual 3.2 Remote Control 3.2.1 Match Code for Wireless Remote Control One-to-One Code Matching: Press the "set" and "*" keys combined for 3 seconds and the LED indicator will start flashing. When the camera receives the signal and powers on, LED indicator will go off if code matches successfully.
  • Page 19 4K PTZ Camera 79068-4K-12 User Manual 2. Camera Selection Select the camera address to control. 3. Focus Control Auto: Auto focus mode Manual: Manual focus mode Focus + (near): Press [FOCUS +] key (Valid only in manual focus mode) Focus - (far): Press [FOCUS -] key (Valid only in manual focus mode) The focusing action will continue as long as the keys are held, and stop as soon as the key is released.
  • Page 20 4K PTZ Camera 79068-4K-12 User Manual 6. Pan/Tilt Control Up: Press ▲ Down: Press ▼ Left: Press ◄ Right: Press ► Back to middle position: Press [HOME] Press and hold the up/down/left/right key, the pan/tilt movements will keep running, from slow to fast, until it runs to the endpoint;...
  • Page 21 4K PTZ Camera 79068-4K-12 User Manual 9. Key Combination [#] + [#] + [#]: Clear all presets [*] + [#] + [6]: Restore factory defaults [*] + [#] + [3]: Set menu language to Chinese [*] + [#] + [4]: Set menu language to English...

  • Page 22: Menu Introduction

    4K PTZ Camera 79068-4K-12 User Manual 3.3 Menu Introduction 3.3.1 Main Menu In normal working mode, press the [MENU] key to display the menu, using the scroll arrow to point at or highlight the selected items. Language: Language setting: English/Chinese...

  • Page 23: System Setting

    4K PTZ Camera 79068-4K-12 User Manual 3.3.2 System Setting Move the pointer to (Setup) in the Main Menu, click the [HOME] key, and enter into the (System Settings) as shown below: Protocol: VISCA/Pelco-P/Pelco-D/Auto Visca Address: 1~7 Pelco-P Address: 1~255 Pelco-D Address: 1~255...
  • Page 24 4K PTZ Camera 79068-4K-12 User Manual Exposure: Enter into Exposure submenu Color: Enter into Color submenu Image: Enter into Image submenu Focus: Enter into Focus submenu Noise Reduction: Enter into Noise Reduction submenu 1. Exposure Setting Move the pointer to (EXPOSURE) in the Main Menu, click the [HOME] key and enter into the (Exposure sub menu) as shown below: Mode: Auto, Manual, Shutter priority, Iris priority, and Brightness priority.
  • Page 25 4K PTZ Camera 79068-4K-12 User Manual 2. Color Move the pointer to (COLOR) in the Main Menu, click [HOME] and enter the (COLOR sub menu) as follows: WB (White Balance) Mode: Auto, Manual, One Push, 3000K, 3500K, 4000K, 4500K, 5000K, 5500K,...
  • Page 26 4K PTZ Camera 79068-4K-12 User Manual 3. Image Move the pointer to (IMAGE) in the Menu, click [HOME] and enter into the (IMAGE sub menu) as follows: Brightness: 0~14 Contrast: 0~14 Sharpness: 0~15 Flip-H: On/Off Flip-V: On/Off B&W Mode: Color, black/white Gamma: Default/0.45/0.50/0.55/0.63...
  • Page 27 4K PTZ Camera 79068-4K-12 User Manual 4. Focus Move the pointer to (FOCUS) in the Menu, click [HOME], and enter into the (FOCUS) submenu as follows: Focus Mode: Auto/manual AF-Zone: Up/middle/down AF-Sensitivity: High/middle/low 5. Noise Reduction Move the pointer to (NOISE REDUCTION) in the Menu, click [HOME] and enter the (NOISE...

  • Page 28: P/T/Z

    4K PTZ Camera 79068-4K-12 User Manual 3.3.4 P/T/Z Move the pointer to (P/T/Z) in the Main Menu, click [HOME] and enter into the (P/T/Z) submenu as follows: Speed by Zoom: Only effective for the remote controller, On/Off (When zooming in, the PT control...

  • Page 29: Version

    4K PTZ Camera 79068-4K-12 User Manual 3.3.6 Version Move the pointer to (VERSION) in the Main Menu, click [HOME] and enter into the (VERSION) submenu as follows: MCU Version: Displays MCU version information Camera Version: Displays camera version information AF Version: Displays focus version information 3.3.7 Restore Default...

  • Page 30: Network Connection

    4K PTZ Camera 79068-4K-12 User Manual 4. Network Connection 4.1 Connecting Mode Direct Connection: Connect the camera via network cable to the PC’s external Internet access. Internet Connection Mode: Connect the camera to the Internet via router or switch so that users can login to the device via web browser.

  • Page 31: Ie Login

    4K PTZ Camera 79068-4K-12 User Manual Users can also verify network connection as shown above after the camera has finished its self- check. If the IP is default, open DOS command window and input “ping 192.168.5.163,” then press the Enter key. It will show the message as below, which means the network connection is normal.

  • Page 32: Preview

    4K PTZ Camera 79068-4K-12 User Manual 4.2.2 Preview After successfully logging into the management interface, it enters the video preview interface. In the preview screen, users can control PTZ, zoom, focus, video capture, sound, full screen, set the preset position, run, delete, and other operations.

  • Page 33: Configuration

    4K PTZ Camera 79068-4K-12 User Manual 4.2.4 Configuration Click Configuration to enter into the device parameters settings page. The following options are provided: local configuration, audio configuration, video configuration, network configuration, PTZ configuration, internet access configuration, and system configuration. Descriptions are provided in the table below.

  • Page 34: Video Configuration

    4K PTZ Camera 79068-4K-12 User Manual Input volume: set the input volume (default 2, 1-10 optional) Click “Save”, and it will remind Enable has changed. Restart the device to take effect after saving. Reboot the camera for the settings to come into effect.
  • Page 35 4K PTZ Camera 79068-4K-12 User Manual 3) RTP Broadcasting Main/Sub stream: On/off Protocol: RTP or TS Address (Default): “224.1.2.3”. It can be edited. Port: main Stream Default Port: 4000, Sub Stream Default Port: 4002 Visit: address comes up after setting. E.g ; rtp: //224.1.2.3:4000; udp: //@224.1.2.3:4000...
  • Page 36 4K PTZ Camera 79068-4K-12 User Manual Auto white balance sensitivity: sensitivity Auto white balance settings (default is low, high, medium optional). Chroma: Set the chroma (default 7, 0-14 optional). White balance sensitivity: Set the white balance sensitivity (Default setting: High; with low and middle for options) Red gain: set the red gain, effective when it is manual (default 145, 0-255 optional).

  • Page 37: Network Configuration

    4K PTZ Camera 79068-4K-12 User Manual Automatically after changed and saved (default 48; 28-200 optional) Secondary stream character size: Set the character size of the display, the device will restart automatically after changed and saved (default 48; 28-200 optional) Click on the "Save" button to display "Parameter saved successfully" message, and set to take effect.

  • Page 38: System Configuration

    4K PTZ Camera 79068-4K-12 User Manual 3) DNS Parameters Preferred DNS server: set the preferred DNS server. (Default 0.0.0.0). Alternate DNS server: alternate DNS server settings. (Default 0.0.0.0). Click on the "Save" button, it will be valid when it displays "Save successful".
  • Page 39 4K PTZ Camera 79068-4K-12 User Manual Update interval: set the NTP server automatic updated time interval. Valid after setting NTP server synchronization (default one day, 2-10 days Optional). NTP server address or domain name: Set NTP server address or domain name (default time.nits.gov).

  • Page 40: Logout

    4K PTZ Camera 79068-4K-12 User Manual 6) Reboot Click on the pop-up "Reboot" button and choose “yes” or “no”, then the device will restart automatically. 4.2.8 Logout Point "Logout" pop-up "Confirmation" dialog; select "Yes" or "No", choose “Yes” to exit the current page and return to the user login interface again.
  • Page 41 4K PTZ Camera 79068-4K-12 User Manual Command Function Command packet Note 8x 01 04 47 0p 0q Direct pqrs: Zoom Position 0r 0s FF Stop 8x 01 04 08 00 FF Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF...
  • Page 42 4K PTZ Camera 79068-4K-12 User Manual Command Function Command packet Note Iris Priority Automatic Exposure Iris priority 8x 01 04 39 0B FF mode Bright 8x 01 04 39 0D FF Bright mode Reset 8x 01 04 0A 00 FF...
  • Page 43 4K PTZ Camera 79068-4K-12 User Manual Command Function Command packet Note 8x 01 04 02 02 FF Down 8x 01 04 02 03 FF 8x 01 04 42 00 00 Direct pq: Aperture Gain 0p 0q FF 8x 01 04 3F 00 pq...
  • Page 44 4K PTZ Camera 79068-4K-12 User Manual Command Function Command packet Note p: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 2:1080i60 A： 1080P59.94 CAM_VideoSyste Set camera video 8x 01 06 35 00 0p 3:1080i50 B： 1080i59.94 system 4:720P60 C:720P59.94 5:720P50 D:1080P29.97 6:1080P30 E:720P29.97...

  • Page 45: Visca Protocol Inquiry Command

    4K PTZ Camera 79068-4K-12 User Manual 5.1.3 VISCA Protocol Inquiry Command Command Command Packet Return Packet Note y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF...
  • Page 46 4K PTZ Camera 79068-4K-12 User Manual p: Flicker Settings(0: OFF, CAM_FlickerModeInq 8x 09 04 55 FF y0 50 0p FF 1: 50Hz, 2:60Hz) CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain CAM_PictureEffectMod...

  • Page 47: Pelco-D Protocol Command List

    4K PTZ Camera 79068-4K-12 User Manual p: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 2:1080i60 A： 1080P59.94 3:1080i50 B： VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 1080i59.94 4:720P60 C： 720P59.94 5:720P50 D： 1080P29.97 6:1080P30 E： 720P29.97 7:1080P25...

  • Page 48: Pelco-P Protocol Command List

    4K PTZ Camera 79068-4K-12 User Manual Addre Zoom Out 0xFF 0x00 0x40 0x00 0x00 Addre Focus Far 0xFF 0x00 0x80 0x00 0x00 Addre Focus Near 0xFF 0x01 0x00 0x00 0x00 Addre Stop 0xFF 0x00 0x00 0x00 0x00 Addre Set Preset...

  • Page 49: Maintenance And Troubleshooting

    4K PTZ Camera 79068-4K-12 User Manual Tilt DownRight 0xA0 Address 0x00 0x12 0xAF Speed Speed Zoom In 0xA0 Address 0x00 0x20 0x00 0x00 0xAF Zoom Out 0xA0 Address 0x00 0x40 0x00 0x00 0xAF Stop 0xA0 Address 0x00 0x00 0x00 0x00...

  • Page 50: Troubleshooting

    4K PTZ Camera 79068-4K-12 User Manual 6.2 Troubleshooting 1)No video output a. Check whether the camera power supply is connected, the voltage is normal, the power indicator is lit. b. Whether the machine could do self-check after restarted. c. Check whether the bottom of the DIP switch is the normal operating mode. (see Table 2.2 and Table 2.3)

  • Page 51: Copyright Statement

    4K PTZ Camera 79068-4K-12 User Manual d. Click "Start" and select "Run" and then type “cmd” in the computer; Click "OK" then turn on a DOS command window to enter ping 192.168.5.163. Press the Enter key to appear message as follows: Description network connection is normal.
