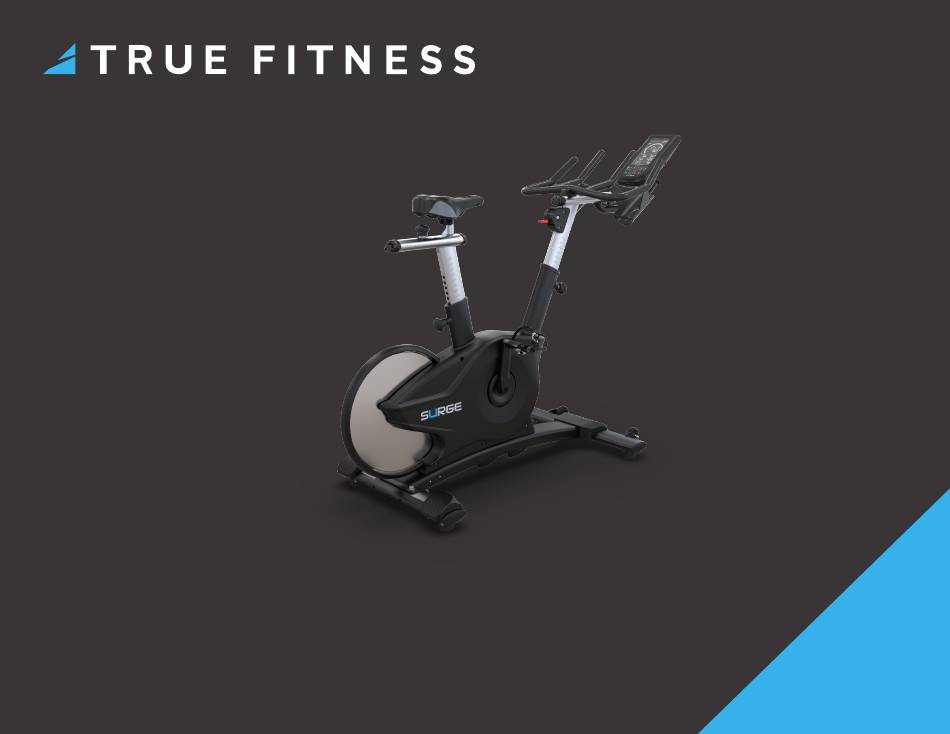

VAPOR SURGE CYCLE BIKE
OWNER'S MANUAL AND ASSEMBLY GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAPOR BC1000 and is the answer not in the manual?

Questions and answers

Related Manuals for True Fitness VAPOR BC1000

Summary of Contents for True Fitness VAPOR BC1000

  • Page 1 VAPOR SURGE CYCLE BIKE OWNER’S MANUAL AND ASSEMBLY GUIDE...

  • Page 2: Important-Please Read

    Interested in owning more TRUE products? Please contact us with any product inquires so that we may direct you to the appropriate sales representative to help answer your questions. • Phone | 800.426.6570 • Email | sales@truefitness.com • Hours | Monday - Friday 8:30am - 5:00pm (CST) © 2025 TRUE Fitness All Rights Reserved.

  • Page 3: Reporting Freight Claims Or Parts Damage

    Once you have called the carrier you will need to gather the serial number, model number, description of damage, and photos of damage. Contact TRUE product support (service@truefitness.com | 800.883.8783) or TRUE sales support (sales@truefitness.com | 800.426.6570) Monday-Friday during normal business hours. © 2025 TRUE Fitness All Rights Reserved.

  • Page 4: Table Of Contents

    ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST............10 ASSEMBLY STEPS.................13 PRODUCT FEATURES BASE OVERVIEW................22 CONSOLE FEATURES..............23 KEYPAD BUTTONS................26 SOFTWARE MANAGEMENT............27 CARE AND MAINTENANCE INSPECTION................29 CLEANING THE EQUIPMENT............29 LEVELING THE MACHINE..............29 PREVENTATIVE MAINTENANCE............30 LONG TERM STORAGE..............30 BC1000 WIRING DIAGRAM.............31 © 2025 TRUE Fitness All Rights Reserved.

  • Page 5: Safety Instructions

    This stationary training equipment is not suitable for high accuracy purposes. humidity including extreme temperature changes. • Do not move the equipment by lifting the console. Do not use the console as a handlebar during a workout. © 2025 TRUE Fitness All Rights Reserved.
  • Page 6 Do not allow animals on or near the equipment while in operation. • Do not reach into or underneath the unit, or tip it on its side during operation. • Do not use if you have a cold or fever. © 2025 TRUE Fitness All Rights Reserved.

  • Page 7: Space Requirements

    DIMENSIONS (L X W X H) 59” x 24” x 44” (150cm x 61cm x 112cm) • MACHINE WEIGHT 112.5 lbs / 51 kg • MAXIMUM USER WEIGHT 350 lbs / 160 kg © 2025 TRUE Fitness All Rights Reserved.

  • Page 8: Warning Decals

    NOTE: The two numbers before the “-” refers to the year of manufacturing. base serial number location P/N 00709000 COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefitness.com. © 2025 TRUE Fitness All Rights Reserved.

  • Page 9: Proper Use

    While firmly grasping the handlebars to maintain balance, slowly slide your body off the seat and feet from the pedals to transition to a standing position free from the bike. • Exit the machine from either side. © 2025 TRUE Fitness All Rights Reserved.

  • Page 10: Assembly Instructions

    NEVER use an electric screwdriver to fasten the plastic shroud pieces. VERIFY BOX CONTENTS #2 Phillips Screwdriver IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product support (service@truefitness.com | 800.883.8783). © 2025 TRUE Fitness All Rights Reserved.

  • Page 11: Box Contents

    FRONT COVER ASSEMBLY BC10420 HANDLEBAR ASSEMBLY BC1013014R RIGHT PEDAL BC1013014L LEFT PEDAL BC10510 SEAT FRAME ASSEMBLY BC10520 SEAT PAD BC10610 CONSOLE ARM ASSEMBLY BC10620 CONSOLE BRACKET 8100726 CONSOLE BC1000HW HARDWARE PACK, BC1000 MAN-BC1000-0A MANUAL, BC1000 © 2025 TRUE Fitness All Rights Reserved.

  • Page 12: Hardware Pack Contents

    16 X 6 X 11MM 28MM OD, BLK ZP C1093C WASHER, FLAT, M8, SS C2003 SHCS, M5X25MM, BLK ZP C1301A BHCS, M6 X 12MM, BLK ZP C1003A PHCS, M5 X 15MM, BLK ZP © 2025 TRUE Fitness All Rights Reserved.

  • Page 13: Assembly Steps

    WASHER, CURVED, 18 X 8.5 X 6.5MM • Use a 13mm wrench to fully tighten the M8 bolts. C1093C WASHER, FLAT, M8, SS C2000 HHS, M8 X 20MM, SS BC10100 MAINFRAME ASSEMBLY BC10300 REAR STABILIZER ASSEMBLY © 2025 TRUE Fitness All Rights Reserved.
  • Page 14 M5 screws. CC-36-011B WASHER, FLAT, M6 X 23MM OD, BLK ZP C2002 SHCS, M5X40MM, BLK ZP BC10230 WASHER, CURVED, 16 X 6 X 11MM C2003 SHCS, M5X25MM, BLK ZP © 2025 TRUE Fitness All Rights Reserved.
  • Page 15 100 N-M (74 FT-LB). when using a torque wrench = 100 N-M (74 FT-LB) crank arm assembly when using a torque wrench = 100 N-M (74 FT-LB) © 2025 TRUE Fitness All Rights Reserved.
  • Page 16 D. Rotate the locking knob clockwise to the locked position. E. Use a 3mm allen wench to reattach the slide bracket, lower end cap, and M4 screws to the handlebar neck assembly. handlebar neck locking handlebar neck assembly knob assembly locking knob © 2025 TRUE Fitness All Rights Reserved.
  • Page 17 Verify the locking pin is fully lock nuts seated in the tube of seat forward/ the upper seat frame backward assembly. adjustment locking knob seat up/down adjustment locking knob © 2025 TRUE Fitness All Rights Reserved.
  • Page 18 When all four screws are seated, use a 4mm wrench to fully tighten. D. Use a 6mm wrench and 13mm wrench to attach the console bracket to the console arm assembly. power/ communication cables potentiometer cables © 2025 TRUE Fitness All Rights Reserved.
  • Page 19 PHCS, M5 X 15MM, BLK ZP C. Seat the tab on the console bracket inside the notch on the console. D. Use a #2 Phillips screwdriver to attach the console to the console bracket. power/ communication cables © 2025 TRUE Fitness All Rights Reserved.
  • Page 20 IMPORTANT! Do not adjust the leveling feet to such a height that they detach or unscrew from the machine. B. Verify all four lock nuts are securely tightened and flush against the bottom of the frame. lock lock leveling leveling foot foot © 2025 TRUE Fitness All Rights Reserved.
  • Page 21 100. Press ENTER, then use the TIME ( +) or TIME ( – ) keys to increase or decrease the brightness, in 5% increments. Press PAUSE CLEAR once to save your selection and step back to scrolling mode. © 2025 TRUE Fitness All Rights Reserved.

  • Page 22: Product Features Base Overview

    Moving part of the bike that provides resistance to the lower body during a workout. H. Leveling Feet An adjustable system used to aid in the leveling of the bike. Resistance Lever Allows the user to adjust the resistance level during the workout. © 2025 TRUE Fitness All Rights Reserved.

  • Page 23: Console Features

    Session Clock ANT+ Heart Rate Indicator Bluetooth (BLTE) Heart Rate Indicator Resistance (Level) Interval Counter Calorie Tachometer Distance Counter Workout Time Calorie Counter RPM (Revolutions per Speed minute) Counter Power Heart Rate Workout Indicator © 2025 TRUE Fitness All Rights Reserved.
  • Page 24 Quick Start (simple program without programming options; also initiates if you begin pedaling without pressing a button) • MAX 14 INTERVAL (pre-set interval program) • Interval (custom interval program) • Calorie Goal • Distance Goal • MAX CIRCUIT (instructor-led group training) © 2025 TRUE Fitness All Rights Reserved.
  • Page 25 Average calories/minute and total calories • Average RPM • Average Speed • Average heart rate and peak heart rate (if using a wireless heart rate monitor) • Average estimated watts/minute and total estimated watts. © 2025 TRUE Fitness All Rights Reserved.

  • Page 26: Keypad Buttons

    3. Enter your weight by pressing ENTER twice to accept the default value of 150 lbs. (68 kg), or use the TIME (+ / -) buttons to change the value to any weight between 70 and 350 pounds (30 and 160 kilograms). © 2025 TRUE Fitness All Rights Reserved.

  • Page 27: Distance Goal

    C. Press ENTER to show the details of a function, to make a change to a user setting, or to run a diagnostic test. D. To exit diagnostics, press PAUSE CLEAR until the console resets. Should you encounter errors or have questions regarding diagnostics, please contact product support (service@truefitness.com | 800.883.8783) for assistance. © 2025 TRUE Fitness All Rights Reserved.
  • Page 28 If desired, press and hold QUICK START and PAUSE CLEAR simultaneously for three seconds to reset the counter to zero. Press PAUSE CLEAR twice to step back to scrolling mode. © 2025 TRUE Fitness All Rights Reserved.

  • Page 29: Care And Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour water or spray liquids on any parts of the machine. Allow the machine to dry completely before using. Frequently vacuum the floor underneath the unit to prevent the accumulation of dust and dirt, which can affect the smooth operation.

  • Page 30: Preventative Maintenance

    TRUE recommends that quarterly scheduled maintenance be performed by a qualified service technician. Please contact your dealer or visit www.truefitness.com to contact a local TRUE authorized service technician. IMPORTANT! Use only TRUE Fitness certified service providers. Using non-authorized service providers could void the TRUE Warranty. Frequency...

  • Page 31: Bc1000 Wiring Diagram

    BC10007 BC100012 ASSEMBLY, CABLE, BATTERY EXTENSION/ FUSE, 2 PIN JST SMP-03V-BC BC100012 FSD-F200MV2T01000BG JST SMR-03V-B FUSE FH1-208 FUSE HOLDER ASSEMBLY, GENERATOR BC1012030 TE 1-480319-0 SunUp G12S03 TE 1-480318-0 SLA BATTERY, 12V 0.8AH FP1208 © 2025 TRUE Fitness All Rights Reserved.

  • Page 32: Warranty Information Commercial Warranty

    Coax/TV, HDMI, USB, mirroring or 1 Year Bearings Ethernet connections, and safety key. Labor** 1 Year See Warranty Details for terms, conditions, and complete coverage details. Wear Items*** 90 Days © 2025 TRUE Fitness All Rights Reserved.

  • Page 33: Limited-Use Commercial Warranty

    LIMITED-USE COMMERCIAL WARRANTY* TRUE Fitness may offer alternative warranties to purchasers of CARDIO commercial equipment for limited-use commercial* or in-home use.** This policy ensures that customers who use commercial equipment for limited-use commercial or in-home use may WARRANTY ITEM VAPOR, APEX...

  • Page 34: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the “Product”) listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the specified period of time.

  • Page 35: Warranty Registration

    St. Louis, MO 63366 number location WARRANTY REGISTRATION Base Serial Number Console Serial Number Purchase Date Company (if applicable) Customer Name (First and Last) Email Address Phone Number Street Address City State Postal Code Country © 2025 TRUE Fitness All Rights Reserved.
  • Page 36 CONTACT US service@truefitness.com 800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-BC1000-0A Owner’s Manual and Assembly Guide REV00 © 2025 TRUE Fitness All Rights Reserved.
