Boss Audio Systems BV9364B Manual

ACCESSORIES

Remote control: 1
Wire harness: 1
Mounting brackets: 2
Bracket screws: 8
Trim ring: 1
External microphone: 1

UNIT INSTALLATION

UNIT INSTALLATION

  1. Put the 2 brackets to the left and right side of the unit.
  2. Use the supplied screws to attach the brackets to the unit.
  3. Once the screws are attached, the brackets can be adjusted forward or backward depending on the installation requirements.

REMOTE CONTROL OPERATION

REMOTE CONTROL OPERATION


  1. Eject the disc.
  2. CLK
    Display clock.
  3. MENU
    Switch between the home menu and the last selected source.
  4. MODE
    Switch between modes.
  5. AUDIO
    Select an audio language or channel for video.
  6. SUB-T
    Select a subtitle language for video.
    • Skip to the previous or next chapter, track or file.
    • In radio mode, tune to a station.

  1. Navigation menus.
  2. VOL +/-
    Increase or decrease volume.

  3. Answer or make a phone call.
  4. Numeric buttons
    • Select a title/chapter/track.
    • In radio mode, select a preset station.
    • In Bluetooth phone mode, enter a phone number or a special symbol.

  5. End or reject a phone call.
  6. / C BAND
    • Stop playback.
    • In radio mode, select a tuner band.
  7. OK
    Confirm an entry or selection.
  8. ROOT
    Access the disc menu.
  9. TITLE
    Display the main menu of a video disc and start playback from the beginning.

  10. Start, pause or resume playback.

  11. Select a repeat play mode.
  12. MUTE
    Mute or restore volume.
  13. EQ
    Select a preset sound mode.

  14. Switch the unit on or to standby.

WIRES CONNECTION DESCRIPTION

The Description of the Input/Output Interface
WIRES CONNECTION DESCRIPTION - Part 1

Wire Harness Explanation
Power
Yellow: Constant (+12V)
Red: Accessory (+12V)
Black: Ground (-)
Orange: Illumination Input (+12V)
Violet/Wht: Reverse Input (+12V)
Blue: Ant. Output (+12v, 500 mA)
Blue/Wht: Rem. Output (+12v, 500 mA)
Lt. Green: Parking Brake Input

Control
3.5mm: SWC Input

Speaker Outputs
White: Left Front (+)
White/Blk: Left Front (-)
Gray: Right Front (+)
Gray/Blk: Right Front (-)
Green: Left Rear (+)
Green/Blk: Left Rear (-)
Purple: Right Rear (+)
Purple/Blk: Right Rear (-)

Camera Power
Red/Violet: (+12v, 500 mA)
Red/White: (+12v, 500 mA)

WIRES CONNECTION DESCRIPTION - Part 2

PANEL INTRODUCTION

PANEL INTRODUCTION

  1. Remote sensor
    Aim the remote control directly at the sensor.

  2. Eject the disc.
  3. Disc slot
    Insert a disc.
  4. MUTE
    Mute or restore volume.
  5. Built in microphone
    Pick up sound.
  6. MODE
    Switch between modes.
  7. SD card slot
    Connect to a Micro SD card for media play.
  8. Reset button
    Press the reset button if the unit fails to operate properly.
  9. Function knob
    • Press and hold to turn the unit on or off.
    • Rotate to adjust volume.
    • In power on mode, press briefly to display the home menu.
  10. USB port
    Connect to a USB flash drive for media play.
  11. AUX jack (3.5mm)
    Connect to an external audio device for audio input.

MAIN MENU OPERATION INSTRUCTION - STEP 1

MAIN MENU 1

  1. Tuner Interface
  2. Streaming Interface
  3. DISC Interface
  4. Phone Interface
  5. USB FRONT Interface
  6. USB REAR Interface
  7. SD Interface
  8. Camera Interface

MAIN MENU OPERATION INSTRUCTION - STEP 2

MAIN MENU 2

  1. AV INPUT Interface
  2. AUX IN Interface
  3. Setting Interface

There are seven Setting Menus .
GENERAL SETINGS-Menu 1

MAIN MENU OPERATION INSTRUCTION - STEP 3

  1. Touch to set wall paper for the home menu background.
  2. Retain ACC Power: select how many seconds to delay shut down of the unit after the vehicle powers down.
  3. When turned on, an audible beep tone confirms each function selection.
  4. Touch to select Spanish or English.
  5. Touch to select a parental control level.

ACCESS SETUP INTERFASE

CAMERA SETTINGS-Menu 2
ACCESS SETUP INTERFASE - STEP 1

  1. Camera Trigger: Touch to select Front/Rear/Off. Select to display the front or
    rear camera view, or no camera view when reversing.
  2. Rear Camera: Touch to enable or disable the rear camera input.
  3. Rear Cam Pwr: Touch to enable or disable power connection to the rear camera.
  4. Front Camera: Touch to enable or disable the front camera input.
  5. Front Cam Pwr: Touch to enable or disable power connection to the front camera.
  6. Rear Camera Delay / Front Camera Delay: Touch to delay trigger of the rear/front camera view by a set time (1/2/3 seconds or off) when shifting the gear to the reverse position. Due to varying vehicle configuration, the rear/front view trigger can be delayed to suit the vehicle.

CLOCK SETTINGS-Menu 3
ACCESS SETUP INTERFASE - STEP 2

  1. Touch to set clock mode: 12/24 hour.
  2. Touch to set hour.
  3. Touch to set minute.
  4. Touch to set AM/PM at 12 hour mode.

AUDIO SETTINGS-Menu 4
ACCESS SETUP INTERFASE - STEP 3
ACCESS SETUP INTERFASE - STEP 4

  1. Touch to select whether to output sound from an external amplifier.
  2. Startup volume: default volume.
    1. If the volume at the last shutdown is less than this volume, the volume at the last shutdown will be used when rebooting;
    2. if the volume at the last shutdown is greater than this volume, this default volume will be used when rebooting
  3. 10. Touch to set a particular volume level for each source.
  1. Slide up or down to enter the previous or next menu interface.

TUNER SETTINGS –Menu 5
ACCESS SETUP INTERFASE - STEP 5

  1. Select America or EU region you are in to receive radio stations.
  2. Perform radio search and store radio stations in each radio band.
  3. Select Local to receive strong signal only. Select Distance to receive both strong and weak signals
  4. Select Stereo or Mono sound effect.

ILLUMINATION SETTINGS –Menu 6
ACCESS SETUP INTERFASE - STEP 6

  1. Touch to turn on the illumination detection function
  2. Touch to set screen brightness
  3. Touch to set gamma brightness

TUNER OPERATION

ABOUT SETTINGS –Menu 7
TUNER OPERATION - STEP 1

  1. Touch to enter the touch calibration interface.
  2. Touch to view the version number of the machine.
  3. Touch to restore the machine to factory settings.
  4. Touch to select whether it is necessary to display a End User
    License Agreement when booting up.

TUNER OPERATION
TUNER OPERATION - STEP 2

  1. Touch to go back to the home page.
  2. Short press to seek backwards; long press to enter manual mode then press repeatedly to adjust the frequencey for fine tune.
  3. Short press to seek forward; long press to enter manual mode then press repeatedly to adjust the frequency for fine tune.
  4. Short press to select the preset station; long press to save the current station.

DISC/CD/USB/SD PLAYBACK

DVD MODE OPERATION
DISC/CD/USB/SD PLAYBACK - Step 1

  1. Touch to select a title/chapter of DVD.
  2. Short press to move to the previous chapter; long press to rewind quickly.
  3. Touch to playback/pause.
  4. Short press to move to the next chapter; long press to fast forward quickly.
  5. Touch to enter the DVD root menu.
  6. Go to the next page of the menu bar.
  7. Go to the previous page of the menu bar.
  8. Touch to change the repeat mode in the following sequence:
    DVD: repeat all, repeat off, repeat rchapter, epeat title.
    VCD(PBC off): repeat all, repeat off, repeat single.
  9. Touch to change random play mode.
  10. Touch to enter the video adjust page.
  11. Touch to enter the DVD title menu.
  12. Touch to select the subtitle language if the disc is recorded in multiple languages.
  13. Go to the next page of menu bar.
  14. Touch to switch the picture format between 4:3 and 16:9.
  15. Touch to select DVD audio language
  16. Touch to select DVD video angle

NOTE: When properly installed, a video cannot be displayed unless the parking brake is applied. If the parking brake wire is not installed correctly, a warning message will appear.

MEDIA PLAYING CD AUDIO
DISC/CD/USB/SD PLAYBACK - Step 2

  1. Show the music's ID3 information.
  2. Time bar: show the total time and playing time of the present song.
  3. Touch to change play mode:
    repeat all, repeat directory, repeat single, sequential play and shuffle play.
  4. Touch to retum to the previous chapter.
  5. Touch to playback/pause.
  6. Touch to go to the next chapter.
  7. Touch to enter file list page.

CD SOURCE MENU
Touch the SOURCE MENU (ICON 5) to access the CD track menu to view or change tracks manually. Touch again to return to playback.
DISC/CD/USB/SD PLAYBACK - Step 3

USB/SD MUSIC/VIDEO/PICTURE
Press the USB or SD icon in the m ain menu. The music menu is similar to the disc music menu except there is more ID3 information on it (such as song name & singer).
DISC/CD/USB/SD PLAYBACK - Step 4

BLUETOOTH OPERATION

BLUETOOTH OPERATION MENU
Click the phone icon to enter the Bluetooth function interface.
BLUETOOTH OPERATION MENU

  1. Bluetooth setting menu:
    1. Turn Bluetooth on and off. Turn on and the display loops between the gray Bluetooth icon, the white Bluetooth icon. The icon will turn blue when a phone is paired.
    2. Connect automatically.
    3. Answer automatically.
    4. PIN code: The default password is "0000" and can be changed by clicking "0000".
    5. Default Bluetooth name for this unit: Boss Audio BV9364B
  2. Function area:
  1. Click to see the dialing keypad. Users can dial phone numbers and make calls.
  2. Click to see the Bluetooth phonebook menu.
  3. Click to see the Bluetooth call history.
  4. Bluetooth pairing interface.
  5. Bluetooth setting menu.

BLUETOOTH KEYPAD
BLUETOOTH KEYPAD

  1. Shows the number dialed in.
    Press to delete wrong numbers.
  2. Key area.
  3. Touch to call out.

BLUETOOTH CALL
BLUETOOTH CALL

  1. Show contact name.
  2. Touch to select talk through phone or through Bluetooth.
  3. Touch to mute or un-mute mic.
  4. Keypad area.
  5. Press to hang up the phone call.

BLUETOOTH PHONEBOOK
BLUETOOTH PHONEBOOK

  1. Touch to search for a name or phone number.
  2. Contact list.

BLUETOOTH PHONE CALL HISTORY
BLUETOOTH PHONE CALL HISTORY

  1. Click to sync phonebook.
  2. Touch to show missed calls.
  3. Touch to show the dialed phone numbers.
  4. Touch to show the received phone numbers.

BLUETOOTH MUSIC-A2DP
BLUETOOTH MUSIC-A2DP

  1. Skip to the previous music file.
  2. Start/pause/resume play.
  3. Skip to the next music file.
  4. Enter EQ setting menu.

BLUETOOTH PAIR DEVICE
You can disconnect the current
Bluetooth connection by selecting
"Device" -> "Disconnect this Device".
You can remove the currently connected device from the memory by selecting
"Device" -> "Forget this Device".
BLUETOOTH PAIR DEVICE

PHOTOS

PHOTOS
BLUETOOTH PAIR DEVICE

  1. Keypad: enter a number to select file.
  2. Skip to the previous picture.
  3. PLAY/PAUSE: Touch to start picture playing mode. Touch again to pause.
    During picture playing mode, each picture will be played for 5 seconds and then automatically move to the next if the PLAY/PAUSE button is not pressed.
  4. Skip to the next picture.
  5. List: Touch to enter file list.
  6. Go to the next page of the menu bar.
  7. Go to the previous page of the menu bar.
  8. Select repeat mode.
  9. Select random play mode.
  10. Touch to enter the video adjust page.
  11. Turn right 90 degrees.
  12. Zoom out/in the present picture.

CAMERA/AUX/AV MENU
FRONT CAMERA:
Turn on the switching interface of rear camera and front camera at the same time
CAMERA/AUX/AV MENU - Part 1

REAR CAMERA:
Rear view function. The rear view video signal can display automatically when reversing the car and then return the screen to the last source when the car is moved out of reverse.
CAMERA/AUX/AV MENU - Part 2

AUX IN:
External audio input function.
Connect the audio device to the unit by the 3.5mm jack in front of the panel and touch AUX IN icon.
CAMERA/AUX/AV MENU - Part 3

AV INPUT:
External video and audio input function. Connect the video and audio device to the unit by the RCA jacks and touch AV INPUT icon.
CAMERA/AUX/AV MENU - Part 4

TROUBLESHOOTING

Media displayed Cause Corrective Action

Loading

 Disc is being read Wait until the reading finishes

No disc/Bad disc

 Disc is dirty Clean the disc
Disc is upside down Insert disc in right way

Unknown disc

 Unsupported disc type Check the disc and change

Error

 Illegal mechanism operation Press EJECT for 5s to reset loading mechanism
Problem Cause Corrective Action

Unit will not power on

 Unit fuse blown Install new fuse with right rating
Car battery fuse blown Install new fuse with right rating
Illegal operation Press the RESET button

Screen touch is insensitive

 Place of touch screen is uncalibrated Go to setup menu and set the calibration

No audio output

 Improper audio output connection Check wiring and correct
VOLUME 0 Turn up the volume

Low audio output

 Heavily biased volume balance Check and adjust the channel balance to the center position

Poor sound quality or distortion

 Speaker power rating not compatible with unit Connect proper speakers
Speaker short circuit Check wiring

Weak station searching

 Auto antenna is not properly connected Connect the auto antenna properly
LOCAL function is activated Turn LOCAL function OFF

No image

 Incorrect connection to parking brake wire Check wiring and correct
Parking brake is not engaged Stop vehicle in safe place and set parking brake ON

Flashing image or interference appears on screen

 Improper video signal connections Check wiring and correct
Improper image, improper height/width screen display Improper aspect ratio setup Use correct aspect ratio setting
Cannot insert disc Disc already inside unit Eject the current disc and insert the new one
Loss of audio, music stops Disc is scratched or warped Use a new one in good condition
Disc is dirty or wet Clean the disc

SPECIFICATIONS

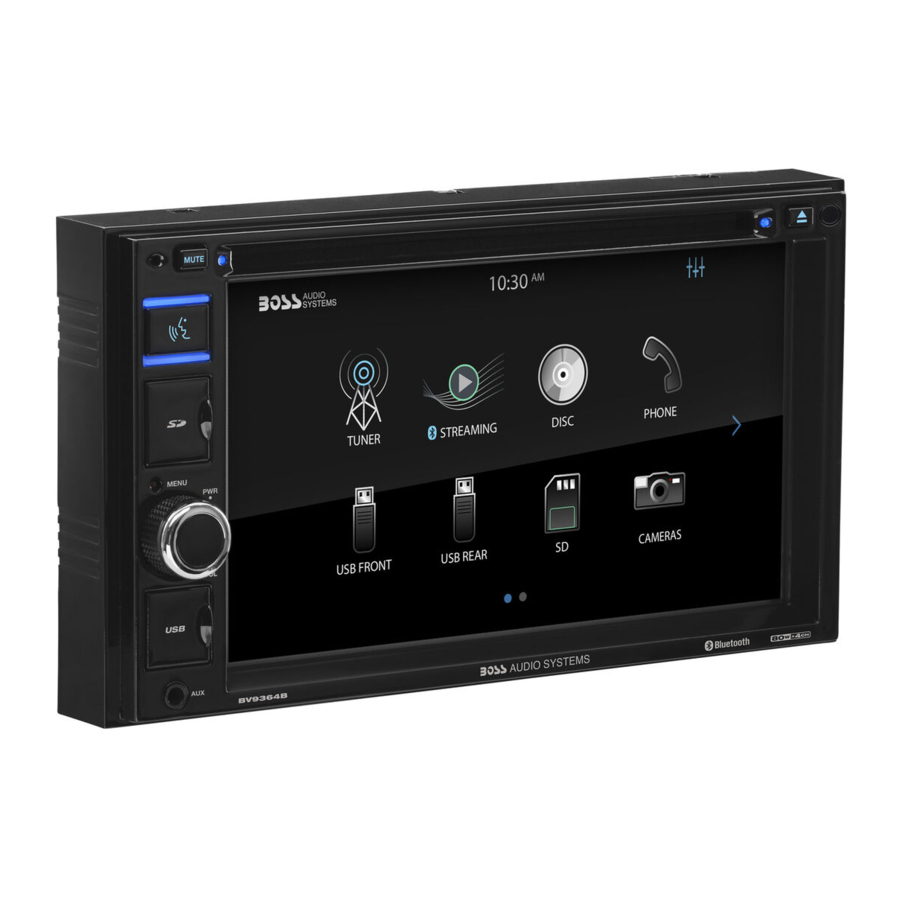

Model No. BV9364B
General features Fixed front panel with 6.2 inchTFT screen
FM/AM radio
Fully compatible with DVD/VCD/CD/MP3/MPEG4/JPEG
USB (front and rear) and SD card media play support
Bluetooth audio stream and hands-free phone call
AUX input
AV input
Video output
Front/Rear view camera support
Front, rear and subwoofer pre-amp output
Max. 4 x 80W power output
Steering wheel control (SWC)
TFT screen 800 x 480 pixels
SD Up to 32G
Working power 12V
Max output 4 x 80W
Working temperature -20º 70ºС/ -4˚F158 ˚F
Size 7" x 3.94" x 6.67" (178 x 100 x 169.5 mm)
Weight 1.58 kg / 3.48 lbs
Compatible media
Picture JPG/JPEG/BMP
Disc CD/CD-R/CD-RW/DVD/DVD±R/DVD±RW
Audio file MP3/WAV
Video file Format Video code Audio code
MPEG1 MPEG1 MP2
MPG MPEG2 MP2

SAFETY NOTICE

Please read and understand the following safety information before operating this unit.

The unit is suitable for 12V power supply (requires grounding). Do not connect it to 24V power supply in trucks or buses, or else it will be damaged.
caution Please use genuine discs instead of incompatible discs or the unit will be damaged and/or the service live will be shortened.
caution Do not replace the fuse without the guidance of qualified personnel or the unit may be damaged and/or catch fire.
warning Please follow the traffic laws and regulations and do not watch programs or operate the unit when you are driving to avoid accidents (excluding passengers watching through rear monitor).
caution To ensure safety and normal unit operation, please ask qualified personnel to install the unit. Do not disassemble or repair the unit without authorization. To avoid damage and accidents, please contact a local car audio distributor for details.
Do not put the unit in a moist environment or water to avoid electric shock, damage, and/or fire due to a short circuit.
The mechanical drive part of the monitor uses an automatic precision transmission component. Do not pull, push or rotate the unit by force or impact the TFT screen to avoid damaging the unit.
caution Do not insert the audio plug of the vehicle into the master unit directly. Please convert with the dedicated end cable provided by our company.
caution When installing the unit, prevent metal objects from falling into the master unit from the vents to avoid a short circuit and damaging the unit.

Safety Statement

For the safety of yourself and others, do not watch programs or operate the unit when you are driving. It is prohibited by law.
caution The back up camera function should be used as an auxiliary view only. We are not responsible for any accidents occurred during backing.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Boss Audio Systems BV9364B Manual

Advertisement

Need help?

Need help?

Do you have a question about the BV9364B and is the answer not in the manual?

Questions and answers

Related Manuals for Boss Audio Systems BV9364B

Save Article as PDF

Table of Contents
