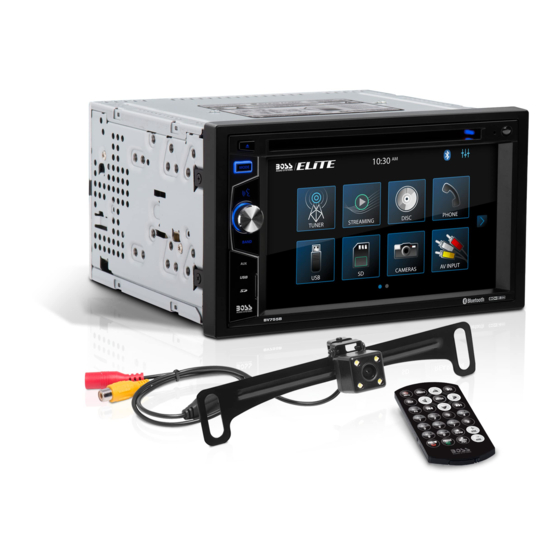

Bluetooth dvd/mp3/cd am/fm receiver featuring 6.95" (177 mm) widescreen touchscreen digital tft monitor (20 pages)
Summary of Contents for Boss Audio Systems BV755BLC
Page 3
Congratulations on your purchase of a Boss Audio Systems Multimedia Receiver. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will offer you years of entertainment pleasure. Unit Installation Wires Connection Description...
Page 9
UNIT INSTALLATION Bracket Bracket Screw 1.Put the 2 brackets to the left and right side of the unit; 2.Use screws to fix the brackets to the unit. 3. Once the screws are attached, the brackets can be adjusted forward or aft depending on the installation requirements.
Page 10
WIRES CONNECTION DESCRIPTION The Description of the Input/Output Interface L-IN R-IN SUB1 V-IN V-OUT1 V-OUT2 SUB2 CAMERA FRONT PRE-AMP OUTPUT ANTENNA VIDEO REAR CAMERA REAR PRE-AMP SUBWOOFER INPUT OUTPUT OUTPUT A/V INPUT Connector A SWC 3.5MM JACK...
