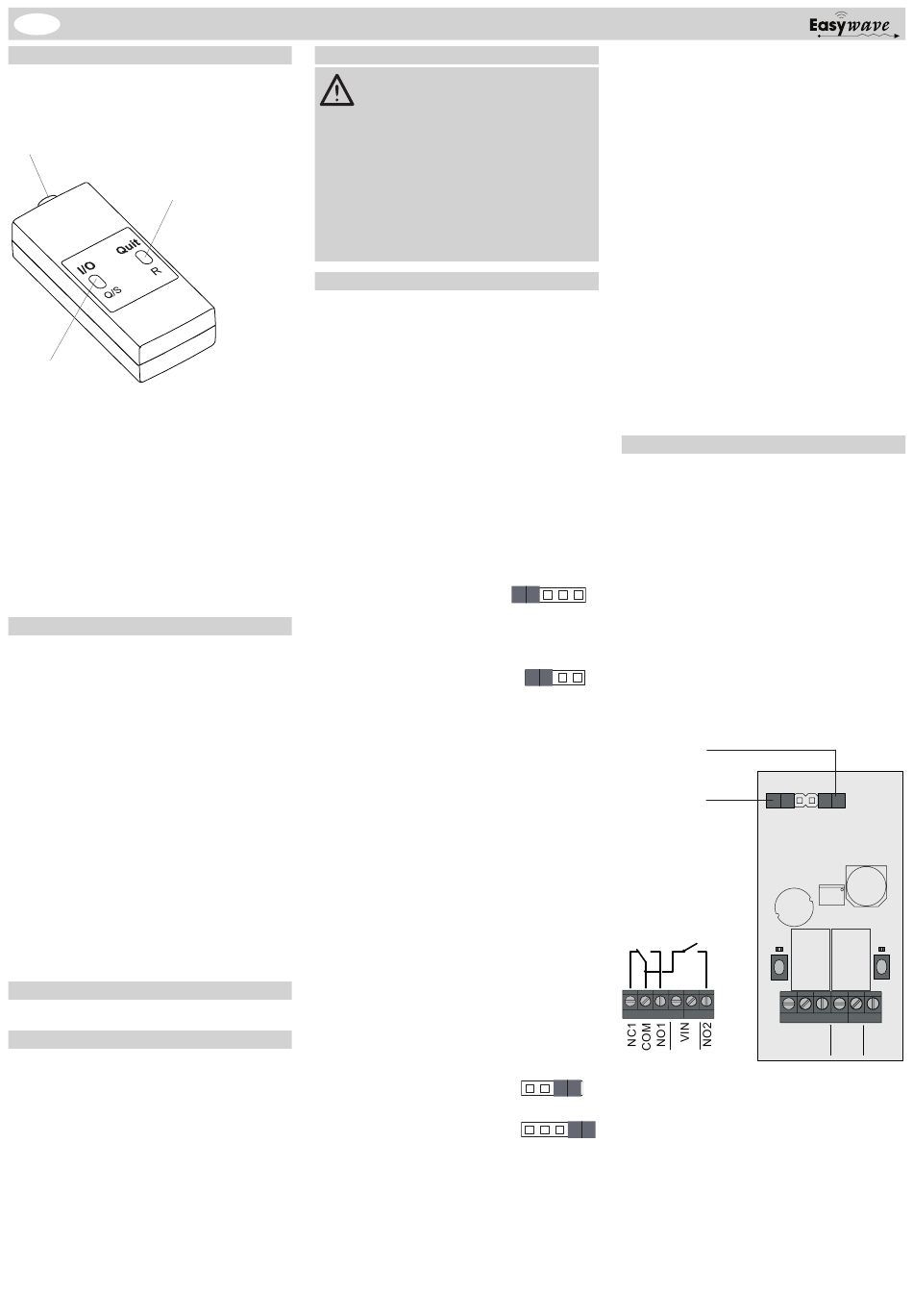

Easy wave RCL07 Quick Start Manual

RCL07 Call receiver with external programming
EN
Model
Acknowledge button Quit
Acknowledge a call
Programming button R
Cable entry
Program CALL transmitters
with cord grip
red LED
lights up: call received
flashes:
Care button I/O
Activate or deactivate CARE function
Programming button Q/S
Program ACKNOWLEDGE and
CARE transmitters
green LED
lights up: RCL07 ready for operation
flashes: CARE function active
RCL07E5002B30
868.30 MHz
RCL07E6002B30 916.50 MHz
Technical details
Frequency: 868.30 MHz
Modulation: FSK
Coding: Easywave
Power supply: 12-24 V AC
12-32 V DC
Max. current consumption: 10 mA / 45 mA Load*)
Output: 2 potential-free
relay contacts
(1 CO and 1 NO)
Max. contact rating AC (Ω)
max. switching voltage: 120 V AC
max. switching current: 1 A
max. switching power: 62 W
Max. contact rating DC
max. switching voltage: 50 V DC
max. switching current: 1 A
max. switching power: 30 W
Operating temperature: -20 °C to +60 °C
Degree of protection: IP54
Dimensions (w/l/h): 35 / 80 / 20 mm
Weight: 38.0 g
Connecting cable: Ø 5 mm
*)
Both relays are switched.
Scope of delivery
Call receiver RCL07, operating instructions
Intended use
The device may only be operated with safety extra
low voltage (SELV) and may only be used as a ra-
dio control for switching devices with safety extra
low voltage (SELV). All information on the maxi-
mum contact load refers to resistive loads. If an
inductive load (e.g. motor) is connected, the maxi-
mum contact load is reduced depending on cos ϕ.
The manufacturer shall not be liable for any dam-
age caused by improper or non-intended use.
Safety advice
- Observe the permissible supply voltage and
the maximum contact load of the switching
outputs! The specified maximum values for
switching voltage, switching current and
switching power must not be exceeded!
battery undervoltage
- Have faulty radio controls checked by the
manufacturer!
- Do not make any unauthorized alterations
or modifications to the receiver!
Functions
The RCL07 call receiver has two channels. Chan-
nel 1 (CH1) is used for signalling incoming calls.
If the RCL07 receives an undervoltage telegram,
channel 2 (CH2) switches for one second.
The following applications can be realized with
this:
CALL Function
When the RCL07 receives the telegram from a
CALL transmitter, channel 1 (CH1) switches ac-
cording to the operating mode selected.
A maximum of 32 transmission codes for CALL
transmitters can be programmed. Programming is
carried out using the programming button R (see
page 2).
During programming, the operating mode current-
ly set on jumper J2 is assigned to a transmitter:
PULSE
(
1-button operation)
If a transmitter button A/B/C/D is pressed,
the relay CH1 switches for one second.
ON
(
1-button operation)
If a transmitter button A/B/C/D is pressed,
the relay CH1 switches permanently ON.
The relay CH1 can only be switched off, by ac-
knowledging the call.
If an already programmed transmitter is pro-
grammed again, the previous operating mode will
be overwritten with the currently selected one.
The operating mode PULSE is set by default.
ACKNOWLEDGE Function
While the ACKNOWLEDGE function is activated,
incoming calls are additionally signalled by the
red QUIT LED.
Acknowledgement is done using the QUIT button
or an ACKNOWLEDGE transmitter. This resets
the QUIT LED and the CH1 relay.
A maximum of eight ACKNOWLEDGE transmit-
ters can be programmed. The programming is
done using the programming button Q/S (see
page 2).
The function can be set with jumper J1:
activated:
deactivated:
If the ACKNOWLEDGE function is deactivated,
no CALL display is shown and the button has no
function.
The relay CH1 can only be reset by ACKNOWL-
EDGE transmitters.
The ACKNOWLEDGE function is deactivated by
default.
Before using the device, carefully read
through the operating instructions!
4 3 2
J2 Pos. 4
4 3 2
J2 Pos. 3+4
J2 J1
4 3 2 1
CH1 VIN
NC1 COM NO1 12-24VAC
12-32VDC
4 3 2
J1 Pos. 1+2
4 3 2
J1 Pos. 1
CARE Function
If the CARE function is active, all calls will be ig-
nored for 15 minutes.
After these 15 minutes, the CARE function is de-
activated automatically, but can also be deacti-
vated manually at any time.
The CARE function is activated or deactivated
with a separate CARE transmitter or on the de-
vice using the button I/O.
activate
(green LED flashes)
Button code B or D of a CARE transmitter
or
CARE button I/O (< 5 s)
deactivate
(green LED lights up)
Button code A or C of a CARE transmitter
or
CARE button I/O < 5 s
While the CARE function is active, the green LED
flashes.
A maximum of eight CARE transmitters can be
programmed. Programming is done using the
programming button Q/S (see page 2).
Setting up the receiver
Ensure that the radio connection is unobstructed.
Avoid installation in a distribution box, in enclo-
sures made of metal, in the immediate vicinity of
large metal objects, on or close to the floor.
1. Loosen the two screws on the back and open
the enclosure.
2. Activate or deactivate the desired functions
1 with the jumpers J1 and J2.
3. Connect the supply voltage and the safety
extra-low voltage consumers to be switched.
The polarity of the supply voltage V
not need to be observed.
1
4. Screw the enclosure back together.
5. Transfer the coding of the transmitters to the
receiver (page 2 'Programming').
Jumper J1
Jumper J2
CH1: NC1, COM, NO1
(change-over contact):
CH2: COM, NO2
(normally open contact)
Power supply: VIN
(12-24V AC / 12-32 V DC)
CH2
NO2
1
1
:
:
does
IN
J2 J1
4 3 2 1
CH1 VIN CH2
NC1 COM NO1 12-24VAC NO2
12-32VDC
