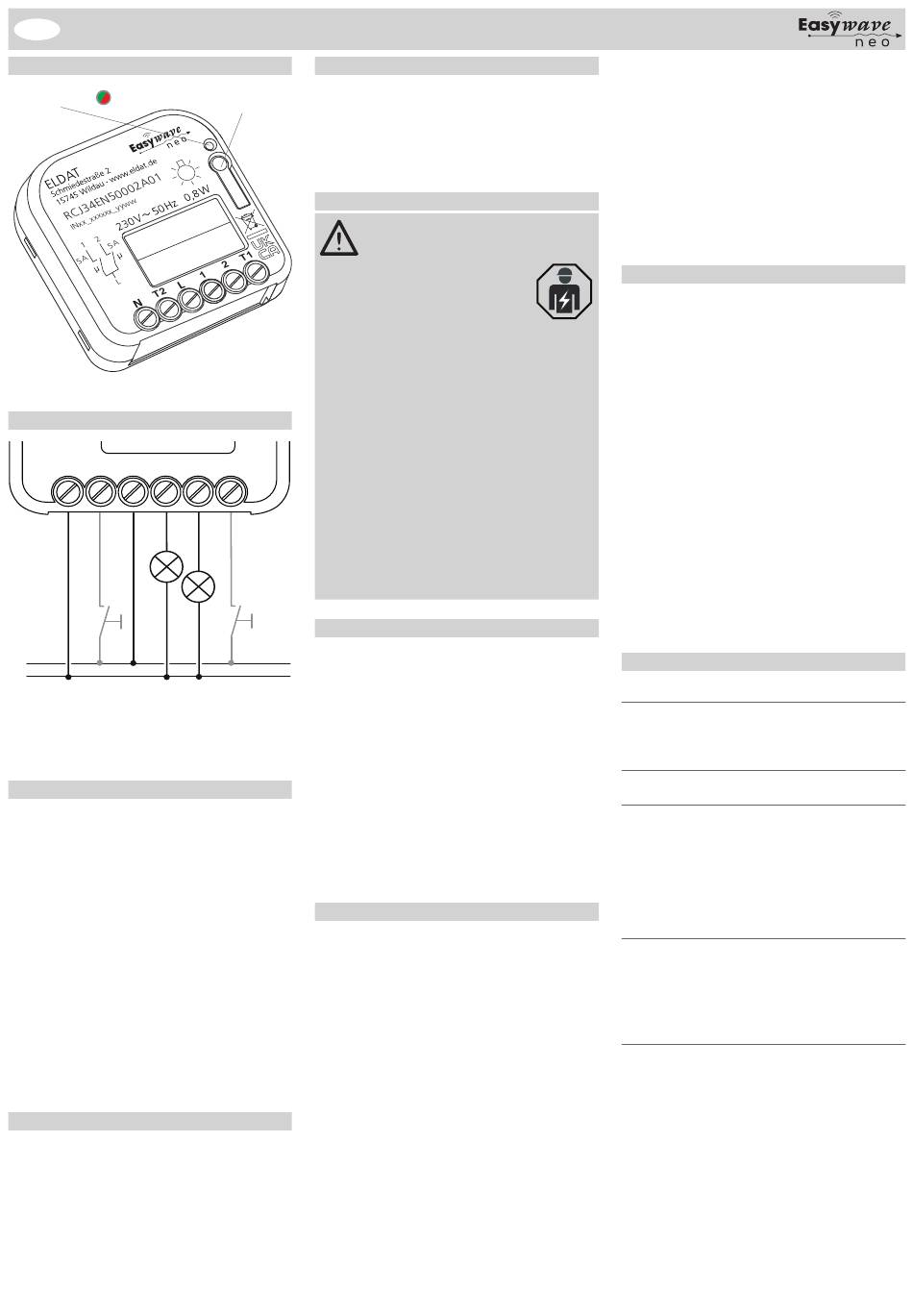

Easy wave RCJ34 Manual

RCJ34 Flush-mounted receiver 2-channel 230 V
EN
Models
LED red | green
1 2
RCJ34EN5002A01
5 5
µ µ
Wiring diagram
L
N T2 L 1
230 V AC
50 Hz
L
N
Wire cross-sections
Only wires with a cable cross-section of 0.5 mm²
to 2.5 mm² shall be connected. The stripping
length of the connecting wires is 6 to 7 mm.
Technical Details
Frequency: 868.30 MHz
Radiated power: 6.38 mW
Modulation: FSK
Coding: Easywave neo,
POTA
Device type: dual switch
Power supply: 230 V AC
Input: 2 external buttons
Output: 2 potential-loaded relay
contacts (normally open)
Power consumption: 0.4 W standby
0.8 W max. w/o load
Maximum contact load
5 A / 1,150 VA
- resistive load
1.5 A /
- inductive load
Operating temperature: -20 °C to +45 °C
Dimensions (H/W/D): 43,0 / 42,0 / 17,5 mm
Weight: approx. 31 g
Scope of delivery
Flush mounted receiver RCJ34,
operating manual
Intended Use
The device may only be used indoors as a radio
Programming
receiver to switch up to two mains voltage devices
Button P
on and off. It is operated using Easywave radio
transmitters or an external button.
The manufacturer will not be liable for damage
caused by improper or inappropriate use.
Safety Advice
Before installing the device, carefully
read through this operating manual! Fai-
ling to observe these instructions may
result in fire or other hazards.
- The electrical installation may only
be performed by an authorised
and qualified electrician.
- The load current circuit on which the device
is operated must be protected by a circuit
breaker switch in accordance with EN60898-
1 (tripping characteristic B or C, max. 10 A
rated current).
- We will not accept any liability for personal in-
jury or damage to property caused by failure
to observe the operating instructions and in
particular the safety advice!
2 T1
- Observe the applicable laws, standards and
regulations as well as the manufacturer's in-
structions for the devices to be operated!
- Have faulty units checked by the manufactu-
rer!
- Do not open the unit housing!
- Do not make any unauthorized alterations or
modifications to the unit!
Function
The RCJ34 flush-mounted receiver is used to
switch two electrical devices ON and OFF by us-
ing a radio transmitter or an external button.
The operating modes ON/OFF and DEAD MAN
are available (see section "Operating modes").
32 Easywave transmission codes can be pro-
grammed into the receiver for each output.
The integrated POTA (Programming Over The
Air) remote programming function can be used to
reprogram an already-installed and no longer ac-
cessible receiver. A detailed POTA programming
manual is available on our website:
https://www.eldat.de/pota_en.pdf
or you can request support from our customer
service.
Push-button inputs T1+T2
The RCJ34 has two push-button inputs T1 and
T2, which have to be connected to L.
When in factory mode, the push-button inputs are
programmed in the ON/OFF 1-button operation
mode, whereby push-button input T1 controls out-
put 1 and push-button input T2 controls output 2.
The external buttons can be programmed in other
345 VA
operating modes or deleted at any time. This is
done in the same way as programming Easywave
transmitters. If an external button is deleted it re-
turns to the ON/OFF 1-button operation mode.
The push-button inputs are handled like a trans-
mitter button with the button code B and should
always be used in 1-button operation.
If a push-button input is programmed in the ON/
OFF 2-button operation mode, it can lock the out-
put. As long as the push-button input is closed,
the switching output remains switched off. Radio
transmitters are ignored during this time.
If the push-button input is programmed in DEAD
MAN operating mode, it switches the output ON
as long as it is closed. However, radio transmit-
ters can switch the output OFF again at any time.
Operation
Briefly press the P button (repeatedly), to begin
programming mode for the required operation
mode and the required output. Any Easywave
transmitter can then be programmed in this op-
eration mode.
A separate operation mode can be assigned to
each transmitter / transmitter button. For local op-
eration, external buttons can be connected.
When in 2-button operation (2-TB), transmitter
buttons A and C switch ON. Transmitter buttons
B and D switch OFF. Only one transmitter button
must be programmed, as the code of the other
button is automatically assigned.
In 1-button operation (1-TB), each function is
triggered with just one transmitter button. Each
button must be programmed individually into the
receiver, there is no automatic assignment.
Timeout
(1)
If no button is pressed within 30 seconds, the
RCJ34 automatically switches to operation mode.
The settings are not saved.
Operating modes
2-button operation
ON/OFF
Transmission code A or C switches ON.
Transmission code B or D switches OFF.
1-button operation
ON/OFF
Each transmitter code A/B/C/D can switch ON
and OFF alternately.
If the transmitter button is pressed for longer than
2 seconds, the output is switched OFF, regardless
of its current state (status of switching is synchro-
nized).
DEAD MAN
The output switches as long as the transmitter
button is pressed, but for a maximum of 36 se-
conds (unlimited, when using external pushbut-
ton).
