Easy wave RCJ02 Quick Start Manual

Junction Box Receiver with Timer RCJ02
GB

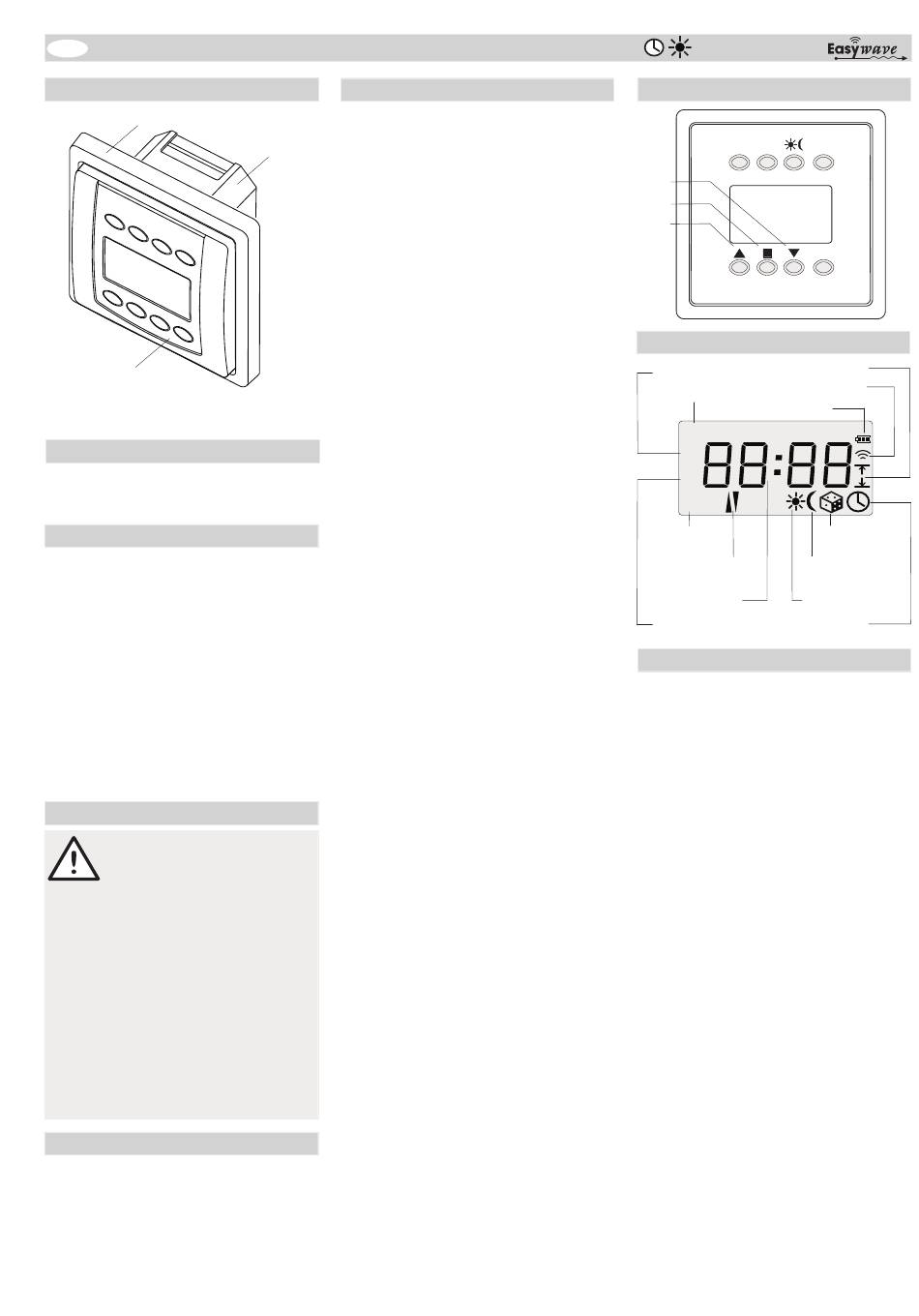

Design
Attachment frame
Timer
RCJ02-5002E-01 2-channel
Scope of Delivery
Junction Box Receiver RCJ02 with Timer,
attachment frame, attachment set, operating
instructions
Technical Details
Frequency: 868,30 MHz
Modulation: FSK
Voltage supply: 230 V AC / 50 Hz
Connection value: 4 VA
Power consumption: 1,3 W
Output: 2 potential relay contacts
(normally open)
Max. contact load:
- resistive load cos =1: 4,0 A / 920 VA
- inductive load cos =0,8: 3,2 A / 736 VA
Protective class: IP 40
Operating temperature: for dry rooms only,
0°C to +50°C
Dimensions:
Safety Advice
Please read this instruction manual
carefully before commissioning the
device!
Attention! Only a qualified electrician may
perform the electric installation!
Observe the valid laws, standards and
regulations as well as the manufacturer's
instructions regarding the devices to be
controlled!
Have malfunctioning devices checked by the
manufacturer!
Do not modify the device!
The relay contact is only designed for single-
phase supply!
Intended Use
The Junction Box Receiver RCJ02 (Easywave
radio control) may only be used to control
shutter or blind motors.
The manufacturer will not be liable for damage
caused by improper or inappropriate use.
Functions
The Junction Box Receiver with Timer allows to
control blinds or shutters depending on the time
Power pack
and/or brightness. Brightness control is only
unit
possible in connection with the Radio Light
Sensor SL01.
In addition, the receiver can also be operated
with hand transmitters and wall transmitters
included in the Easywave product range. The
transmitters must allow the functions UP (A),
STOP (C/D) and DOWN (B), 3-button
operation). The Easywave transmission code
must be memorized by the receiver before-
hand.
The following operating modes are available:
Time-Controlled:
Automatic Operation: Blinds are raised and
lowered either at the programmed switching
868,3 MHz
times or manually.
Automatic Operation with Partial Manual
Operation: The programmed switching times
as well as the Sun Protection/Twilight Mode
functions are deactivated until 24:00 hrs. After
24:00 hrs, the timer switches to Automatic
Mode.
Brightness-Controlled:
(only with Light Sensor SL01)
Solar Protection Mode: If a set brightness
value is exceeded, the blinds lower to a desired
shade position.
Twilight Mode: If a set brightness value is
undercut, the blinds are lowered completely.
Manual Mode: Raising and lowering of shutters
only via pushing the button on the timer or with
additional radio transmitters.
The timer offers the following additional
functions:
Holiday Mode: On holidays, you can activate
the switching times programmed for Sundays
with only one push of a button.
Switching from Normal to Daylight Savings
Time: You can switch the timer from normal to
daylight savings time with just one push of a
button.
Vacation Mode: Shutters are raised or lowered
with a time delay (at most 15 minutes) to the
programmed switching times in automatic
mode.
The following settings are available in
automatic mode and holiday mode:
- Day Function: Switching period 24 hours
or Week Function: Switching period one week
- Individual Switching Times: Different
switching times can be programmed for
each weekday or groups of weekdays.
- Intermediate Position: Lowering of
shutters to a desired shade position.
User Interface
ESC MODE
PROG ADJ
DOWN
STOP
UP
OK CLOCK
Display Overview
Move to intermediate position
Hour
(C2.2, C4.1)
format (
B1)
Radio symbol
Wochentage
Battery capacity (E)
(
B1)
MO TU WE TH FR SA SU
AM
PM
W
S
AUTO
MANU
Operating
Mode (C5)
Direction of motion Twilight Mode
(C3)
(C2.2, C4.1)
Time/radio channel Solar Protection
mode (C2)
/numerical value
Normal /daylight savings Current time
time (D2)
setting (B1)
Operating the Receiver with Timer
The following settings have to be made to put
the receiver into operation and for later
modifications:
A Mounting the Receiver
. . . . . . . . . . . . . . . .
B Basic Settings
. . . . . . . . . . . . . . . . . . . . . . . .
B1 Setting the Time/Weekday . . . . . . . . . . . .
B2 Measuring and Saving the Runtimes . . . .
B3 Putting the Light Sensor into Operation . .
C Operating Shutters/Blinds
C1 Factory Settings
. . . . . . . . . . . . . . . . .
C2 Solar Protection Mode
C2.1 Setting the Brightness Value . . . . . . . . . .
C2.2 Setting the Intermediate Position . . . . . . .
C2.3 Activating Solar Protection Mode . . . . . . .
C3 Twilight Mode
. . . . . . . . . . . . . . . . . . .
C3.1 Setting the Twilight Value . . . . . . . . . . . .
C3.2 Activating Twilight Mode . . . . . . . . . . . . . .
C4 Automatic Mode
. . . . . . . . . . . . . . . . .
C4.1 Programming new Switching Times
and Intermediate Positions . . . . . . . . . . .
C4.2 Deleting Switching Times . . . . . . . . . . . .
C4.3 Changing Switching Times/
Intermediate Position . . . . . . . . . . . . . . . .
C5 Changing the Operating Mode
C6 Manual Mode
. . . . . . . . . . . . . . . . . . . .
C6.1 Programming the Transmission Codes . .
C6.2 Deleting Individual Transmission Codes .
C6.3 Deleting all Transmission Codes . . . . . . .
D Additional Functions
. . . . . . . . . . . . . . . . .
D1 Activating the Holiday Function . . . . . . . .
D2 Switching Between Normal Time
and Daylight Savings Time . . . . . . . . . . .
D3 Vacation Mode
D4 Deletion of all Data (Reset). . . . . . . . . . . .
E Battery Control Display . . . . . . . . . . . . . 7
F Troubleshooting . . . . . . . . . . . . . . . . . . . 7
G General Information . . . . . . . . . . . . . . . . 7
S/W
DEL
HOLI
Holiday
Mode (D3)
Page
2
2
2
2
2
3
. . . . . . . . . . . .
3
3
. . . . . . . . . . .
3
3
4
4
4
4
5
5
5
5
6
. . .
6
6
6
6
7
7
7
7
