Model
7461 Axion
NOTE TO INSTALLER: please leave this information with the maintenance department.

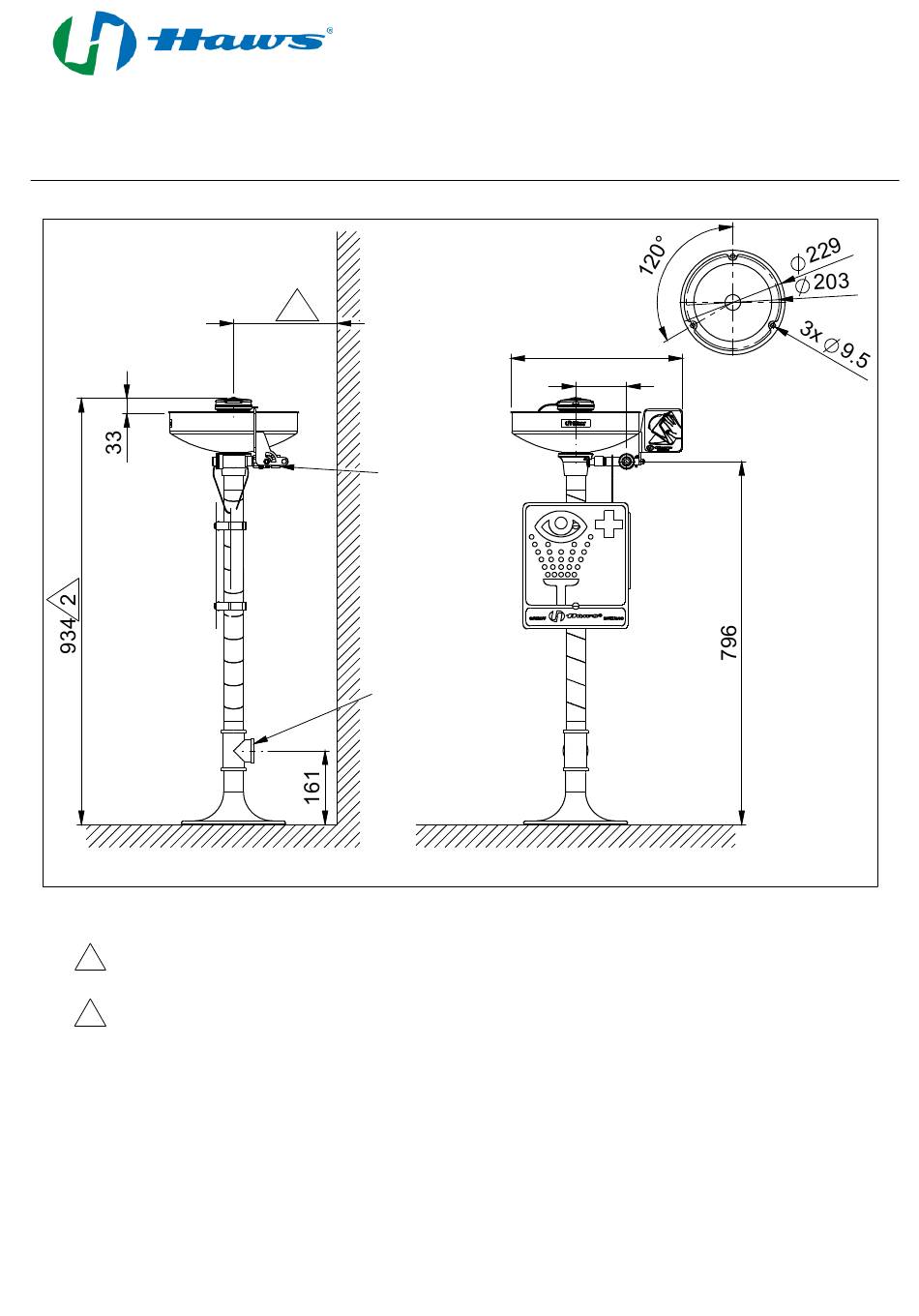

THESE DIMENSIONS MAY VARY +/- 12,7mm (1/2")
MASSSTAB 1:10
Legally-stipulated dimensions:
Ensure that there is a minimum clearance of 150mm (6") with respect to the nearest
1
wall or obstacle.
Height above floor level: 800mm - 1200mm (2' 7 1/2" - 3' 11 1/4").
2
Free access to the eywash station 7461 Axion must be guaranteed all times. The operator
is responsible for the observance of this requirement.
Jeannine Ruf
HAWS DRINKING FAUCET COMPANY
INSTALLATION, OPERATION & MAINTENANCE INSRUCTIONS
Pedestal Eye Wash
227 1
1/2" G
Supply
11/4" G
Waste
7461 Axion
377
112
Floor Flange Detail
No.
2080056/5
1/4
11.10.2011
