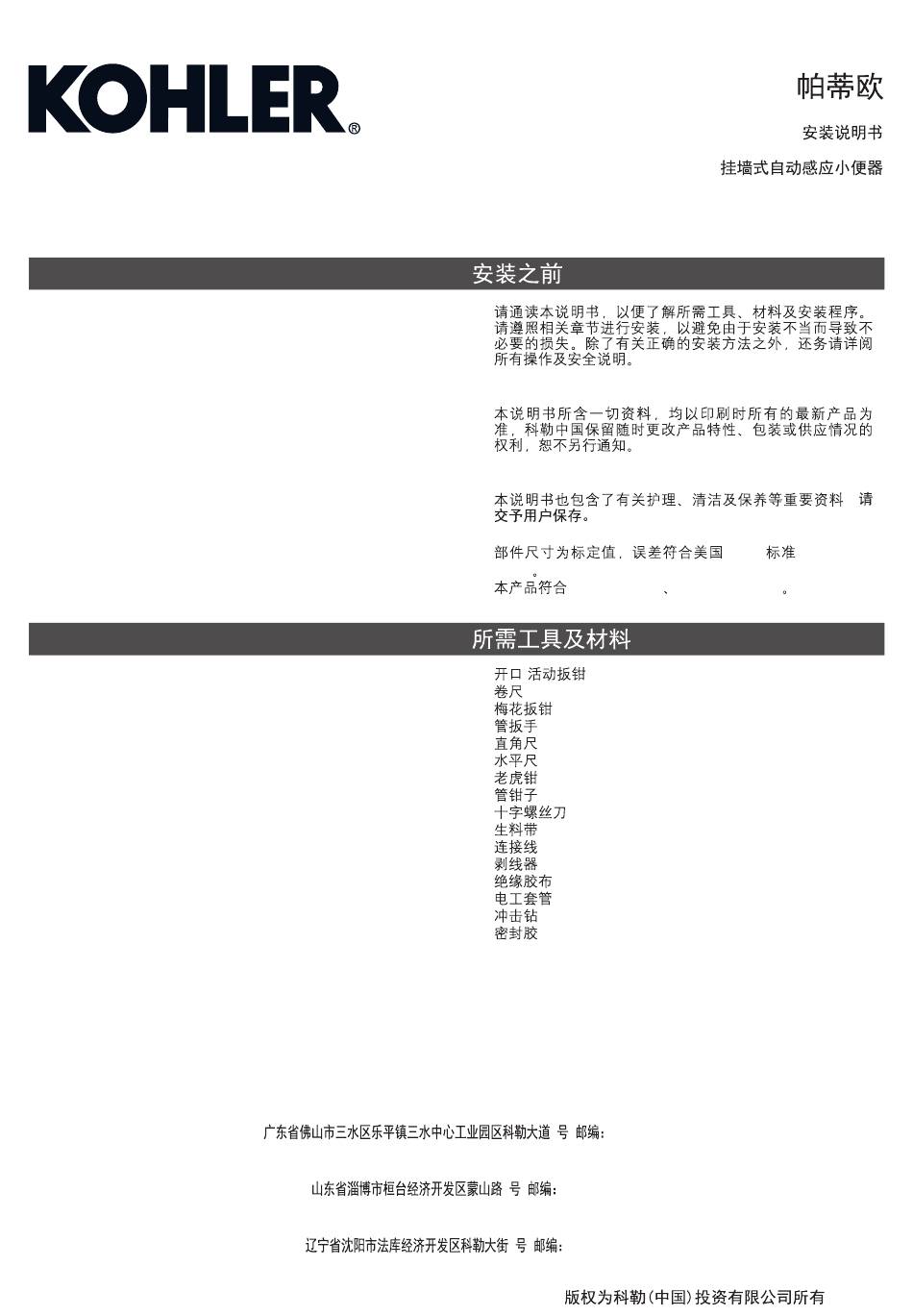

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
consumer
.
·
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2018).
·
The product complies with GB 6952-2015, GB 28377-
2019.
RECOMMENDED TOOLS AND MATERIALS
RECOMMENDED TOOLS AND MATERIALS
·
Open end/adjustable wrenches
·
Tape measure
·
Basin wrench
·
Pipe wrench
·
Square
·
Level
·
Pliers
·
Socket wrench with sockets
·
Screw driver
·
Seal tape
·
Connection wire
·
Wire cutter
·
Insulation tape
·
Bushing
·
Drill
·
Sealant
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA
NO.1 KOHLER STREET, ECONOMIC DEVELOPMENT ZONE OF FAKU COUNTY, SHENYANG LIAONING PROVINCE, PRC
1070157-T2-B
please leave instructions for the
TOUCHLESS WALL HUNG URINAL
·
·
·
·
2018)
·
GB 6952-2015 GB 28377-2019
·
/
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
2
528137
8
256410
1
110400
©
Copyright Kohler China Investment Co., Ltd. 2023
-1-
©
PATIO
INSTALLATION INSTRUCTIONS
K-16321T-2(2.5L)
K-16321T-2W(1L)
K-16321T-2Y(0.5L)
ASME
(A112.19.2-
POST CODE:
256410
POST CODE:
-
:
110400
2023
Advertisement
Table of Contents
Related Manuals for Kohler PATIO K-16321T-2
Summary of Contents for Kohler PATIO K-16321T-2
- Page 1 · · Drill · · Sealant No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137 528137 8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410 256410 NO.1 KOHLER STREET, ECONOMIC DEVELOPMENT ZONE OF FAKU COUNTY, SHENYANG LIAONING PROVINCE, PRC...
-
Page 2: Sensor Specifications
Reference Value Unit: mm G1/2 180 5 50 ext Kohler reserves the right to change marked dimensions without prior notice. Notice: a. The dimensions above are just for reference. b. The layout dimensions of water inlet and outlet see installation step B(Install the hook). -
Page 3: Installation
Use DC or AC power unit as desired (not supplied). Refer to the installation instructions below. Use the Kohler specified AC or DC power supply. Any product damage or loss caused by the use of non-specified power supply shall be borne by the user. - Page 4 Notice: a. Keep the connector away from water. b. Do not connect the DC output of AC power unit to AC power supply. c. Do not connect to power supply while installing. Connection line is not supplied. 0.5mm AC connection wire with insulating sleeving 0.3mm is recommended.
- Page 5 B. Install hook Drill 2 mounting holes on the wall and install hook. Fix hook on the wall by tightening screws. Supply Pipe (600~700) C. Install the inlet hose of valve assy. Take out the bracket of valve assy. Install the limited board (1). Tighten the tighten screw (2).The inserting depth postion is shown as (3).
- Page 6 D. Install urinal Lift up the urinal, level the installing hole on the back of the urinal with the hook. Level the outlet connection which is installed together with the strainer and the gasket on the S- trap way. Then insert the outlet connection into the gasket. (While the outlet connection is inserted, the S-trap way can be crutched by hard exterded via the gap in the bottom of the urinal to install it decently.) Then fix the urinal on the hook.
- Page 7 Press the two sides spring hooks of bracket of valve assy close to the center(1). Press the bracket up along the wall and push it into arc gap of the urinal base(2) until the spring hooks hangs on the urinal. Note: Please carefully handle the stainless steel plate for its sharp edge will cause possible handcut.
- Page 8 USER S GUIDE Don t use this system until the power is on for 10 minutes. The sensing distance will be adjusted and the system will not work during this time. Working Status Before powering the system on, chear the unwanted objects in front of the sensor window lest shortening the sensing distance.
-
Page 9: Maintenance
Manual Flushing Approach the supplied special magnetic stick (flushing control stick) to the sensor lens. The system is now at a manual status and the indicator will flash every 1 seconds. Approach the flushing control stick to the sensor lens once, it'll flush once. This status will last for about 8 minutes until turns to the normal working status. -
Page 10: Troubleshooting
Care & Clean Keep the sensing window clean. Wipe with soft cloth and mild cleaner. Notice: a. Do not use dust-removing powder, abrasive powder or cleaner containing oil, acid or alkaline ingredient. b. Do not spray air-refresher, disinfector, or other deodorizing, cleaning solvent directly into the sensing window. -
Page 11: Important Consumer Information
IMPORTANT CONSUMER INFORMATION Consumer Responsibilities 1. Do not attack the sensor. 2. Do not directly flush the sensor with water. The sensor is an electronic instrument. 3. Do not let sunlight or other light source enter or be reflected into Sensor Window. 4. - Page 12 * Indicate only partial product series contains this substance. Note: the information provided is based on the supplier data and Kohler inspection results. The product is designed not to hurt the environment. Under current technology, all hazardous materials have been used in the smallest amounts possible. Kohler will strive to reduce the use of these hazardous materials used in this product.
