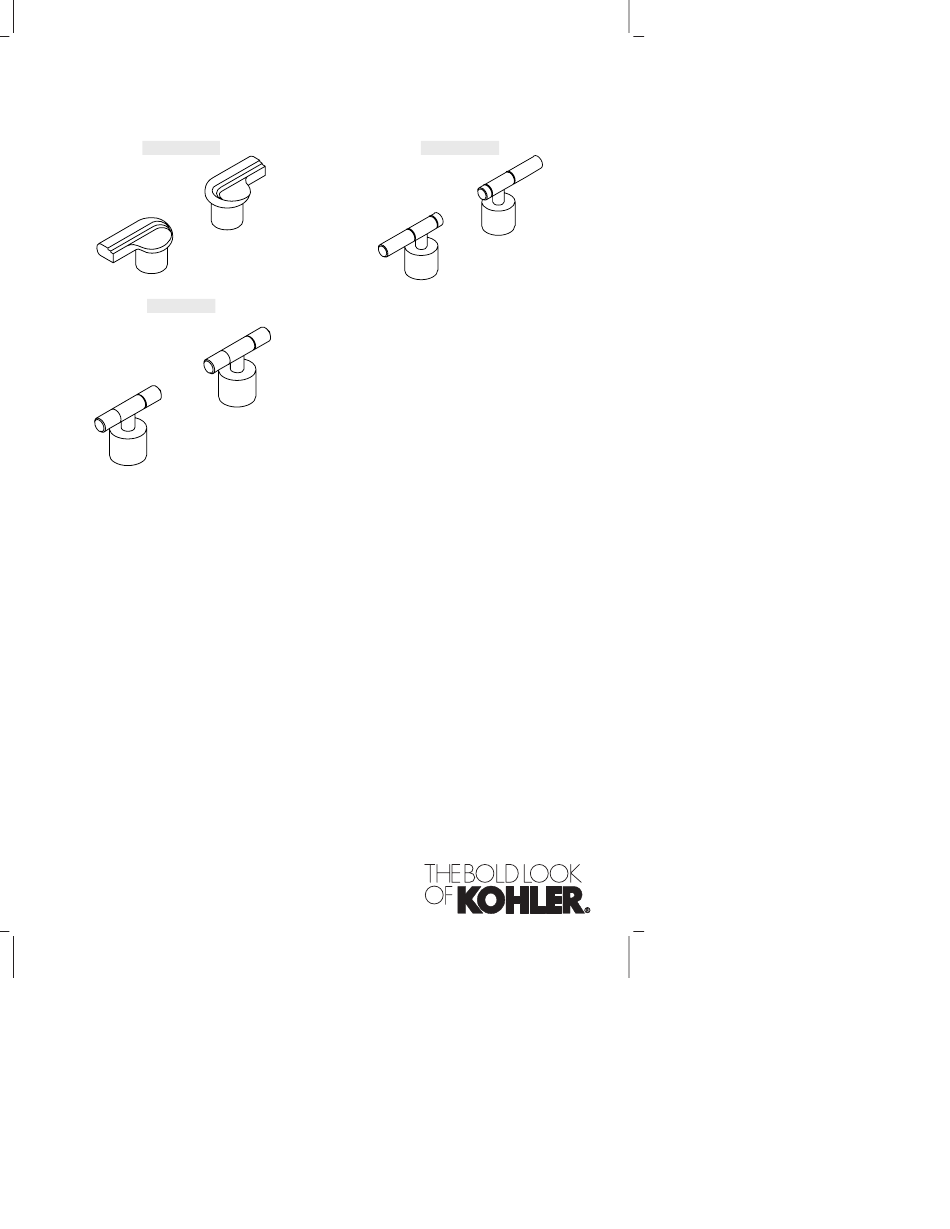

Installation Guide
Bath/Deck Mount Faucet
K–16070-4A
K–16070-4C
K–16070-4
M product numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
M corresponden a México (Ej.
K-12345M)
Français, page" Français-1"
Español, página" Español-1"
112979-2-DB
Advertisement
Related Manuals for Kohler K-16070-4C
Summary of Contents for Kohler K-16070-4C
- Page 1 Installation Guide Bath/Deck Mount Faucet K–16070-4A K–16070-4C K–16070-4 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page“ Français-1” Español, página“ Español-1” 112979-2-DB...
-
Page 2: Tools And Materials
Before You Begin Please read all instructions before you begin. Observe all local plumbing and building codes. Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book. 112979-2-DB Kohler Co. -
Page 3: Install The Handles
Slip a color ring over the endpiece threads and onto the shoulder of each endpiece. NOTE: Use soapy water to lubricate the O-rings. Slip the O-rings over the endpiece threads and onto the shoulder of each endpiece. Kohler Co. 112979-2-DB... - Page 4 Install the Handles (cont.) Screw the endpieces into each centerpiece until tight. 112979-2-DB Kohler Co.
- Page 5 Thread a long screw through the endpiece until it is tight using a 5/64″ hex wrench. Press the plug button into the endpiece of each T-handle. Install a vandal-resistant aerator into the spout using Kohler Wrench #78868. Kohler Co. 112979-2-DB...
- Page 6 Fasten a handle adapter to each valve stem using a screw. Set the handles on the handle adapters and thread a bonnet up onto the handle threads until tight. 112979-2-DB Kohler Co.
