Summary of Contents for AVM EVOLUTION C5 mk2

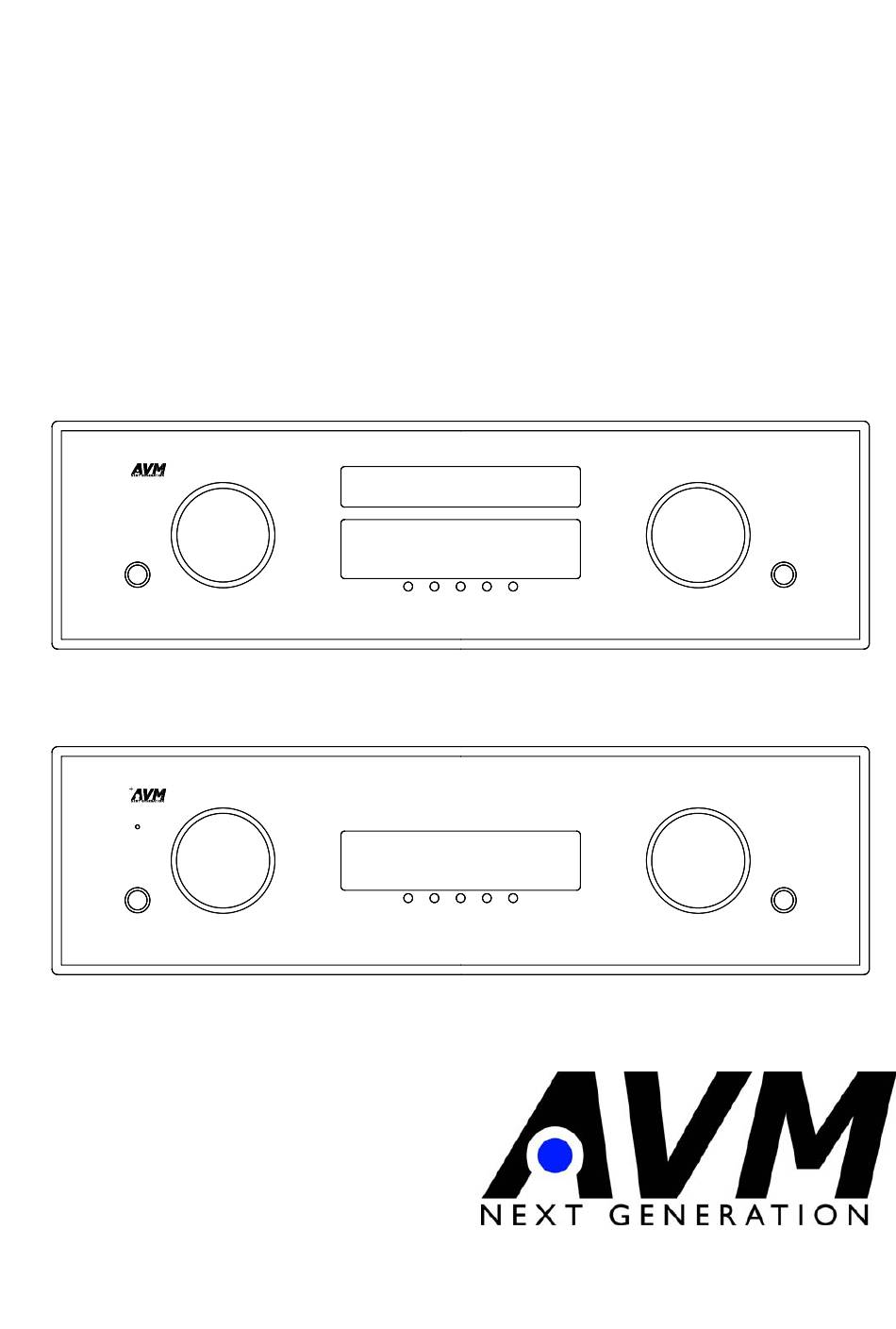

- Page 1 operating instructions EVOLUTION C5 / R5 mk2 PROGRAM VOLUME POWER MUTE EVOLUTION C5 PROGRAM VOLUME POWER MUTE EVOLUTION R5...
-
Page 2: Dear Customer
Dear customer, thank You for purchasing this AVM product. You own now a versatile, excellent sounding hifi component. Before enjoying music, please read this manual carefully. After that You will know how to use Your new AVM component in the optimal way. -
Page 3: Table Of Contents
Table of contents page page Preamble Table of contents 4. Menu system 1. Basic information 4.1 Playmode 1.1 Mechanical construction 4.2 Repeat 1.2 Power supply 4.3 Random 1.3 Preamplifier 4.4 Tuner mode DAB / FM 1.4 Power amplifier 4.5 RDS-Display 1.5 CD-player, D/A-converter 4.6 Scanmode 1.5.1 Quantization noise... -
Page 4: Basic Information
1. Basic information about the C5 / R5 1.1 Mechanical construction The case is made of magnetic shielding steel and aluminum. The audio-connectors are all gold plated to minimize electrical losses and provide long lasting perfect contacts. 1.2 Power supply A switch mode power supply delivers clean, hum-free electrical energy for the digital and analogue sections of D/A-converter and the preamplifier. -
Page 5: Cd-Player, D/A-Converter
Thus if the upsampling converter has a stable jitter free clock the upsampled signal contains less jitter than the original digital signal. The musical advantages of re-clocking are the second reason why the AVM EVOLUTION C5 is equipped with a brand-new upsampling circuitry and an additional stable oscillator circuit. -
Page 6: Filtering
1.5.3 Filtering If a digital signal is converted to analogue the analogue signal contains not only the original signal, but as well it’s mirror image which lies in the frequency domain beyond one half of the sampling frequency. This mirror image (aliasing) can cause unwanted interference with the original signal and thus must be filtered out before passing the signal to the amplifier. -
Page 7: Overview
2. EVOLUTION C5/R5 overview The numbers in the drawings below mark the control elements. They refer to the numbers in the text, where the operation of the unit is described. Front panel PROGRAM VOLUME POWER MUTE EVOLUTION C5 Power button (on / off) Multifunctional button (soft key) Control LED CD-Loader (C5 only) -
Page 8: Installation And Cooling
2.1 Installation and cooling The EVOLUTION C5/R5 can become hot depending on demanded output power and environmental temperature. Therefore it is important, that the cooling air can flow unhinderedly into the air inlet in the bottom and flow out through the holes in the rear panel. Direct exposure to sunlight is not recommended because this will heat up the unit. -
Page 9: Basic Operation
3. Basic operation In case the C6m was not connected to mains a self test will be performed when it is switched on by mains switch (30) for the first time. The unit checks it’s configuration and if all installed components work properly. If a DAB-Tuner is installed, the unit will scan the DAB band in order to indentify the available DAB stations. -
Page 10: Tuner
3.5 Tuner (if built in) The basic functions of the tuner can be accessed by the buttons right under the display (4 – 8). For more sophisticated functions see chapter 4. 3.5.1 Tuning FM: Depending on the selected mode (manual / auto) the most right buttons (7, 8) under the display (3) are named MAN . -
Page 11: Cd-Player
3.6 CD player (C5 only) The basic functions uf the CD player can be accessed by the buttons right under the display (4 – 8). For more sophisticated functions see chapter 4.1 to 4.3 3.6.1 Open / close To open the tray press the most right button (8) under the display (3). Closing is done by pressing this button again or slightly pushing the tray (9). -
Page 12: Menu System
4. Menu system The inspiration C6m offers a lot of custom specific settings in it's menu system. To enter the menu just tip on the button MENU (6). The button now changes to EXIT. A second tip on this button leads You to the normal operating mode. -
Page 13: Subboost
4.13 SubBoost If You use small speakers You can switch bass boost "on" to enhance the reproduction of low frequency range. Subsonic frequencies will be suppressed in order not to damage the speakers. 4.14 Loudness If You listen to music at low levels, You often recognize that bass and treble reproduction are weak. This is because the human ear is not sensitive to bass and treble at low sound levels. -
Page 14: Remote Control
5. Remote control The main functions of the C5/R5 can be controlled by the RC3: ON/OFF, Volume control, source select, Station select (only for stations stored in memory, see 3.5.2 Station memory), PLAY/PAUSE, STOP, SKIP. The RC3 works up to distances of 7 meters. For best function point with the RC3 to the front panel of your hi- fi set. -
Page 15: Cleaning
6. Cleaning Use a soft cloth and normal glass cleansing fluid. CAUTION: Make sure that no fluid comes into the unit. Do not use scouring cleaners. They may damage the surface. 7. If something doesn’t work..Some putative defects are often caused by mistakes in operation. Sometimes other units connected to the amplifier can cause problems. -
Page 16: Technical Data
8. Technical data EVOLUTION C5 / R5 Amplifier Sensitivity (25 W/4 Ohm) 0,033 – 0,56 V (adjustable) Input impedance 10 kOhms 96 dB (A) Frequency response < 5 Hz - > 50 kHz THD (25 W/4 Ohm) < 0,1% Damping factor >100 Output power 220 W (8 Ohms) / 400 W (4 Ohms) -
Page 17: Appendix
9 Appendix 9.1 Expert setup Several settings can be done in the expert setup. After having done that you can block these settings in the normal menu. This simplifies the operation of the c6m for the enduser. To access the expert setup switch the unit to standby (power button (1)). Then press and hold the most right key under the display (8).
