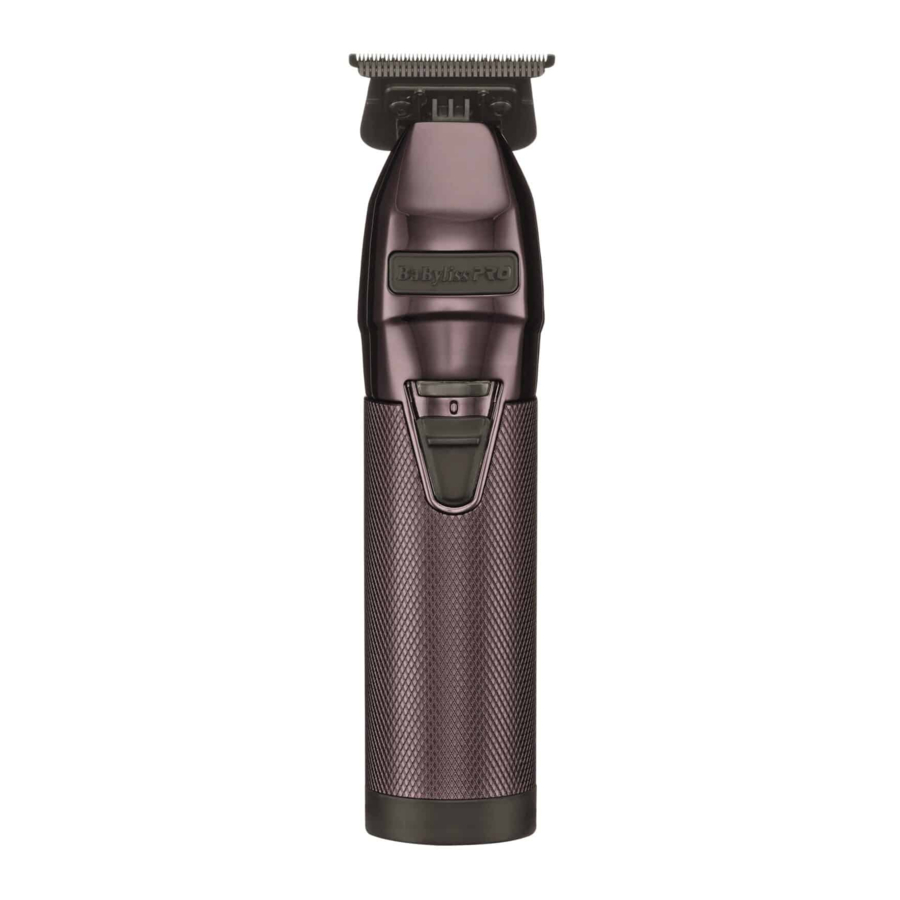

BaBylissPro FX787 Series Manual

OPERATING INSTRUCTIONS

Before using the trimmer for the frst time, charge continuously for 3 hours. Maximum battery capacity will only be reached after 3 charging and discharging cycles.
Make sure the switch on the trimmer is in the "0" position.
Apply a drop of the provided lubricating oil across the blades; wipe off any excess oil with a dry cloth.
Connect the charging jack into the receptac le on the bottom of the trimmer. Plug the adapter into any electrical outlet (at the voltage listed on the label affixed to the adapter). The charging indicator will light up to indicate that the charging has begun. Charging is complete after 3 hours. User will see LED light has stopped blinking and is now steady lit.
The ada pter may become warm while charging. This is normal.
Preser ving the batteries: In order to maintain the optimum capacity of the rechargeable batteries, the trimmer should be recharged for 3 hours approximately every 6 months.
Slide the switch to "I" position.
Make sure the switch is in the "0" position when the trimmer is not operating.
Remove hair trimmings and debris from the blades using the provided c leaning brush. Wipe the housing clean with a dry cloth.
A pply a few drops of lubricating oil to the blades, and wipe off any excess oil with a dry cloth. This last procedure is important for the proper maintenance of the blades.
If the charging light starts to flash ra pidly (more than 4 flashes per second) then the appliance is faulty. If this happens then please stop charging and remove the adapter from the mains and contact an authorized Service Center.

FOR DIRECT PLUG-IN OPERATION
Make sure trimmer is off. Connect charging jack into the receptacle at the end of trimmer and plug the adapter into power outlet.

ON/OFF SWITCH
To operate, simply slide switch to "I" position. To stop operation, set to the "0" position.

Blades must be cleaned and oiled on a regular basis for proper functioning. Failure to regularly clean and oil the blades will void the warranty.

REPLACING (REMOVING) BLADE SET
To remove the blade set, turn the trimmer to the OFF position and unplug it from the electrical outlet. Turn the trimmer upside down so that the teeth of the trimmer are facing down. Place the trimmer on a fat surface and using the screwdriver, loosen the fastening screws from the blade set. Remove the blade set from the trimmer (see Fig. 1).
REPLACING (REMOVING) BLADE SET - Step 1
To install or replace your trimmer blade set, reverse the procedure, aligning the blade cushion shaft into the moving blade cushion (see Fig. 2). With the blade held in place, replace blade screws and tighten loosely. Turn the trimmer over and align the blade set parallel to the trimmer's upper housing.
REPLACING (REMOVING) BLADE SET - Step 2

BLADE CARE
Because the trimmer blades are precision-made for a very special use, they should always be handled with care and cleaned regularly to ensure maximum performance. Each time you finish using the trimmer, take the cleaning brush provided and brush away any loose hair that has collected in the blades. Use a clean cloth to dry the attachment, reattach and then store the trimmer to protect the blades until the next use. Any other servicing should be performed by an authorized service representative, since the appliance has no other user-serviceable parts. This product is for commercial use.

DO NOT RINSE BLADE OR TRIMMER HANDLE OR ADAPTER.
ZERO GAP ADJUSTMENT TOOL

Only ever attempt to zero gap the blades using the adjustment tool, following the instructions very precisely.
The adjustment tool is required to adjust the blades to zero gap, to achieve a closer, more precise cut.

Using the screwdriver included, gently loosen the two small screws on each side of the blade.
Slide the zero gap tool over the gold fxed blade until it is tight against the back portion of the moving cutting blade.
Using your fngers on each side of the zero gap tool, push up until the black cutting blade is even with "or" slightly below the gold fxed blade.

Be sure that the blades are aligned properly. The teeth of the smaller blade (cutter) should rest slightly below the upper edge of the larger blade (comb) approximately 1/64" to 1/32" apart (see Fig. 3). If the blades are not correctly aligned, they may cut or scratch your skin when trimming. Once the blades have been aligned, tighten the screws frmly.

MAKE SURE THE MOVING CUTTING BLADE DOES NOT EXTEND PAST THE FIXED GOLD BLADE.

IF THE CUTTING BLADE EXTENDS PAST THE FIXED BLADE YOU CAN POTENTIALLY CUT A CLIENT.

Once the blade is adjusted to zero gap or your liking, gently tighten the two screws on each side of the blade while holding the zero gap tool in place. If the blade is not adjusted to satisfaction after testing, repeat the adjusting process.

PRODUCT FEATURES

Zero Gap T-Blade
Brushless Motor - 7200 rpm
Power adapter
Model No.: C045100-A
Input: 100-240V ~ 50/60Hz 0.2A
Output: 4.5V DC 1000mA
LED charge indicator light
1. LED BLUE Blinking - Charging
2. LED BLUE - Fully Charged
3. LED BLUE Flashing - 10 minutes battery left
Discharge time: 120 minutes

Before using the Class 2 Power supply, read these instructions carefully. This trimmer should only be used with the supplied adapter. Use only with adapter Model No.: C045100-A which is provided.
Rated input voltage: 100-240V ~, 50/60Hz 0.2A
Rated Output: 4.5V DC 1000mA

OPERATION

For dry location use only. Do not expose to water.
When not in use, unplug unit completely.
Unit will become warm during operation.

Dry location use only. Do not expose to liquids, vapor, or rain.
Ensure jack is plugged into the trimmer unit before plugging the adapter into theoutlet.
Do not operate any appliance that has a damaged output cord or housing.
Always unplug the unit before cleaning or when not in use.
Be sure voltage is correct before plugging in. For connection to supply not in the U.S.A. use an attachment plug adapter of the proper confguration for power outlet. The included adapter automatically adjusts to the input voltage. DO NOT USE A VOLTAGE CONVERTER.

TRIMMER CHARGING PRECAUTIONS

Avoid charging the batteries at temperatures below 41°F (5°C) or above 95°F (35°C).
Avoid charging the batteries in direct sunlight or near a radiating heat source.
Even though the trimmer may not be used for an extended period, charge once a month to preserve battery life.
The power cord cannot be replaced. If it is damaged, the AC adapter should be discarded.

TRIMMER OPERATING PRECAUTIONS

This trimmer has a built-in rechargeable battery. Do not throw into fre, apply heat, or charge, use, or leave in a high-temperature environment.

IF YOU THINK THE
POWER IS OFF WHEN THE SWITCH IS OFF, YOU'RE WRONG.

Everyone knows that electricity and water are a dangerous combination. But did you know that an electrical appliance is still electrically live even if the switch is off? If the plug is in, the power is on. So when you are not using the appliances, keep them unplugged.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, especially when children are present, basic safety precautions are required to always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING
KEEP AWAY FROM WATER

Any appliance is electrically live, even when the switch is off.
To reduce the risk of death or injury by electric shock:

Except when charging, always unplug this appliance from the electrical outlet immediately after using.
Do not place or store appliance where it is able to fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
Do not use appliance while bathing or in a shower.
Do not reach for an appliance that has fallen into water. Unplug immediately from receptacle.
Unplug this appliance before cleaning.

To reduce the risk of burns, electric shock, fire, or injury to persons:

Never leave a plugged-in appliance unattended.
Close supervision is required when this appliance is used by, on, or near children, or persons with limited physical, sensory, or mental capabilities or invalids.
Use this appliance only for its intended use as described in this manual. Do not use attachments not specified by the manufacturer. Do not use an extension cord to operate the appliance.
Never operate this appliance when it has a damaged cord or plug, when it is not working properly, after it has been dropped or damaged, or after it has been dropped into water. Return the appliance to a BaBylissPRO Service Center for examination and repair.

Keep the appliance cord away from heated surfaces.
Do not pull, twist or wrap the cord around the appliance.
Never drop or insert any object into any opening on the appliance.
Do not place the appliance on any surface while it is operating.
Do not use this appliance with a damaged or broken comb or with teeth missing from the blades, as it has the potential to result in facial injury. Before each use, make certain the blades are aligned properly and oiled.
Do not use the appliance outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
Do not crush, or heat above 212°F (100°C) or incinerate the appliance, due to risk of fire, explosion or burns.
Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to "0" position then remove plug from outlet.
Keep lubricating oil away from children and pets.
Never operate this appliance with the air openings blocked or while on a soft surface, such as a bed or couch, where it is possible for the air openings to be blocked. Keep the air openings free of lint, hair, and similar objects.

SAVE THESE INSTRUCTIONS
