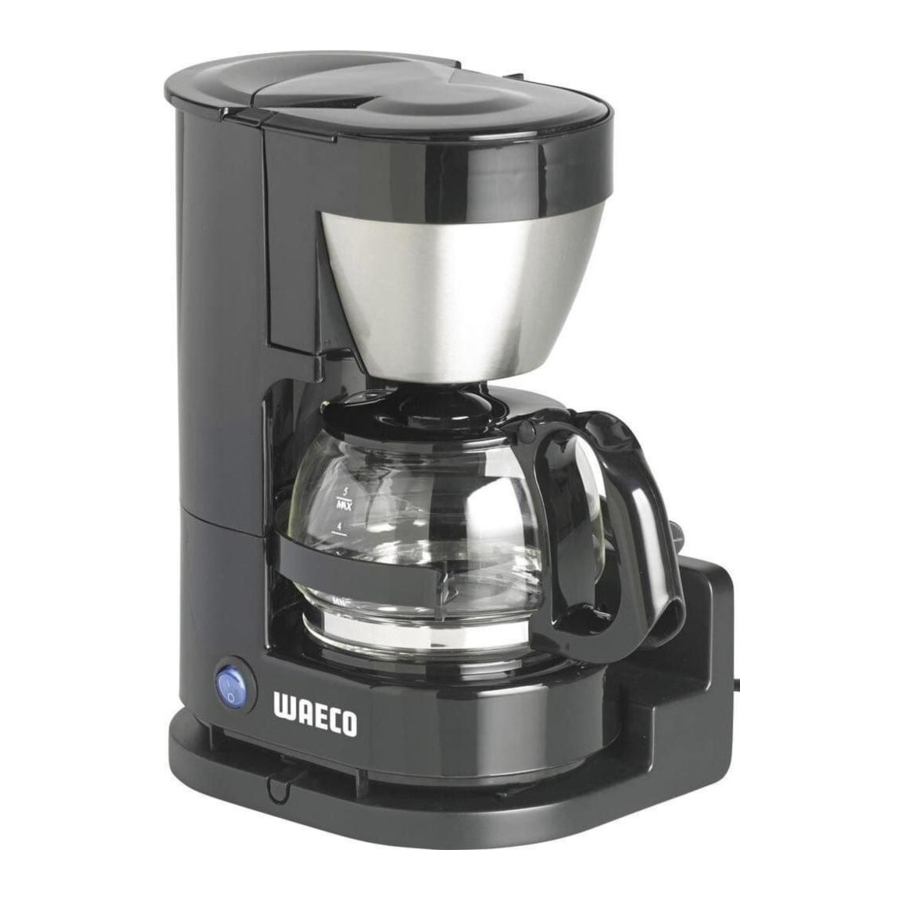

Dometic MC052, MC054 Manual

Introduction

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit dometic.com.

Scope of delivery

Intended use

The coffee maker MC052 and MC054 is intended for use in vehicles and boats.
The coffee maker MC052 and MC054 brews coffee or tea for up to five cups (each 125 ml).
This product is only suitable for the intended purpose and application in accordance with these instructions.
This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

Technical description

The coffee maker MC052 and MC054 is connected to a 12 Vvoltage source (MC052) or a 24 V voltage source (MC054), e.g. to the on-board supply.
The voltage source used must be protected with a 20 A fuse. For more details on the fuse check the vehicle documentation.
The permanent filter is made of plastic and can be removed for cleaning. The coffee pot is made of glass.
A drip protection mechanism prevents water flowing out of the filter when the coffee pot is removed from the appliance before brewing is complete.
The fastening is suitable for use while driving.

Control elements

Installing the coffee maker

Risk of injury Ensure that the appliance is firmly seated. Set up and fasten the appliance in such a way that it cannot tip over or fall down. Make sure the airbag function is not impaired. Do not attach the appliance in an area where passengers could knock their heads against it.

NOTICE! Damage hazard Only install the appliance on surfaces which are heat-resistant and damp-proof. Make sure there is sufficient space for the drill head to emerge when drilling.

Setting up the coffee maker
Install the coffee maker on a wall (fig. 3) or a work surface (fig. 4).

1. Install the mounting bracket using the four screws supplied
   • to a suitable wall or
   • to a work surface.
2. Push the coffee maker onto the mounting bracket.
   The coffee maker must lock into place on the mounting bracket.

Connecting the coffee maker

• Connect the DC plug to a DC socket.

Operating the coffee maker

NOTICE! Damage hazard Secure the coffee pot with the clip when using it to ensure that the pot cannot tip over. Observe the charge level of the battery when operating the appliance in vehicles with the engine turned off. Wipe up any spilt liquid. Damage to the electronics may be caused by moisture entering the appliance.

Before first use

1. Allow one to two pots of clear, cold water to boil and flow through without the filter or coffee.
2. Pour the water away.
3. Clean the coffee pot in hot dishwater.

Brewing coffee

NOTICE! Damage hazard Do not switch the coffee maker on when it is empty. Do not fill the water tank above the maximum fill line. Do not remove the pot from the appliance for more than 30 seconds during the brewing process, as otherwise the filter may overflow. Never use the permanent filter together with a paper filter, as otherwise the filter may overflow.

NOTE The brewing time for five cups of coffee totals approx. 25 minutes for the MC052 (12 V) and approx. 20 minutes for the MC054 (24 V).

Proceed as follows (fig. 5):

1. Fill the water tank with clear, cold water (A).
2. Close the lid.
3. Place a commercially-available paper filter (size 2) or the permanent filter into the filter holder (B).
4. Place the required amount of coffee for the number of cups to be brewed in the filter (C).
5. Press the On/Off switch (D) to start the brewing process.
   ✔ The LED turns on.
6. After the brewing process, press the On/Off switch (D) to switch off the coffee maker.
   ✔ The LED turns off.

Cleaning and maintenance

Electrocution hazard Before you clean the appliance, disconnect it from the power supply.

NOTICE! Damage hazard Never clean the appliance under running water or in dishwater. Do not use abrasive cleaning agents or hard objects for cleaning.

• Rinse out the permanent filter under a tap after use.
• Clean the coffee pot in hot dishwater after every brewing process.
• Descale the appliance at regular intervals (around four times a year). This extends the service life of the appliance and ensures coffee is prepared optimally for the long term.
  Use a commercially available decalcifier for descaling according to the manufacturer's specifications.

Technical data

	Perfect Coffee MC052	Perfect Coffee MC054
Ref. no.:	9600000340	9600000341
Capacity:	5 cups of 125 ml
Voltage:	12 V	24 V
Power consumption:	170 W	300 W
Brewing time (5 cups):	approx. 25 min	approx. 15 min
Dimensions (W x H x D):	240 x 270 x 155 mm
Weight:	1080 g
Approvals:
