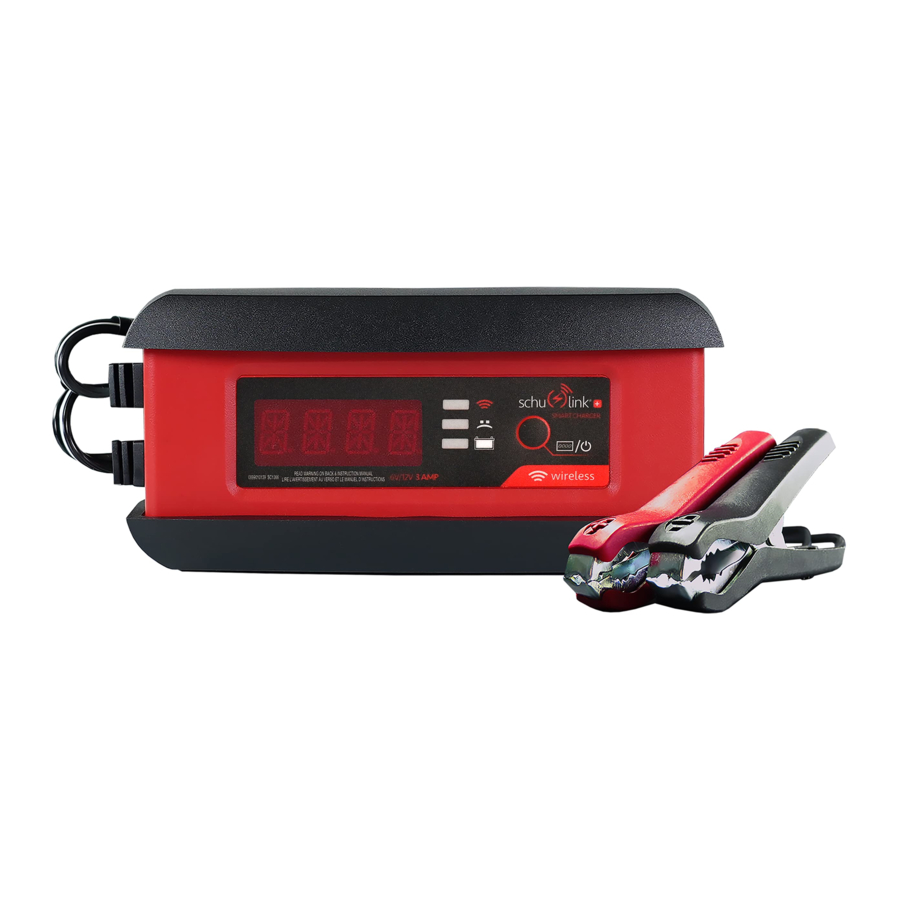

Schumacher Electric SC1366 Manual

PREPARING TO CHARGE

1. If necessary to remove battery from vehicle to charge, always remove grounded terminal from battery first. Make sure all accessories in the vehicle are off, so as not to cause an arc.
2. Be sure area around battery is well ventilated while battery is being charged.
3. Clean battery terminals. Be careful to keep corrosion from coming in contact with eyes.
4. Add distilled water in each cell until battery acid reaches level specified by battery manufacturer. Do not overfill. For a battery without removable cell caps, such as valve regulated lead acid batteries, carefully follow manufacturer's recharging instructions.
5. Study all battery manufacturer's specific precautions while charging and recommended rates of charge.
6. Determine voltage of battery by referring to car owner's manual and make sure that output voltage selector switch is set at correct voltage. If charger has adjustable charge rate, charge battery initially at lowest rate. For a charger not having an output voltage selector switch, determine voltage of battery by referring to car owner's manual and make sure it matches output rating of battery charger.

CHARGER LOCATION

1. Locate charger as far away from battery as DC cables permit.
2. Never place charger directly above battery being charged; gases from battery will corrode and damage charger.
3. Never allow battery acid to drip on charger when reading electrolyte specific gravity or filling battery.
4. Do not operate charger in a closed-in area or restrict ventilation in any way.
5. Do not set a battery on top of charger.

DC CONNECTION PRECAUTIONS

1. Connect and disconnect DC output clips only after setting any charger switches to "off" position and removing AC cord from electric outlet. Never allow clips to touch each other.
2. Attach clips to battery and chassis.

FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE

A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY:

1. Position AC and DC cords to reduce risk of damage by hood, door, or moving engine part.
2. Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons.
3. Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has larger diameter than NEGATIVE (NEG, N, –) post.
4. Determine which post of battery is grounded (connected) to the chassis. If negative post is grounded to chassis (as in most vehicles), see (5). If positive post is grounded to the chassis, see (6).
5. For negative-grounded vehicle, connect POSITIVE (RED) clip from battery charger to POSITIVE (POS, P, +) ungrounded post of battery. Connect NEGATIVE (BLACK) clip to vehicle chassis or engine block away from battery. Do not connect clip to carburetor, fuel lines, or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block.
6. For positive-grounded vehicle, connect NEGATIVE (BLACK) clip from battery charger to NEGATIVE (NEG, N, –) ungrounded post of battery. Connect POSITIVE (RED) clip to vehicle chassis or engine block away from battery. Do not connect clip to carburetor, fuel lines, or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block.
7. When disconnecting charger, turn switches to off, disconnect AC cord, remove clip from vehicle chassis, and then remove clip from battery terminal.
8. See Operating Instructions for length of charge information.

FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE

A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY:

1. Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has a larger diameter than NEGATIVE (NEG, N, –) post.
2. Attach at least a 24-inch-long 6-gauge (AWG) insulated battery cable to NEGATIVE (NEG, N, –) battery post.
3. Connect POSITIVE (RED) charger clip to POSITIVE (POS, P, +) post of battery.
4. Position yourself and free end of cable as far away from battery as possible – then connect NEGATIVE (BLACK) charger clip to free end of cable.
5. Do not face battery when making final connection.
6. When disconnecting charger, always do so in reverse sequence of connecting procedure and break first connection while as far away from battery as practical.
7. A marine (boat) battery must be removed and charged on shore. To charge it on board requires equipment specially designed for marine use.

GROUNDING AND AC POWER CORD CONNECTIONS

1. This battery charger is for use on a nominal 120 volt AC circuit. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances. The plug pins must fit the receptacle (outlet). Do not use with an ungrounded system.
2.
   Never alter the AC cord or plug provided – if it does not fit the outlet, have a proper grounded outlet installed by a qualified electrician. An improper connection can result in a risk of an electric shock or electrocution.
3. USING AN EXTENSION CORD
   The use of an extension cord is not recommended. If you must use an extension cord, follow these guidelines:
   • Pins on plug of extension cord must be the same number, size, and shape as those of plug on charger.
   • Ensure that the extension cord is properly wired and in good electrical condition.
   • Wire size must be large enough for the AC ampere rating of charger, as specified below:

*AWG-American Wire Gauge

ASSEMBLY INSTRUCTIONS

1. Remove all cord wraps and uncoil the cables prior to using the battery charger.

FEATURES

1. AC Power cord
2. Digital display
3. Connected (blue) LED
4. Trouble (red) LED
5. Charging/Charged (green) LED
6. Display/ON button
7. Hook attachment
8. Ring terminal quick-connect with 7.5A fuse
9. 12V accessory plug quick-connect with 5A fuse
10. Battery clamp quick-connect

CONTROL PANEL

DIGITAL DISPLAY
The digital display indicates the status of the battery and charger. See Display Messages for a complete list of messages.
NOTE: For energy efficiency during charging, the display will go into sleep mode and will not display any messages. To turn the display back on, press the Display/ON button.

LED INDICATORS
BLUE (CONNECTED) LED solid – The charger is connected to a wireless network.
RED (TROUBLE) LED solid – The battery is bad (or clamps are reversed). See Aborted Charge section.

GREEN (CHARGING/CHARGED) LED
Solid – The charger is charging the battery.
Pulsing – The battery is fully charged and the charger is in maintain mode.

INSTALLING THE APP AND REGISTERING YOUR CHARGER

• Before you begin, have your charger ID card on hand.
• Download and install theSchuLink+ App (Apple store or Google Play).

NOTE: For Apple devices, requires iOS 9.0 or later; Android devices, OS 5.0 or later.

SETTING UP THE CHARGER'S CONNECTION TO A WIRELESS NETWORK

1. Open the App on your mobile device.
2. Press the Home icon.
3. Tap the three short horizontal bars to bring up a menu.
4. Choose SETUP.
5. Swipe screens and follow directions for setup to a wireless network.

REGISTERING A CHARGER
When using the App for the first time with a new charger, you must register your charger(s) to the App.

1. Open the App on your mobile device.
2. Press the Home icon.
3. Tap the three short horizontal bars to bring up a menu.
4. Choose ADD CHARGER.
5. Enter the Charger ID number and password (SC20xxxxx-yy) or (SC21xxxxx-yy) located on the Charger ID card included with the unit. This information is also found on a label on the side of the charger.
6. Swipe screens and follow directions to finish charger registration.

USING THE APP TO CONTROL THE CHARGER

1. Connect your charger, following the precautions. Plug the charger into a live grounded 120V AC outlet. The blue CONNECTED LED on the charger will turn solid. If the blue LED is not lit, refer toTroubleshooting.
2. Open the SchuLink+ App.
3. Log in, using the email address and password that you provided when you registered. If you forget your password, select Forgot Password.
4. The HOME screen shows all connected chargers. Swipe left on a charger to bring up the screen to delete the charger or edit the charger information. To add additional chargers, select Add Charger. The App can accommodate up to 12 different chargers. Use one of the arrows on the right to select the charger you want to monitor.

THE STATUS SCREEN
NOTE: Tap any icon to bring up more information.

1. Charge Indicator Ring – The color of this ring and the amount of the circle that is filled indicates the charge level. A completely green ring indicates the battery is fully charged. This corresponds to the percentage displayed in the center.
2. Charge Time – The amount of time needed to charge the battery when it was first connected.
3. Charge Pause Switch – Tap the sliding switch to start or pause the charging process. The current status is shown above the switch. You can pause the charge while watching the voltage drop to see if there is a power draw from the battery. The charging process will not be reset unless the charger is unplugged and plugged in again. NOTE: This charger is also a maintainer and it is not necessary to stop the charging process; the charger will automatically switch to maintenance mode when the battery is fully charged.
4. Connected to a wireless network – When the icon is green, this indicates the charger is connected to a wireless network. When the charger is not connected to a wireless network, the icon turns gray. Tap the to check the signal strength.
5. Connected to AC – When green, this indicates the charger is plugged into a live 120V AC outlet. If the charger is unplugged from the AC, the charger will power itself off of the battery for five minutes, sending out a loss of power signal to the app. When no AC power is detected, the icon turns gray.
6. Connected to Battery – When green, indicates that the battery is properly connected to the charger. When clamps are reversed or not connected, the icon turns gray.
7. Battery Voltage – Shows battery voltage. This voltage varies throughout the charging cycle, but gives an indication of the health of the battery. If the value goes below 12.5V during Float or Maintain modes, this could indicate excessive draw on the battery by the vehicle or the battery approaching the end of its life.
8. Charge Amps – Shows the current the charger is putting into the battery.
9. Charger Temperature – Shows the charger's temperature status. The charger will automatically lower the charge current if it detects the temperature is higher than normal.
   Use the icon to return to the HOME screen.

CHARGING MODE
Charging mode lets you follow the progress through the 8 stages of charging:

1. Auto Voltage Detection – In this mode, a battery is connected to the charger and the charger is determining whether it is a 6V or 12V battery.
2. Desulfation – The charger has detected an unhealthy, sulfated battery and has begun a special process to try to remove the sulfation and possibly restore the battery.
3. Soft Start – The charger has determined the battery voltage and gently starts to charge the battery by slowly increasing the charging current.
4. Bulk Mode – The majority of the energy delivered to the battery is done in this mode. When the charger exits this mode, the battery will be at approximately 80% recharged.
5. Absorption Mode – This mode finishes the charge of the battery by holding the battery voltage constant until the current tapers off.
6. Monitoring Mode – The battery is allowed to rest for 24 hours before checking for a loss of charge.
7. Float Mode – The charger is replacing energy the battery has lost through self-discharge or idle draw of the attached vehicle.
8. Maintain – The charger checks the battery every 12 hours and puts the charger into float mode to replenish lost energy from the battery.

RESETTING YOUR PASSWORD

1. In the log in screen, press Forgot Password. A password reset link will be sent to the email address you provided during registration.
2. Enter your new password.
3. Reenter the new password.
4. Click Reset Password to complete the process.

OPERATING THE CHARGER

USING THE CHARGER WITHOUT THE INTERNET
The charger itself is a stand-alone device and will function as a battery charger/maintainer without an internet connection. However, without an internet connection, the App will not reflect the charging progress.

Do not start the vehicle with the charger connected to the AC outlet, or it may damage the charger and your vehicle.

This charger is equipped with an auto-start feature. Current is supplied to the battery clamps before a battery is connected, and the clamps will spark if touched together. NOTE: This charger is also a maintainer, and can be left on the battery of vehicles that are being stored.

USING THE QUICK-CONNECT CABLE CONNECTORS
Connect any of the three output cable assemblies to the charger in a matter of seconds.

Use the charger with only one connector at a time. Do not connect accessory cables together. This will cause reverse polarity and damage the charger and battery.

BATTERY CLAMP QUICK-CONNECT
Charging a Battery in the Vehicle

1. Turn off all the vehicle's accessories.
2. Do not close the hood, battery compartment, etc.
3. Clean the battery terminals.
4. Place the charger on a dry, non-flammable surface, or use the convenient hook attachment to hang the unit safely outside the work area.
5. Lay the AC/DC cables away from any fan blades, belts, pulleys and other moving parts.
6. Connect the battery, following the precautions.
7. Connect the charger to a live grounded 120V AC outlet.
8. The blue Connected LED will light, indicating that the charger is connected to a wireless network.
9. When charging starts, the green LED will be solid, and the display will scroll "CHARGING" while the charger determines that the battery is properly connected, the condition of the battery, and whether the battery is 6V or 12V.
10. Monitor the progress of the charge by pressing the display button on the front of the unit. When the battery is fully charged, the green LED will pulse.
11. When charging is complete, disconnect the charger from the AC power, remove the clamp from the vehicle's chassis, and then remove the clamp from the battery terminal.

Charging a Battery Outside of the Vehicle

1. Place battery in a well-ventilated area.
2. Clean the battery terminals.
3. Connect the battery, following the precautions.
4. Connect the charger to a live grounded 120V AC outlet.
5. The blue Connected LED will light, indicating that the charger is connected to a wireless network.
6. When the charger starts, the green LED will be solid, and the display will scroll "CHARGING" while the charger determines if the battery is properly connected, the condition of the battery, and whether the battery is 6V or 12V.
7. Monitor the progress of the charge by pressing the display button on the front of the unit. When the battery is fully charged, the green LED will pulse.
8. When charging is complete, disconnect the charger from the AC power, disconnect the negative clamp, and finally the positive clamp.

RING TERMINAL QUICK-CONNECT
The ring connectors permanently attach to the battery, providing easy access to quickly connect the charger to your battery. This application is appropriate for motorcycles, lawn tractors, ATVs and snowmobiles.

1. To permanently attach to a battery, loosen and remove each nut from the bolt at the battery terminal.

   Loss of vehicle settings can occur. Check vehicle owners manual for specific information.
2. Connect the red POSITIVE connector ring to the POSITIVE battery terminal.
3. Connect the black NEGATIVE connector ring to the NEGATIVE battery terminal.
4. Replace and tighten the nuts to secure.
5. Connect the cable to the end of the charger output cord. Take care to keep the wires and plug away from metal and moving parts.
6. Plug the charger power cord into a live grounded 120V AC outlet.

12V ACCESSORY PLUG QUICK-CONNECT
Charge or maintain your battery without lifting the hood.
NOTE: The charger itself must be disconnected when the vehicle is in use.

1. Connect the end of the 12V accessory plug quick-connect to the charger.
2. Insert the 12V accessory plug into the 12V accessory outlet.
3. Route the power cord from the charger through the vehicle's open window.
4. Plug the charger power cord into a live grounded 120V AC outlet.
5. If the vehicle's ignition key has to be on in order for the accessory outlet to supply/receive power, turn the key without starting the engine. Consult your vehicle owners manual for instructions on how to make the 12V outlet live without drawing excessive power.

AUTOMATIC CHARGING MODE
When an automatic charge is performed, the charger switches to the maintain mode automatically after the battery is charged.

BATTERY CONNECTION INDICATOR
If the charger does not detect a properly connected battery, charging will not start and the digital display will show one of two messages. If the display shows "CONNECT BATTERY", make sure the charger is connected to the battery and the connection points are clean and making a good connection. If the display shows "WARNING CLAMPS REVERSED", unplug the charger from the AC outlet, reverse the connections at the battery, and then plug the charger back in.

CHARGE COMPLETION AND MAINTAIN MODE (Float Mode Monitoring)
Charge completion is indicated by the green LED pulsing and the digital display scrolling "FULLY CHARGED AUTO MAINTAINING". This means that the charger has stopped charging and has switched to the Maintain Mode of operation. NOTE: If the charger has to provide its maximum maintain current (1.8A) for a continuous 12 hour period, it will go into Abort Mode (see Aborted Charge section). This is usually caused by a load on the battery, or the battery could be bad. Make sure there are no loads on the battery. If there are, remove them. If there are none, have the battery checked or replaced.

MAINTAINING A BATTERY
This unit maintains both 6 and 12 volt batteries, keeping them at full charge. It can charge small batteries and maintain both small and large batteries. If you are maintaining a fully charged large battery, you are properly utilizing the battery charger. However, if you use this battery charger to charge a large battery, such as a marine deep-cycle battery that was not fully charged, you may not get the battery's full capacity. Therefore, we do not recommend charging a large battery with this unit.
NOTE: The maintain mode technology allows you to safely charge and maintain a healthy battery for extended periods of time. However, problems with the battery, electrical problems in the vehicle, improper connections or other unanticipated conditions could cause excessive current draws. As such, occasionally monitoring your battery and the charging process is required.

BATTERY CHARGING TIMES

Times are based on a 50% discharged battery and may change, depending on age and condition of battery.

DESULFATION MODE
If the battery is left discharged for an extended period of time, it could become sulfated and not accept a normal charge. If the charger detects a sulfated battery, the charger will switch to a special mode of operation designed for such batteries. If successful, normal charging will resume after the battery is desulfated. Desulfation could take up to 8 hours. If desulfation fails, charging will abort, the red LED will light, and the display will scroll "CHARGE ABORTED-BAD BATTERY".

ABORTED CHARGE
If charging cannot be completed normally, charging will abort. When charging aborts, the charger's output is shut off, the red LED will light, and the display will scroll "CHARGE ABORTED-BAD BATTERY". Do not continue attempting to charge this battery. Have it checked or replaced.

DISPLAY MESSAGES

"CONNECT BATTERY" (blue LED only, solid*) – Plugged into the AC outlet without the clamps connected to a battery.
"WARNING CLAMPS REVERSED" (red and blue LEDs solid*) – Plugged into the AC outlet and the clamps are connected backwards to a 6V or 12V battery.
"CHARGING" (green LED solid) – Plugged into the AC outlet, and when first connected to a 6V or 12V battery correctly.
"CHARGING 12V XX%" (green LED solid) – Plugged into the AC outlet, correctly connected and charging a 12V battery.
"CHARGING 6V XX%" green LED solid) – Plugged into the AC outlet, correctly connected and charging a 6V battery.
"FULLY CHARGED AUTO MAINTAINING" (green LED pulsing) – Plugged into a live grounded AC outlet and correctly connected to a fully charged 6V or 12V battery.
"CHARGE ABORTED-BAD BATTERY" (red LED solid) – Circumstances that could cause an Abort situation during charging:

• The battery is severely sulfated or has a shorted cell and can't reach a full charge.
• The battery is too large or there is a bank of batteries and it doesn't reach full charge within a set time period.

Circumstances that could cause an Abort situation during maintain:

• The battery is severely sulfated or has a weak cell and will not hold a charge.
• There is a large draw on the battery and the charger has to supply its maximum maintain current for a 12 hour period to keep the battery at full charge.

*Blue LED is only lit when connected to a wireless network.

MAINTENANCE AND CARE

A minimal amount of care can keep your battery charger working properly for years.

• Clean the clamps each time you are finished charging. Wipe off any battery fluid that may have come in contact with the clamps, to prevent corrosion.
• Occasionally cleaning the case of the charger with a soft cloth will keep the finish shiny and help prevent corrosion.
• Coil the input and output cords neatly when storing the charger. This will help prevent accidental damage to the cords and charger.
• Store the charger unplugged from the AC power outlet.
• Store inside, in a cool, dry place. Do not store the clamps clipped together, on or around metal, or clipped to the cables.

REPLACEMENT PARTS

Battery clamps (quick-connect): 3899002636Z
Ring connectors (quick-connect): 2299002042Z
12V accessory plug (quick-connect): 3899001401Z

BEFORE RETURNING FOR REPAIRS

For information about troubleshooting, contact customer service for assistance:
services@schumacherelectric.com | www.batterychargers.com | or call 1-800-621-5485
For REPAIR OR RETURN, contact Customer Service at 1-800-621-5485. DO NOT SHIP UNIT until you receive a RETURN MERCHANDISE AUTHORIZATION (RMA) number from Customer Service at Schumacher Electric Corporation.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS
NOTE: The charger itself is a stand-alone device and will function as a battery charger/maintainer without an internet connection. However, without an internet connection, the App will not reflect the charging progress.

1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions.
2. Keep out of reach of children.
3. Do not expose the charger to rain or snow.
4. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock or injury to persons.
5. To reduce the risk of damage to electric plug and cord, pull by the plug rather than the cord when disconnecting charger.
6. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If an extension cord must be used, make sure:
   • The pins on plug of extension cord are the same number, size and shape as those of plug on charger.
   • The extension cord is properly wired and in good electrical condition.
   • The wire size is large enough for AC ampere rating of charger.
7. Do not operate charger with damaged cord or plug – replace the cord or plug immediately.
8. Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
9. Do not disassemble charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
10. To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning. Turning off controls will not reduce this risk.
11.
    RISK OF EXPLOSIVE GASES.
    1. WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER.
    2. To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer of any equipment you intend to use in vicinity of battery. Review cautionary markings on these products and on the engine.
