Braun 560, 550, Series 5 Manual

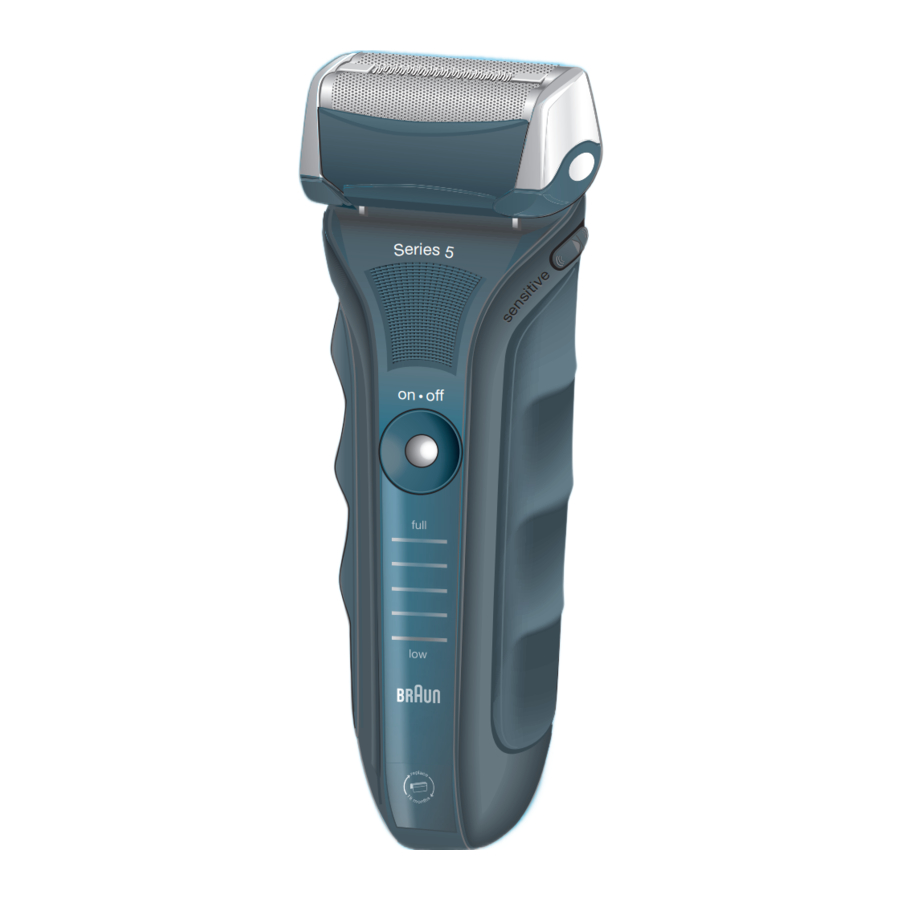

Description

1. Shaver foil
2. Cutter block
3. Foil release buttons
4. Long hair trimmer
5. Comfort setting switch «sensitive»
6. On/off switch
7. Shaver display
8. Replacement light for shaving parts
9. Shaver power socket
10. Special cord set
11. Etui

Charging

The best environmental temperature for charging is between 5°C and 35°C. Do not expose the shaver to temperatures higher than 50°C for extended periods of time.

• Using the special cord set (10), connect the shaver to an electrical outlet with the motor switched off and charge it for at least one hour.
• A full charge provides up to 45 minutes of cordless shaving time. This may vary according to your beard growth.
• If the rechargeable battery has run out of power (discharged), you may also shave by connecting the shaver to an electrical outlet via the special cord set.

Shaver display

The shaver display (7) shows the charge status of the battery.
Model 560: During charging or when using the shaver, the respective battery segment will blink (green). When fully charged, all segments will light up continuously, provided the shaver is switched on or connected to an electrical outlet.
(Modell 550: 1 charging segment only)
The red low-charge light flashes when the battery is running low.
You should be able to finish your shave.

Shaving

Press the on/off switch (6) to operate the shaver.
Comfort setting switch «sensitive» Setting the shaver head according to your comfort needs.
The «sensitive» switch (5) provides three options for comfort setting:

1. « + »:
   The shaver head is in full swing, freely follows the contours of your skin to provide more comfort.
2. middle position:
   The shaver head is semi-fixed for more control.
3. « – »:
   The shaver head is fixed for full control and precise handling in hard to reach areas.

Long hair trimmer
To trim sideburns, moustache or beard, slide the long hair trimmer (4) upwards.

Tips for the perfect shave
For best shaving results, Braun recommends you to follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

Cleaning

The shaver head is suitable for cleaning under running tap water. Warning: Detach the shaver from the power supply before cleaning the shaver head in water.
Regular cleaning ensures better shaving performance. Rinsing the shaving head under running water after each shave is an easy and fast way to keep it clean:

• Switch the shaver on (cordless) and rinse the shaver head under hot running water. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, press the foil release buttons (3) to remove the shaver foil (1) and cutter block (2). Then leave the disassembled shaving parts to dry.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil onto the long hair trimmer and shaver foil.

The following quick cleaning is another alternative cleaning method:

• Press the foil release buttons (3) to lift the shaver foil (do not remove the foil completely). Switch on the shaver for approx. 5–10 seconds so that the shaved stubbles can fall out.
• Switch off the shaver. Remove the shaver foil and tap it out on a flat surface. Using a brush, clean the inner area of the shaver head.However, do not clean the shaver foil nor the cutter block with the brush as this will damage them.

Keeping your shaver in top shape

Replacing the shaver foil and cutter block / reset
To maintain 100% shaving performance, replace the shaver foil (1) and cutter block (2), when the replacement symbol (8) lights up (after about 18 months) or when worn.
The replacement symbol will remind you during the next 7 shaves to replace the shaving parts. Then the shaver will automatically reset the display.
After you have replaced the shaving parts
(foil and cutter block), press the on/off switch (6) for at least 5 seconds to reset the counter.
While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time.

Accessories
Available at your dealer or Braun Service Centres:
Shaver foil and cutter block: 51B

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver.

Your shaver is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of electric shock.
This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children.
