Braun MGK 3040, MGK 3060 (5514) Manual

Braun Infolines

Thank you for purchasing a Braun product. We hope you are completely satisfied with your new Braun product.

If you have any questions, please call:

US residents
1-800-BRAUN-11
1-800-272-8611

Canadian residents
1-800-387-6657

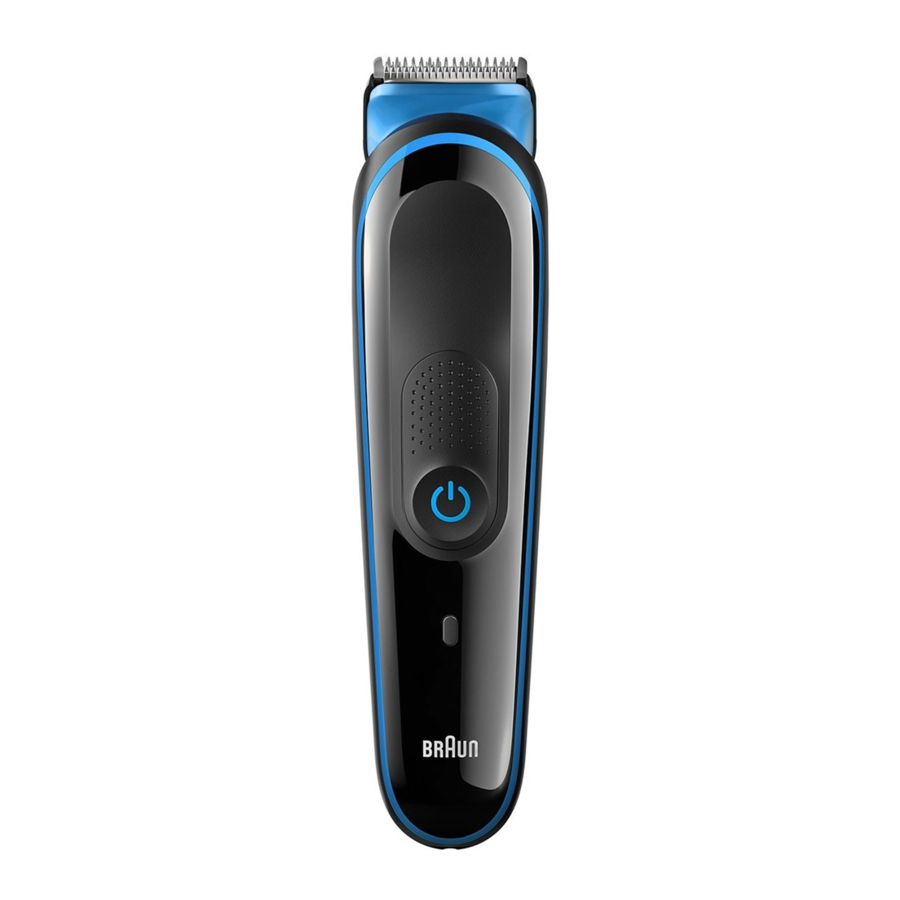

Description

Description

1a Sliding beard comb (3 – 11 mm in 2 mm steps)

1b Sliding hair comb (13 – 21 mm in 2 mm steps)

1c Release button sliding combs

1d Fix comb 1 (1 mm)

1e Fix comb 2 (2 mm)

2a Trimmer head

2b Ear & nose trimmer head (MGK3060 only)

2c Detailed trimmer head

  1. On/off button
  2. Charging indicator
  3. Power socket
  4. Special cord set

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 41°F to 95°F / 5°C to 35°C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 60°F to 95°F / 15°C to 35°C. Do not expose the appliance to temperatures higher than 122°F / 50°C for extended periods of time.

  • Connect the appliance via the special cord set (6) to an electrical outlet.
  • A full charge takes approx. 8 hours and provides up to 60 minutes of cordless operation time.
  • The charging indicator (4) shows that the appliance is being charged. When the battery is fully charged, the charging indicator turns off.
  • Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Usage

Exchange the attachments only when the appliance is switched off. To turn the appliance on, push the on/off button.

Beard Trimming / Hair Clipping

Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a). Press the release button (1c) and slide the comb to your desired length.
Using Sliding combs

Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

Using Fixed combs

  • Trim against hair growth by guiding the flat comb part over the skin.
  • Do not force the appliance through the hair faster than it can be cut.
  • Avoid clogging the comb with hair. Remove and clean it from time to time.

Precision and Contour Trimming

Use the trimmer head (2a) without comb attachment or the detailed trimmer head (2c) for shaping sideburns, moustaches and partial short beards.
Precision and Contour Trimming

Ear/Nose Trimming

  • Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.
    Ear/Nose Trimming - Step 1
  • Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5 mm (1/4˝) into nose or ear.

Cleaning and maintenance

Cleaning and maintenance

  • Switch off the appliance.
  • Take off any head and attachment.
  • Use the brush to clean the heads, combs and the appliance.
  • The handle, the heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let all parts dry completely before reassembling them.
  • To keep the trimmer working properly, oil it with light machine oil (not included) regularly.

Battery removal

This appliance contains rechargeable batteries. Before disposing of the appliance, disassemble the housing as shown, remove the rechargeable batteries and recycle or dispose of properly, according to local guidelines.


Disassembling the appliance will destroy it and invalidate the warranty.

Battery removal
Subject to change without notice.

How to obtain service in the USA

60 day money back satisfaction guarantee

Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you.

To obtain service:

  1. Carry the product in to the Authorized Braun Service Center of your choice or,
  2. Ship the product to the Authorized Braun Service Center of your choice.
    Pack the product well.
    Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts and accessories:
Contact a Braun Authorized Service Center.
Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you.

To speak to a Braun Consumer Service Representative:
Please call 1-800-BRAUN 11 (272-8611).

How to obtain service in Canada

60 day money back satisfaction guarantee

Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you.

To obtain service:

  1. Carry the product in to the Authorized Braun Service Center of your choice or,
  2. Ship the product to the Authorized Braun Service Center of your choice.
    Pack the product well.
    Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories:
Contact a Braun Authorized Service Center.
Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you.

To speak to a Braun Service Representative:
Please call 1-800-387-6657.

60 day money back satisfaction guarantee for men's grooming products
If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.


When disconnected, this appliance may be cleaned under water.


To reduce the risk of electric shock:

  1. Use only in dry condition.
  2. Do not submerge in water.
  3. Do not reach for an appliance that has fallen into water. Unplug immediately.
  4. Do not use while bathing or in a shower.
  5. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
  6. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
  7. Unplug this appliance before cleaning.
  8. This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.
  9. Do not use an extension cord with this appliance.


To reduce the risk of burns, fire, electric shock, or injury to persons:

  1. Close supervision is necessary when this appliance is used by, on, or near children or persons with disabilities.
  2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
  3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.
  4. Keep the cord away from heated surfaces.
  5. Never drop or insert any object into any opening of this appliance.
  6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
  7. Do not use this appliance with a damaged or broken cutter or comb, as serious skin injuries may occur.
  8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls off, then remove plug from outlet.
  9. When plugging to an electrical outlet outside North America, use a plug adapter to match the outlet's pin configuration.
  10. The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100°C (212°F) or incinerate.
  11. Only use the special cord set provided with the appliance.

This appliance is designed for household use only.
