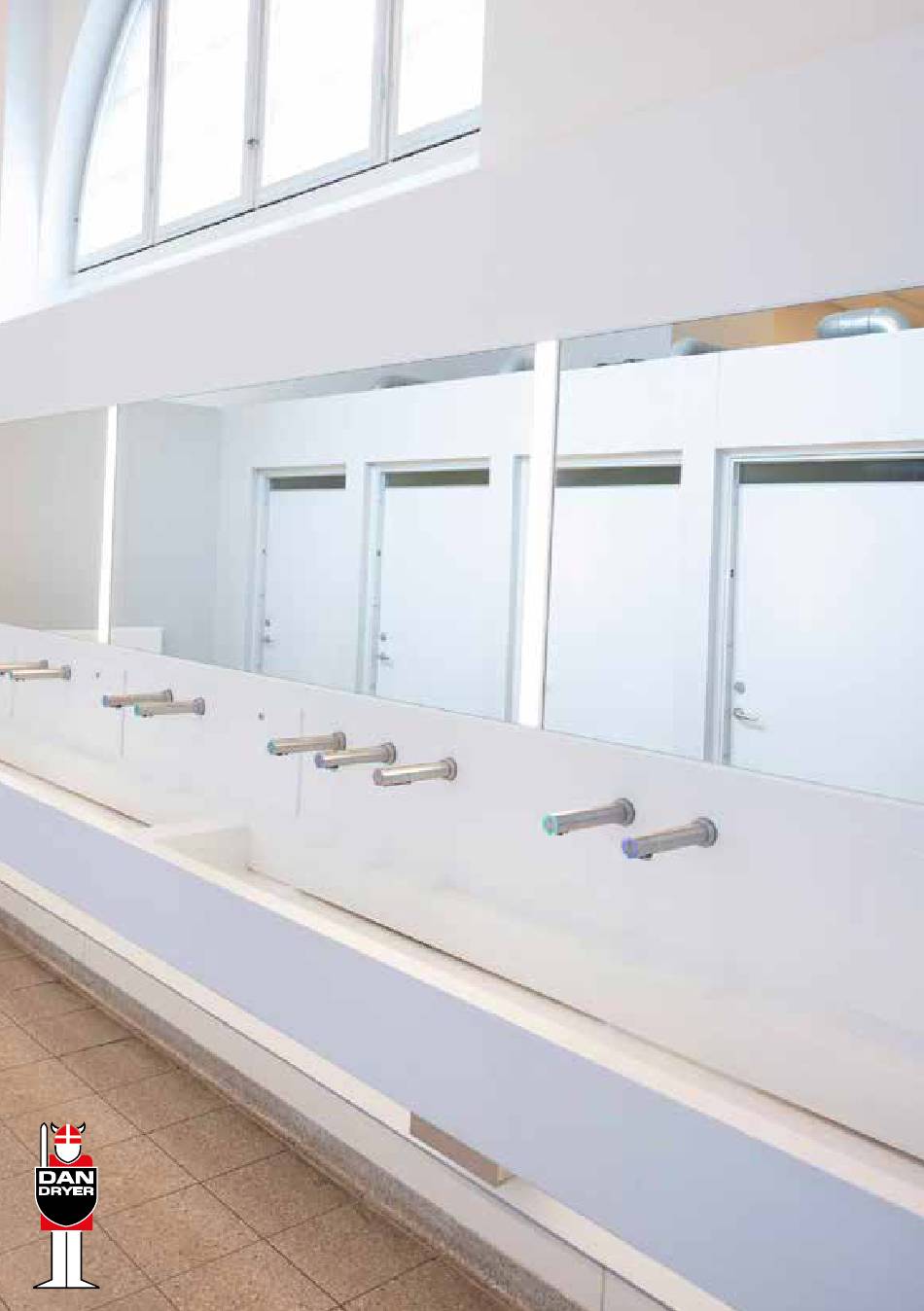

- Page 1 USER MANUAL AIRTAP BUILD-IN HAND DRYER Model: 372-373 + 472-473 + 732-733...
-
Page 2: Table Of Contents
DIMENSIONS AND TECHNICAL SPECIFICATIONS TABLE OF CONTENTS Dimensions and technical specifications Dimensions Unit of measurement: mm General safety information Circuit diagram Ø38 34,5 Installation Installation height Product application Light indicator Cleaning and maintenance Timer settings 148,5 Troubleshooting and corrective actions Parts list TECHNICAL SPECIFICATIONS DESCRIPTION... -
Page 3: General Safety Information
• The product should be checked on a regular basis. Never use a defective or malfunctioning unit. • Never make alterations to the product affecting its performance. DAN DRYER’s product warranty does not cover product problems that result from misuse or alteration. -
Page 4: Installation
INSTALLATION INSTALLATION Make sure the main breaker is turned off. Installation must be carried out by a qualified person in accordance with applicable standards in the country concerned. 6. Mount unit cabinet to the wall. Insert power cord 1. Check the required distance from 2. - Page 5 • Ensure unit is installed on solid and stable background. • If in doubt, contact DAN DRYER IMPORTANT! Make sure to position the Secure blind plug in the cap to provide an airtight seal. plugs correctly. 11. Connect earthing.
-
Page 6: Installation Height
INSTALLATION HEIGHT CLEANING AND MAINTENANCE Routine cleaning and maintenance is recommended every 12 months. This may be required more frequently depending on the local conditions. RECOMMENDATION: Carbon brushes are wearing parts and need to be checked more often to prevent damage to the motor. -
Page 7: Timer Settings
TIMER SETTINGS TROUBLESHOOTING AND CORRECTIVE ACTIONS SYMPTOM CORRECTIVE ACTION: NEW HAND DRYER AIR SPEED ADJUSTMENT Hand dryer does not start • Check power supply to the product and ensure the connections at the terminal block are made properly. • Switch off power and remove front cover Hand dryer cycles by itself and •... -
Page 8: Parts List
PARTS LIST Tap inner parts Description Description Sensor housing (upper part) Blower housing (upper part) 3 + 4 Sensor + outlet branch Motor rubber (upper part) Silicone lining Motor Holder for LED circuit board Heating element LED circuit board Motor rubber (lower part) End piece Blower housing (lower part) Cabinet (front part) - Page 9 DAN DRYER A/S Tåsingevej 2 DK-8940 Randers SV Tel: +45 8641 5711 Email: info@dandryer.dk dandryer.com...
