Automatic Vacuum Switch
Instructions for Use and Installation
FM-1497 REV. -
14MAY2025
(AVS)
Parker Hannifin Corporation
245 Township Line Road
Hatfield, PA 19440 USA
Office 215-723-4000
www.porterinstrument.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVS and is the answer not in the manual?

Questions and answers

Summary of Contents for Parker AVS

  • Page 1 Parker Hannifin Corporation 245 Township Line Road Hatfield, PA 19440 USA Office 215-723-4000 Automatic Vacuum Switch (AVS) Instructions for Use and Installation FM-1497 REV. - www.porterinstrument.com 14MAY2025...
  • Page 2 Representation Legal Manufacturer Parker Hannifin Corporation Precision Fluidics Division 245 Township Line Road Hatfield, PA 19440 USA Office: (215) 723-4000 European EMERGO Europe Communities Westervoortsedijk 60 Authorized 6827 AT Arnhem, The Netherlands Representative Tel: +31 70 345 8570 Conformité Compliance with conformity assessment on quality management system and technical documentation Européenne (CE)
  • Page 3: Table Of Contents

    READ MANUAL COMPLETELY BEFORE OPERATING THIS DEVICE This document contains warnings, cautions, instructions for use, and maintenance information that the user must completely comprehend before using this device. Failure to properly operate and maintain this device may result in patient and/or user harm and/or damage to equipment.
  • Page 4: Device Information

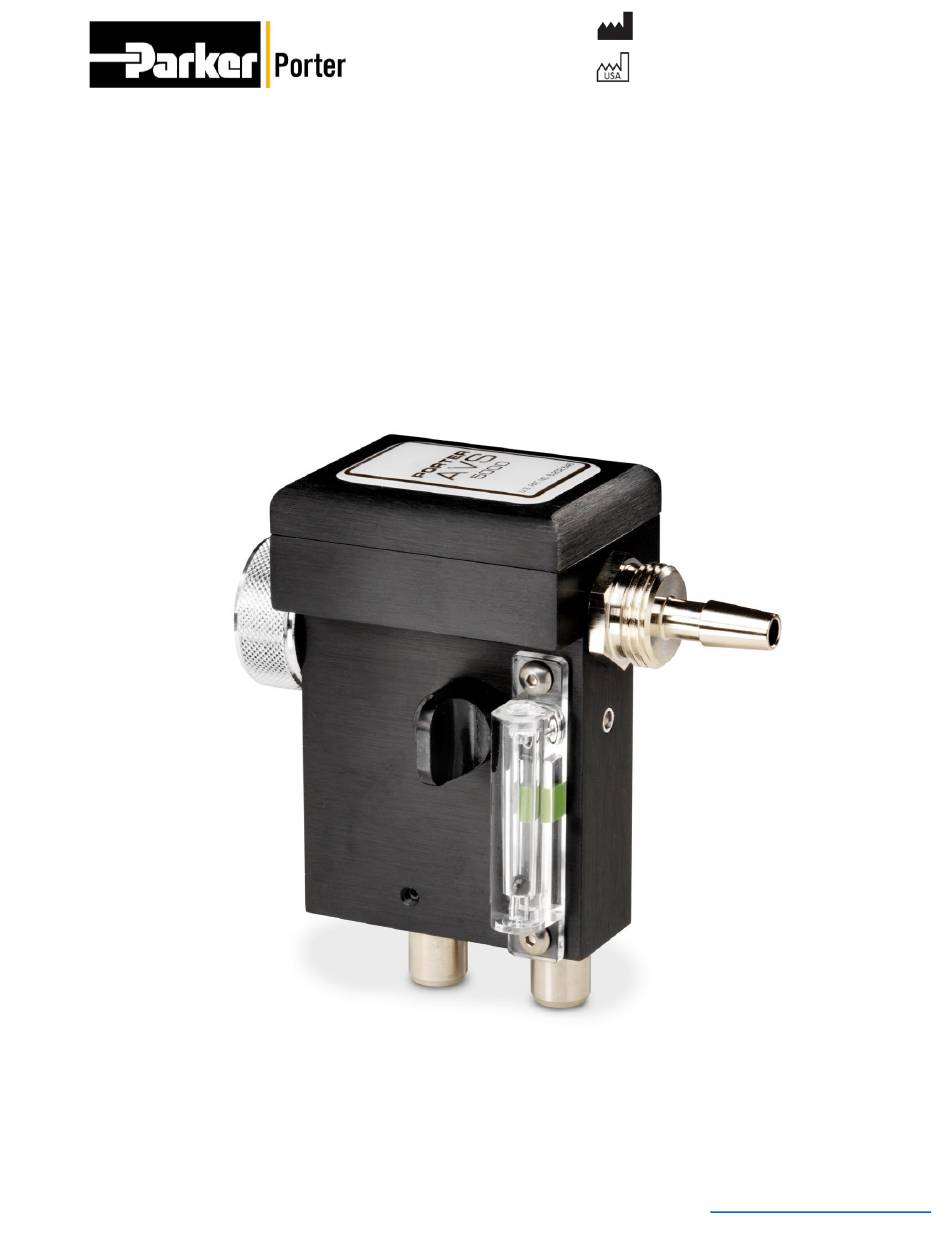

    1. Device Information 1.1. Intended Use The AVS is intended to control the vacuum flowrate and scavenging of waste analgesic gas. 1.2. Models The AVS is available in 5 models. The vacuum controllers are available with different mounting configurations. Through this document, the AVS-5000 model is pictured. All instructions and information are the same for all models unless specified otherwise.
  • Page 5: General Description/Principles Of Operation

    The gas exits the AVS through the vacuum tubing connected to the back of the device and is removed from the healthcare facility via the vacuum source. The device features vacuum flowrate control using an adjustment knob and flow indication displayed using a glass tube.
  • Page 6: Warnings & Cautions

    MRI scanner rooms. 1.9. Safe Combination of devices The AVS is designed to be used within a nitrous oxide/oxygen conscious sedation delivery and scavenging system to deliver an accurate mixture of nitrous oxide and oxygen gases to a conscious, spontaneously breathing patient.
  • Page 7: Specifications

    Note: If an Automatic Vacuum Switch is to be used with a nitrous oxide and oxygen conscious sedation delivery system, the AVS should be installed before mounting the device. Note: The Automatic Vacuum Switch is compatible with the Porter, Matrx, and Silhouette...
  • Page 8 Porter Breathing Circuit (2). Attach the other end the Vacuum Hose to the MASK port (labeled on body) of the AVS (3) Attach a second Vacuum Hose (4) to the VAC port (labeled on body) of the AVS (5) Attach other end of the Vacuum Hose (4) to the vacuum source.
  • Page 9: Instructions For Use

    Gas and Vacuum Hose to the MASK port (labeled on body) of the AVS (3) Attach a second vacuum hose (4) to the VAC port (labeled on body) of the AVS (5) Attach the other end of the vacuum hose (4) to the vacuum source.
  • Page 10: Operating Instructions

    To adjust vacuum flow, the applicable Breathing Circuit must be fully installed The AVS will automatically open upon the delivery of 1.5 to 3.5 L/min of gas flow. Start with the vacuum control knob in horizontal position. Adjust vacuum flow by using the vacuum control knob (1) and sight glass (2) to monitor vacuum flow.
  • Page 11: Pre-Check

    Start a procedure, ensuring only O gas is flowing Create a seal by placing your hand over the mask port on the AVS, you should feel suction on your hand If you feel no suction on your hand, contact your authorized distributor for service and...
  • Page 12: Disposal

    It is best practice to inquire with local authorities for proper disposal guidelines, if applicable. 5. Dimensions and Weights Dimensions (L x W x H) Weight AVS-5000 AVS-5000 1.77 in x 4.05 in x 3.95 in 1.05 lbs (0.476 kg) 4.495 cm x 10.29 cm x 10.3 cm...
  • Page 13 Symbol Title of Symbol Description of Symbol Indicates the date when the device was Date of manufacture manufactured. This symbol is accompanied by four digits for the year the device was manufactured. Indicates the country where the device was Country of manufactured.
  • Page 14: Warranty

    Parker Hannifin Corporation. Parker Hannifin Corporation shall not be liable for any damage, injury or loss arising out of the use of the product, whether as a result of a defect in the product or otherwise, if, prior to such damage, injury or loss, the product was (1) damaged or misused;...
