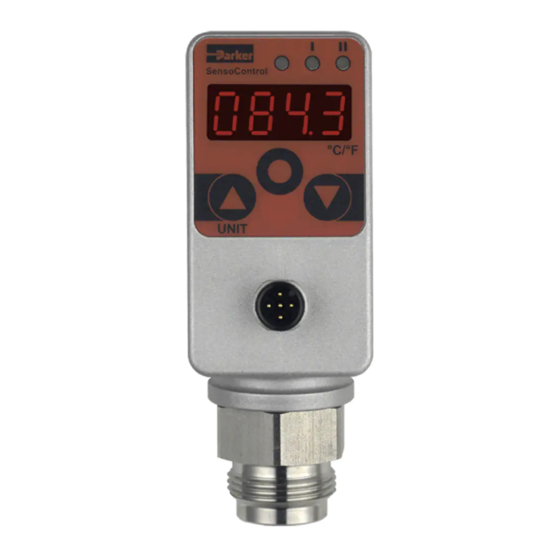

Parker SCTSD Operating Manual

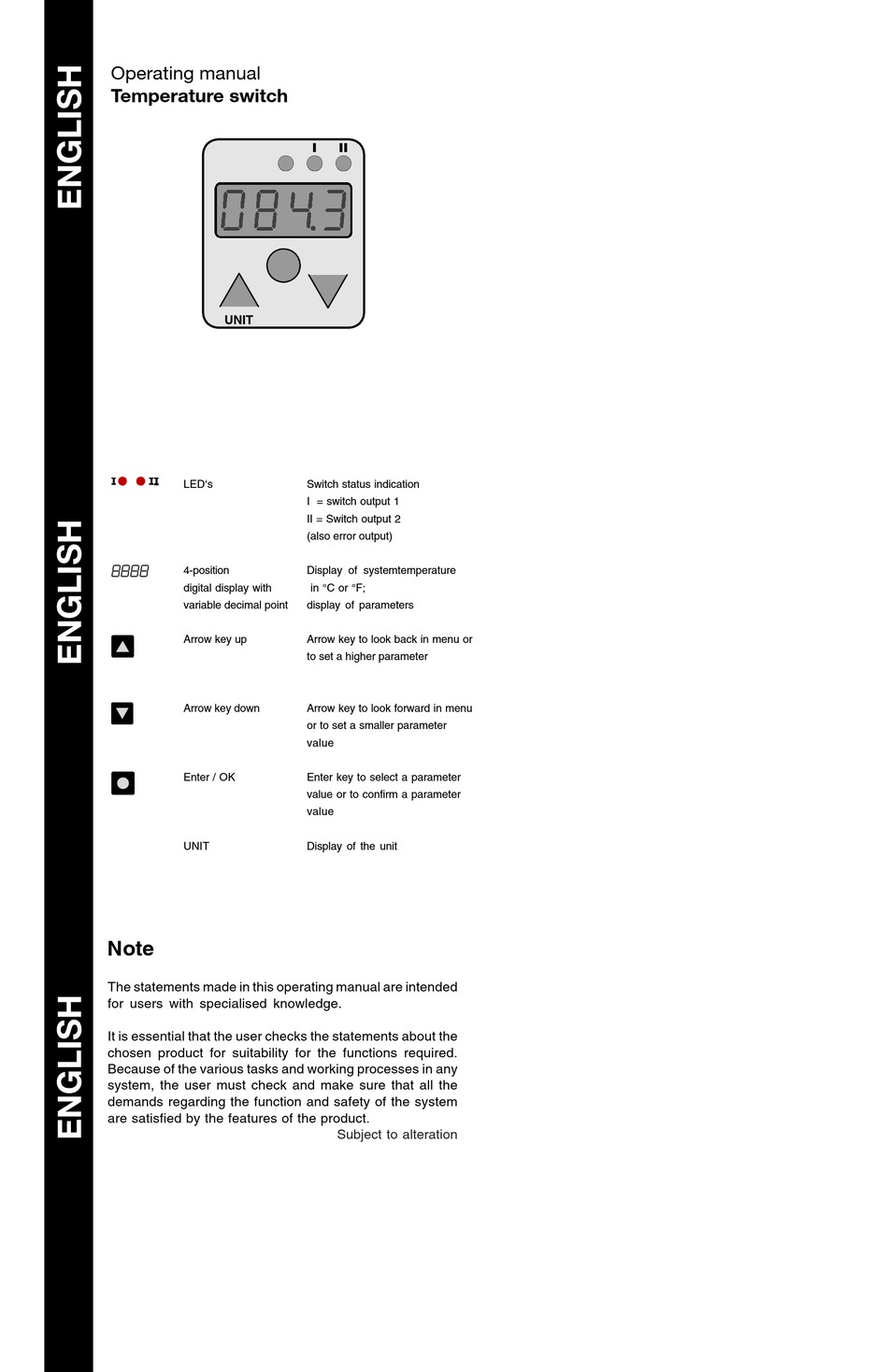

Operating manual
Temperature switch
UNIT
LED's
&&&&
4-position
digital display with
variable decimal point
Arrow key up
Arrow key down
Enter / OK
UNIT
Note
The statements made in this operating manual are intended
for users with specialised knowledge.
It is essential that the user checks the statements about the
chosen product for suitability for the functions required.
Because of the various tasks and working processes in any
system, the user must check and make sure that all the
demands regarding the function and safety of the system
are satisfied by the features of the product.
1 11
Switch status indication
I = switch output 1
II = Switch output 2
(also error output)
Display of systemtemperature
in °C or °F;
display of parameters
Arrow key to look back in menu or
to set a higher parameter
Arrow key to look forward in menu
or to set a smaller parameter
value
Enter key to select a parameter
value or to confirm a parameter
value
Display of the unit
Subject to alteration
