- Page 1 8kg Condenser Tumble Dryer Instruction manual Model number: RH8CTD701 (B) IMPORTANT: RETAIN FOR FUTURE REFERENCE For Customer Services & Spare Parts please call 0345 208 8750 or visit us at https://mda.russellhobbs.com...
-
Page 2: Table Of Contents
Contents Safety information ………………………………… 3 - 6 Before using your appliance ………………………………… Control panel ………………………………… 8 - 10 Installation ………………………………… 11 - 12 Operating instructions ………………………………… 13 - 15 Programme table ………………………………… Programs ………………………………… Additional functions ………………………………… Care and maintenance …………………………………... -
Page 3: Safety Information
Safety information • This tumble dryer is intended for NORMAL DOMESTIC USE ONLY. • Adequate ventilation must be provided around the tumble dryer; 3cm of space between the side walls, rear wall and above the top cover. • Exhaust air must not be discharged into a flue which is used for exhausting other fumes from appliances burning gas or other fuel. - Page 4 Safety information • Remove all objects from pockets such as lighters and matches • The mains cable and plug assembly must only be replaced with a genuine part from the manufacturer, please contact the customer support team below . • It is important to clean fluff from the window of the dryer and around the door seal after each drying cycle.
- Page 5 Safety information • If leakage of a combustible liquid occurs near the appliance, do not connect or disconnect the mains plug. • This appliance is designed for domestic use only. It should not be used for purposes other than those for which it was designed. •...
- Page 6 Warnings WARNING: Never stop a tumble dryer before the end of a drying cycle, unless the items are removed very quickly • Do not use a two-way adaptor, or extension lead. The dryer must be connected to its own socket. •...
-
Page 7: Before Using Your Appliance
Before using your appliance Before installation, check that all parts are present. If any parts are missing, please contact the customer service team on: 0345 208 8750. Feature Diagram NOTE: The drawings in the book may vary from your dryer. They are designed to show the different features of all models covered by this book. -
Page 8: Control Panel
Control panel 1. Programme dial Choose the correct programme for the load by selecting one of the 15 programmes. Programme table is on page 16. 2. LED display The displays will show the below information: • Approximate time duration of a programme when selected. •... - Page 9 Long pressing on Delayed Start button changes delay time continuously. 7. Drying level function button (see page 14) The humidity level obtained after drying can be increased by 3 levels. This way, level of required dryness can be selected. The levels that can be selected other than the standard setting: 1, 2, 3.
- Page 10 LED display The displays will show the below information: • Approximate time duration of a programme when selected. • Counts down the time of a programme after it has been started: the REMAIN icon will light up to indicate the programme time is counting down. •...
-
Page 11: Installation
Installation Your condenser tumble dryer removes humidity by using two separate air flows. Air re- circulates inside the machine and is heated. Then it is passed through the damp clothes where it picks up moisture. Damp air is passed through the condenser in one direction while the room air is passed through the condenser in the other direction. - Page 12 Installation Connection to water drain; 1. Pull and take out the end of the hose at the back of the dryer. Do not use any tools to take out the hose. 2. Fit one end of the water discharge hose, which is provided with the product, to the slot from which you have removed the hose.
-
Page 13: Operating Instructions
Operating instructions IMPORTANT NOTE - If you are drying laundry that weighs less than 1kg (small loads) when wet, then select the 1hr function to dry clothes. Remove all the packaging material, including any material inside the drum. Before using the appliance for the first time, it is advised to place two damp clothing articles inside the drum and dry them for 1 hour. - Page 14 Operating instructions Step 2 - Close the door, ensuring no items are trapped in the door. Step 3 – When selecting a programme the Start/pause LED will flash. Once you have selected the required programme press the start/pause button to start the programme. The Start/pause indicator and the drying indicator will light up.
- Page 15 Operating instructions IMPORTANT: • Clean the lint filter after every programme. Empty the water tank after every programme. • If you do not take out the laundry after the programme has ended, the 1-hour Anti Crease phase will automatically be activated. This programme rotates the drum at regular intervals to prevent creases.
-
Page 16: Programme Table
Program Table Approximate amount Duration Programme Load (kg) Spin speed of remaining humidity (minutes) Cotton Extra Dry 1000 Cotton Cupboard Dry 1000 Cotton Iron Dry 1000 Synthetics Cupboard Dry Synthetics Iron Dry Delicate Time drying Baby Care 1000 Duvet Sport 1000 Wool Refresh Refresh... -
Page 17: Programs
Programs Programme Description This programme dries thick and multi-layer fabrics, such as cotton towels, Cotton Extra Dry bedsheets, pillowcases, bathrobes, at a high temperature to allow you to place them in a closet. This programme dries cotton pyjamas, underwear, tablecloths etc. to allow Cotton Cupboard Dry you to place them in a closet. -
Page 18: Additional Functions
Additional functions Programme Delay Start Buzzer Cancel Child Lock Delicate Time Drying Drying Level Cotton Extra Dry Cotton Cupboard Dry Cotton Iron Dry Synthetics Cupboard Dry Synthetics Iron Dry Delicate (default) Time Drying Baby Care Duvet (default) Sport Wool Refresh Refresh Express 29' Shirts 12'... -
Page 19: Care And Maintenance
Care and maintenance IMPORTANT: • Do not use industrial chemicals to clean your dryer. Do not use a dryer that has been cleaned with industrial chemicals. Cleaning the Fluff/lint filter IMPORTANT: ALWAYS CLEAN THE FILTER AFTER EACH USE. Failure to do so could cause the safety cut-out to operate. - Page 20 Care and maintenance Emptying the water tank IMPORTANT: • Never remove the water tank when the programme is running. • The water condensed in the water tank is not suitable for human consumption. • DO NOT FORGET TO EMPTY THE WATER TANK AFTER EACH USE. The water extraction from the wet laundry that has been dried deposits in a water tank at the top left corner of the appliance.
- Page 21 Care and maintenance Cleaning the Humidity Sensor IMPORTANT: • CLEAN THE METAL SURFACES OF THE SENSOR 4 TIMES A YEAR. • Do not use metal tools to clean the metal surfaces of the sensor. WARNING: • Due to the risk or fire and explosion, do not use solution agents, cleaning agents or similar products when cleaning the sensors.
- Page 22 Care and maintenance Cleaning the Inner Surface of door IMPORTANT: • DO NOT FORGET TO CLEAN THE INNER SURFACE OF THE LOADING DOOR AFTER EACH DRYING PROCESS. Open the loading door of the dryer and clean all of the inner surfaces and the gasket with a soft, damp cloth.
-
Page 23: Trouble Shooting
Trouble shooting Your dryer is fitted with systems that continuously perform checks during the drying process to take the necessary measures and warn you in case of any malfunction. WARNING: • If the problem persists even if you have applied the steps in this section, please contact the your dealer or an Authorised Service Provider. - Page 24 Trouble shooting PROBLEM REASON SOLUTION Make sure that the plug is fitted in the The dryer might not be plugged in. socket. Make sure that the loading door is properly The loading door might be open. The dryer cannot be opened closed.
-
Page 25: Warning Symbols
Warnings symbols WARNING SYMBOL REASON SOLUTION The water tank might be full. Empty the water tank. If the product is The water discharge hose connected directly to the The water tank might be bent. water outlet, check the warning symbol is water discharge hose. -
Page 26: Error Codes

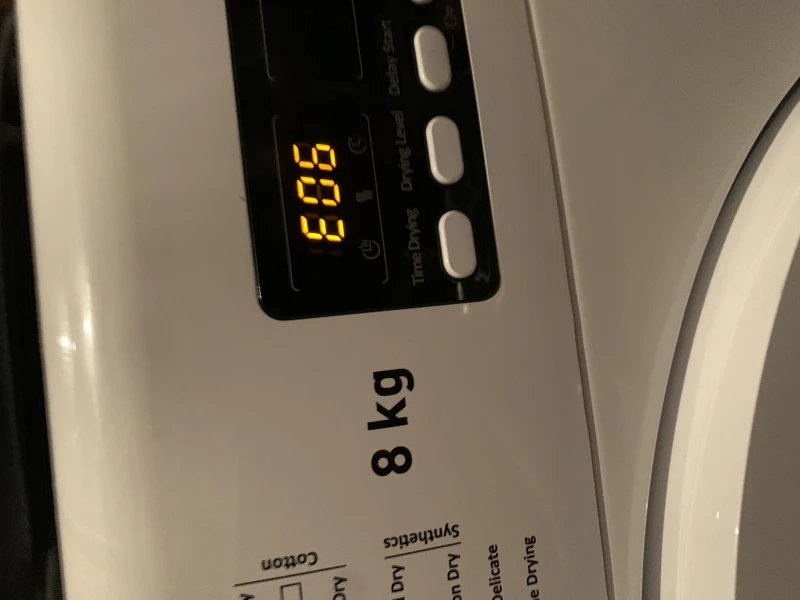

Error codes ERROR CODE FAULT SOLUTION Problem with the PCB Contact customer service Empty the water tank, if E03 / Water tank is full problem isn’t solved, contact customer service Problem with the heater Contact customer service Problem with the heater Contact customer service Problem with the door Contact customer service... -
Page 27: Technical Specification
Technical specification Brand Russell Hobbs Model RH8CTD701 (B) Type of dryer Condenser Energy efficiency rating Capacity (kg) Dimensions (CMs) (H)85.5 x (W)59.6 x (D)60.9 Voltage (V) 220 – 240 V Power (W) 2700 W Energy Efficiency • You should operate the dryer to full capacity, but make sure that it is not overloaded. -
Page 28: Product Fiche
Product fiche PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 Supplier name or trademark Russell Hobbs Model name RH8CTD701 Rated capacity (kg) Type of Tumble Dryer Condenser Energy efficiency class (1) Annual Energy Consumption (kWh) (2) Automatic of Non-automatic... -
Page 29: Connection To Mains Supply
Connections to the mains supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC230V ~ 50HZ. Check that the voltage marked on the product corresponds with your supply voltage. This product is fitted with a 13A plug complying with BS1363. If this plug is unsuitable or needs to be replaced, please note the following: Important: The wires in the mains lead are Coloured in accordance with the following code:... -
Page 30: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship the faulty product must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer. The following conditions apply: •... -
Page 31: Notes
Notes... - Page 32 For Customer Services & Spare Parts please call 0345 208 8750 or visit us at https://mda.russellhobbs.com This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
