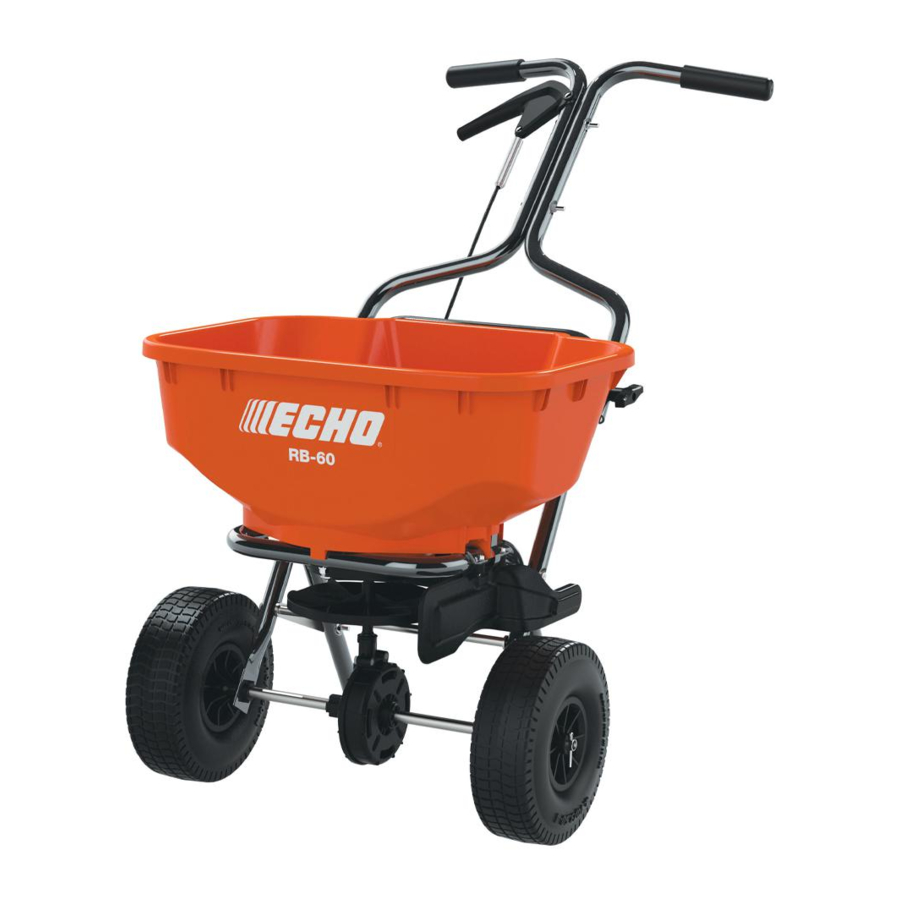

Echo RB-60 Manual

Assembly

1. Align holes in top handle bracket (A) with holes in bottom handle bracket (B).
2. Secure handle brackets with wing nuts (C) and carriage bolts (D) on each side.


Note: Attach each side loosely before tightening brackets securely.

NOTICE
Assure control cable (E) is routed behind handle brackets.

Application Instructions

TIP HAZARD. Unit can tip on uneven ground. Always fill hopper on flat ground, and keep bystanders away. Otherwise personal injury could result.

1. Fill Hopper
   Release actuator handle (A) to close gate. Fill hopper.

   Note: Fill hopper in an area that won't be damaged by spilled product.
2. Set Gate Adjustment
   Push gate adjuster (B) down and move to best application setting (see chart). Pull adjuster upward to lock in place.

   Note: Gate adjustment settings should only be used as a general guideline for application. Refer to instructions on material you are spreading for most accurate application setting requirements.
3. Application
   1. Lower edge guard (C) and make perimeter pass to protect non-lawn areas. Pull actuator handle to open gate while spreading.

   2. Raise edge guard. Make parallel internal passes to ensure even coverage.

Maintenance

NOTICE
Avoid spraying gear case directly, and do not use a pressure washer on spreader.

1. Wash spreader with a garden hose after each use.


SAFETY WARNINGS

Carefully read these instructions before use. Improper use or failure to follow instructions can result in product failure or injuries. For safe use of this product you must read and follow all instructions before using.

Cancer and Reproductive Harm www.P65Warnings.ca.gov

• Do not allow anyone to operate the broadcast spreader without proper instructions.
• Do not permit children to operate the broadcast spreader.
• Wear protective eyewear and gloves when handling and applying lawn and garden chemicals.
• Read and follow the chemical label instructions and warnings for handling and applying the chemicals you plan to spread – application settings provided are only a guideline.

www.echo-usa.com
